Sound like a 12-string. Sound like an organ. Get rid of your dry signal and sound like a synth just owning that lonely heart. We built the T-Rex Quint Machine to give you more, and it will keep you discovering new sounds for years.

---

Features

• Octave up, octave down, 5th up
• Individual volume controls, plus master mix
• Ultra-fast polyphonic tracking
• Replicate organ, synth or 12-string sound
• Play power chords on a single note

---

Specifications

• Input impedance @ 1KHz: Higher than 1M Ohm
• Output impedance @ 1KHz: Lower than 1K Ohm
• Power supply: 9V DC (T-Rex FuelTank)
• Minimum power supply voltage: 8V DC
• Maximum power supply voltage: 12,5V DC
• Current draw @ 9V DC: 145 mA
• Maximum input signal V p-p: 3V p-p
• Battery type: 9V battery 6F22
• Battery life: 30-60 minutes
• External connectors: input jack, output jack, 9V DC jack

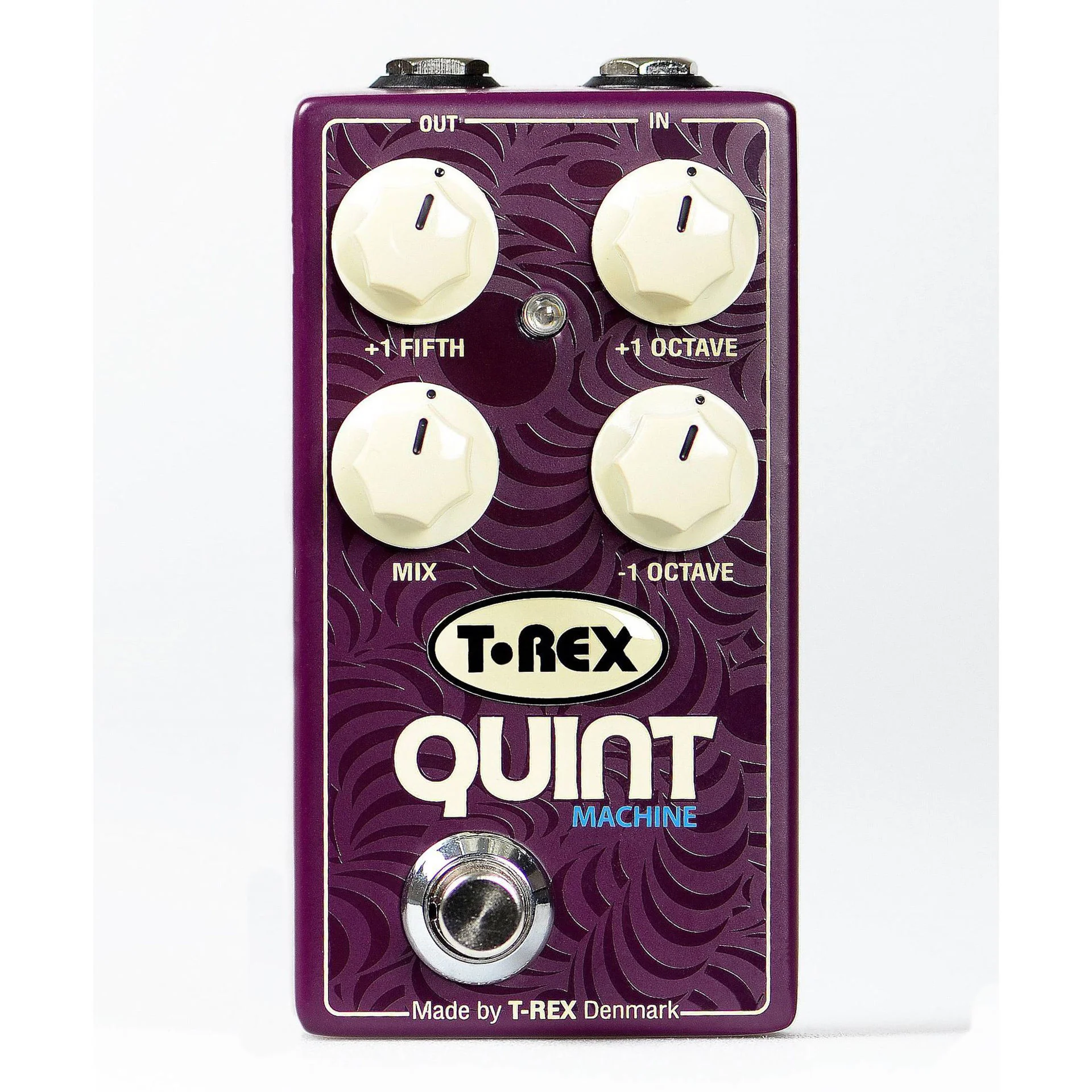

• Controls: on/off switch, mix, +1 octave, -1 octave, +1 fifth
• Pedal size incl. knobs (W x H x D): 60 x 50 x 117 mm / 2,4 x 2 x 4,6 in
• Weight excl. packaging: 0,21 kg / 7,4 oz

---
