Premium Components

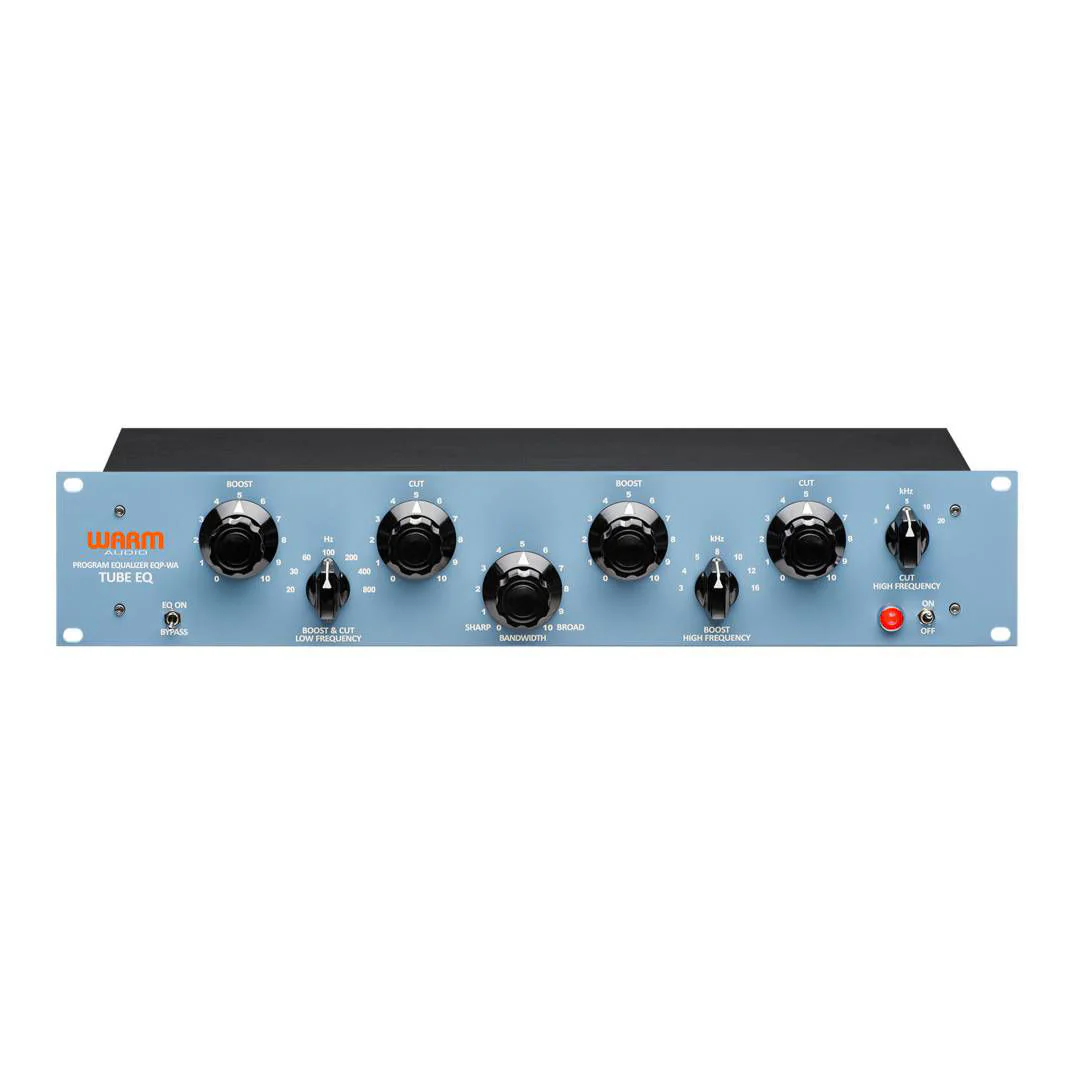

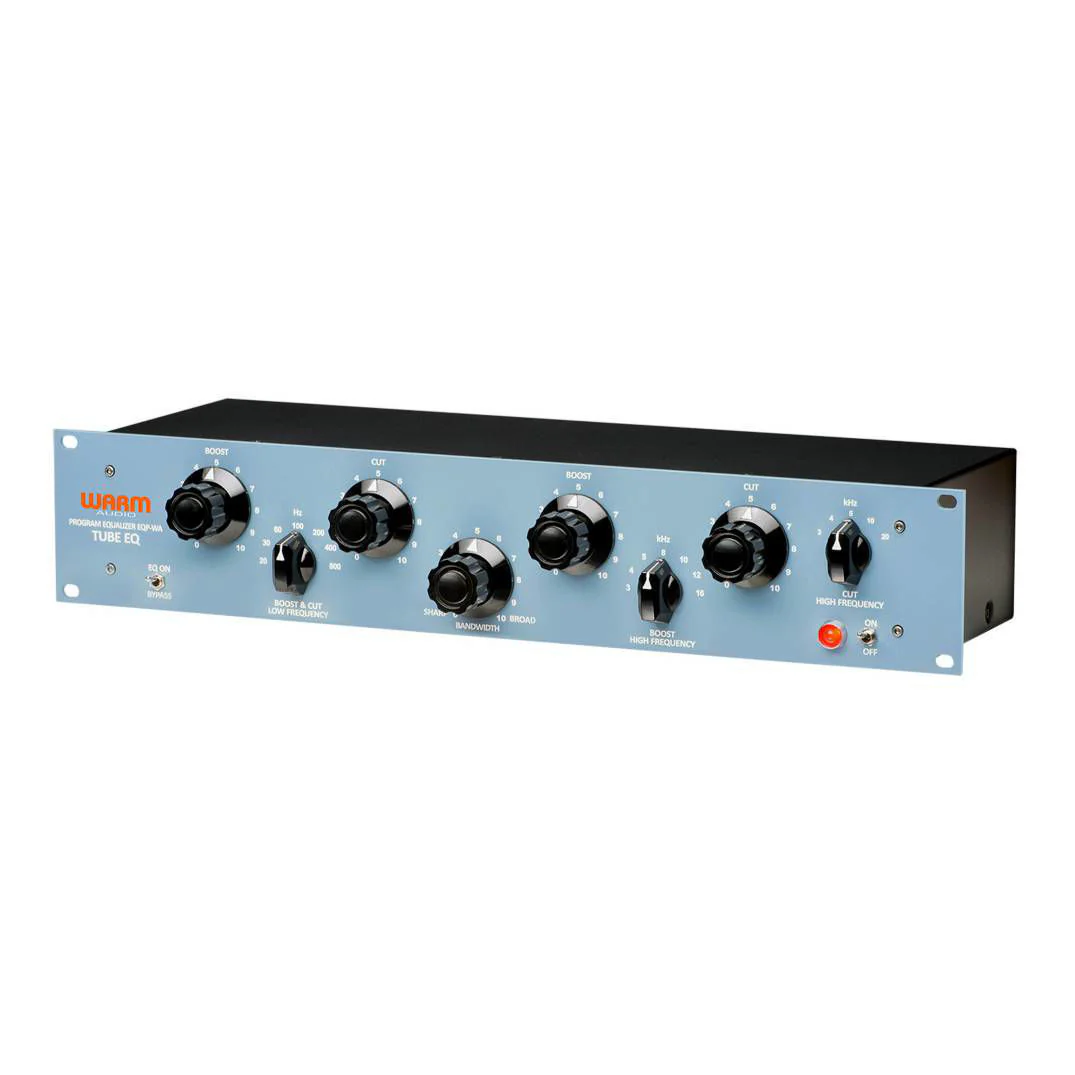

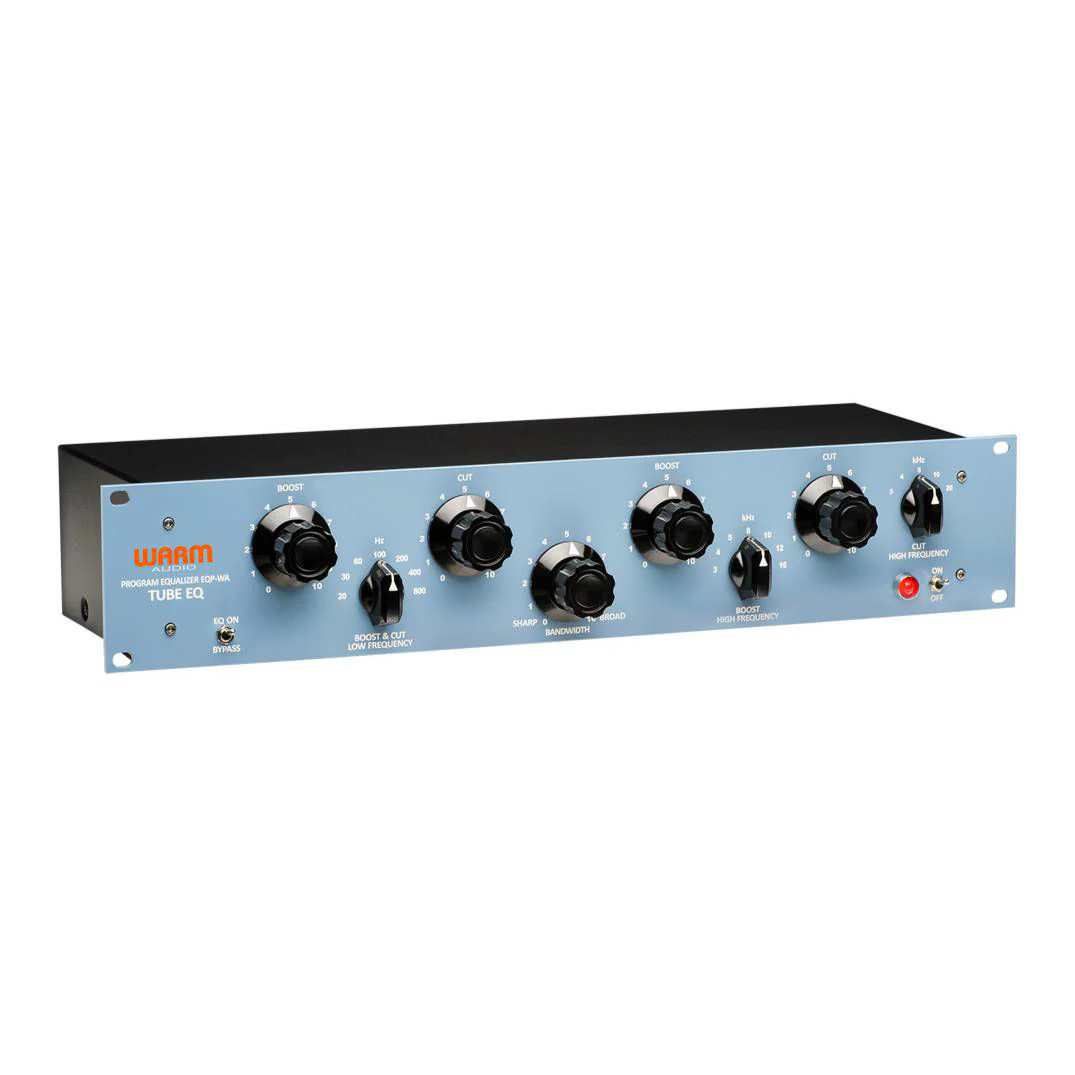

The EQP-WA is a high-voltage tube equalizer, utilzing CineMag USA Transformers and two premium vacuum tubes.

A Two Tube Operation
The EQP-WA operates on two tubes: one 12AX7 and one 12AU7. We proudly use premium brand tubes in this product for their sonic richness and 'open' sound. These 2 tubes are socketed for easy swapping and replacement.

Specifications

• UTILIZES PREMIUM GRADE INPUT AND OUTPUT CINEMAG USA TRANSFORMERS.
• TUBE EQUALIZER BASED ON THE CLASSIC “PULTEC” EQP-1A.
• PREMIUM HIGH VOLTAGE 12AX7 AND 12AU7 TUBES.
• CINEMAG INDUCTOR EQ SECTION.
• EQ SECTION IS BYPASSABLE - SIGNAL STILL PASSES THROUGH TUBES AND TRANSFORMERS FOR WARMING EFFECT.
• XLR AND TRS TRANSFORMER BALANCED OUTPUTS.
• FLAT FREQUENCY RESPONSE FROM 20 HZ - 50 KHZ.
• XLR AND TRS TRANSFORMER BALANCED INPUTS.
• NO INSERTION LOSS - LOSS RESTORED BY TUBE AMPLIFIER.
• 5 ADDED FREQUENCY POINTS FOR GREATER FLEXIBILITY.
• SWITCHABLE 115/230 VOLT IEC POWER INLET.
• DIMENSIONS: 19 X 3.5 X 6 INCHES - 2RU RACK MOUNTABLE.
• LOW FREQUENCY BOOST - 20, 30, 60, 100, 200, 400, 800 HZ - 12 DB.
• LOW FREQUENCY CUT - 20, 30, 60, 100, 200, 400, 800 HZ - 18 DB.
• HIGH FREQUENCY BOOST - 3, 4, 5, 8, 10, 12, 16 KHZ - 18 DB.
• HIGH FREQUENCY CUT - 3, 4, 5, 10, 20 KHZ - 14 DB.
• BOOST AND CUT CONTROLS CAN BE USED SIMULTANEOUSLY FOR PHASE EFFECT.
