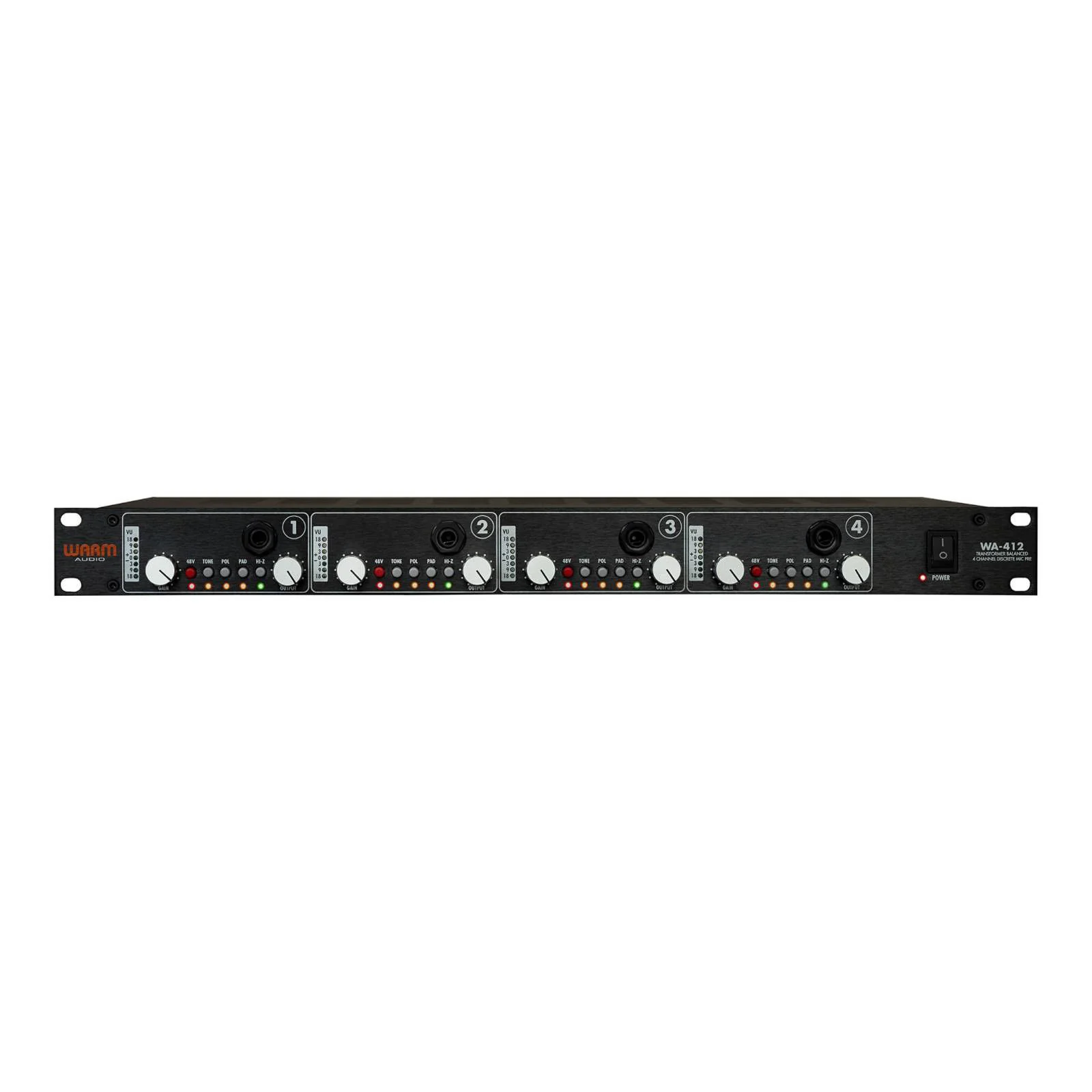

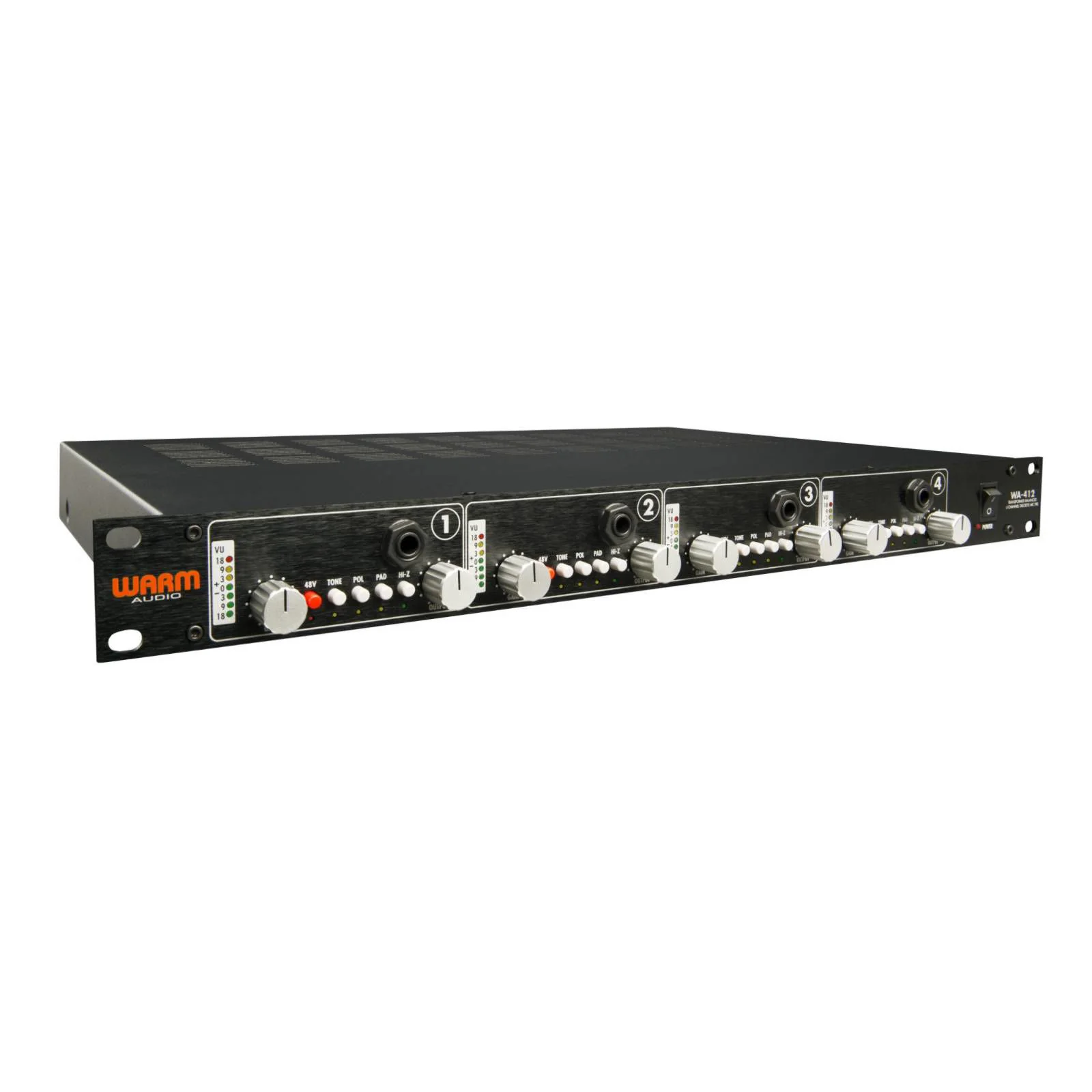

The price/performance ratio of the WA-412 is almost unfathomable to the experienced studio engineer who has possibly paid much more for preamps of this style during their career. Featuring fully discrete socketed 6-pin opamps and custom wound Altran USA input and output transformers, the WA-412 leaves nothing to be desired. If you are looking for multiple channels of world class tone in an affordable package, the WA-412 is the right choice for you.

The WA-412 has all of the features one would expect from this style of preamp... and more. Output Trim is available on every channel for precise control and creative gain staging. A Tone switch (transformer input impedance) is also available on each channel, which allows you to choose between a warm and punchy classic console tone, or go for a more open & neutral sound.

---

Specifications

• 4 CHANNEL MICROPHONE PREAMPLIFIER + INSTRUMENT DI
• FULLY DISCRETE, TRANSFORMER COUPLED, THROUGH-HOLE COMPONENT TOPOLOGY
• ALTRAN USA CUSTOM WOUND, PREMIUM INPUT AND OUTPUT TRANSFORMERS
• X520 DISCRETE OP-AMP IN EVERY CHANNEL, SOCKETED FOR CONVENIENCE. CAN BE USER-REPLACED WITH MOST 6 PIN, DISCRETE OP-AMPS FOR VARYING FLAVOR & TONE
• 65DB OF GAIN
• INPUTS - MICROPHONE XLR & ACTIVE INSTRUMENT 2MEG OHM HI-Z

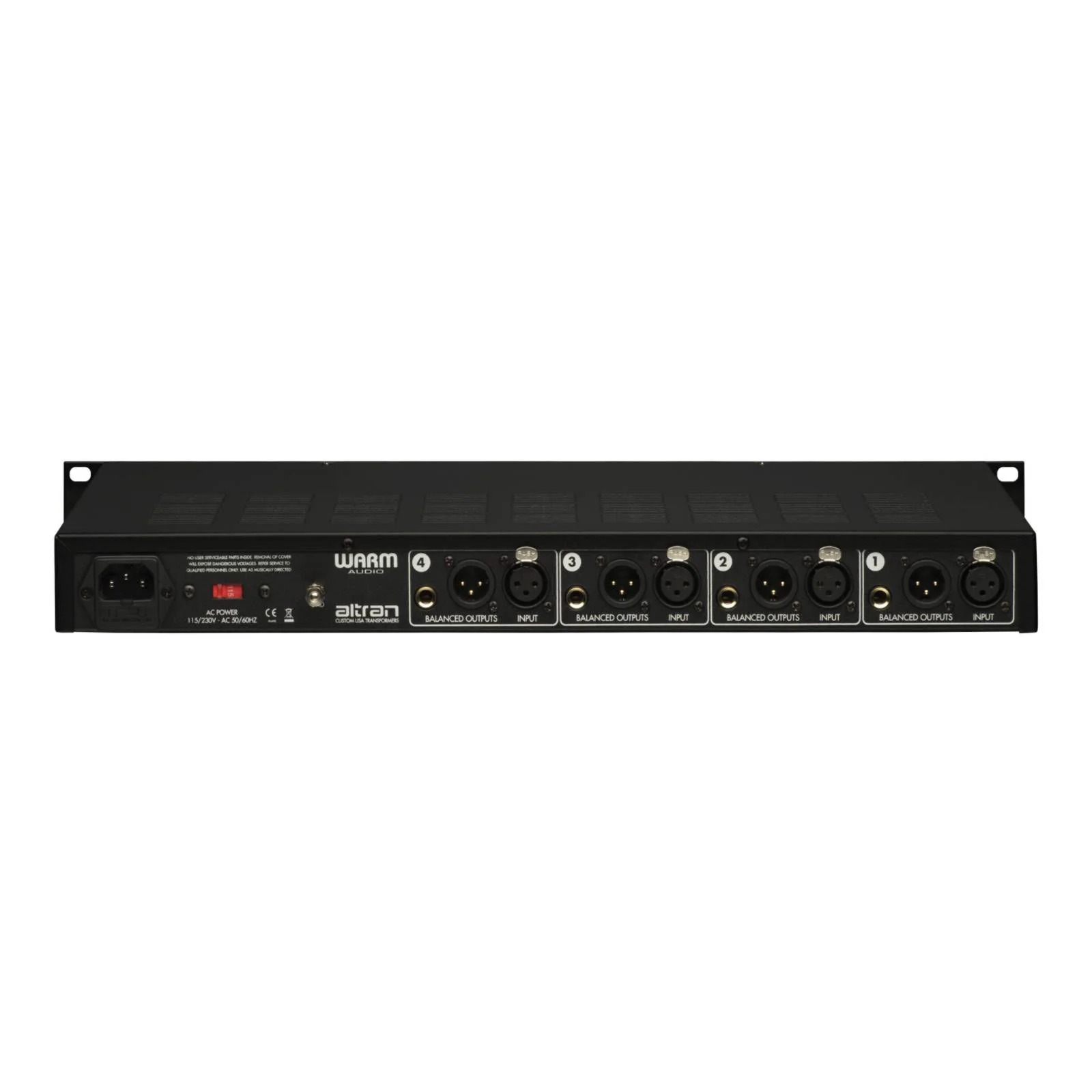

• OUTPUTS - TRANSFORMER BALANCED XLR & TRS
• -20DB PAD - PADS BOTH MIC AND INSTRUMENT DI INPUTS
• TONE BUTTON INPUT IMPEDANCE - SWITCHES FROM 600 OHMS TO 150 OHMS (AFFECTS THE TONE OF BOTH THE MIC AND HI-Z INPUTS)
• SELF NOISE: <-90DB (NOMINAL)
• FREQUENCY RESPONSE: 20HZ TO 20KHZ <+/-0.25DB (TONE BUTTON OUT), 20HZ TO 20KHZ +/-2DB (TONE BUTTON IN)
• +48 VOLT PHANTOM POWER
• LED METERING
• OUTPUT TRIM KNOB FOR PRECISE LEVEL CONTROL AND TONE SCULPTING
• INTERNAL POWER SUPPLY (GROUNDED, 3 PIN IEC CORD)

---
