HDR is here already in the form of Blu-Ray, Satellite & Cable (HLG) and gaming content. The RXV-35-4K is the perfect companion for WyreStorm's MXV line-up of matrices when distances of under 35 meters are required. This is the perfect solution for the TX-H2X-VLC modular card, found in the H2XC line.

---

Features

• Uses WyreStorm's proprietary compression technology for lossless transmission of 4K HDR content, without latency
• Reliable HDBaseT-HDMI conversion over distance using single Cat6 cable
• 4K UHD signals up to 35m/131ft (2160p 4:4:4 60Hz 8-bit) and 2K signals up to 70m/230ft (1200p 60Hz 16-bit)
• Supports HDMI2.0 video standard up to 18Gbps
• Compatible with HDR standards including HDR-10, HDR-10+, HLG and Dolby Vision (Dolby Vision supported up to 30Hz)
• Class B HDBaseT supporting the transmission of video, multichannel audio, bidirectional control and PoH
• Powered remotely via PoH from MXV matrix
• HDCP 2.2 compatibility
• Bidirectional IR supported with both IR TX & RX ports
• RS-232 port for routed 2-way serial communication

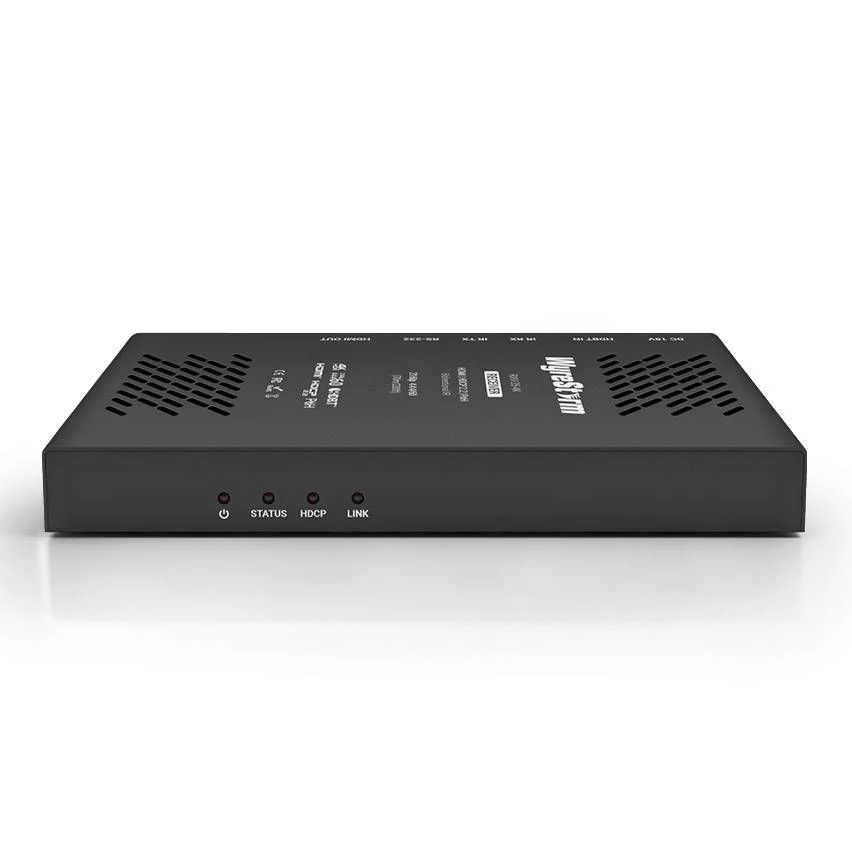

• LED indication for HDCP presence within signal and transmission link between devices
• Ventilated steel chassis
• Conforms to IEEE-568B standards
• Compact design for convenient and unobtrusive installation
• Wall mounting brackets and IR accessories included

---

Specifications

Audio and Video

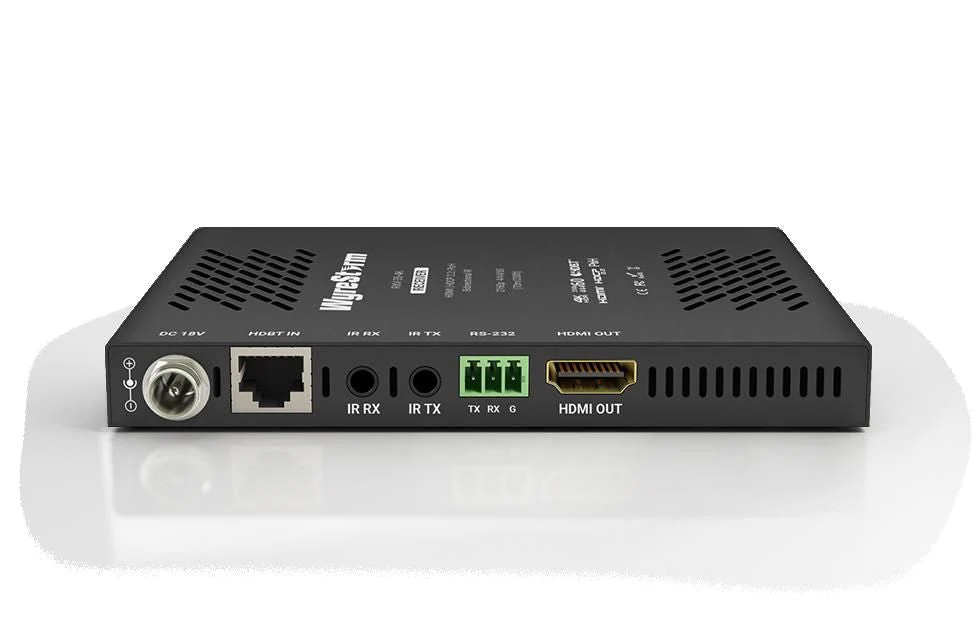

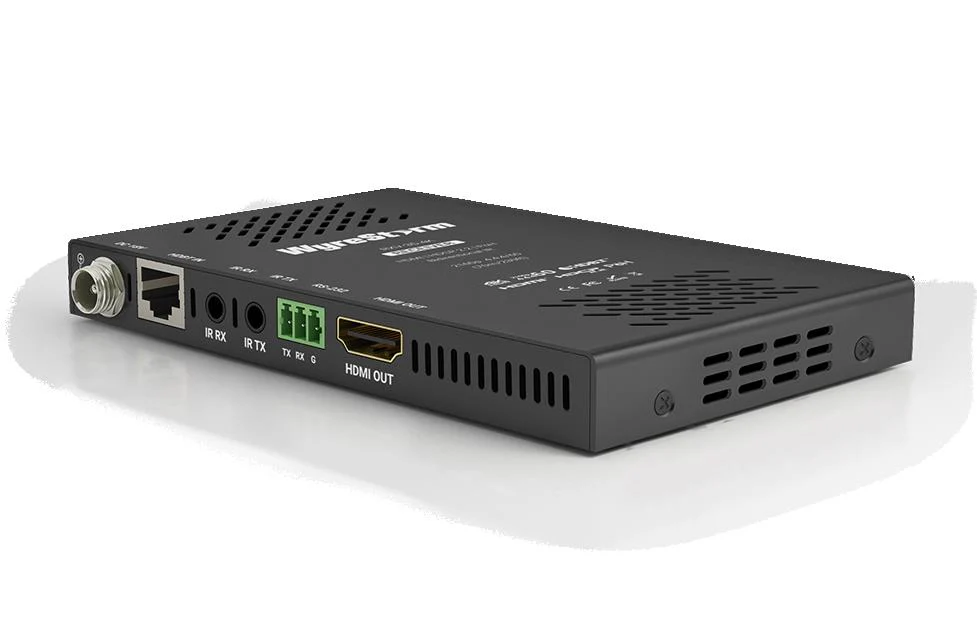

• Inputs: 1x HDBaseT™ In: 8-pin RJ-45 Female
• Outputs: 1x HDMI Out: 19-pin type A
• Output Video Encoding: HDBaseT™ Class B
• Encoding Data Rate: 9.2Gbps
• End to End Latency: 10μs (micro seconds)
• Audio Formats:

  • Analog: 2ch analog
  • S/PDIF: 2ch LPCM | Dolby Digital/CTS up to 5.1ch
  • HDMI: 2ch LPCM | Multichannel up to DTS-X and Dolby Atmos
• Video Resolutions (Max) Video Resolutions

  • 3840x2160p @30Hz 8bit 4:4:4
  • 4096x2160p @60Hz 8bit 4:4:4
• HDMI

  • 7m/23ft Input
  • 15m/49ft Output
• Cat6

  • 35m/115ft
  • 35m/115ft
• Cat6a/7

  • 40m/131ft
  • 40m/131ft
• Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
• Maximum Pixel Clock: HDMI: 600MHz | HDBaseT™: 297MHz

Communication and Control

• HDMI: HDMI 2.0 | HDCP 2.2 | EDID | CEC | DVI-D supported with adapter (not included)
• HDBaseT™: HDMI 2.0 | HDCP 2.2 | EDID | CEC | 1-way PoH to Receiver | Bidirectional IR
• CEC: CEC power triggering for connected screens - Requires CEC compatibility
• IR: 1x IR RX 3.5mm (1/8in) TRS Stereo | 1x IR TX: 3.5mm (1/8in) TS Mono | Bidirectional over HDBaseT™
• RS-232: 1x RS-232: 3-pin Terminal Block - 3.5mm

Power

• Power Supply: 18V DC (Optional)
• PoH: 1-way Matrix to Receiver
• Max Power Consumption: 12.42W

Environmental

• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• StorageTemperature: -20°C to 70°C (-4°F to 158°F)
• Maximum BTU: 43 BTU/hr

Dimensions and Weight

• Rack Units | Wall Box: <1U
• Height With | Without Feet: 15.2mm/0.6in
• Width With | Without Brackets: 136mm/5.38in
• Depth With | Without Handles: 74.2mm/2.93in
• Weight: 0.24kg/0.53lbs

Regulatory

• Safety and Emission: CE | FCC | RoHS | RCM
