Features

• Classical body with nylon strings
• Solid spruce top
• Ovangkol back and sides
• Rosewood fingerboard and bridge
• Onboard reverb and chorus effects

---

Specifications

• Body Shape: CG
• Scale Length: 650 mm (25 9/16")
• Body Length: 490 mm (19.29")
• Total Length: 995 mm (39 3/16")
• Body Width: 370 mm (14 9/16")
• Body Depth: 94-100 mm (3.7" - 3.94")
• Nut Width: 52 mm (2.04")
• String Spacing: 11.8 mm
• Top Material: Solid Spruce
• Back Material: Ovangkol
• Side Material: Ovangkol
• Neck Material: Nato
• Fingerboard Material: Rosewood
• Fingerboard Radius: Flat
• Bridge Material: Rosewood
• Nut Material: Urea
• Saddle Material: Urea
• Bridge Pins: None
• Tuners: Gold (RM-1157G-50XA)
• Body Binding: Rosewood + Black + White
• Soundhole Inlay: Rosette
• Pickguard: None
• Body Finish: Gloss
• Neck Finish: Matte
• Electronics: SYSTEM70 TransAcoustic

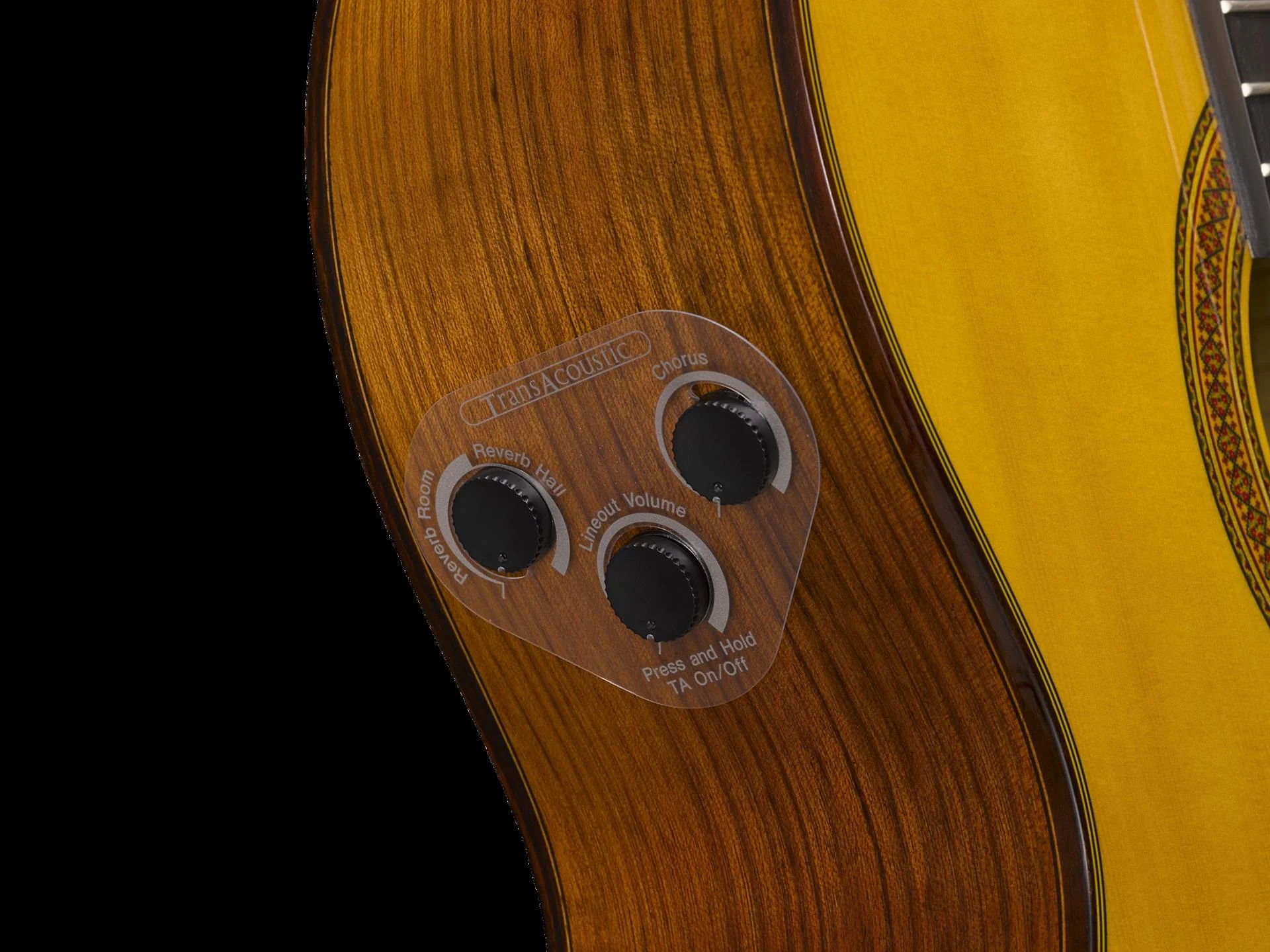

• Controls: Reverb/Chorus/Line Out Vol (TA On/Off)
• Connections: LINE OUT
• Strings: Trebles: High, Basses: Medium (Yamaha S10)2 x AA Batteries
• Accessories: 2 x AA Batteries
• Case: None

---
