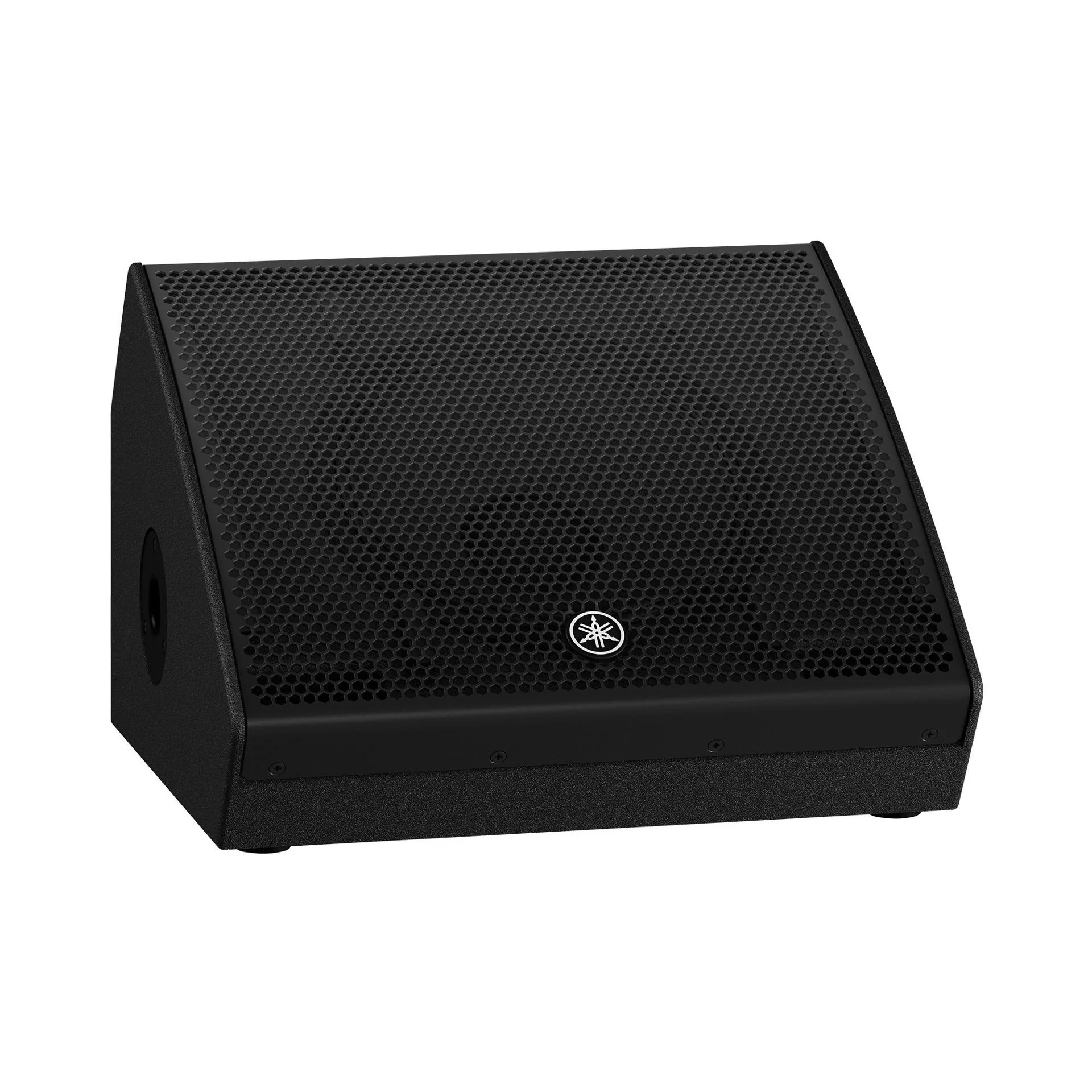

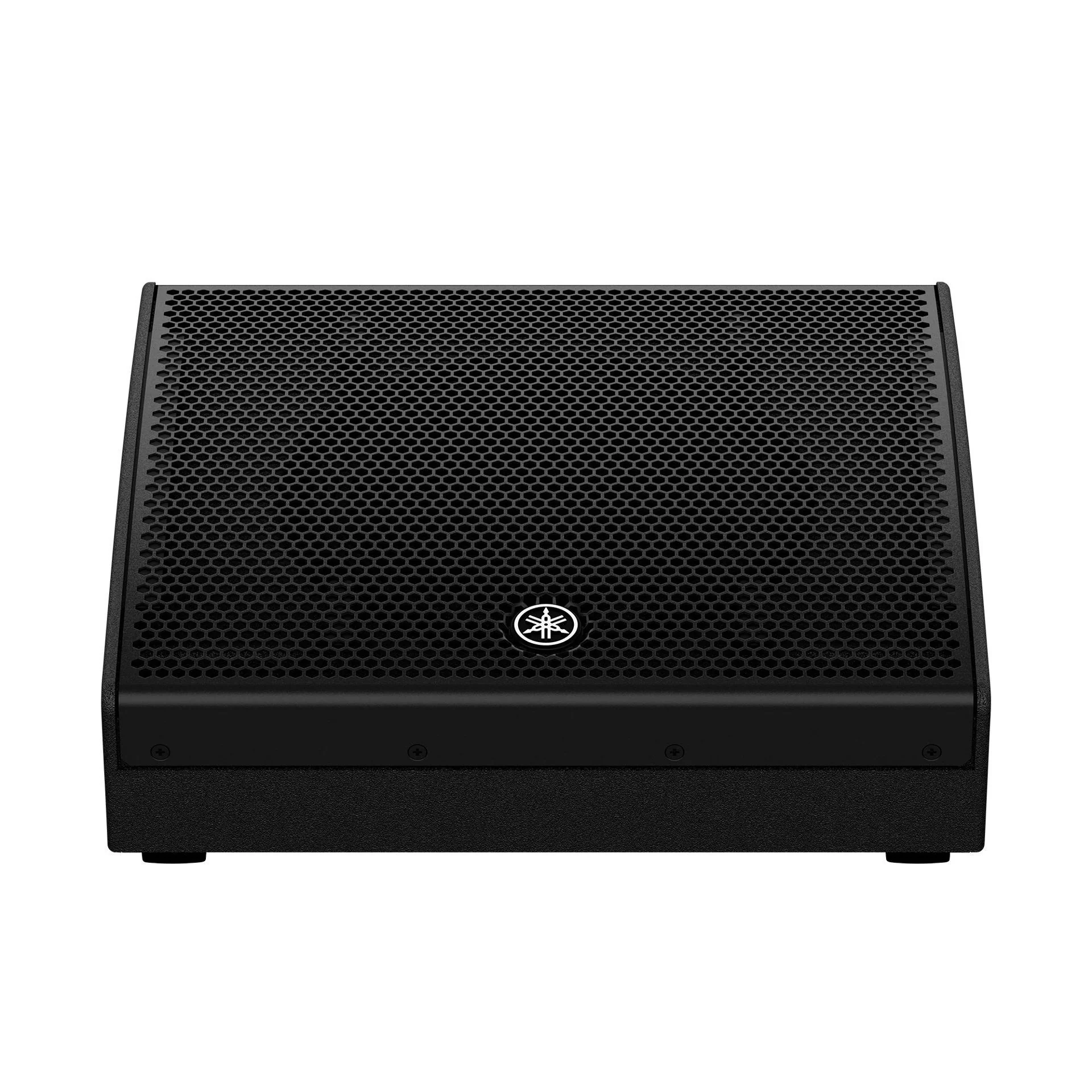

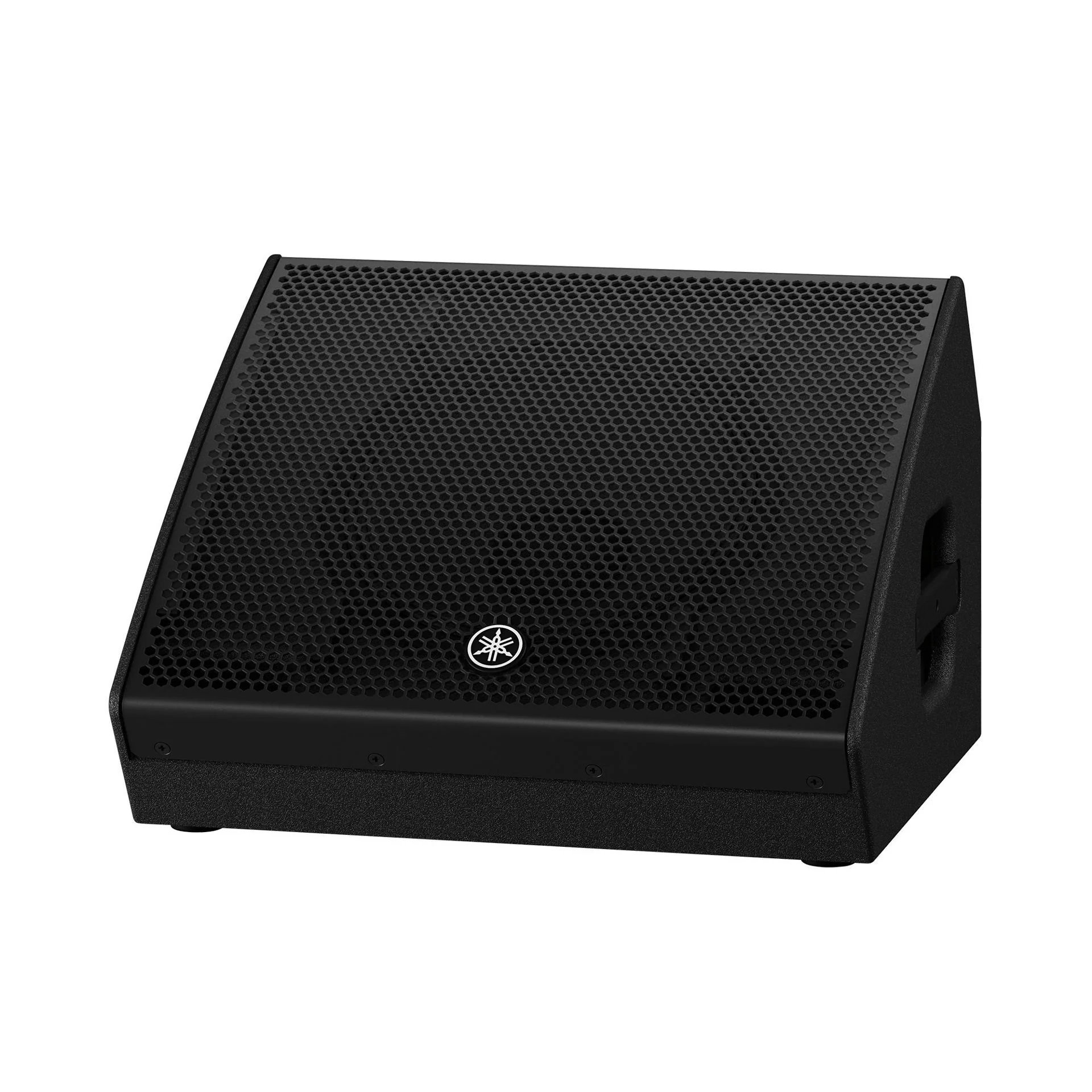

Combining a 1000W amplifier and high performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR12M offers best-in-class sound quality and durability.

---

Features

• The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
• A pole socket for use on a stand
• Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

---

Specifications

• Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency range (-10dB): 55 Hz - 20 kHz
• Coverage area: H90ﾟ x V90ﾟ
• Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
• Maximum Output Level (Measured peak, IEC noise@1m): 129 dB SPL

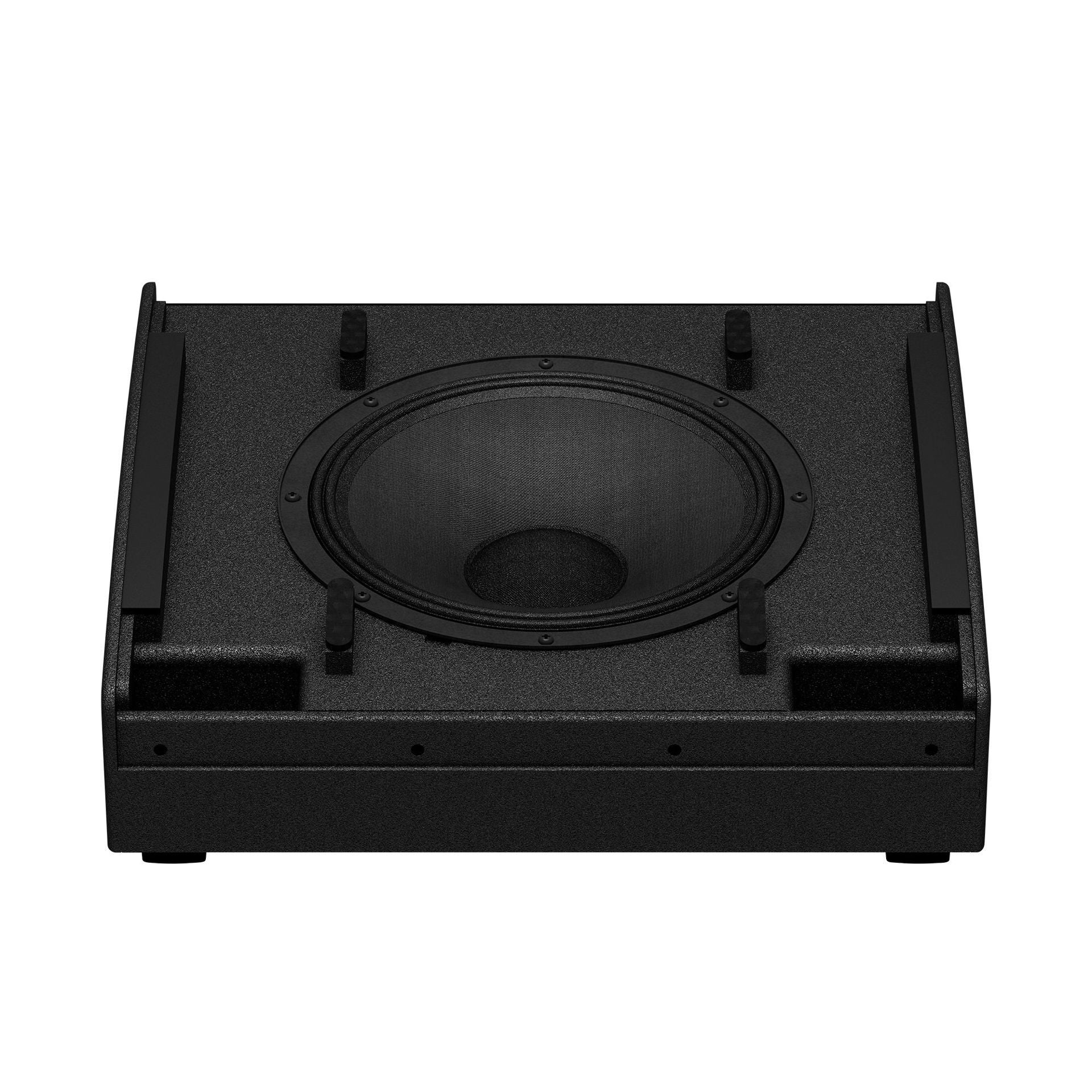

• Components LF: Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite
• Components HF: Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite
• Amplifier class: Class-D
• Power rating Dynamic: 1,000 W (LF: 800 W, HF: 200 W) *1
• Power rating Continuous: 465 W (LF: 400 W, HF: 65 W)
• Cooling: Fan cooling, 4 speeds
• Power consumption: 74 W (1/8power), 18 W (Idle)
• Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220V (Brazil), 50/60 Hz
• A/D D/A Converters: 24 bit 48 kHz Sampling
• Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

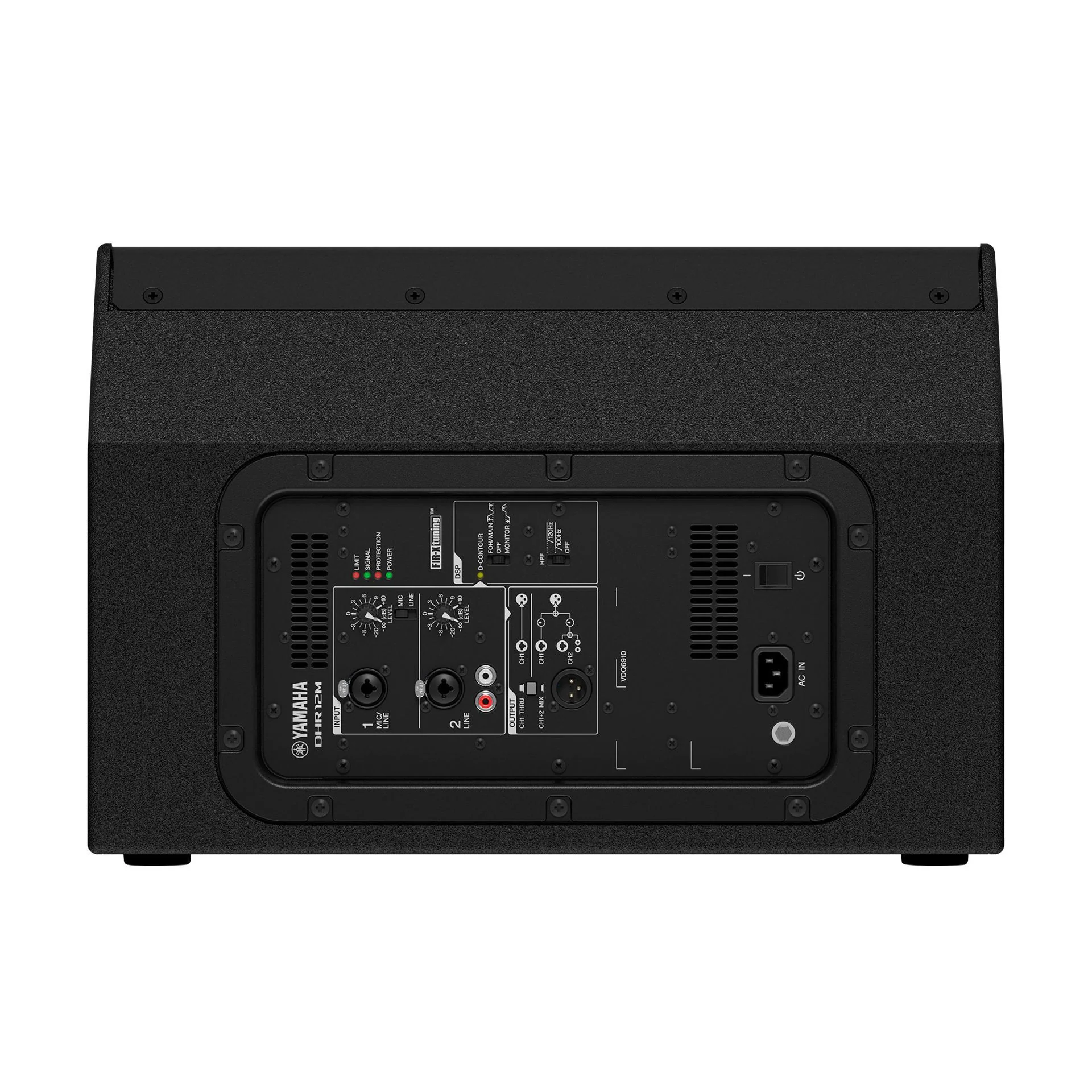

• I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Cabinet material: Plywood
• Finish: Durable Polyurea Painting, Black
• Handle: Side x1
• Pole socket: Φ35 mm x1 (Bottom)
• Floor Monitor Angle: 57°
• Dimensions (WxHxD): 500 mm (19.7"), 343 mm (13.5") (with rubber feet), 454 mm (17.9")
• Net weight: 16.5 kg (36.4 lbs)

---
