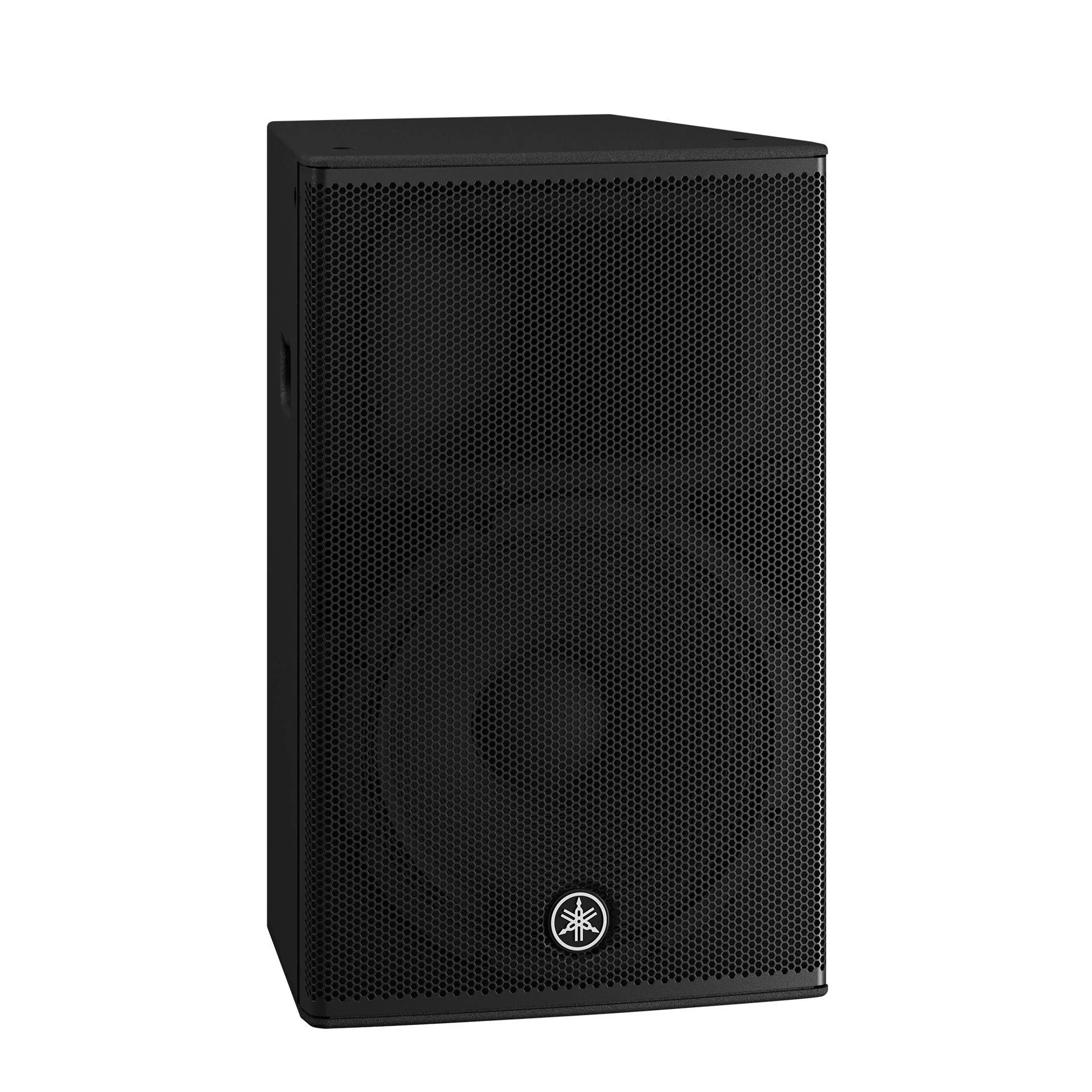

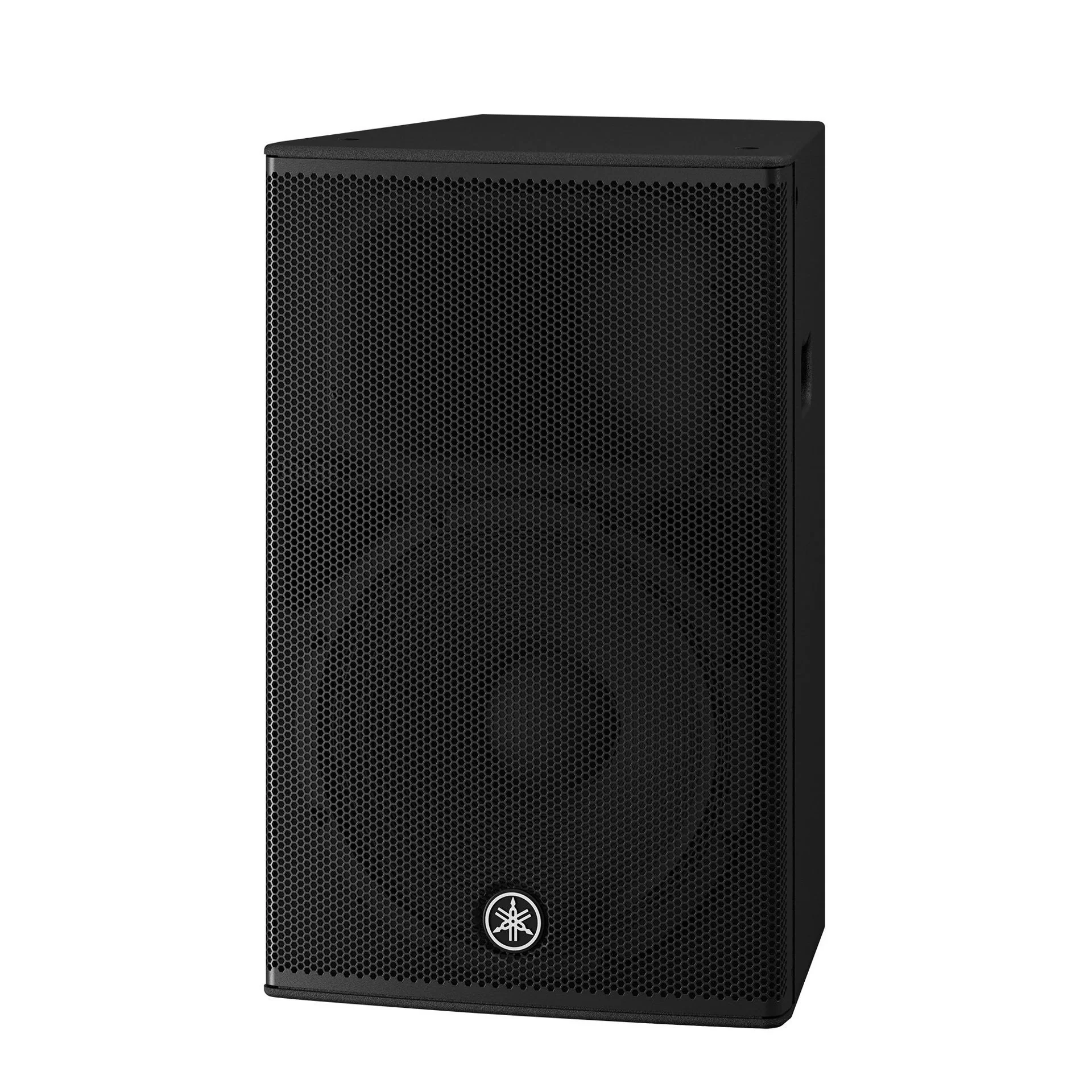

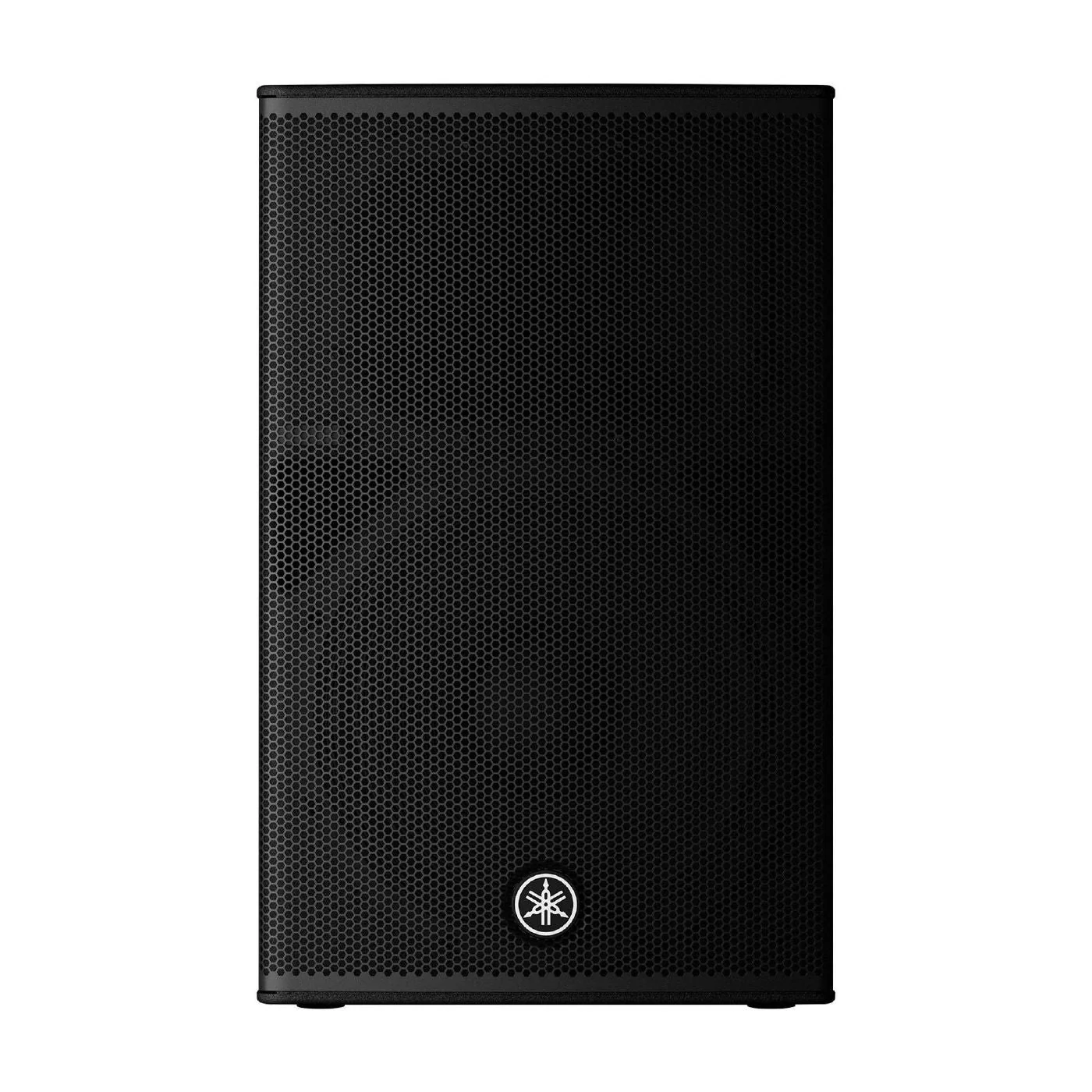

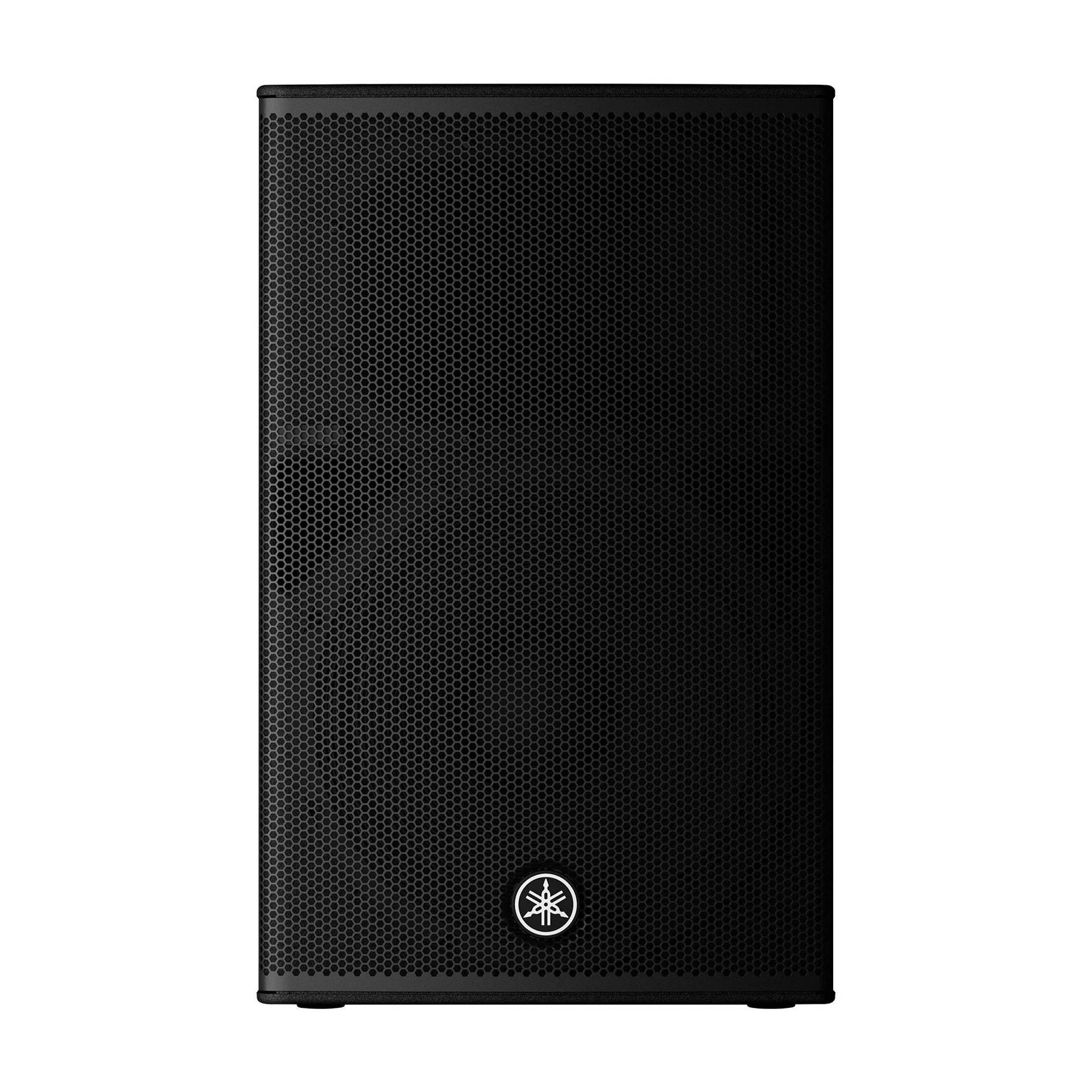

Yamaha DHR15 Powered Loudspeaker
The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.
Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications—all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity.
Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition DHR quality and performance to improve your sound?
Features
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration
- Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
- Compact size despite the 15-inch LF driver that provides excellent low frequency response
- Dual-angle pole sockets offer both 0° or a -7° down tilt
- Rigging points for use with eye bolts
- Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
Specifications
- Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
- Frequency range (-10dB): 44 Hz - 20 kHz
- Coverage area: H90ﾟ x V60ﾟ
- Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
- Maximum Output Level (Measured peak, IEC noise@1m): 131 dB SPL

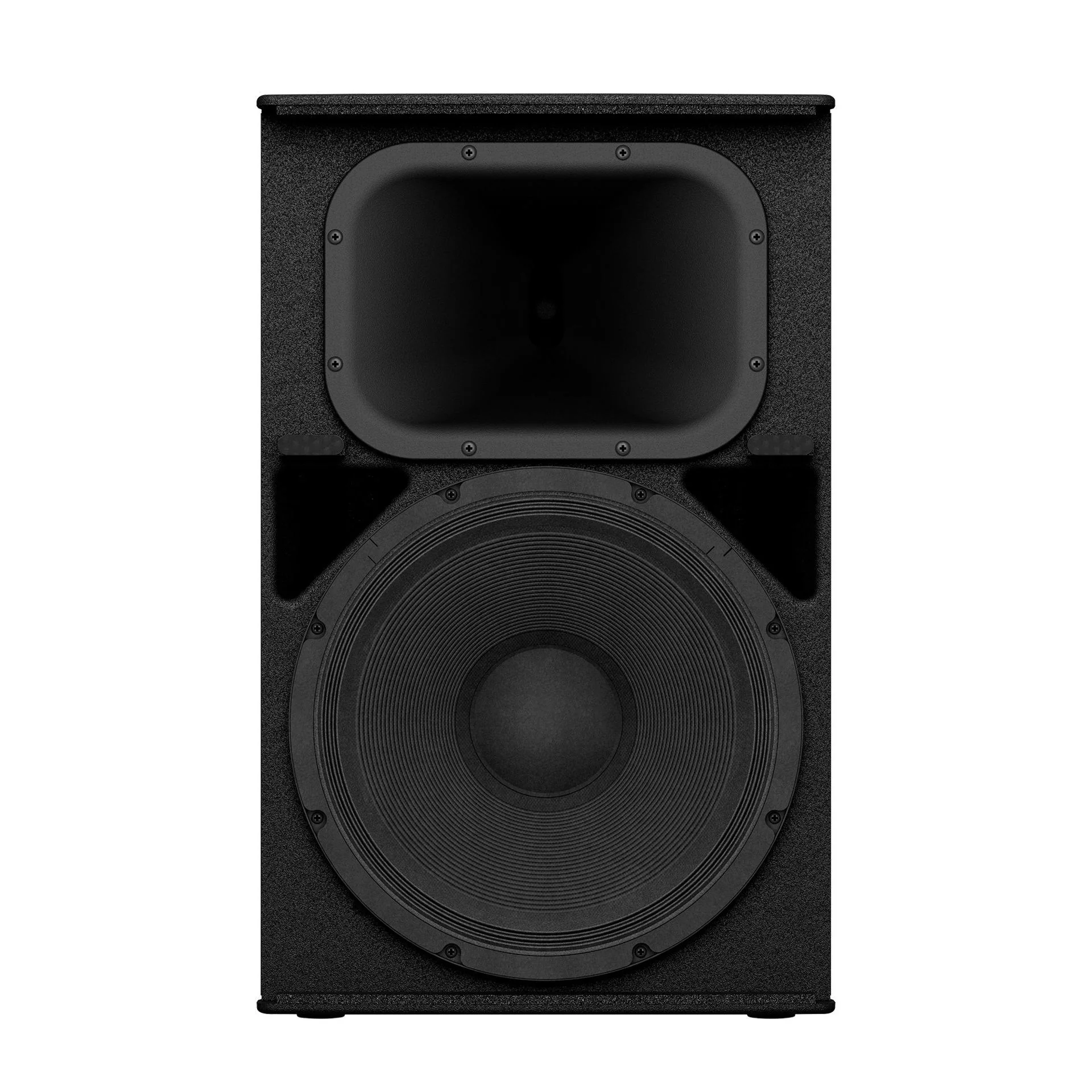

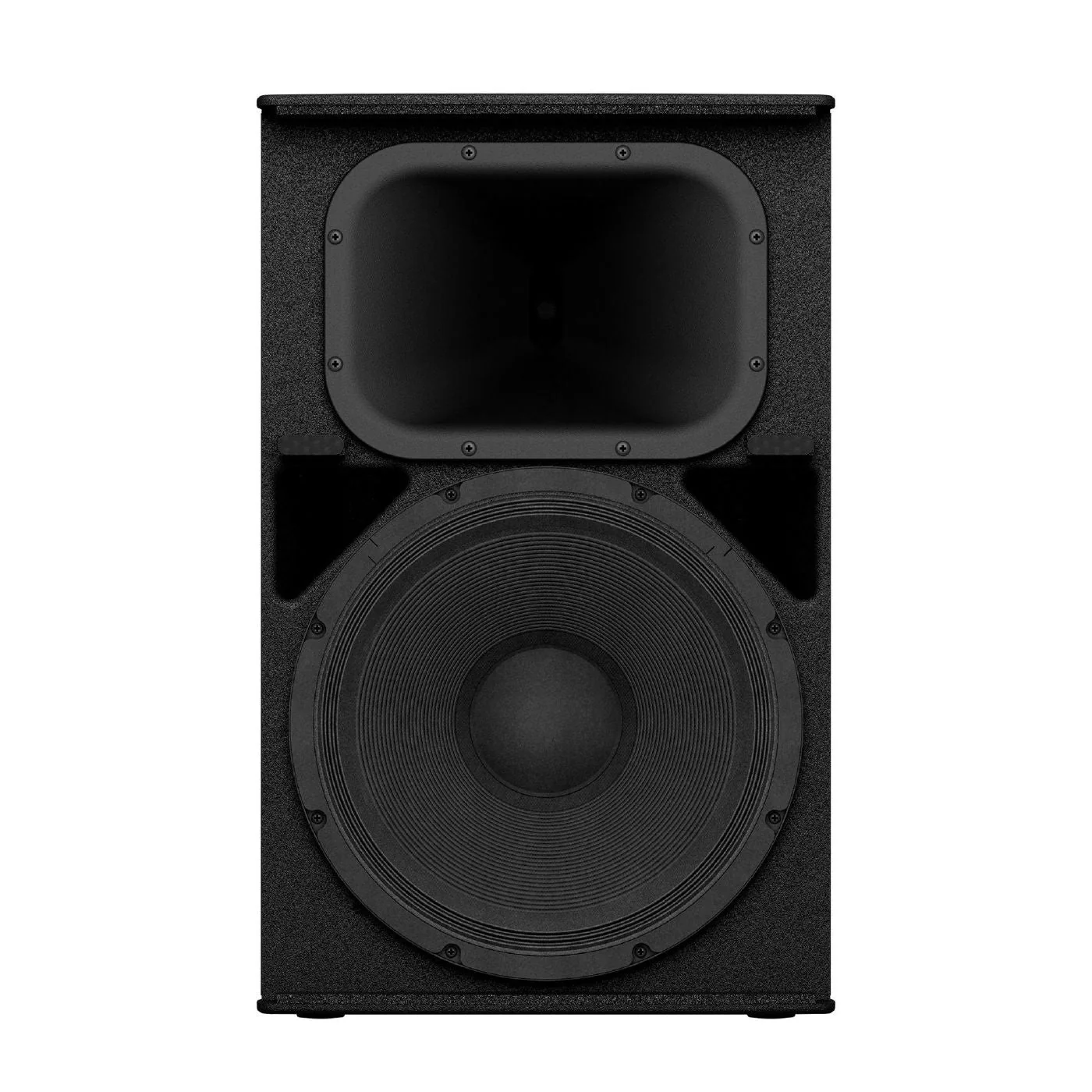

- Components LF: Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite
- Components HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
- Amplifier class: Class-D
- Power rating Dynamic: 1,000 W (LF: 800 W, HF: 200 W) *1
- Power rating Continuous: 465 W (LF: 400 W, HF: 65 W)
- Cooling: Fan cooling, 4 speeds
- Power consumption: 74 W (1/8power), 18 W (Idle)
- Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
- A/D D/A Converters: 24 bit 48 kHz Sampling
- Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

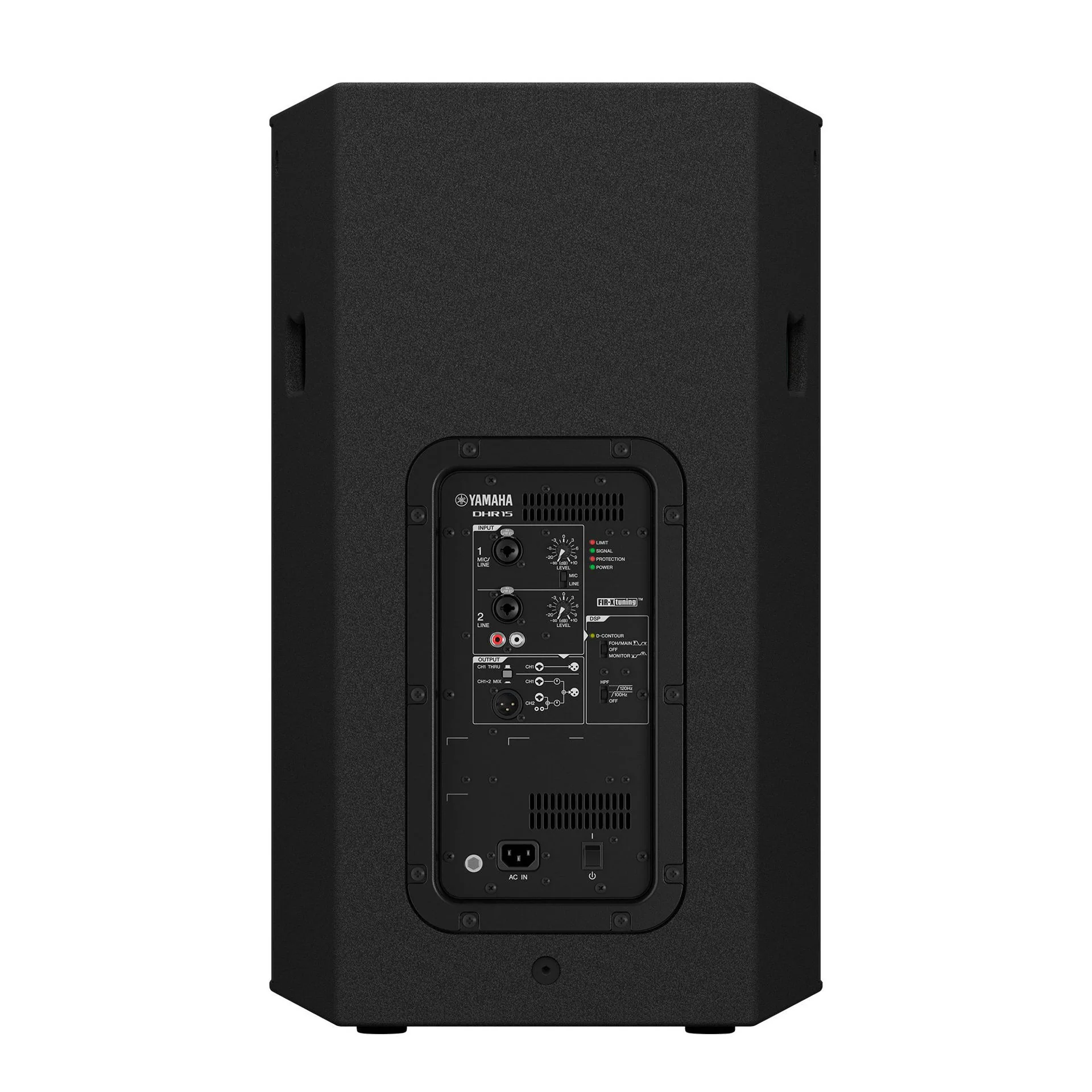

- I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Cabinet material: Plywood
- Finish: Durable Polyurea Painting, Black
- Handle: Side x2
- Pole socket: Φ35 mm x2 (Bottom, 0° or -7°)
- Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
- Floor Monitor Angle: -
- Dimensions (WxHxD): 432 mm (17.0"), 692 mm (27.2") (with rubber feet), 405 mm (15.9")
- Net weight: 24.0 kg (52.9 lbs)
Watch: Yamaha Powered Loudspeaker "DHR Series" and Loudspeaker "CHR Series"
Original: $782.65
-65%$782.65
$273.93Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.
Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications—all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity.
Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition DHR quality and performance to improve your sound?
Features
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration
- Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
- Compact size despite the 15-inch LF driver that provides excellent low frequency response
- Dual-angle pole sockets offer both 0° or a -7° down tilt
- Rigging points for use with eye bolts
- Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
Specifications
- Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
- Frequency range (-10dB): 44 Hz - 20 kHz
- Coverage area: H90ﾟ x V60ﾟ
- Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
- Maximum Output Level (Measured peak, IEC noise@1m): 131 dB SPL
- Components LF: Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite
- Components HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
- Amplifier class: Class-D
- Power rating Dynamic: 1,000 W (LF: 800 W, HF: 200 W) *1
- Power rating Continuous: 465 W (LF: 400 W, HF: 65 W)
- Cooling: Fan cooling, 4 speeds
- Power consumption: 74 W (1/8power), 18 W (Idle)
- Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
- A/D D/A Converters: 24 bit 48 kHz Sampling
- Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF
- I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Cabinet material: Plywood
- Finish: Durable Polyurea Painting, Black
- Handle: Side x2
- Pole socket: Φ35 mm x2 (Bottom, 0° or -7°)
- Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
- Floor Monitor Angle: -
- Dimensions (WxHxD): 432 mm (17.0"), 692 mm (27.2") (with rubber feet), 405 mm (15.9")
- Net weight: 24.0 kg (52.9 lbs)
Watch: Yamaha Powered Loudspeaker "DHR Series" and Loudspeaker "CHR Series"
