Yamaha DZR Series:Power and Performance Integrated

Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency bass sound reproduction— the new DZR delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design.

The culmination of all Yamaha’s accrued sound reinforcement, acoustics, and signal processing technology expertise—particularly with the introduction of our Dante-enabled models—DZR represents Yamaha’s first fully-integrated, smart/editable speaker range of professional, powered loudspeakers.

*NOTE: Yamaha have also created a DZR Series with Dante Networking capability.

Key Product Features

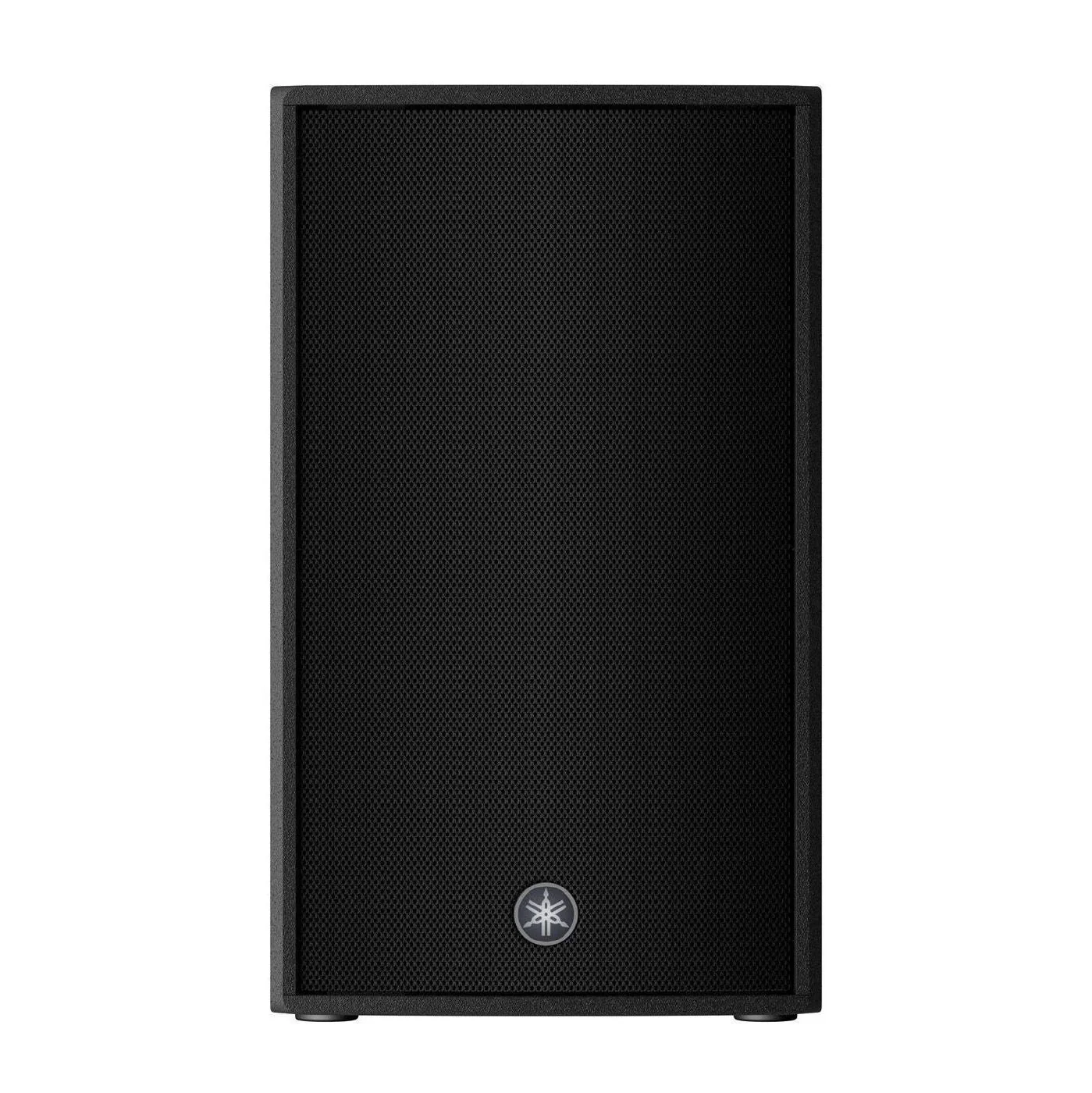

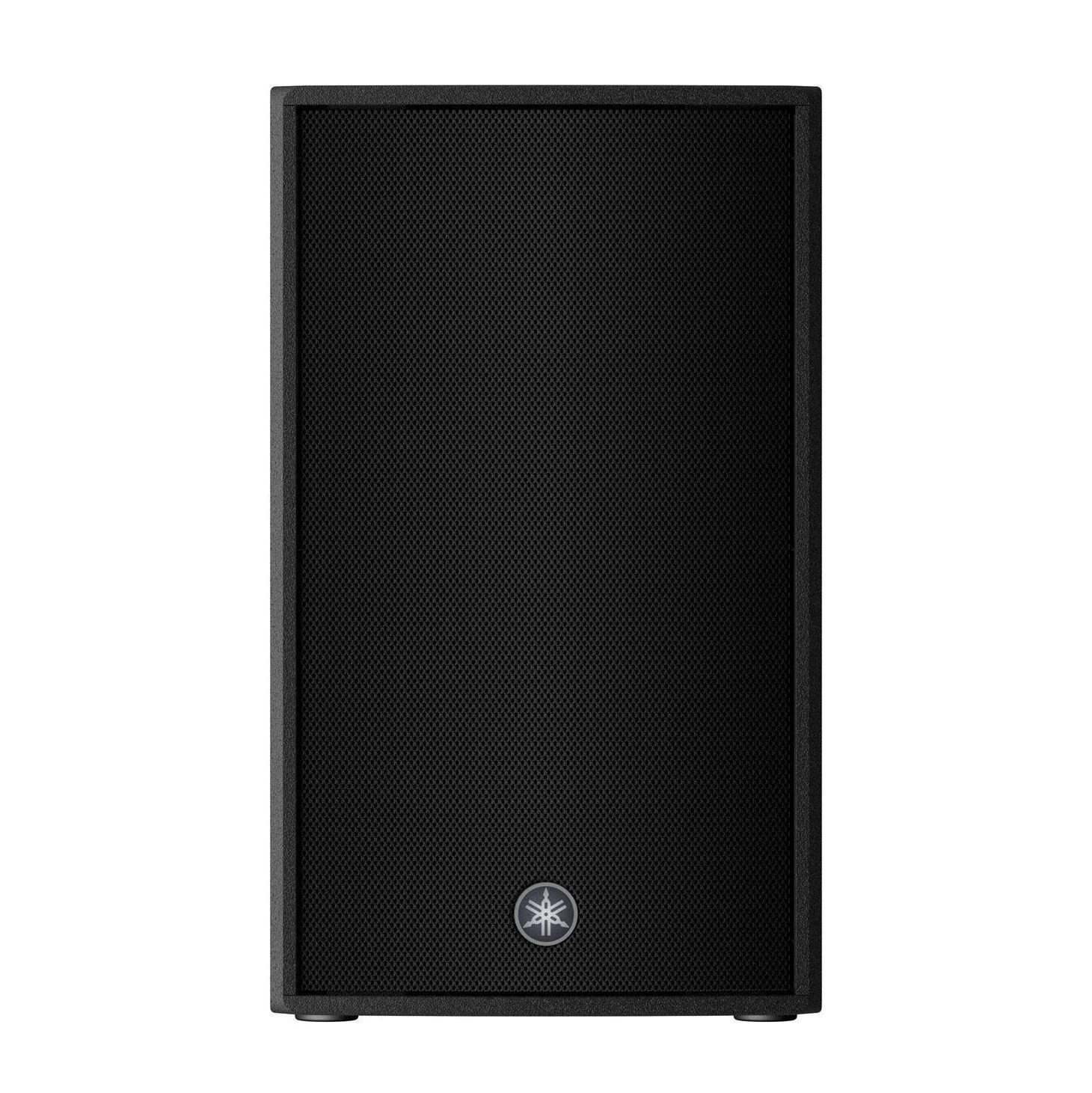

The DZR10 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 137dB SPL.

With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR10 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

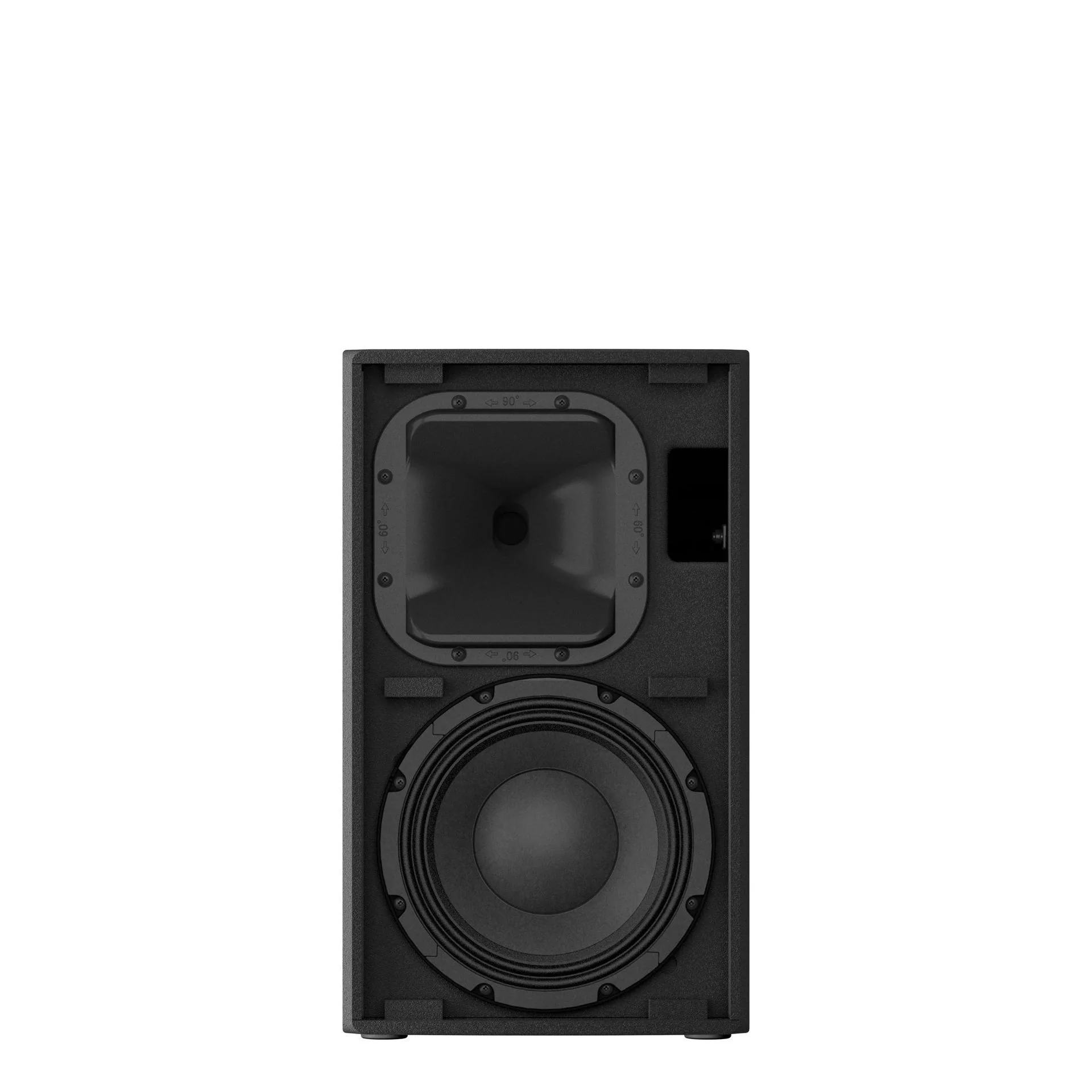

• 2-way powered loudspeaker with a 2” HF and a 10" LF
• Maximum 137dB SPL and 44Hz-20kHz frequency range is ideal for today’s audio engineering demands
• High power 2000W Class-D amplifier module
• 96kHz DSP and FIR filter for true high-resolution sound with super low latency
• Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• D-Contour and highly reliable protection circuits
• Floor monitoring setting
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• Optional speaker cover (SPCVR-DZR10)
• Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement

Product Specifications

Model	DZR10
Speaker type	2-way/Bi-amped Powered Speaker/Bass-reflex
Frequency range (-10dB)	44Hz - 20kHz
Coverage area	H90ﾟ x V60ﾟ (Rotatable)
Low Frequency	10" Cone 3" Voice Coil/Neodymium magnet
Mid Frequency	N/A
High Frequency	2" Voice Coil/1" Throat Compression Driver/Titanium diaphragm/Neodymium magnet
Crossover	1.8kHz (FIR-X)
Internal Sampling frequency rate	96kHz and FIR Filter
A/D D/A Converters	96kHz AD/DA
Maximum output level (1m; on axis)	137dB SPL *1
Dynamic Power	2000W (LF:1000W MF/HF: 1000W) *2
Continuous Power	1300W (LF: 920W MF/HF: 380W)

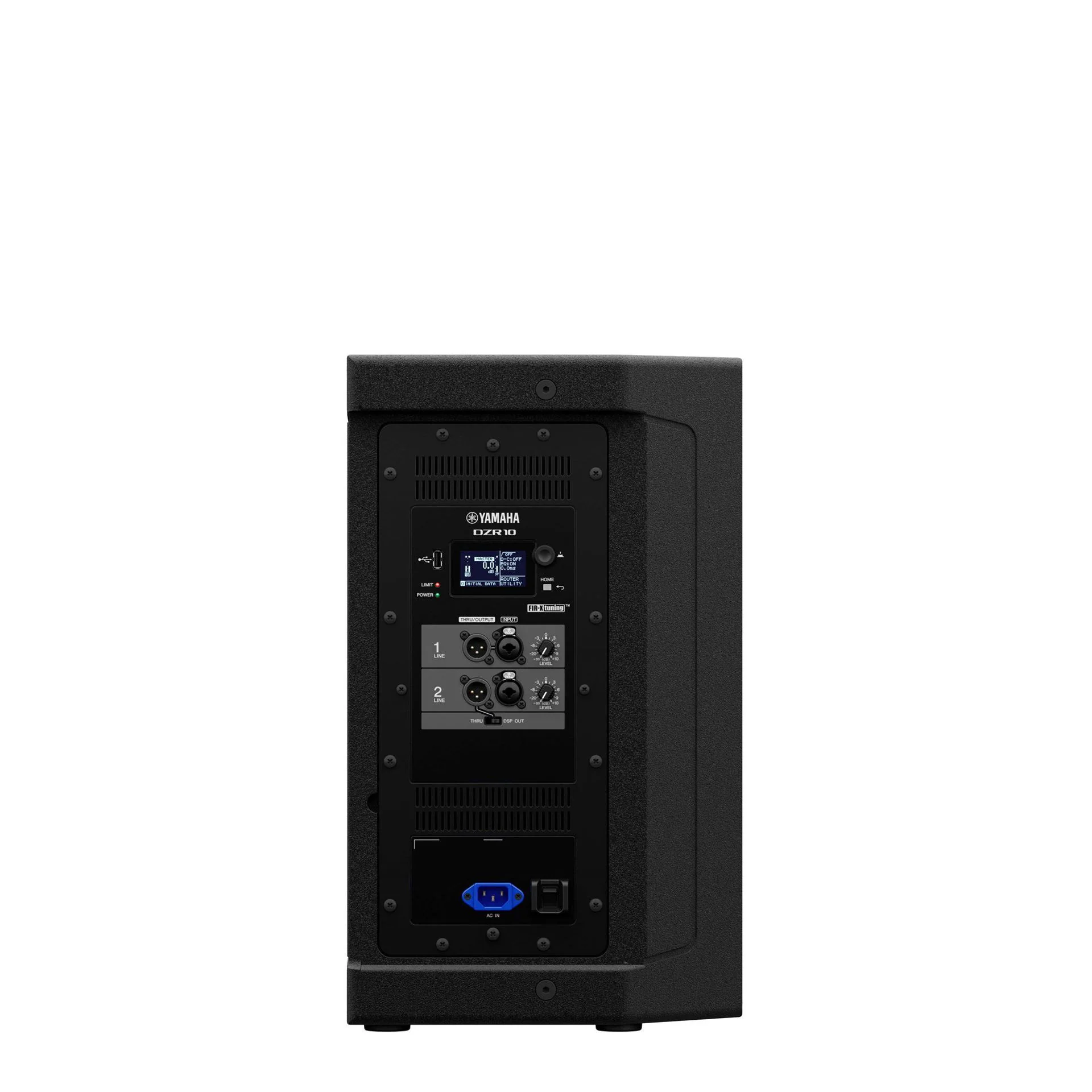

Analog I/O	Analog IN: Combo x2/Line level (Maximum +24dBu)/Input impedance 20kΩ/Analog OUT: XLR3-32 x2/CH1: THRU (fix)/CH2: THRU or DSP OUT
Other I/O	USB 2.0 Host 5V 500mA for USB memory DATA storage/load
AC I/O	IEC AC inlet x1 (V-Lock)
Amplifier class	Class-D
Cooling	Fan cooling/Variable speeds
Power consumption	45W (Idle)/150W (1/8)
Handle	Aluminium die-cast/Top x1/Side x1
Rigging	M10 x8/M8 x2
Width	315 mm (12.4")
Height	537 mm (21.1") (with rubber feet)
Depth	345 mm (13.6")
Net weight	17.9kg (39.5lbs)
Options	U-bracket: UB-DZR10H/V Cover: SPCVR-DZR10
Other Features	Enclosure Material/Finish/Color: Plywood/Durable Polyurea Painting/Black
Floor Monitor Angle	50°
Pole socket	Φ35 mm x2 (0° or -7°)
