Features

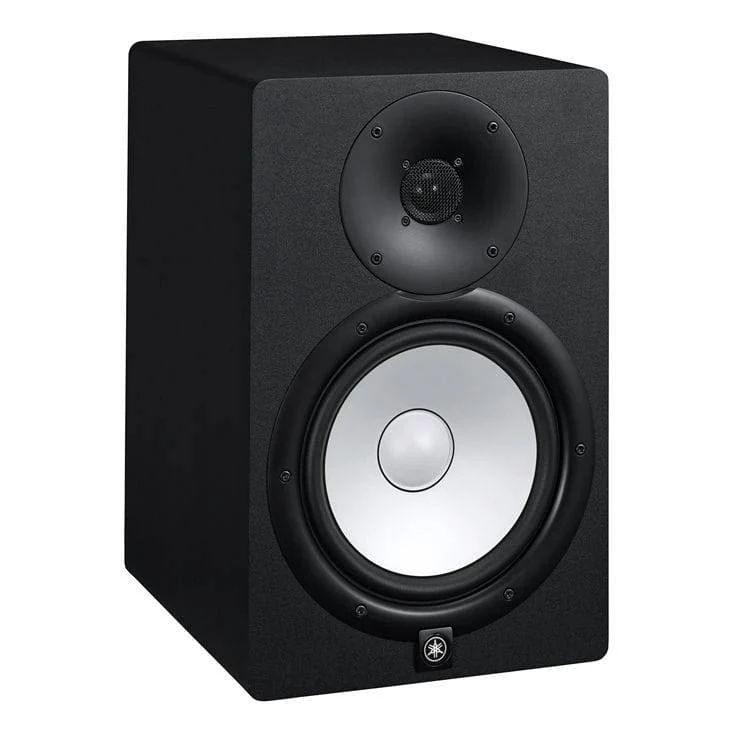

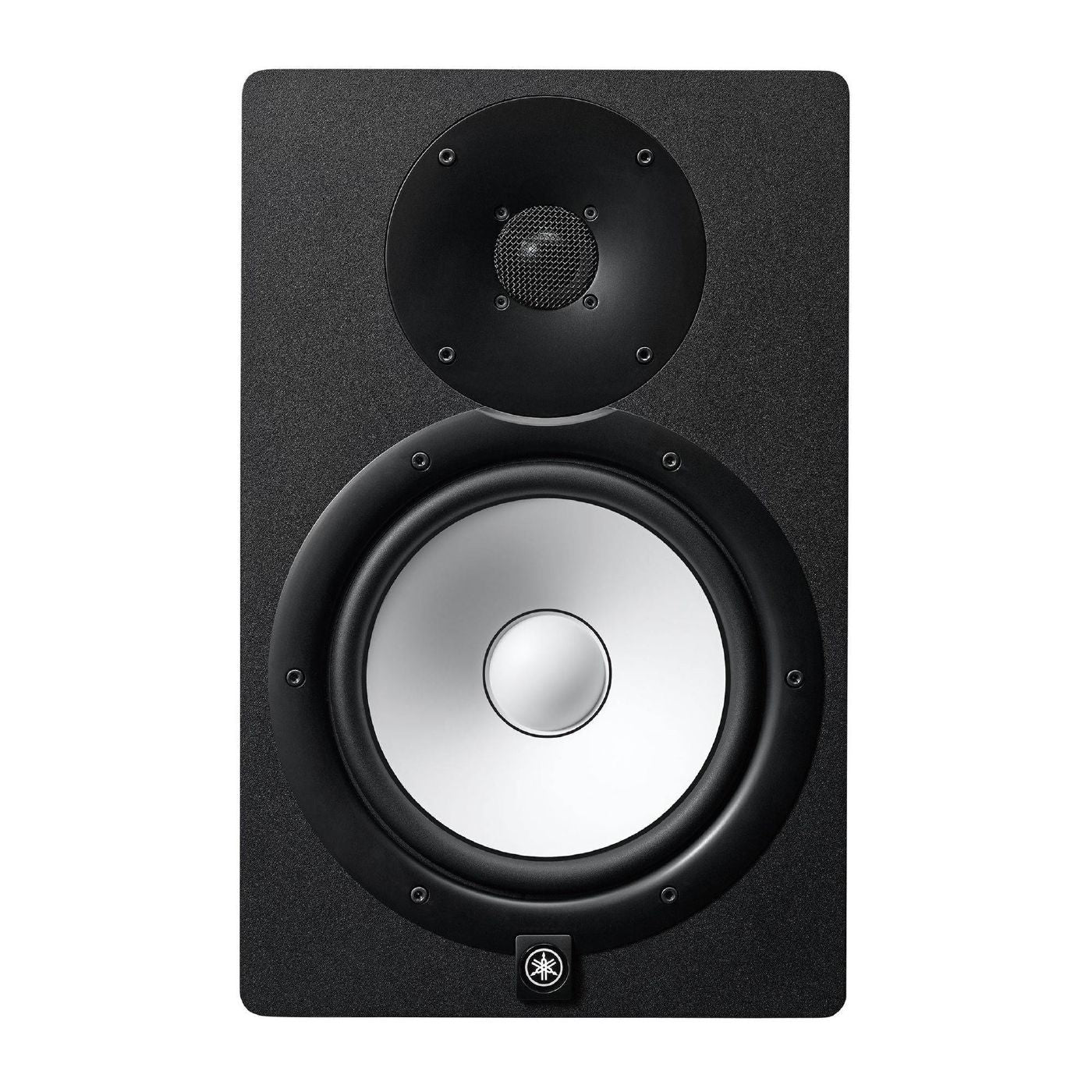

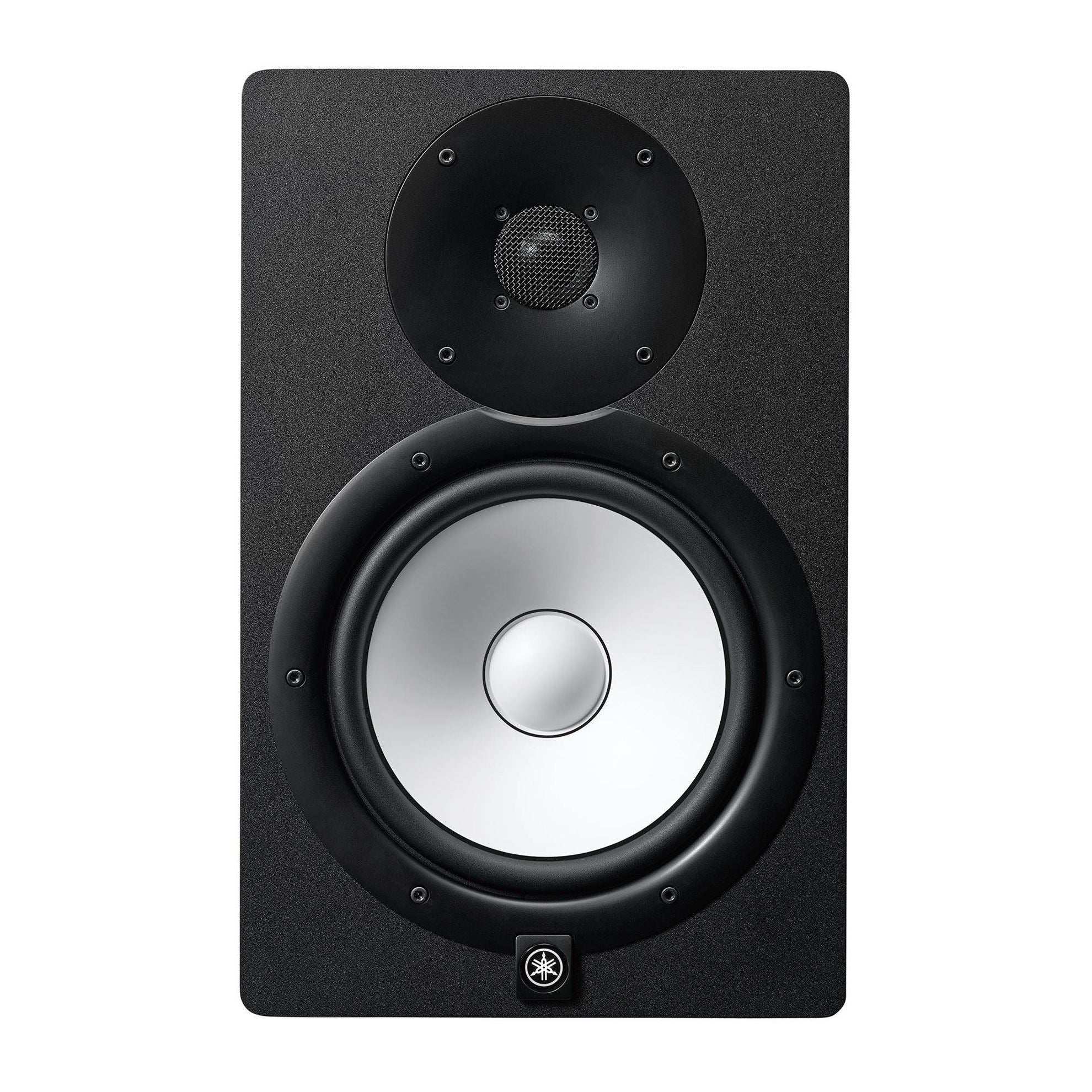

• 2-way bass-reflex bi-amplified nearfield studio monitor with 8" cone woofer and 1" dome tweeter
• 38Hz - 30kHz frequency response
• 75W LF plus 45W HF bi-amp system for high-performance 120W power amplification
• ROOM CONTROL and HIGH TRIM response controls
• XLR and TRS phone jack inputs accept balanced or unbalanced signals

---

Specifications

• Speaker type: 2-way bi-amp powered studio monitor
• Frequency response (-10dB): 38Hz - 30kHz
• Frequency response (-3dB): 47Hz - 24kHz
• Components LF: 8" cone
• Components HF: 1" dome
• Crossover: 2kHz
• Output power: 120W (LF:75W, HF:45W)
• Input sensitivity: -10 dBu/10k ohms
• I/O connectors: XLR3-31 type (balanced), PHONE (balanced)
• Indicators: Power ON (White LED)
• Power consumption: 60W
• Shape: Bass-reflex type
• Cabinet material: MDF
• Width: 250mm (9-13/16")
• Heigh: 390mm (15-3/8")
• Depth: 334mm (13-1/8")
• Net weight: 10.2kg (22.5 lbs.)
• Accessories: Owner's Manual, Power cord
• Packaging: Single
• Others: LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)

---
