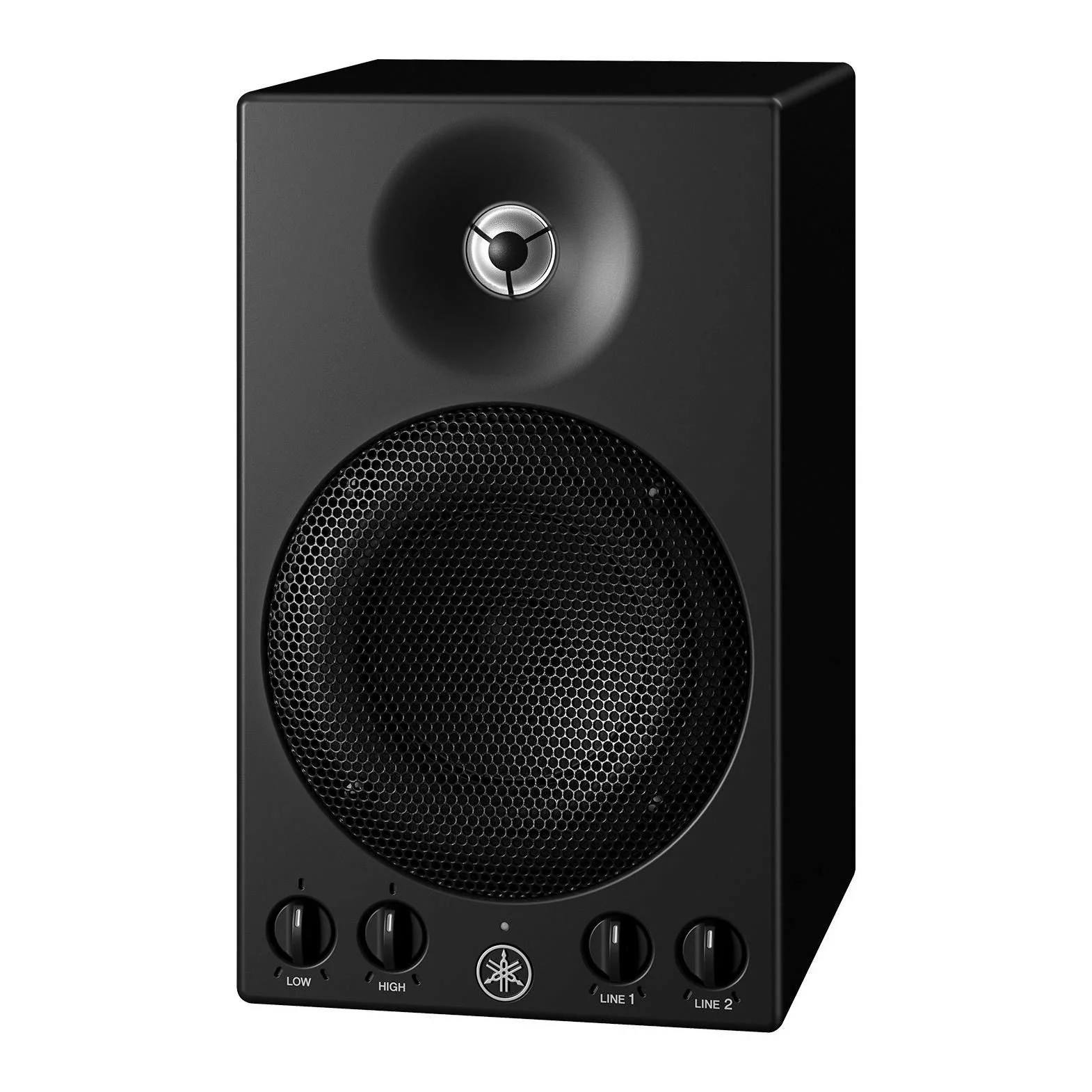

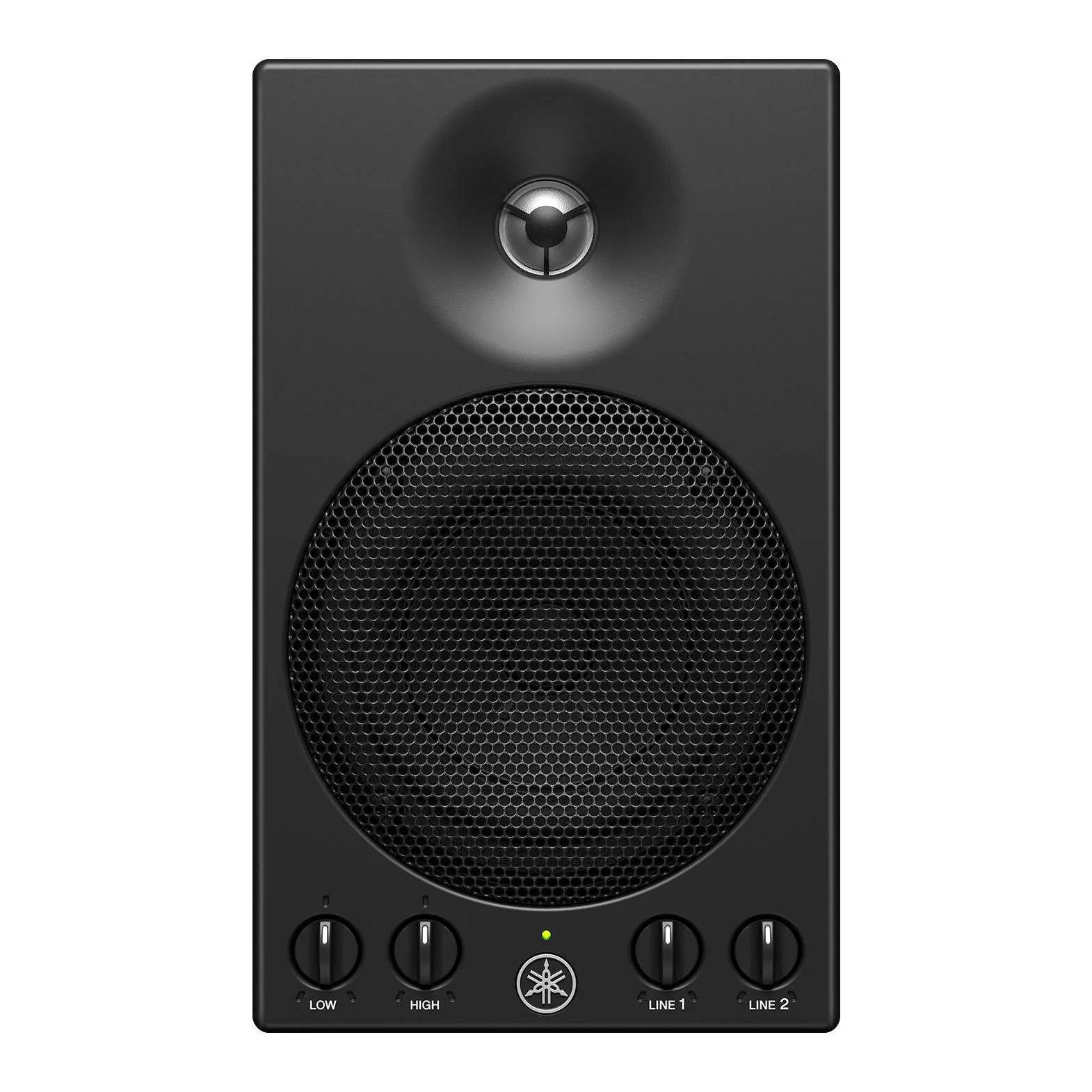

With a 22-watt built-in amplifier, the MSP3A offers faithful sound reproduction, and like its predecessor, has a variety of inputs and controls and is compatible with numerous optional support brackets.

The MSP3A is an ideal choice for small studios and post-production setups, as well as also for monitoring electronic instruments and surround reproduction.

---

Features

• Authentic sound in a compact body
• Clear bass from unique Twisted Flare Port technology
• Versatile inputs and controls
• Mounting points for ceiling and wall mounting brackets and mic stand adaptor options

---

Specifications

• Speaker type: 2-way powered speaker, Bass-reflex type (Twisted Flare Port)
• Frequency response (-10dB): 67Hz - 22kHz
• Components: 4" (10 cm) Conel; 0.8" (2.2 cm) Dome
• Crossover: 4kHz
• Output power: 22W
• Maximum Output Level (Measured peak, IEC noise@1m): 99dB SPL
• Input sensitivity: LINE 1 : -10 dBu, 10kΩ (RCA), LINE 2 : +4.0 dBu, 10kΩ (Combo)

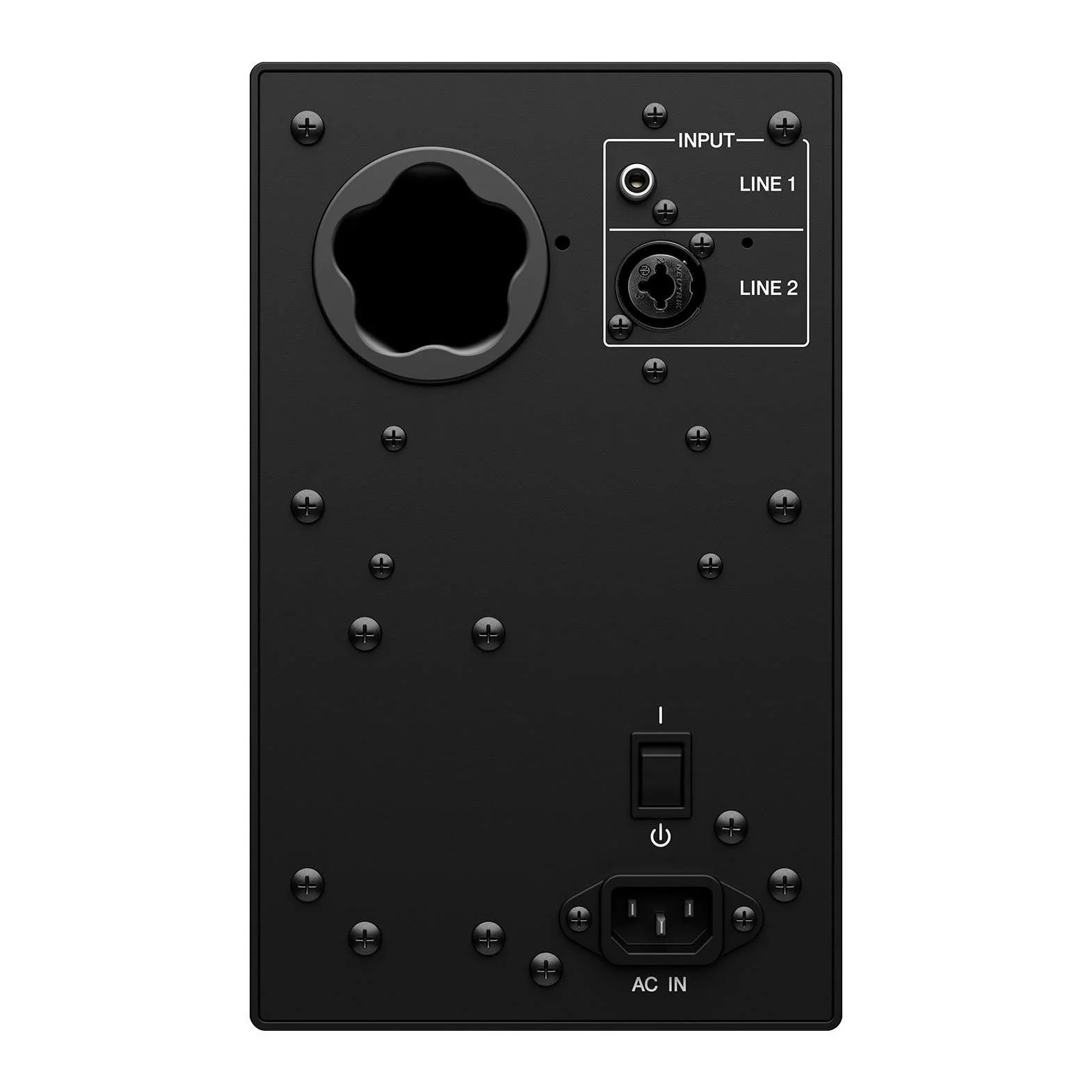

• I/O connectors: LINE 1 : RCA, LINE 2 : Combo (XLR/TRS phone)
• Indicators: Power ON (Green LED)
• Power requirements: May vary depending on region : 120V 50/60Hz, 110 – 120V 50/60Hz, 230V 50/60Hz, 220 – 230V 50/60Hz, 220V 50Hz, 240V 50Hz
• Power consumption: 30W
• Magnetic shielding: Yes
• Others: Level control (LINE1, LINE2); Tone control (LOW = Center, REF = 100Hz : MIN -3.0 ± 2.0 dB, MAX +3.0 ± 2.0 dB; HIGH = Center, REF = 10kHz : MIN -3.0 ± 2.0 dB, MAX +3.0 ± 2.0 dB)
• Dimensions: 144mm (5-5/8"); 236mm (9-1/4"); 166mm (6-5/8")
• Net weight: 3.6kg (7.9 lbs.)
• Accessories: Power cord, Owner's manual
• Packaging: Single
• Flying and mounting hardware: 2 x M5 (Depth 15)
• Options: Mic stand adaptor BMS-10A, Free-angle clamp BAS-10, Wall mounting bracket BWS20-120 / BWS20-190, Ceiling bracket BCS20-150 / BCS20-210
