The MX series synthesizers feature carefully selected sounds taken from the Yamaha MOTIF XS. That powerful sonic palette is packed into sleek packages (available in 49- and 61-note versions) that fit today's on-the-go life style. But the MX Series aren't just synthesizers; they are designed to bridge the gap between hardware and software.

By adding extensive audio and MIDI USB connectivity, advanced DAW and VST controller features and a suite of powerful music production software, the MX integrate hardware reliability with controller flexibility to give you the best of both worlds at a ground breaking level of affordability.

---

Features

• Over 1000 Sounds from the MOTIF Series
• Plug and Play, "FM Essential"
• Easy Split /Layer Performance Mode for Instant Inspiration
• 16-Part Multi Timbral and 128-note Polyphony
• Bi-directional USB Audio/MID Interfacing
• Extensive Hands-On Controls for VSTs and DAWs
• A Complete Suite of Music Production Software Included
• Cubasis LE
• Complete Analog and Digital Connectivity
• A Lightweight Design with a Quality Yamaha Keyboard
• VCM Effects
• Integration with Class Compliant

---

Specifications

• Number of Keys: 49
• Initial Touch: Yes
• Tone Generator: AWM2
• Maximum Polyphony: 128 notes
• Multi Timbral Capacity: 16 parts (Internal)
• Wave: Approx.166 MB (when converted to 16-bit linear format)
• Voices: Preset: 1,106 Normal Voices + 61 Drum Kits, GM: 128 NormalVoices + 1 Drum Kit, User: 128 Normal Voices + 8 Drum Kits
• Performance: User: 128 (16 parts)
• Effects: Reverb x 9 types (42 presets), Chorus x 17 types (88 presets), Insertion Effect x 48types (267 presets) x 4, Master EQ (5 bands)
• Tempo (BPM): 5 – 300
• Songs: 27 Demo Songs
• Patterns: 208 Patterns
• Arpeggio: 999 types
• Sequence formats: SMF Format 0 (playback only)
• Sequence Software compatible with the Remote Control function: For Windows®: Cubase 8 or later, SONAR X 2 Producer For Mac®: Cubase 8 or later, Logic Pro X, Digital Performer 9 *Functi ons to be controlled differ depending on the software
• Controllers: Pitch Bend Wheel x 1, Modulation Wheel x 1, Assignable Knob x 4, [DATA] dial x 1
• Display: 3 digit LED + 20 x 2 line character LCD (backlit)

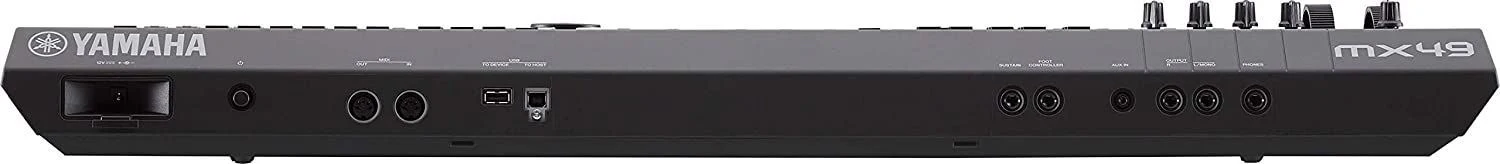

• Connectors: OUTPUT [L / MONO] / [R] (standard phone jack), [PHONE] (standard stereo phone jack), [FOOT CONTROLLER], [SUSTAIN], MIDI [IN] / [OUT], USB [TO HOST] / [TO DEVICE], [AUX IN], DC IN
• Power Supply: 9 W
• Accessories: AC adaptor (PA-150B or an equivalent recommended by Yamaha), Owner' Manual, Cubase AI Download Information
• Width: 830 mm
• Height: 91 mm
• Depth: 298 mm
• Weight: 3.8kg

---
