Features

• Piano Touch and Tone
• Full Concert Grand Piano Voice
• Graded Hammer Standard (GHS) weighted action.
• 88 full-sized, touch-sensitive keys and over 1,000 Voices from the legendary MOTIF
• Optimized Touch Curve
• Realistic Strings, Guitars, Basses and Drum Kits
• 128-note Polyphony
• Can work with iOS applications, DAW software and software synthesizers on Mac and PC

---

Specifications

Control Interface

• Number of Keys: 88
• Initial Touch: Yes

Tone Generator

• Tone Generator: AWM2
• Maximum Polyphony: 128 notes
• Multi Timbral Capacity: 16 parts (Internal0
• Wave: Approx. 166 MB (when converted to 16-bit linear format)
• Voice: Preset: 1,106 Normal Voices + 61 Drum Kits, GM: 128 Normal Voices + 1 Drum Kit, User: 128 Normal Voices + 8 Drum Kits
• Performance: User: 128 (16 parts)
• Effects: Reverb x 9 types (42 presets), Chorus x 17 types (88 presets), Insertion Effect x 48types (267 presets) x 4, Master EQ (5 bands)

Sequencer

• Tempo (BPM): 5 -300
• Songs: 27 Demo Songs
• Patterns: 208 Patterns
• Arpeggio: 999 Types
• Sequence Formats: SMF Format 0 (playback only)

Other

• Sequence Software compatible with the Remote Control function: For Windows®: Cubase 8 or later, SONAR X2 Producer For Mac®: Cubase
• 8 or later, Logic Pro X, Digital Performer 9 *Functions to be controlled differ depending on the software
• Controllers: Pitch Bend Wheel x 1, Modulation Wheel x 1, Assignable Knob x 4, [DATA] dial x 1
• Display: 3 digit LED + 20 x 2 line character LCD (backlit)

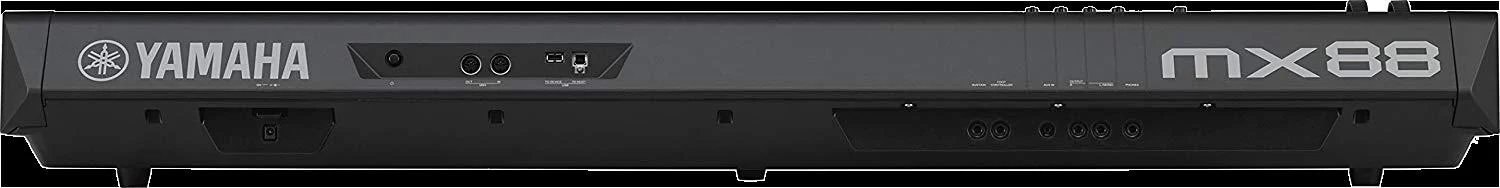

• Connectors: OUTPUT [L / MONO] / [R] (standard phone jack), [PHONE] (standard stereo phone jack), [FOOT CONTROLLER], [SUSTAIN],
• MIDI [IN] / [OUT], USB [TO HOST] (Class Compliant support)/ [TO DEVICE], [AUX IN], DC IN
• Power Supply: 9W
• Accessories: AC adaptor (PA-150B or an equivalent recommended by Yamaha), Owner' Manual, Cubase AI Download Information

Size/Weight

• Width: 1320 mm
• Height: 405 mm
• Depth: 168 mm
• Weight: 13.9 kg

---
