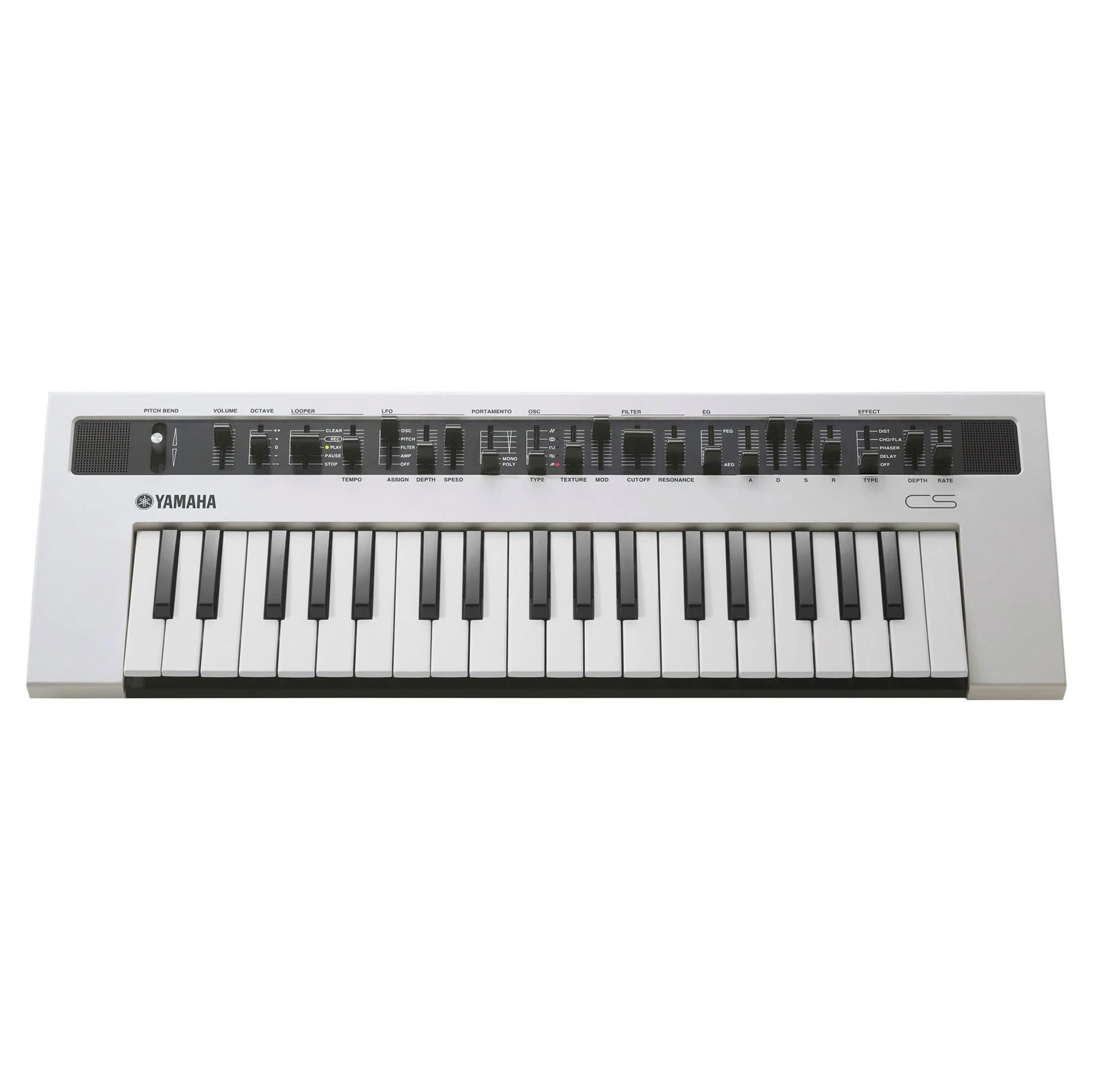

Watch: Overview video of the Yamaha reface CS Virtual Analog Synthesizer

The Yamaha Reface CS mobile mini keyboard continues the tradition of ground breaking synths like the CS-80.

Packed with five types of synthesis and onboard effects, the Reface CS provides you with a variety of lush pads, fat basses, and solo leads.

Of course, the reface CS wouldn't be a CS if it didn't give you tons of tweakability, that's why each type of synthesis has its own set of Texture and Mod sliders that take simple oscillator types and let you turn them into gentle soundscapes, mangled sonic carnage, and everything in between.

The reface CS features an analog physical modelling engine with multiple synthesis and oscillator with flexible LFO and ADSR routing plus unique texture and mod controls.

The synth offers 37 high quality mini keys and an on-board effects processor with five types of effects. 8-note polyphony allows complex chords and pads with the ability to switch to mono mode for fat synth bass or solo leads. USB to host allows MIDI connectivity to a USB-equipped computer or iOS device, with MIDI IN/OUT connectivity via mini-DIN. Dual 1/4 inch unbalanced line outputs and a 3.5mm aux line input allow connection to a wide range of devices.

Built-in speakers and battery power ensure inspiration can strike in any place, any time. Ideal for mobile musicians, music creators, keyboardists and sound designers.

Five Wave Forms

1) Multi-Saw

2) Pulse

3) OSC Sync

4) Ring Mod

5) FM

Key Product Features

• 128-note polyphony ensures dropout-free performance
• Based on the FS action found on the flagship Motif XF, HQ (High Quality) Mini Keys provide premium feel and response for fast, accurate and natural playing
• Sustain pedal input allows the sustain function for all electric piano sounds
• 2 Watt 3cm stereo speaker system lets you play any place, any time
• Specially designed bass reflex port technology enhances bass response for full, rich sound
• Battery powered - uses six "AA" batteries with five hours of life
• USB "TO HOST" allows MIDI connectivity to your USB-equipped computer or iOS device
• Dual 1/4"unbalanced line outputs provide connection to mixers, audio interfaces, DI boxes and more
• A 3.5mm aux line input lets you connect and hear mobile devices, tablets and more through the instrument
• Includes Soundmondo, the free sound sharing community that lets you discover, create and share reface

Product Specifications

Amplifiers	2 Watt x 2
Speakers	3 cm x 2
Power Consumption	6 Watt (When using PA-130 power adaptor)
Battery Life	Approximately 5 hours
Auto Power Off	Yes
Adaptors	PA-130 or an equivalent recommended by Yamaha
Batteries	Six “AA” size batteries or Ni-MH rechargeable batteries
Included Accessories	AC adaptor/MIDI breakout cable/Owner’s Manual/Warranty
Types	5 OSC Types
Effects Included	Distortion, VCM Chorus/Flanger, VCM Phaser, Delay
Width	530 mm
Height	60 mm
Depth	175 mm
Weight	1.9 kg
Number of Keys	37 keys
Key Type	HQ mini (High-Quality mini)
Initial Touch	Yes
Maximum Polyphony	128
Engine	AN (Analog Physical Modeling)
DC IN	(12 V) jack
Headphones	6.3 mm;stereo phone jack
MIDI	(mini-DIN IN/OUT)
AUX IN	3.5 mm mini stereo phone jack
OUTPUT	L/MONO R (6.3 mm TS phone jack unbalanced)
USB (TO HOST)	Yes
Pedal Type	FOOT CONTROLLER: FC7 (optional) (to adjust the volume)
Phrase Looper	Yes
