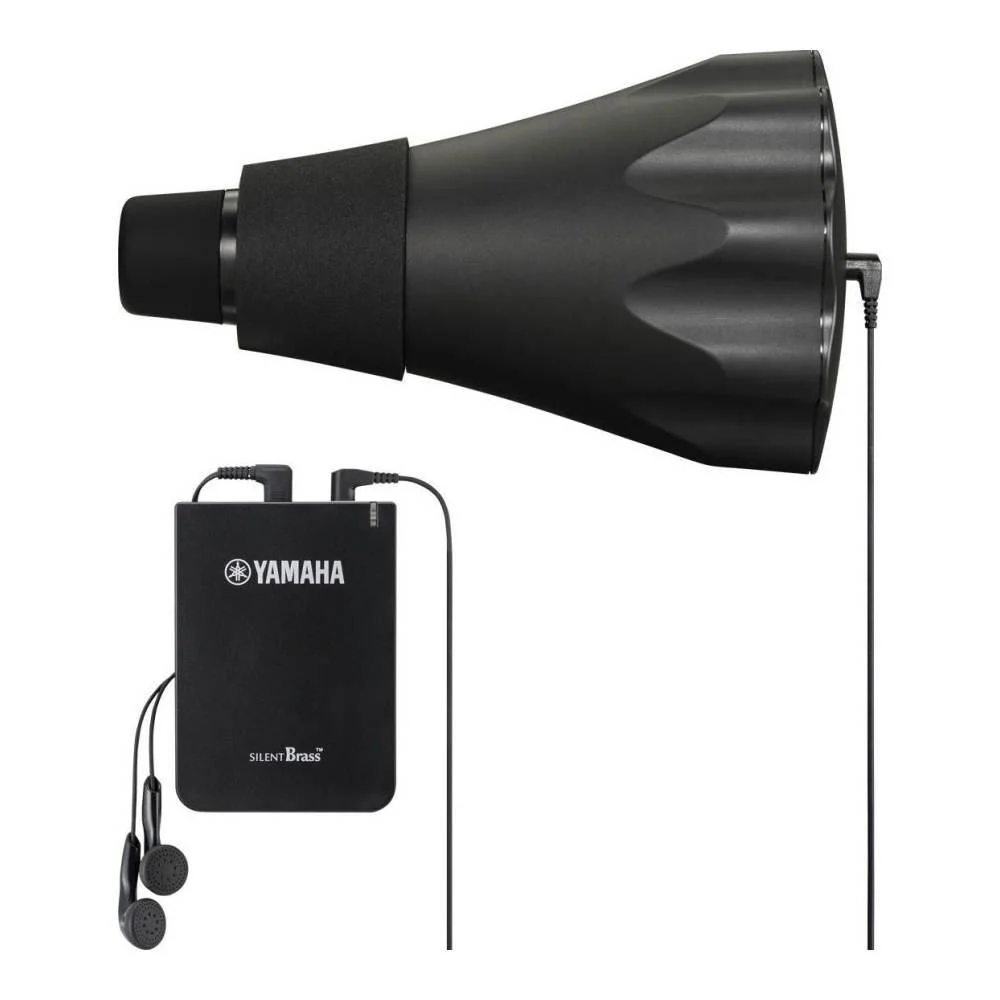

The new SILENT Brass consists of a smaller, lighter, freer blowing Pickup Mute™, and the Personal Studio™, which features Yamaha’s exclusive Brass Resonance Modeling™. Used together, the two deliver the natural acoustic tone you hear when playing without a mute, making it feel as though you are playing mute free.

---

Specifications

Pickup Mute

• Model: PM3X
• Dimensions (Diameter x Length): 129 × 216mm (5-1/16" x 8-1/2")
• Weight: 195g (6.9 oz.)
• Internal Microphone: Electric condenser microphone
• Pickup Output Jack: Mini phone jack
• Nominal Level: -25dB～-35dB
• Brass Resonance Modelling: Yes

Personal Studio

• Model: STX
• Dimensions (W x D x H): 70 x 20 x 98mm
• Weight: 69g (2.4 oz) without batteries
• Jacks and Terminals: MUTE IN, AUX IN, PHONES
• Control: VOL. (volume), Reverb type, Power ON/OFF
• Brass Resonance Modelling: Yes (It behaves correctly only when
• compatible Pickup Mute is connected to Personal Studio.)
• Power Supply: AA alkaline or nickel-metal hydride batteries x 2 (3V DC)
• Included Accessories: Cable; Stereo Earphones; Owner’s Manual
