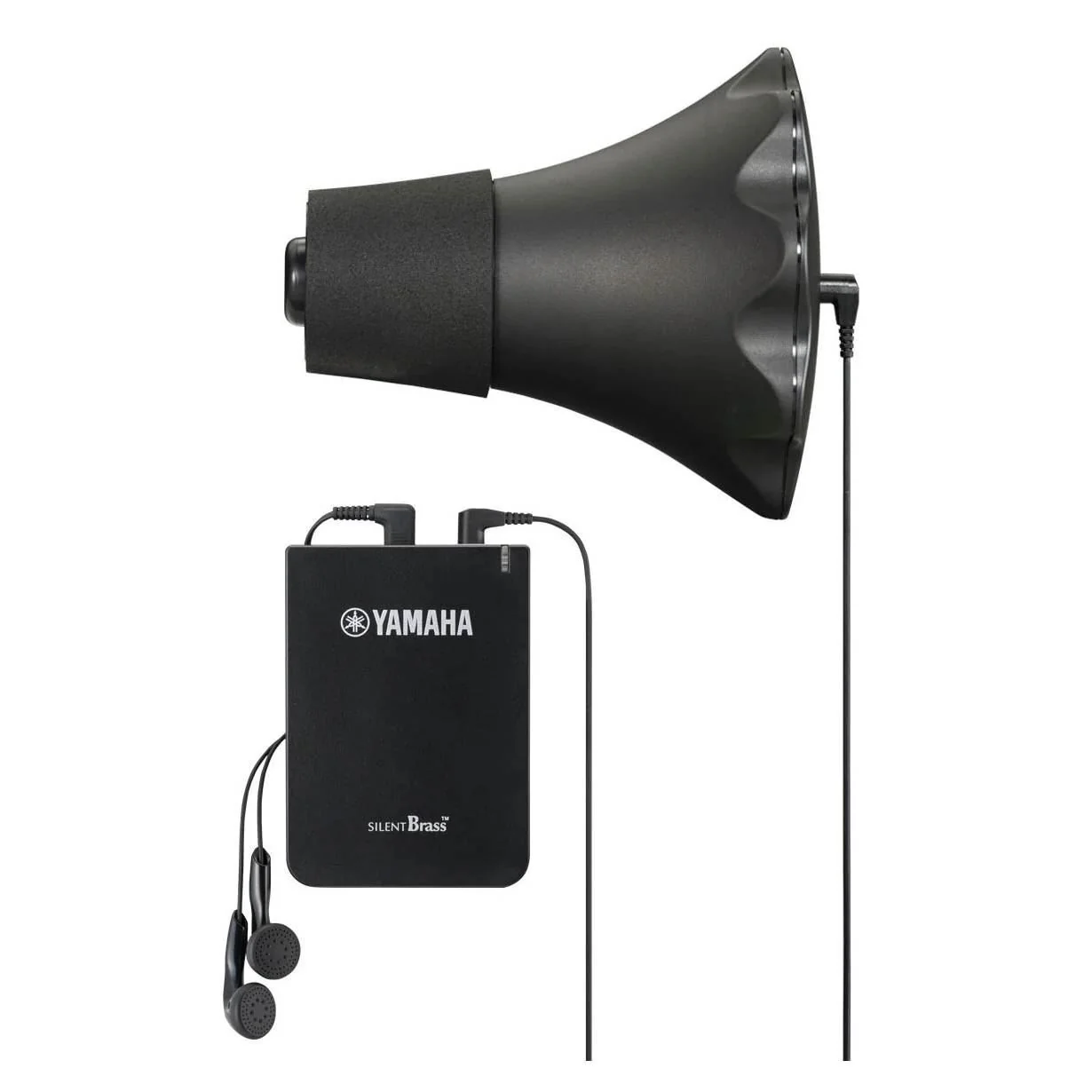

The new SILENT Brass consists of a smaller, lighter, freer blowing Pickup Mute™, and the Personal Studio™, which features Yamaha’s exclusive Brass Resonance Modeling™. Used together, the two deliver the natural acoustic tone you hear when playing without a mute, making it feel as though you are playing mute free.

---

Specifications

Pickup Mute

• Model: PM6X
• Dimensions 129 x 143mm (5-1/16" x 5-5/8")
• Weight: 130g (4.6 oz.)
• Internal Microphone: Electric condenser microphone
• Pickup Output Jack: Mini phone jack
• Nominal Level: -25dB～-35dB
• Brass Resonance Modelling: Yes

Personal Studio

• Model: STX-2
• Dimensions (W x D x H): 70 x 20 x 98mm
• Weight: 69g (2.4 oz) without batteries
• Jacks and Terminals: MUTE IN, AUX IN, PHONES
• Control: VOL. (volume), Reverb type, Power ON/OFF
• Brass Resonance Modelling: Yes (requires a compatible X-series Pickup Mute to function correctly)
• Power Supply: AA alkaline or nickel-metal hydride batteries x 2 (3V DC)
• Included Accessories: Cable; Stereo Earphones; Owner’s Manual
