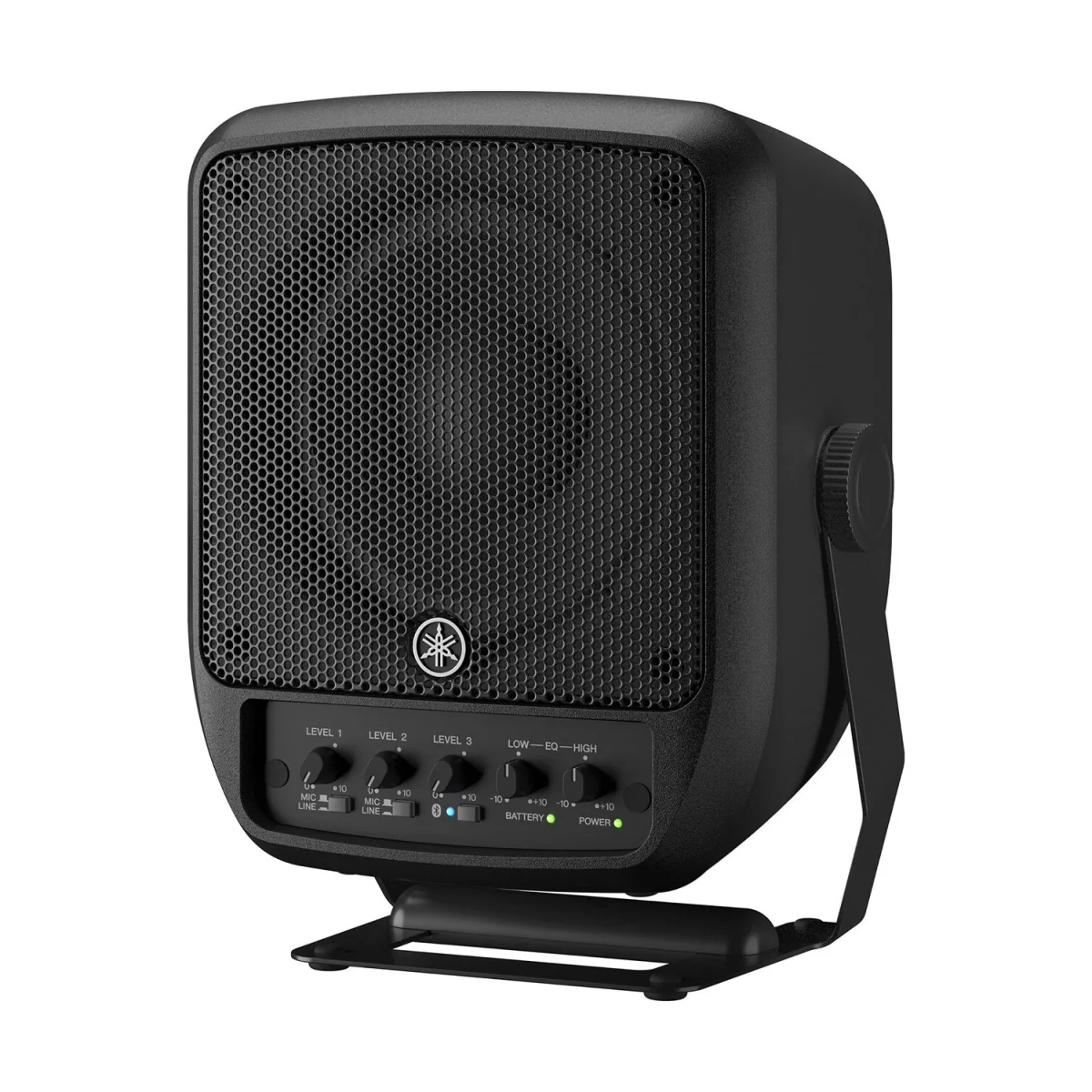

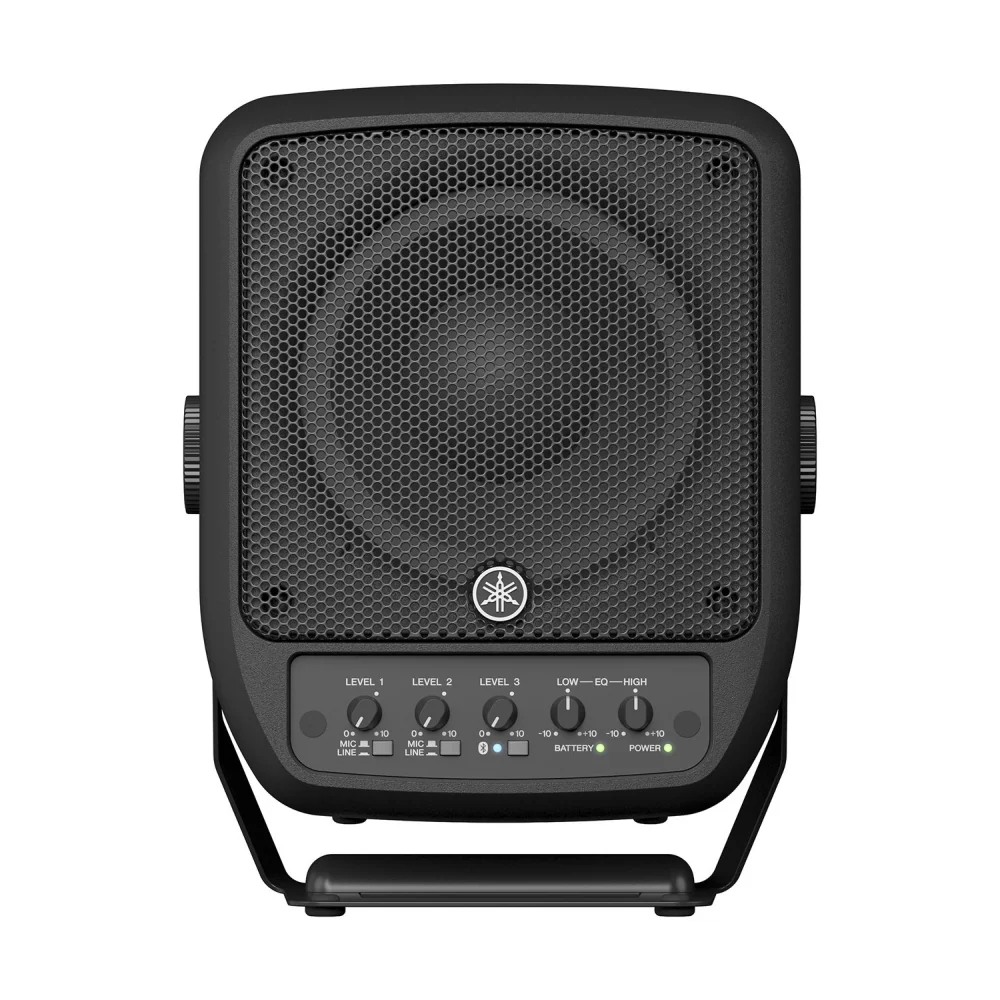

Yamaha STAGEPAS 100BTR Portable PA System
6 hours of Continuous Operation
The STAGEPAS 100BTR is compatible with a high-capacity lithium-ion battery that provides up to 6 hours of continuous operation, providing reliable performance even in environments without power.
Multipoint Bluetooth Connection
In addition, it is equipped with a multipoint-compatible Bluetooth function, allowing you to play music/audio with a smartphone or tablet via wireless connection, making setup and operation even more convenient.

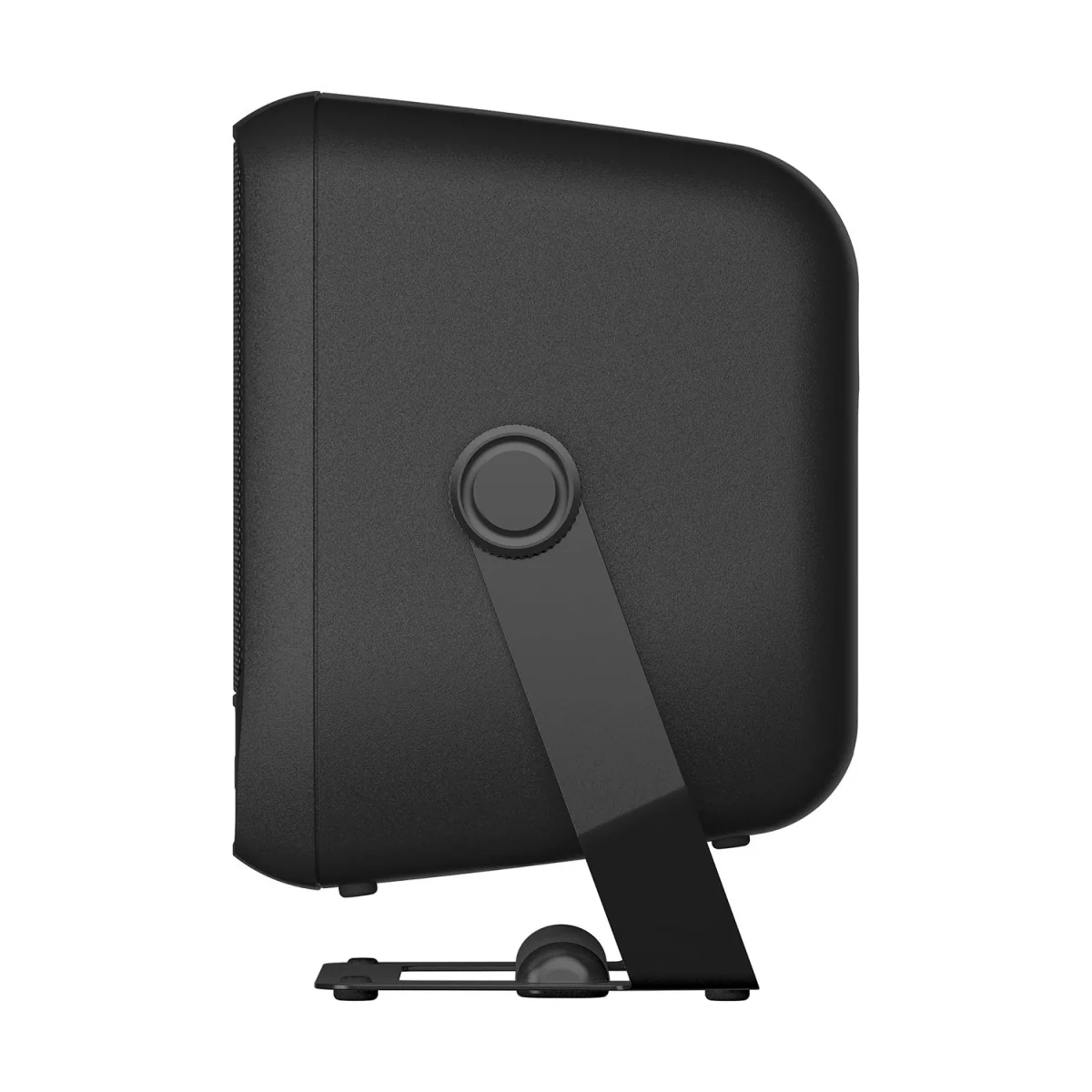

The Right Direction
Easily control your coverage area with the carrying handle that doubles as a stand when the unit is placed on the floor. The attachment screws can be adjusted to change the angle of inclination to direct your sound exactly where it needs to go.
Mounting Possibilities
The handle of the STAGEPAS 100 also features a 3/8" diameter screw hole that enable mounting on a microphone stand for more versatile sound dispersion options.
Whenever. Wherever.
The dedicated BAG-STP100 carrying bag features internal pockets for storing adapters, cables etc., as well as a padded shoulder strap for safe and easy transport to any location.

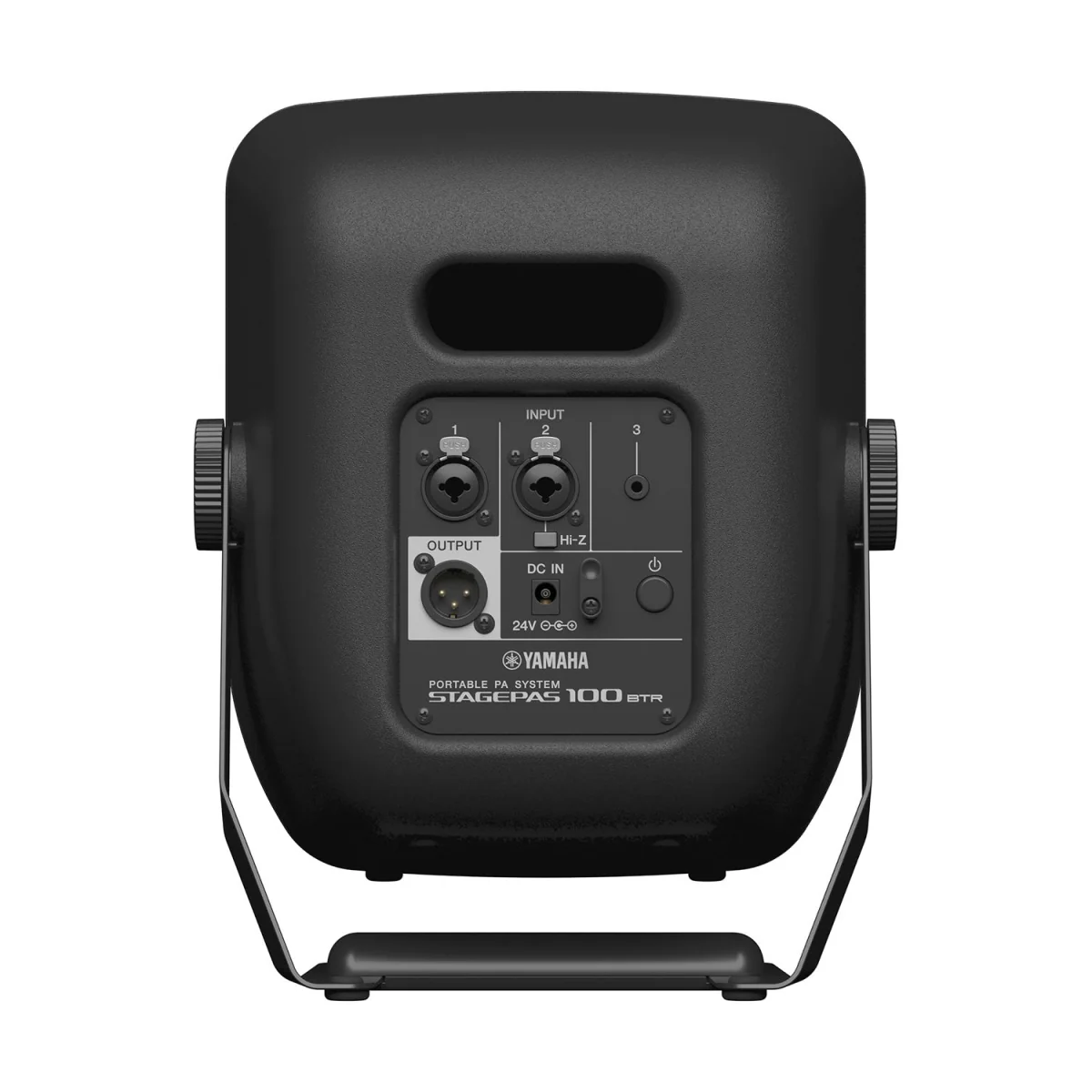

Outline Type: 2-way Bi-amp Powered Speaker with mixer I/O Inputs: INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line) Outputs: OUTPUT: XLR3-32 (INPUT 1-3 mix) Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1 Mixing Capability Mixing channels: 3 Input channel functions: Hi-Z: CH2 Output channel functions: 2 Band EQ
General Specifications Speaker Type: Coaxcial speaker with compression driver Frequency Range (-10dB): 70 Hz – 20 kHz Coverage Area: H90ﾟ x V90ﾟ Crossover: 1.8 kHz (FIR-X) Maximum Output Level (1m; on axis): 120 dB SPL *1 Components LF: 6.5" Cone, 1.7" voice coil HF: 1" throat compression driver, 1.4" voice coil Amplifier class: Class-D Power rating - Dynamic: 100 W (LF: 93 W, HF: 7 W) Cooling: Natural convection (no fan) Power Consumption: 10 W (Idle), 30 W (1/8 power) Power Requirements: 100-240 V 50/60 Hz Battery Type: Rechargeable Lithium ion battery pack Capacity: 60 Wh Operating Time: Maximum 6 hours, 1/16 power continuous 5 hours Charging Time: Approx. 2.5 hours Cabinet Material: Plastic (PP) Handle: Bottom x1 (Rotatable) Flying and mounting hardware: 1 × 3/8", depth 12 mm (center of handle) Product Dimensions (W x H x D): 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle Product Weight: 5.5 kg (12.1 lbs), without AC adaptor Accessories: Power cord x 1, AC adaptor (PA-500) x 1
Features
- 100 W Class-D amplifier
- 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
- 3-channel mixer (2 monaural mic/line + 1 line)
- Equipped with a 2-band master EQ
- Compatible with Hi-Z input (Channel 2 only)
- Equipped with mix-out
- Carrying handle doubles as an adjustable stand
- Compatible with audio accompaniment over Bluetooth
- Optional carrying bag (BAG-STP100) available for convenient transport
- Internal lithium-ion battery
Specification
STAGEPAS 100BTROutline Type: 2-way Bi-amp Powered Speaker with mixer I/O Inputs: INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line) Outputs: OUTPUT: XLR3-32 (INPUT 1-3 mix) Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1 Mixing Capability Mixing channels: 3 Input channel functions: Hi-Z: CH2 Output channel functions: 2 Band EQ
General Specifications Speaker Type: Coaxcial speaker with compression driver Frequency Range (-10dB): 70 Hz – 20 kHz Coverage Area: H90ﾟ x V90ﾟ Crossover: 1.8 kHz (FIR-X) Maximum Output Level (1m; on axis): 120 dB SPL *1 Components LF: 6.5" Cone, 1.7" voice coil HF: 1" throat compression driver, 1.4" voice coil Amplifier class: Class-D Power rating - Dynamic: 100 W (LF: 93 W, HF: 7 W) Cooling: Natural convection (no fan) Power Consumption: 10 W (Idle), 30 W (1/8 power) Power Requirements: 100-240 V 50/60 Hz Battery Type: Rechargeable Lithium ion battery pack Capacity: 60 Wh Operating Time: Maximum 6 hours, 1/16 power continuous 5 hours Charging Time: Approx. 2.5 hours Cabinet Material: Plastic (PP) Handle: Bottom x1 (Rotatable) Flying and mounting hardware: 1 × 3/8", depth 12 mm (center of handle) Product Dimensions (W x H x D): 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle Product Weight: 5.5 kg (12.1 lbs), without AC adaptor Accessories: Power cord x 1, AC adaptor (PA-500) x 1
$138.10
Original: $394.56
-65%Yamaha STAGEPAS 100BTR Portable PA System—
$394.56
$138.10Product Information
