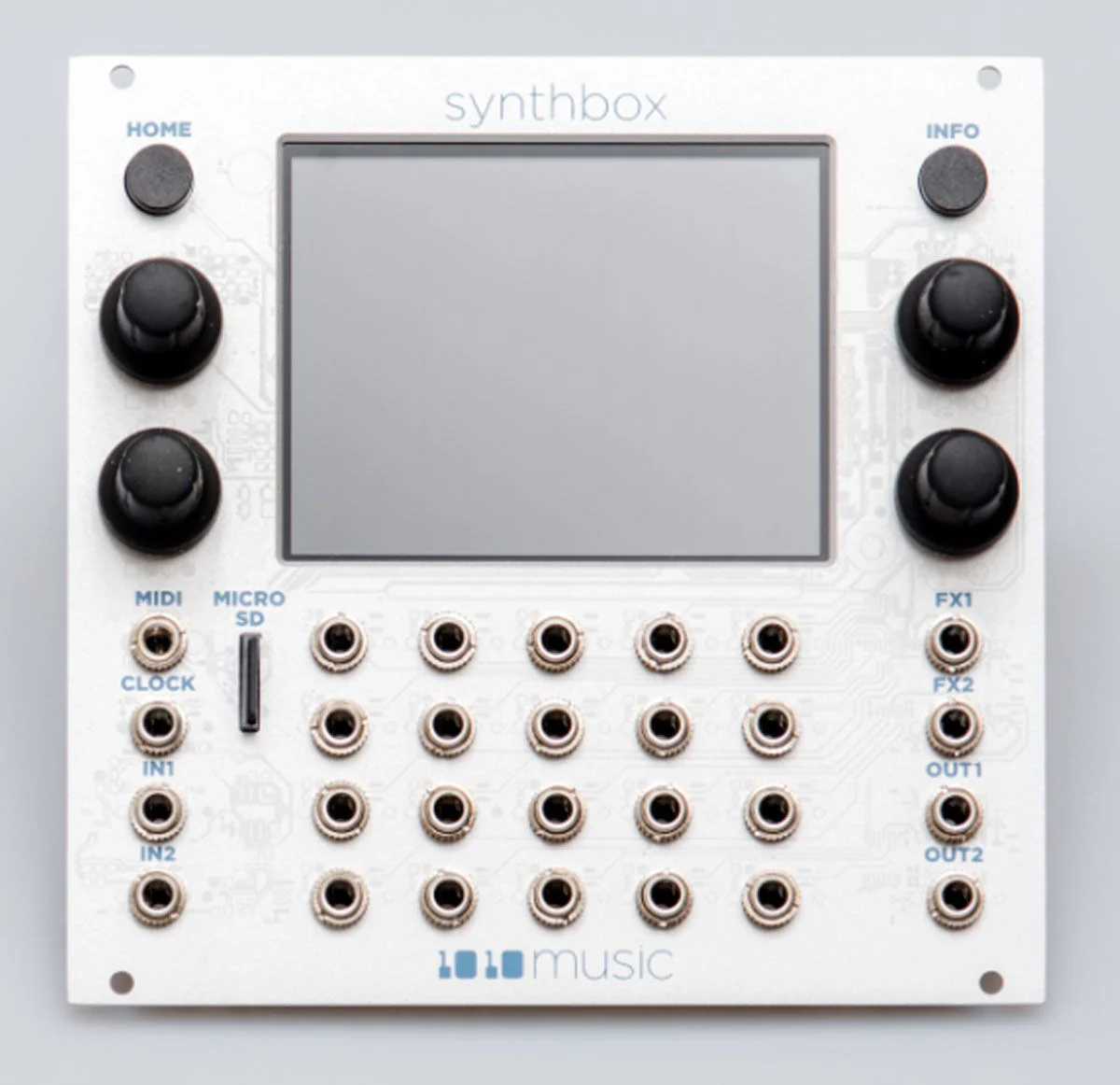

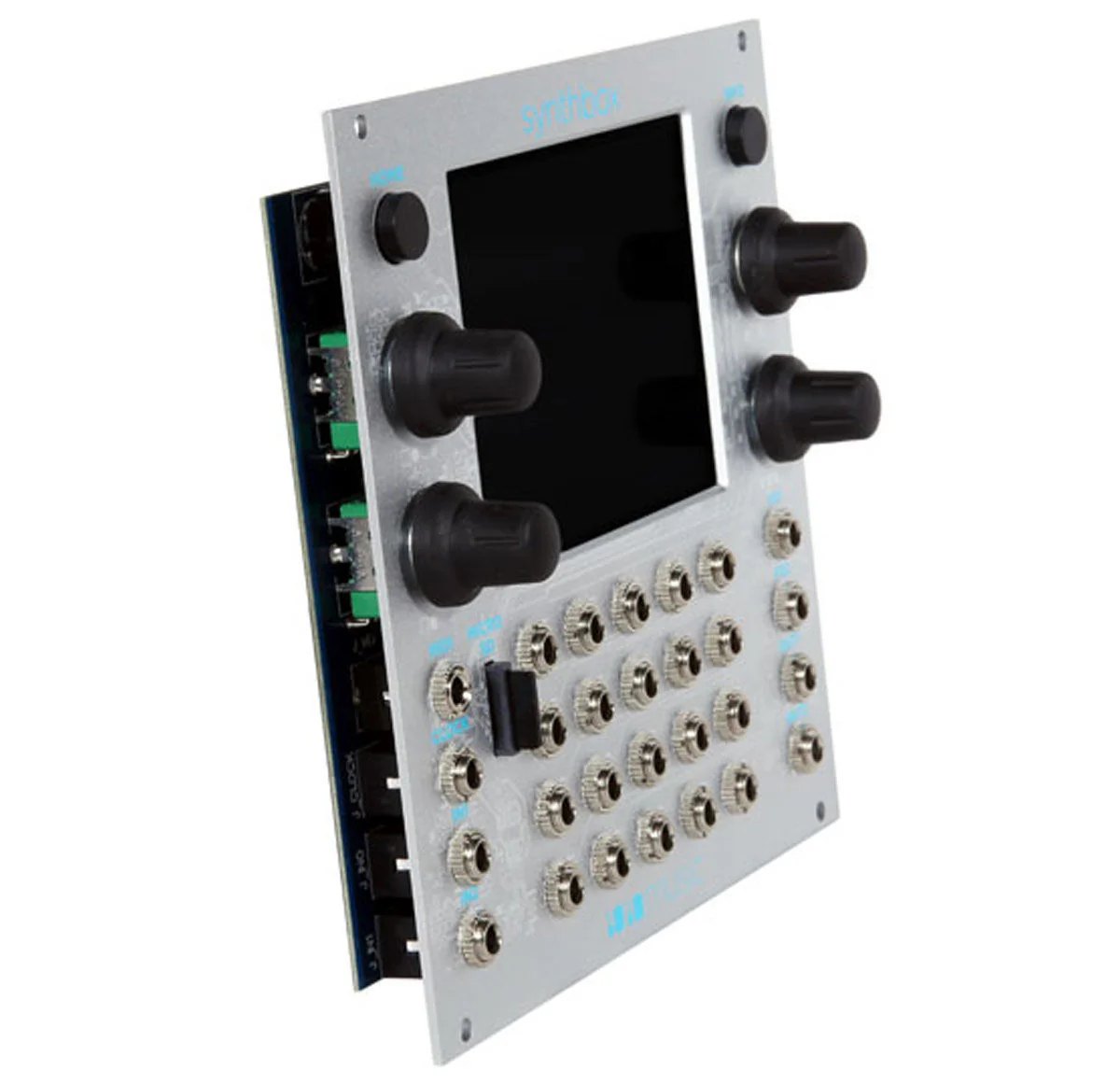

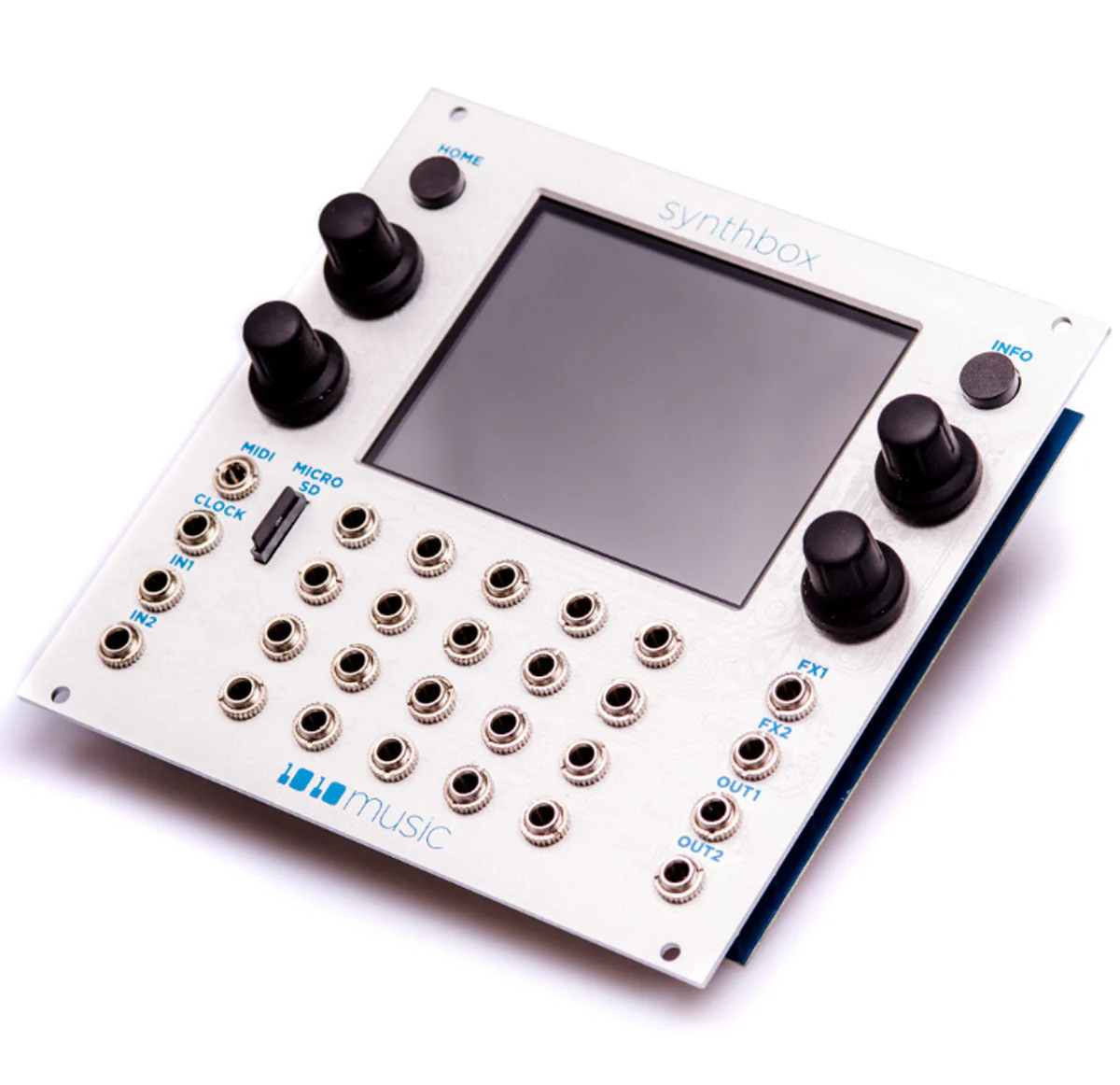

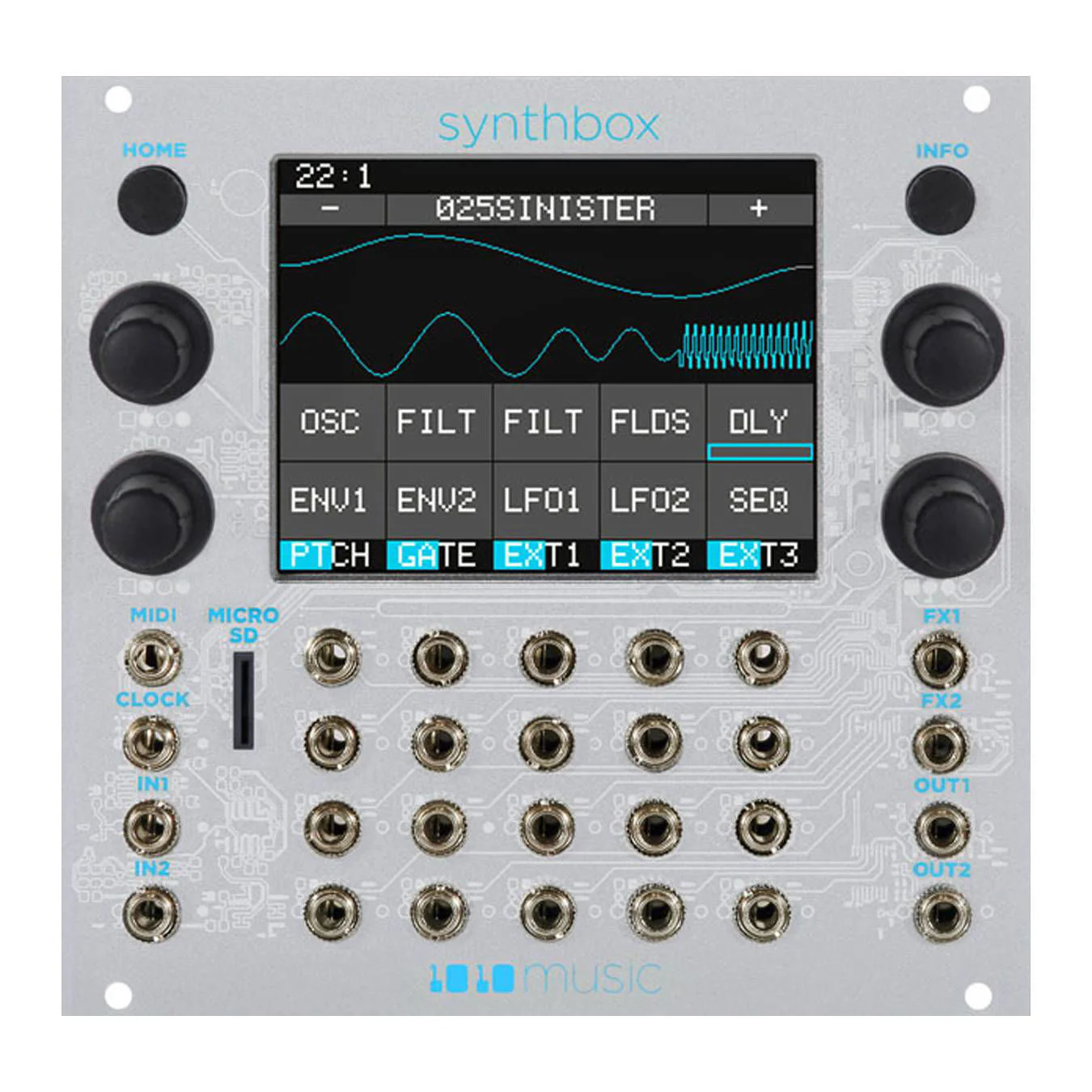

Use the touchscreen to choose and shape the waveforms and to apply the built in sound effects. Modulate the waves and the effects using a combination of on screen controls of envelopes, low frequency oscillators, and sequencers together with hard wired CV inputs to tweak the sound to meet your creative vision.

---

Features

• MIDI controllable with support for velocity, pitch bend, and modulation wheel
• CV controllable with pitch, gate, and 3 assignable modulators per voice
• 24 bit DACs and internal processing
• 8 wavetable oscillators
• 4 waveform oscillators
• 2 filters, 2 envelopes, 2 LFOS, and a step sequencer per voice
• Global flanger, distortion, and stereo delay effects
• Semi-modular control
• Stereo or individual voice outputs
• Comes with 50 presets and 100 wavetables
• Supports user wavetables from WAV file

---

Specifications

• 26 HP
• +12V: 350mA
• -12V: 0mA
• 5V: 0mA
• Weight: 0.78 lbs
• Dimension: 6.75 × 6.25 × 2.125 in

What is included

• a Series 1 eurorack module with a synthbox faceplate
• a microSD card with synthbox firmware loaded on it
• a eurorack power cable
• a synthbox Quick Start guide
• a MIDI Adapter

---

Watch: Synthbox 1.0 Demo
