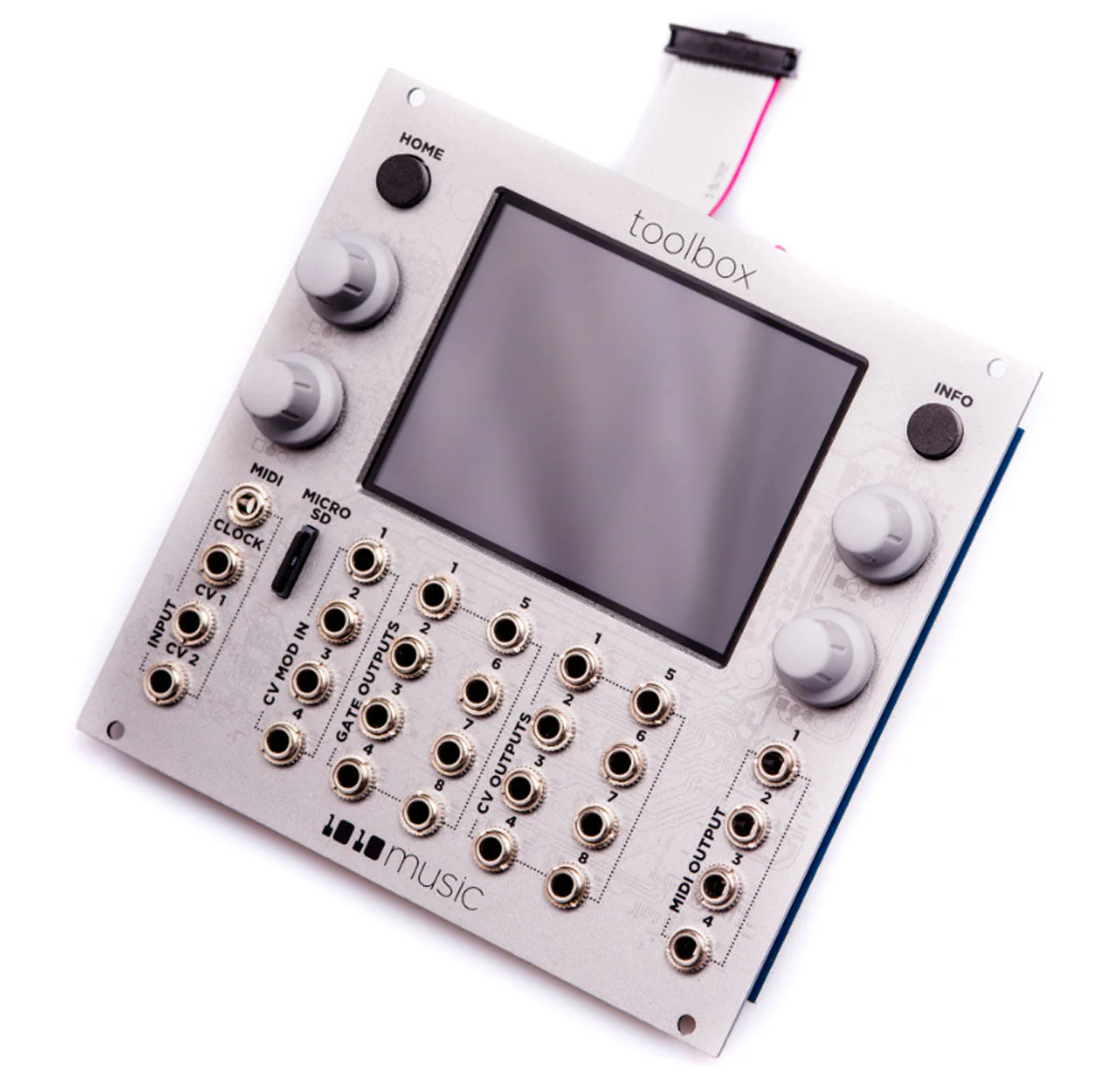

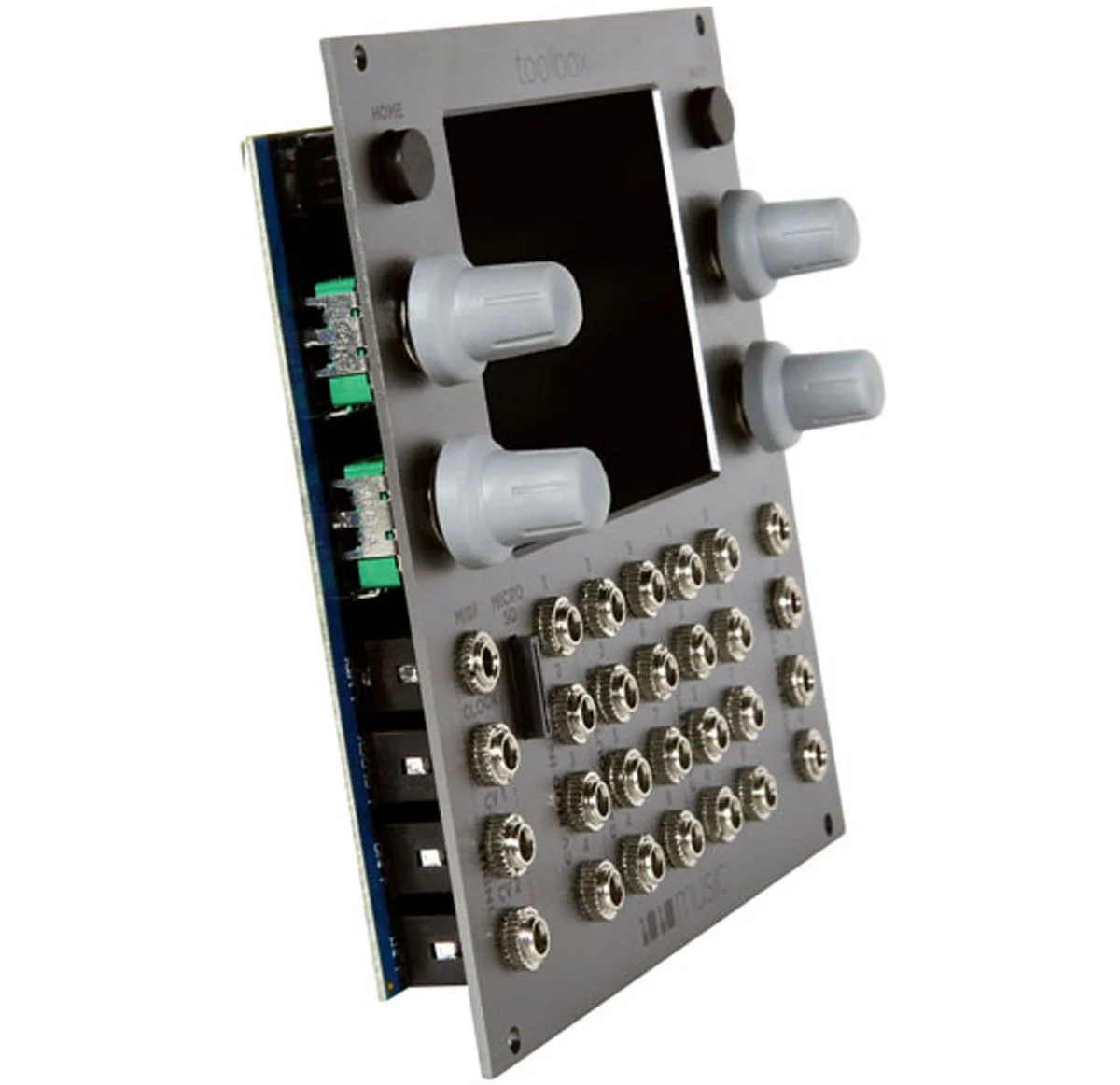

Toolbox is a musically intelligent control module capable of driving a rack full of gear. It features both MIDI and Control Voltage connections for interfacing with all kinds of different hardware.

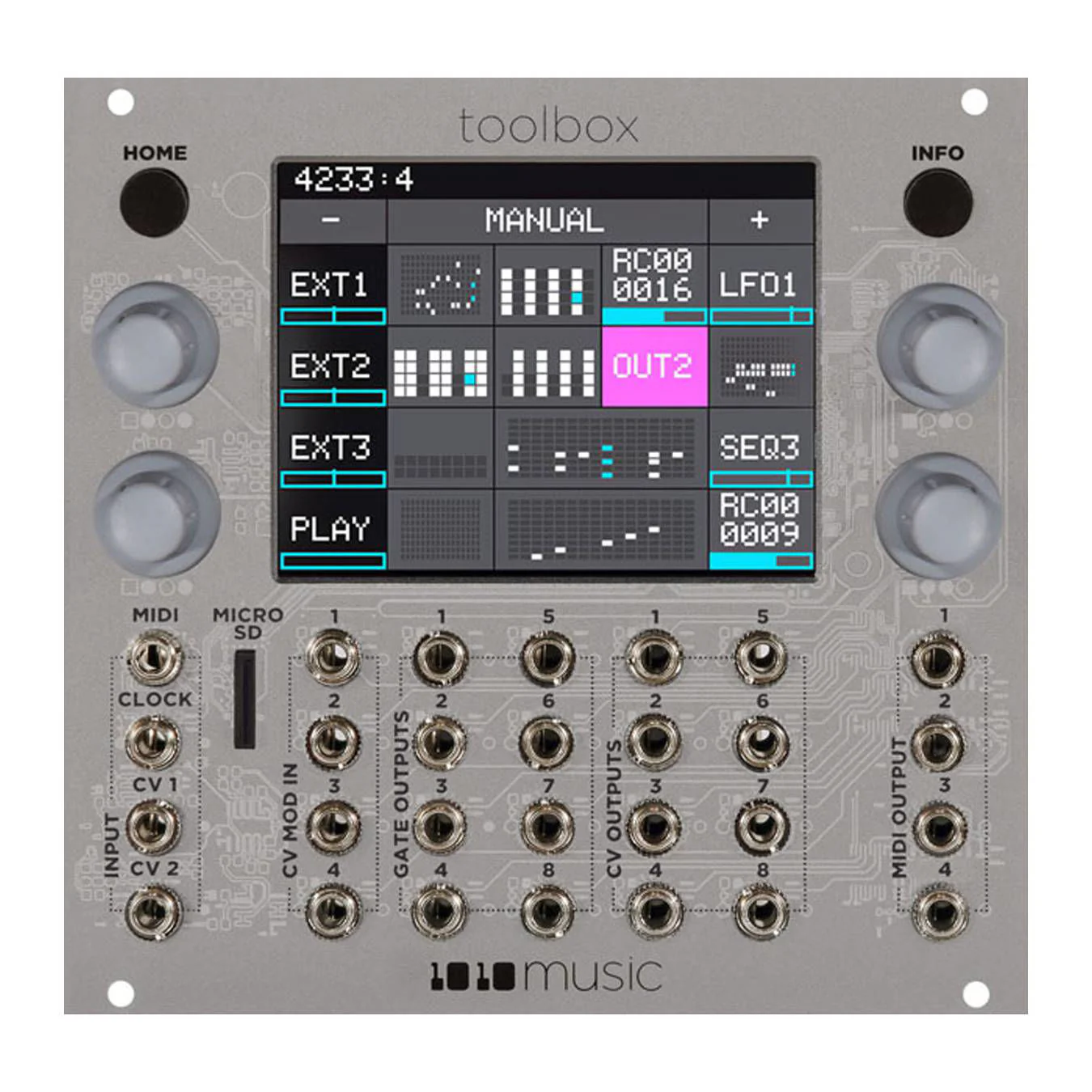

Toolbox takes full advantage of the integrated 3.5″ touch screen to give immediate access to sequences, parameters, and events. The screen provides a full overview of all the active notes and events.

It even offers touch based scrolling and zooming, just like a smart phone, to make editing easy and fun. Toolbox is a great way to be creative on your terms.

---

Features

• Up to 8 Rhythm Sequencers
  • 1-128 steps
  • Step size from 1/64th note to 8 bars
  • Available internally and through dedicated gate outputs
  • Can trigger the Note sequencers
• Up to 16 Polyphonic Note Sequencers, each with the following independent controls
  • 1-128 steps
  • Step size from 1/64th note to 8 bars
  • Note duration for all events
  • MIDI channel
  • MIDI Port
  • Clock source (internal, external, & rhythm sequencers)
  • Transposition in semitones with option to quantize to scale
• Piano Roll editing with fast, touch screen interface
• Sequencer Output via dedicated CV+Gate output and MIDI
• Clock source selectable via internal, external, & rhythm sequencers
• Up to 8 Function Generators
  • LFOs with standard waveforms
  • Bar CV sequencer
  • Free running or synchronized to the master beat clock
• MIDI
  • Input serves as source for recording sequences live or via step entry
  • Outputs transmit gate and control signals to other devices
• CV inputs
  • Serve as clock sources for gate and note sequencers
  • Can be used as modulators for sequence step count, step length, transposition, etc.

---

Specifications

• 26 HP
• +12V: 350mA
• -12V: 0mA
• 5V: 0mA

---
