Features

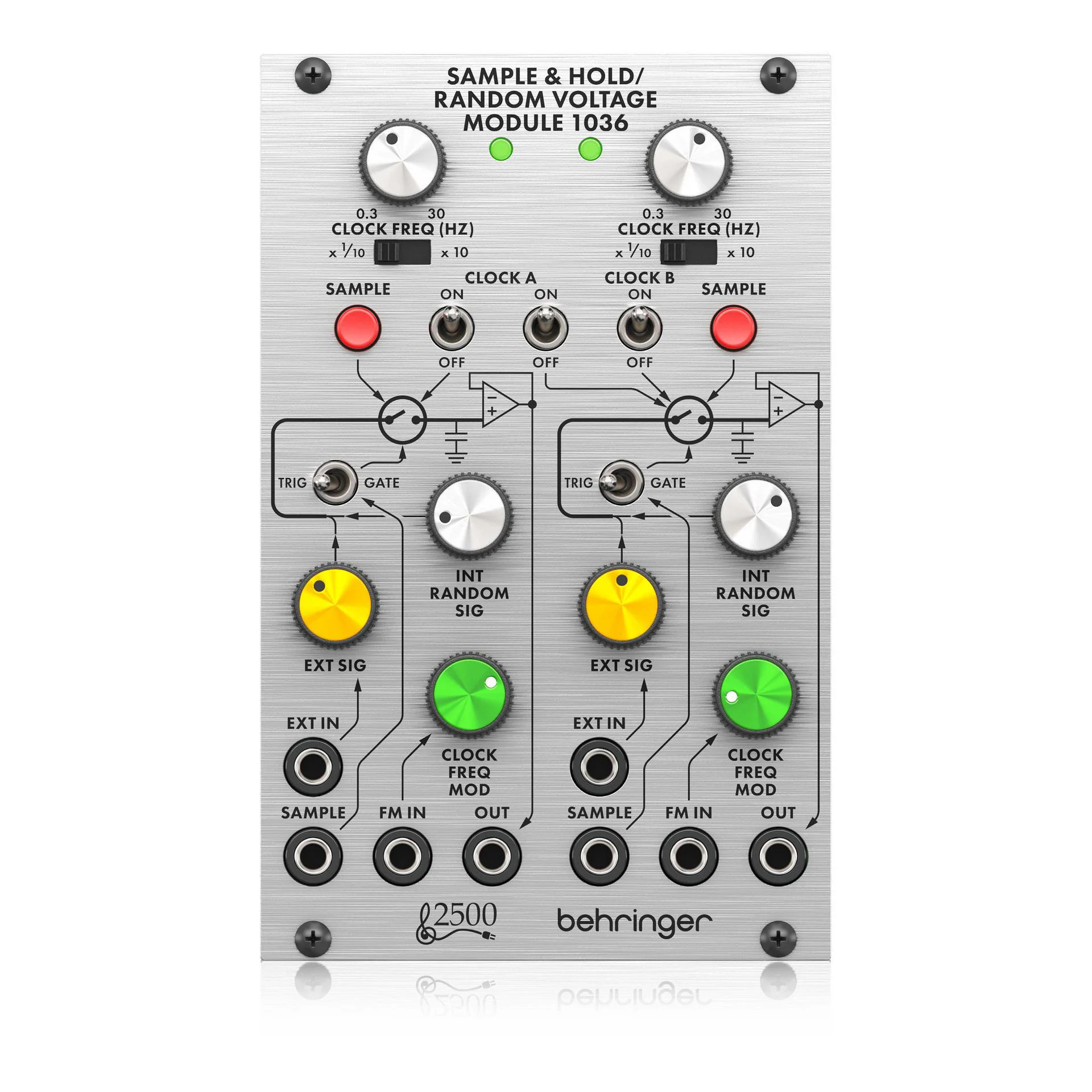

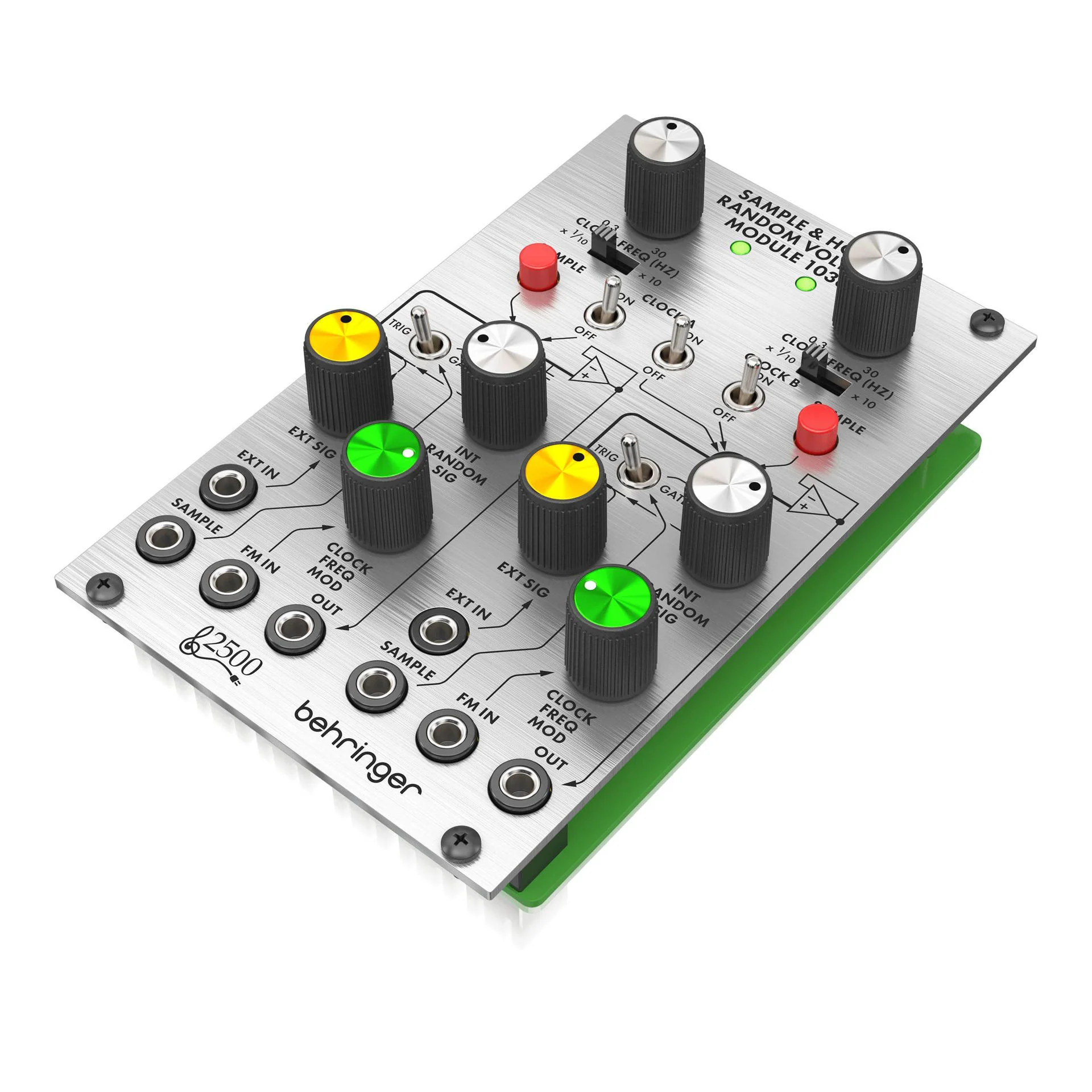

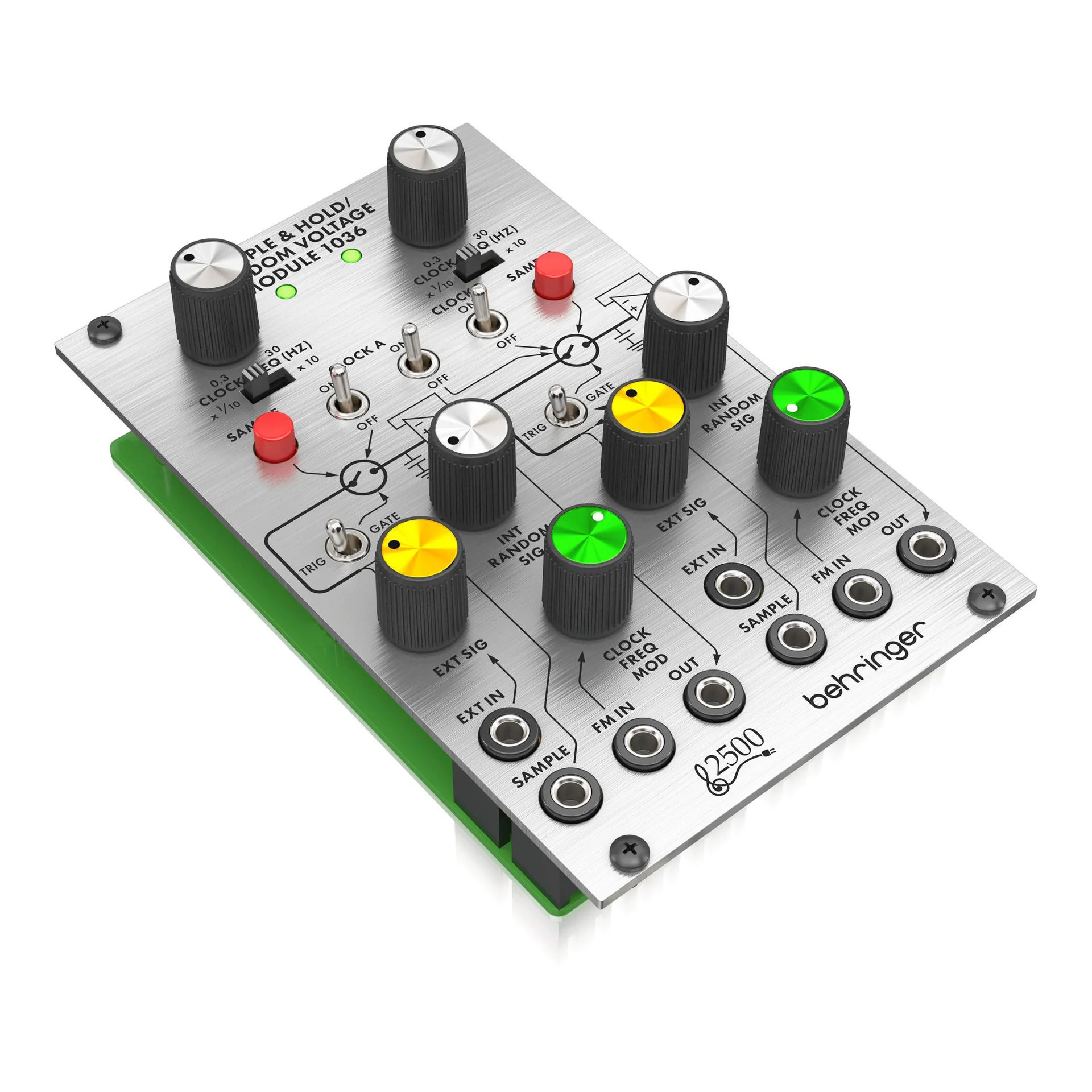

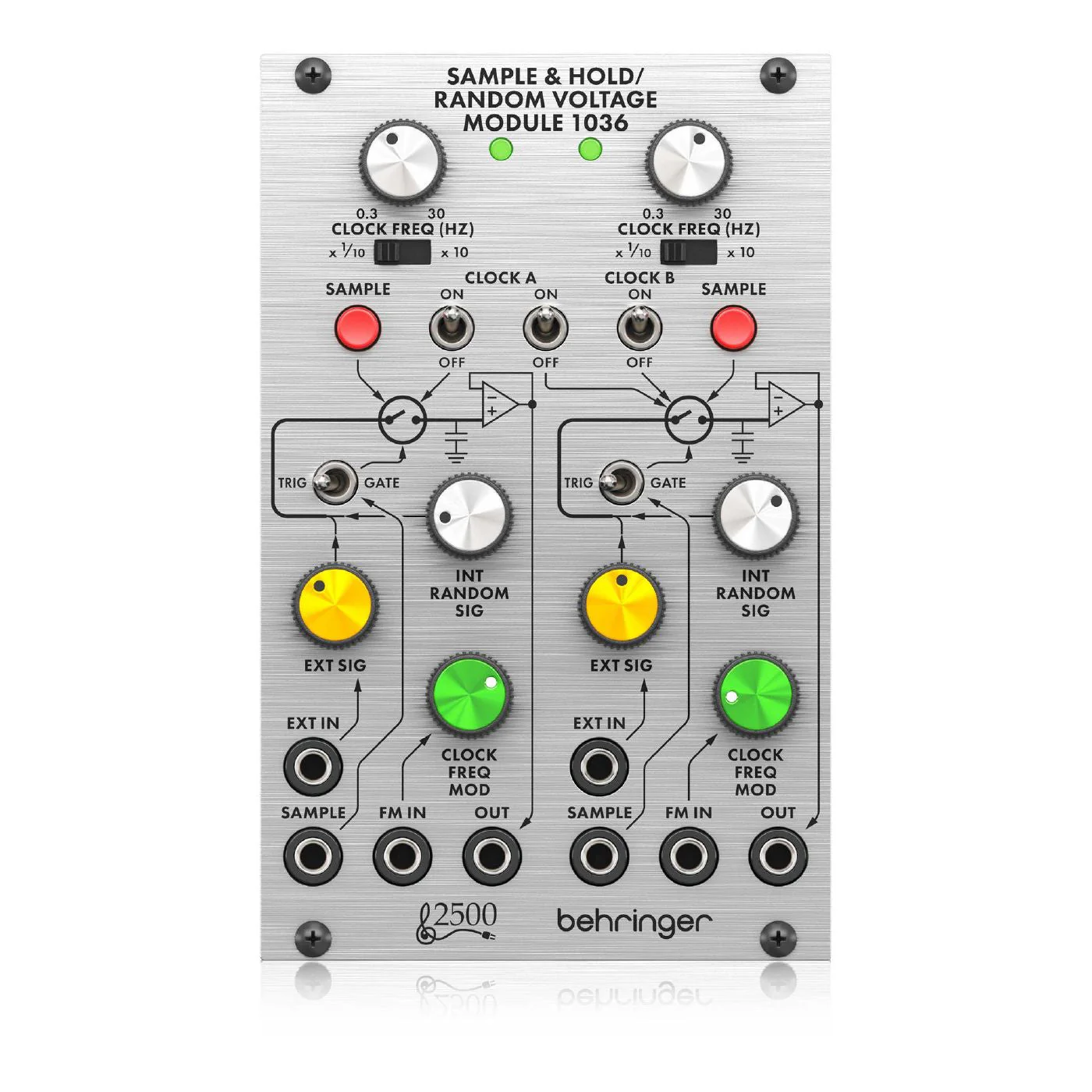

• Classic 1036 analog dual sample and hold module from the '70s
• Authentic reproduction of the circuitry from the "2500" Series
• Contains 2 independent sample and hold circuits, 2 random noise generators, and 2 voltage-controlled clocks
• Produces random tone sequences, scales and arpeggios
• Audio signal input and output for each Sample and Hold circuit with a sample command input to control the timing of samples from different sources
• Clock Frequency control adjusts the frequency of each clock and the sampling rate
• Manual sample control is available using momentary push buttons
• Sampling can also be controlled externally via a trigger or gate signal using the external input connection
• An internally generated random signal can be used as the sampled signal with an adjustable level control for each circuit
• Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V

---

Specifications

Inputs

FM in

• Type: 2 x 3.5 mm TS jacks
• Impedance: 50 kΩ, unbalanced
• CV range: 0-10 V

Sample

• Type: 2 x 3.5 mm TS jacks
• Impedance: 10 kΩ, unbalanced
• Max input level: 5 V

Ext in

• Type: 2 x 3.5 mm TS jacks
• Impedance: 25 kΩ, unbalanced
• Max input level: 10 V

Outputs

Out

• Type: 2 x 3.5 mm TS jacks
• Impedance: 1 kΩ, unbalanced
• Max output level: 10 V

Controls

• Clock freq: 0.3-30 Hz
• Clock range: Clock value factor of x0.1 or x10
• Clock on/of: Engage pulse generators
• Sample: Generate sample command
• Trig/gate: Selects sample (trig) or continues sample (gate)
• Int random sig: 0 to ±7 V
• Ext sig: - to unity gain
• Clock freq mod: - to unity gain

Power

• Power supply: Eurorack
• Current draw: 40 mA (+12 V), 40 mA (-12 V)

Physical

• Dimensions: 43 x 81 x 129 mm (1.7 x 3.2 x 5.1")
• Rack units: 16 HP
• Weight: 0.18 kg (0.4 lbs)
