We were thrilled to see the announcement of the return of the LM drum from Behringer, and we hope you're just as eager! Behringer hasn't just made a retro reproduction, they've added features to bring the LM to the modern musician!

If you are looking for a drum machine that can recreate the classic sound of the 80’s, look no further than the Behringer LM DRUM. This amazing drum machine features an authentic 8/12-bit sampling sound engine that captures the essence of a hundred legendary 80’s drum sounds including those designed by Roger Linn such as the LM1*, LM2*, LM9000* and more.

You can even record and store your own samples using the integrated line input.

Features

• 8/12-but sampling sound engine
• 109 authentic drum sounds from LM1, LM2 and LM9000
• Line input for sample recording
• Analog circuitry with orignal 3320 VCF and 2164 VCA
• 16 DACs with variable sample rate
• 16 voice architecture with independent level and pan controls per voice
• 64-step sequencer supports poly-meter, step-repeat, note-repeat, real-time triggering, track-mute and track-solo
• 16 independent analogue outputs for external processing or recording your rhythms as multi-track audio
• Integrated FX bus features Wave Designer and dual-mode Analog Filter with per voice assignment
• 16 velocity-sensitive drum pads with after touch for real-world experience

Specifications

Architecture

• Number of Voices: 15
• Type: Sampling

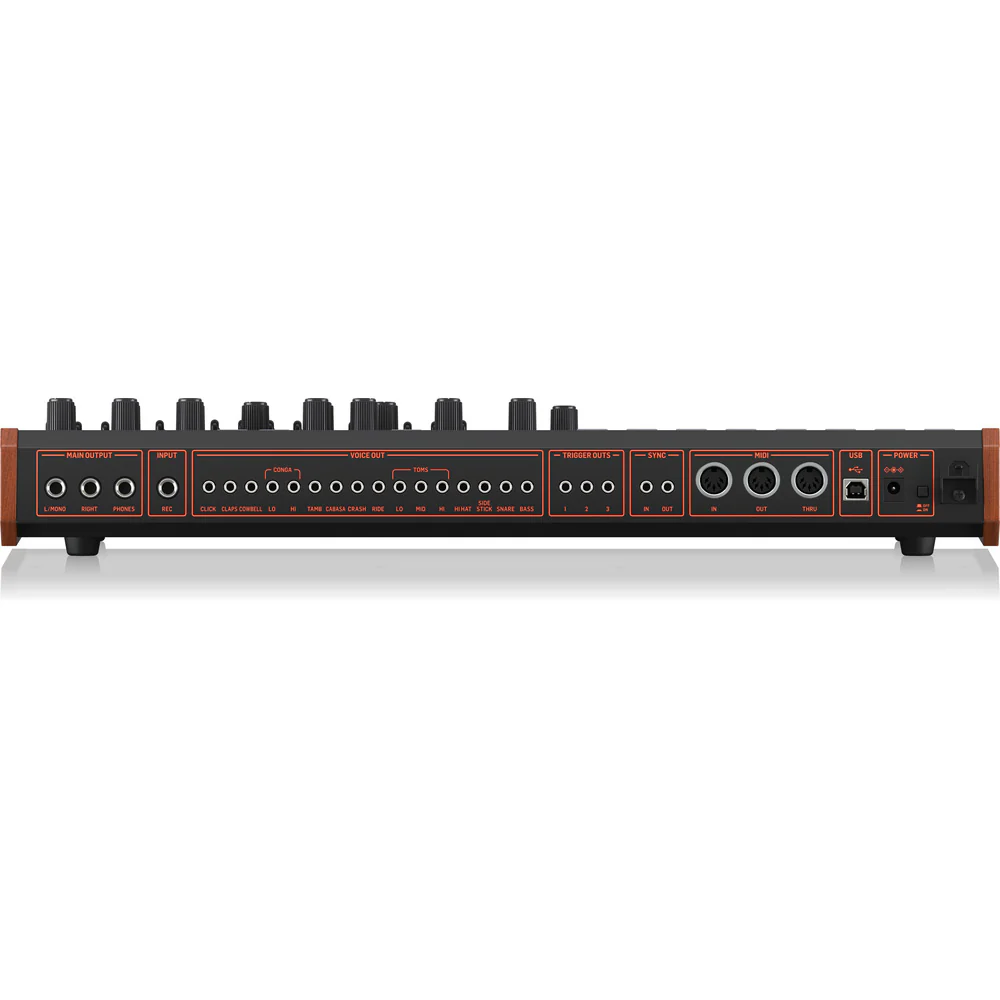

Connectivity

• Power Switch: Push button (rear panel)
• MIDI In: 5-pin DIN
• MIDI Thru: 5-pin DIN
• MIDI Out: 5-pin DIN
• USB: USB 2.0 Type B socket
• Sync In: 3.5 mm TS
• Sync Out: 3.5 mm TS
• Trigger Out: 3.5 mm TS x 3
• Filter CV In: 3.5 mm TS
• Audio Outputs: 6.35 mm TS x 2, 6.35 mm TRS headphone
• Audio Input: 6.35 mm TS

USB

• Type: Class compliant USB 2.0 Type B
• Supported Operating Systems: Windows 7 or higher, Mac OS 10.10 or higher

Control Section

• Buttons: MIDI, USB, Sync, Rand, Step Repeat, Note Repeat, Autofill, Trigger

Tempo Section

• Controls: Rate
• Buttons: Tap

Edit Section

• Buttons: Save, Copy, Erase, Dump

Mode Section

• Buttons: Song, Patt, Step, Pads

Program and Playback Section

• Buttons: Length, Samp, Bank, Quan, Back, Mute, Solo, Forward, Record, Stop, Play/Pause

Menu Section

• Controls: Data
• Buttons: No, Menu, Yes, Navigation x 4

Display

• Type: LED

Steps/Pads

• Buttons: Step/Pad x 16

Wave Designer

• Controls: Attack, Sustain
• Buttons: Send
• LED: Signal

Analog Filter

• Controls: Cutoff, Resonance
• Buttons: HPF, On

Volume Section

• Controls: Tune x 7, Pan x 16, Level x 16
• Buttons: Select x 16

Power Requirements

• Voltage: 12 V DC
• Current: 2000 mA
