BOSS Gigcaster 8 is a powerful one-stop-shop audio command center specifically built with livestreaming musicians and content creators in mind. With a range of advanced features in a compact housing, you can achieve excellent audio connectivity and live operation with the hands-on controls and vivid colour touchscreen. Connect a guitar or bass and discover the flagship GT amps and effects, connect a microphone and shape voices with high-quality processing found in the VE series, or patch in any other instrument using the stereo line input. As you stream, you can mix up to eight sources such as background music or sound from a remote guest. With customizable features, external control support, recording to microSD media, and much more, the Gigcaster 8 is the perfect companion for music creators, educators, podcasters, streamers and anyone else wanting to create music-centric media.

Killer Guitar and Bass Sounds, No External Gear Needed

Stream and rehearse with amazing guitar and bass sounds without needing external processing. Connect straight into the front panel jack and start playing with premium amp and effects models ported from the industry-leading GT-1000. With 100 ready-to-play preset patches, you also get access to 200 user locations to store parameter tweaks and custom setups. With extensive support for footswitch control and expression pedals, you can operate your rig hands free, and the vital built in tuner keeps your performances pristine.

Perform with Mics and Other Instruments

With additional inputs for connecting more gear and playing along with other musicians, including four broadcast-quality low-noise phantom power enabled XLR mic preamps with wide dynamic range, and a stereo line input for keyboards and drum machines. Included vocal effects from the coveted VE series enable you to perform with processing like compression, pitch correction, delay, and reverb - and you can even apply harmonies to your voice that automatically follow a predefined key.

Pro Multichannel Audio Mixing

Putting a plethora of mixing and routing features at your fingertips, the Gigcaster 8 boasts four primary input channels, stereo channels for sound pads, analog aux input, Bluetooth and USB audio, and each channel features a range of sound-sculpting tools for pro level mixes on the fly.

Maximum Fan Engagement

Offering a range of tools to keep your streams engaging, the versatile connectivity and great sound of the Gigcaster 8 allows you to play music from a mobile device via Bluetooth or a wired connection - while the integrated ducking feature automatically reduces the volume as you speak over it. Eight on board sound pads are also available for triggering sound effects, theme songs, sample loops and backing tracks - configured in banks of eight for a total of 64 on-demand sounds. Set up your own custom library of samples via the Gigcaster 8 App, or use the included pre-loaded factory samples.

Grab-and-Go Control

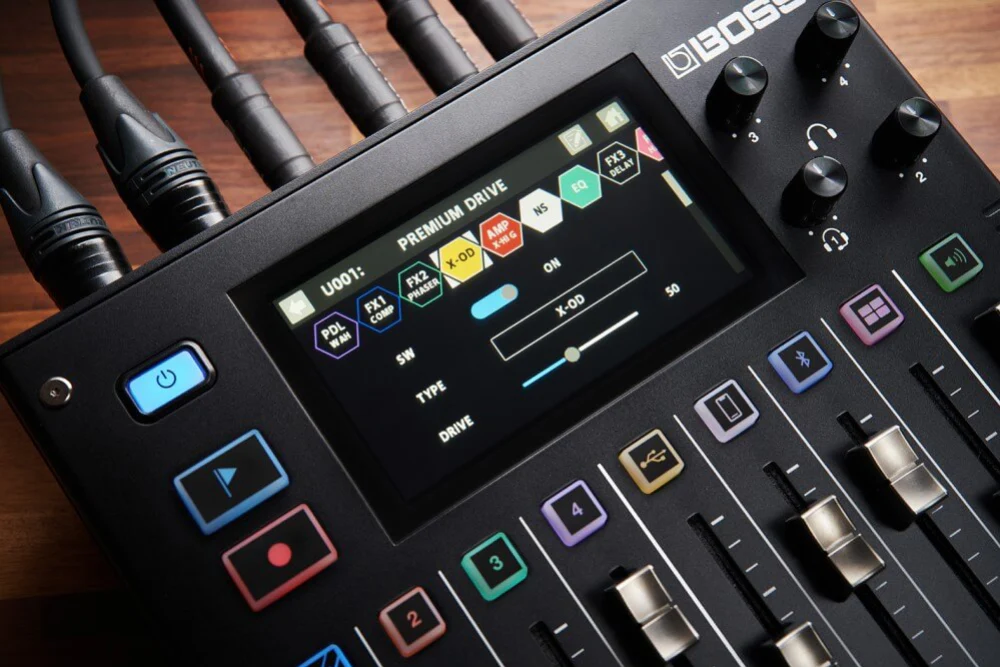

A touch-screen colour display and intuitive control layout, you can control everything you need using nothing but the hardware. Use the faders and mute buttons to create your balance while the screen displays signal levels, access effects and edit them quickly with the included tools to polish your sound.

Customize Your Workflow

The features of Gigcaster 8 are configurable to suit any streaming style. At the touch of a button, the sound pads switch to effect mode, giving you 6 4 command sources for quick sound changes on the go. Assign up to four effects controls to each pad, including preset selection, bypass and more. You can also control pad assignments via external footswitches for hands-free operation. Get advanced control over music, video and streaming MIDI commands with MIDI over USB connectivity.

Pro Recording Partner

The Gigcaster 8 is a recording powerhouse, offering 32-bit/48kHz audio quality for capturing livestreams, archiving rehearsals, or creating full songs productions inside a DAW. Recording WAV files to optional microSD media recording is supported, and you can capture the stereo mix output or multitrack performance either pre or post fader. Use the dedicated panel buttons to control recording and playback, and use the Mark function to conveniently create markers and speed up the post-editing process. Gigcaster 8 also provides a studio-grade front end for your DAW, functioning as a 20x14 USB interface.

Specifications

• Sample Rate: 48kHz
• AD Conversion: 24 bits
• DA Conversion: 32 bits
• Processing: 32-bit Floating Point
• USB Audio
  • INPUT: 20 ch
  • OUTPUT: 14 ch
• Bluetooth: A2DP, HFP
• Effect Patches
  • GUITAR: 200 (User) + 100 (Preset)
  • SING: 200 (User) + 30 (Preset)
  • TALK: 200 (User) + 30 (Preset)
• Number Of Effects
  • GUITAR: 1 CH (DISTORTION, PREAMP, EQ, NS, PEDAL FX, FX1, FX2, FX3, DELAY/REVERB)
  • SING: 2 CH (COMP, NHANCE, DESS, EQ, NS, PITCH CORRECT, HARMONY, FX1, FX2, FX3, DELAY/REVERB)
  • TALK: 3 CH (COMP, ENHANCE, DESS, EQ, NS, FX1, FX2)
  • CONSOLE: 5 CH (COMP, ENHANCE, DESS, NS, FX)
  • OUTPUT: COMP, REVERB
• Display: Color Graphic LCD (480 x 272 dots) Touch screen

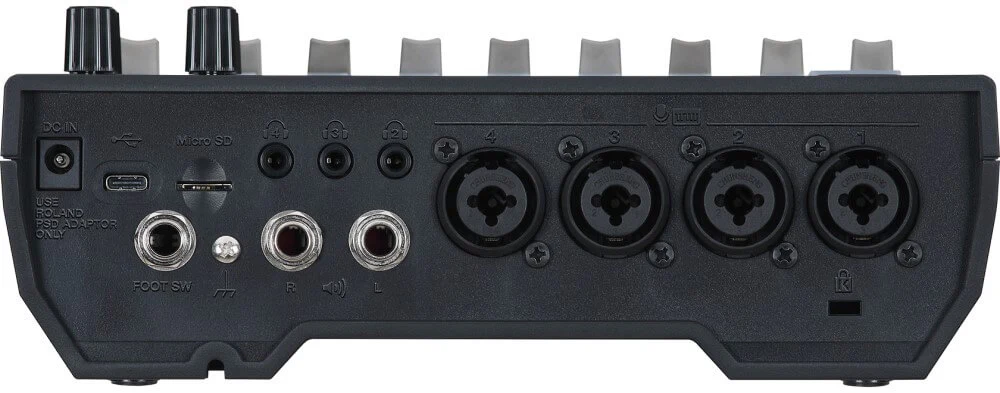

• Connectors
  • GUITAR IN: ¼" Phone Jack
  • MIC 1-4: XLR Balanced, Phantom Power: 48VDC, 10mA max.
  • INST (L and R): ¼" Phone Jack
  • MAIN OUT: ¼" Phone Jack
  • HEADPHONES 1: 3.5mm Jack
  • HEADPHONES 2-4: 3.5mm Jack
  • FOOT SW: ¼" TRS Phone Jack
  • USB PORT: USB Type-C
  • DC IN JACK
• Power Supply
  • AC Adaptor (PSD Series)
  • USB Bus Power
  • Current Draw: 1.8A (with phantom power)
• Dimensions
  • 217mm (W) x 267mm (D) x 80mm (H)
  • 1.36kg
• What's In The Box?
  • AC adaptor: PSD series
  • Owner's Manual
  • Leaflet "USING THE UNIT SAFELY"
