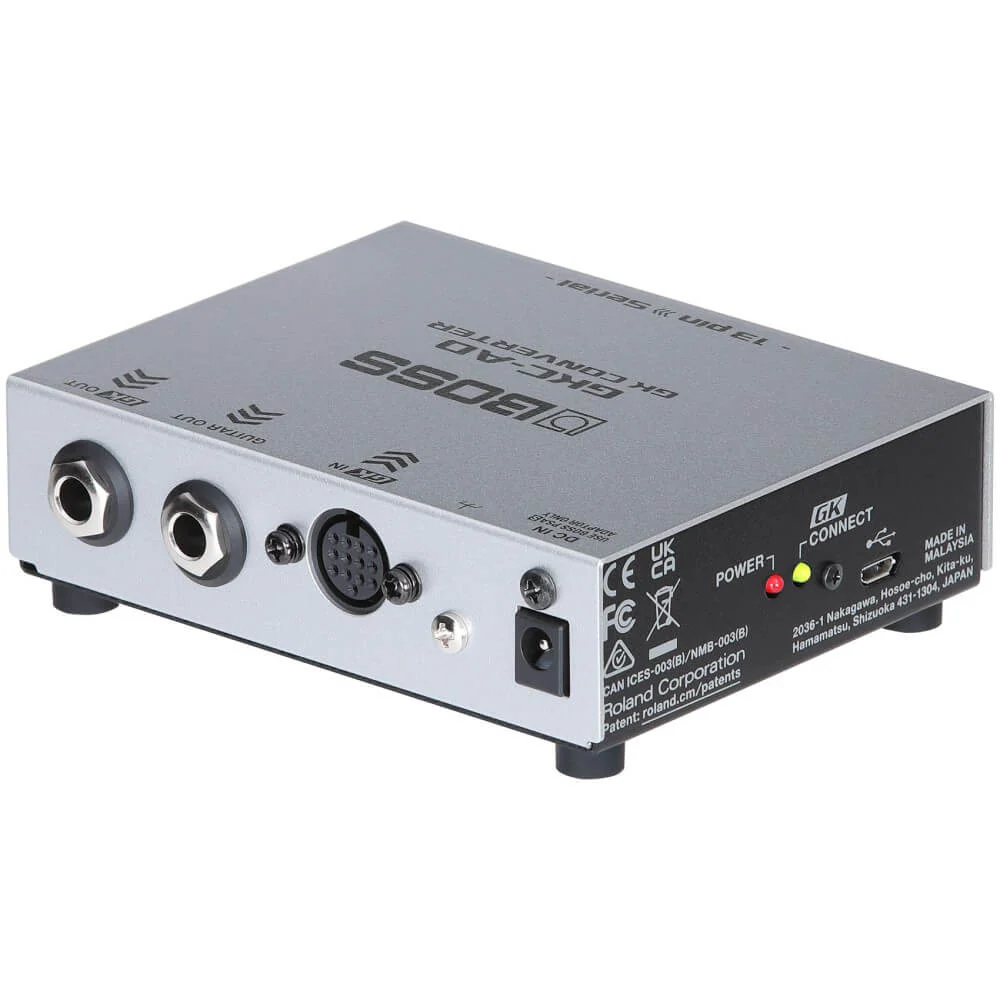

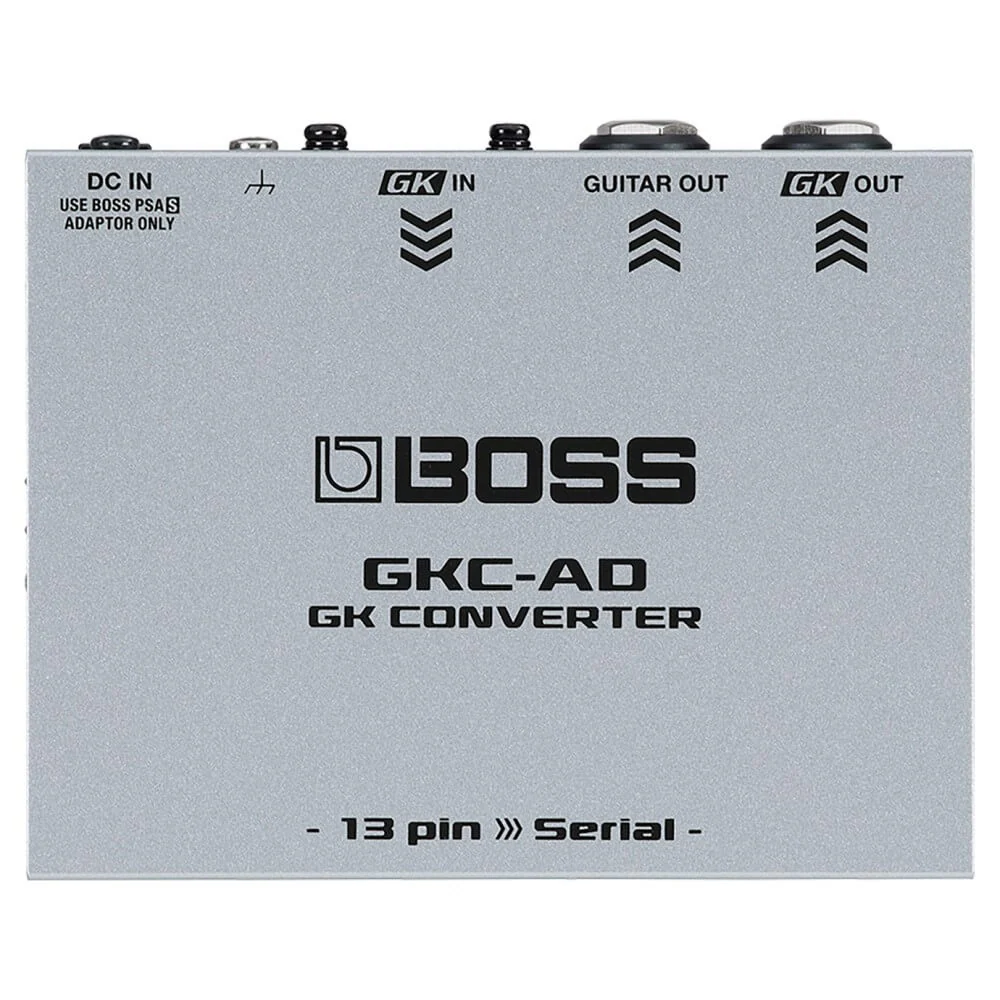

BOSS' latest guitar synthesizer products utilize the Serial GK digital interface - a newly-developed connection protocol that delivers evolved performance compared to the analog 13-pin GK interface featured in previous BOSS and Roland guitar synth and modeling products. The all-new GKC-AD GK Converter allows you to drive the Serial GK input on the BOSS GM-800 Guitar Synthesizer from a Roland GK-3 or GK-3B Divided Pickup, or instruments that utilize a 13-pin GK output.

Features

• Converts analog 13-pin GK pickup systems to the newly developed Serial GK digital interface
• 13-pin GK input and Serial GK output
• Instrument output for passing normal guitar/bass pickup sounds embedded in the 13-pin connection
• Compact and rugged metal design

Supported Products

The GKC-AD allows for the use of GK-3/GK-3B Divided Pickups, or an instrument with a 13-pin GK output with the following products:

• BOSS Products
  • GM-800 Guitar Synthesizer

Specifications

• Connectors
  • GK IN: 13-Pin DIN Type
  • GK OUT: ¼" TRS Phone Type (for BGK Cable Only)
  • GUITAR OUT: ¼" Phone Type
  • DC IN Jack
  • USB Port: USB Micro-B (Program Update Only)
• Nominal Output Level: -10dBu
• Recommended Load Impedance: 10kΩ or Greater
• Input Impedance: 1MΩ
• Power
  • Power Supply: AC Adaptor
  • Current Draw: 240mA
• What's in the Box?
  • AC Adaptor
  • Owner's Manual
  • Leaflet "USING THE UNIT SAFELY"
• Dimensions
  • 115mm (W) x 92mm (D) x 36mm (H)
  • 340g
