Features

• Professional 100-watt combo amp with enhanced tone and exclusive features
• Custom Waza 12-inch speaker realizes classic British stack speaker tone and response with increased power handling
• Tube Logic design approach produces class-defying power, authoritative punch, and cutting presence
• Robust analog class-AB power amp section delivers authentic tone and highly musical response
• Ultra-solid cabinet construction and semi-closed back for tight, focused tone with rich low end
• Five amp characters with five variations, plus Booster, Mod, FX, Delay, and Reverb sections with three variations in each
• Three-way Contour for shaping the overall tonal color and Global EQ switch with three settings (customizable in BOSS Tone Studio)
• Switchable Solo function with level control
• Integrated dual amp expansion functions for GA-FC control and true stereo effects
• Updated BOSS Tone Studio editor software for customizing sounds with over 60 BOSS effects; newly added editor features include pre and post EQs, dedicated Pedal FX, and more
• Series/parallel effect loop, external speaker outputs, and power amp input for preamps, modelers, and multi-effects
• Eight Tone Setting memories for storing and recalling all amp and effect settings
• Power Control for achieving cranked-amp tone and response at low volumes
• Mic'd cabinet emulation on the line, USB, and phones/recording outputs, with three Air Feel settings available in BOSS Tone Studio
• External control support via GA-FC foot controller, footswitches, expression pedal, and MIDI

---

Specifications

• Rated Power Output: 100 W
• Nominal Input Level

  • INPUT: -10 dBu (1 M ohm)
  • AUX IN: -10 dBu (20 k ohms)
  • RETURN IN: -10 dBu (100 k ohm)
• Speaker: 30 cm (12 inches) x 1
• Controls:

  • POWER switch
  • MASTER knob
  • PRESENCE knob
  • SOLO knob
  • GLOBAL EQ button
  • CONTOUR switch (OFF, 1, 2, 3)
  • POWER CONTROL switch (STANDBY, 0.5 W, 50 W, 100 W)
  • CABINET RESONANCE switch (VINTAGE, MODERN, DEEP)
• [AMPLIFIER]

  • AMP TYPE knob (ACOUSTIC, CLEAN, CRUNCH, LEAD, BROWN)
  • VARIATION button
  • GAIN knob
  • VOLUME knob
• [EQUALIZER]

  • BASS knob
  • MIDDLE knob
  • TREBLE knob
• [MULTI EFFECT]

  • BOOSTER button
  • MOD button
  • FX button
  • DELAY button
  • REVERB button
  • TAP button
  • BOOSTER knob
  • MOD knob
  • FX knob
  • DELAY knob
  • REVERB knob
• [TONE SETTING]

  • BANK button
  • CH1 button
  • CH2 button
  • CH3 button
  • CH4 button
  • PANEL button
• [EXPAND]

  • EXPAND switch (OFF, STEREO, DUAL LINK)

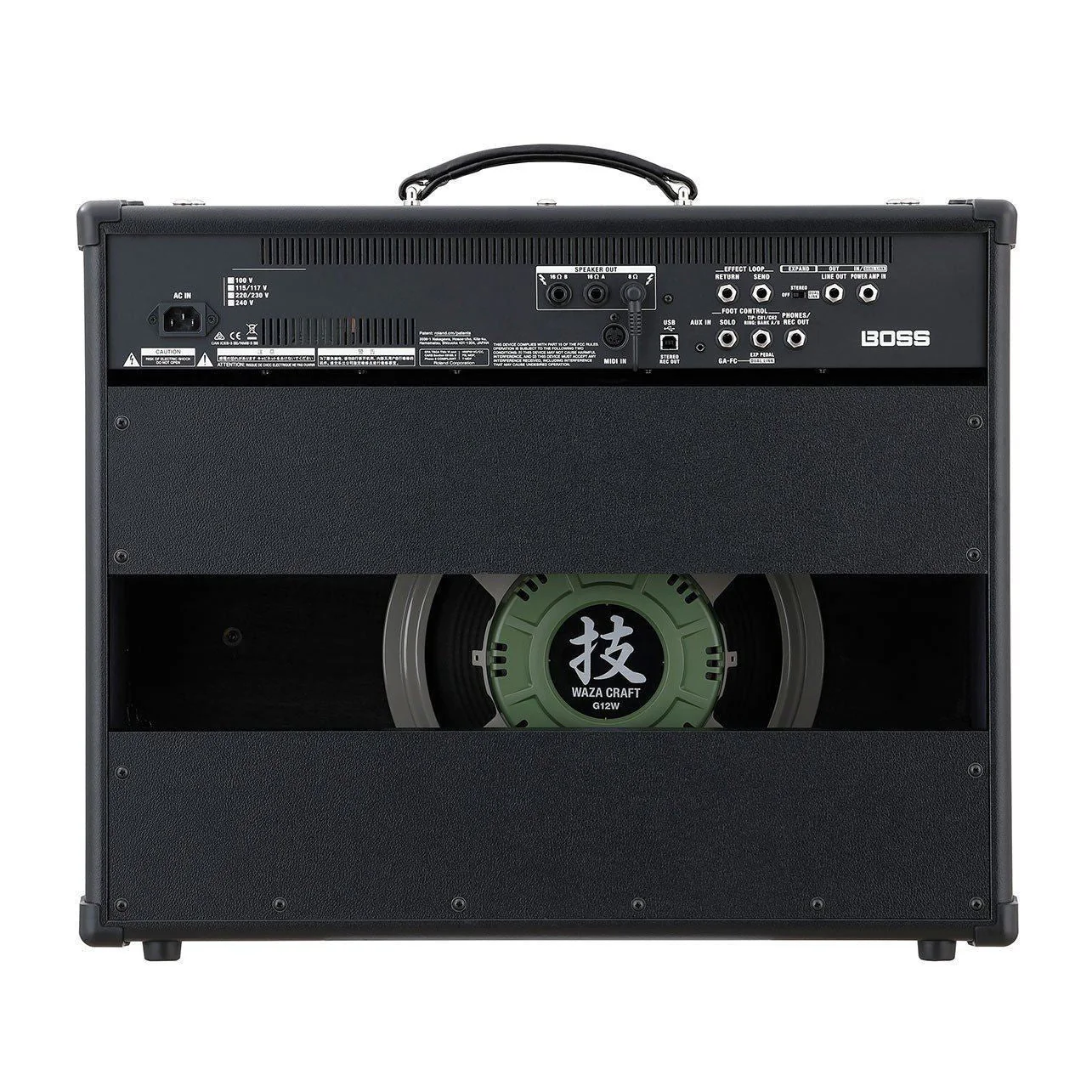

• Connectors

  • INPUT jack: 1/4-inch phone type
  • POWER AMP IN/DUAL LINK jack: 1/4-inch phone type
  • LINE OUT jack: 1/4-inch phone type
  • SEND jack: 1/4-inch phone type
  • RETURN jack: 1/4-inch phone type
  • SPEAKER OUT 16 ohms A jack: 1/4-inch phone type
  • SPEAKER OUT 16 ohms B jack: 1/4-inch phone type
  • SPEAKER OUT 8 ohms jack: 1/4-inch phone type
  • REC OUT/PHONES jack: Stereo 1/4-inch phone type
  • EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
  • GA-FC/CTL SOLO jack: 1/4-inch TRS phone type
  • AUX IN jack: Stereo miniature phone type
  • USB port: USB B type
  • MIDI IN connector
  • AC IN jack
• Power Consumption: 77 W
• Accessories:

  • Owner's Manual
  • Power cord
  • GA-FC sticker
• Options (sold separately)

  • Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
  • Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
  • GA FOOT CONTROLLER (GA-FC)
• Width: 630 mm; 24-13/16 inches
• Depth: 248 mm; 9-13/16 inches
• Height: 515 mm;20-5/16 inches
• Weight: 19 kg; 41 lbs 15 oz

---
