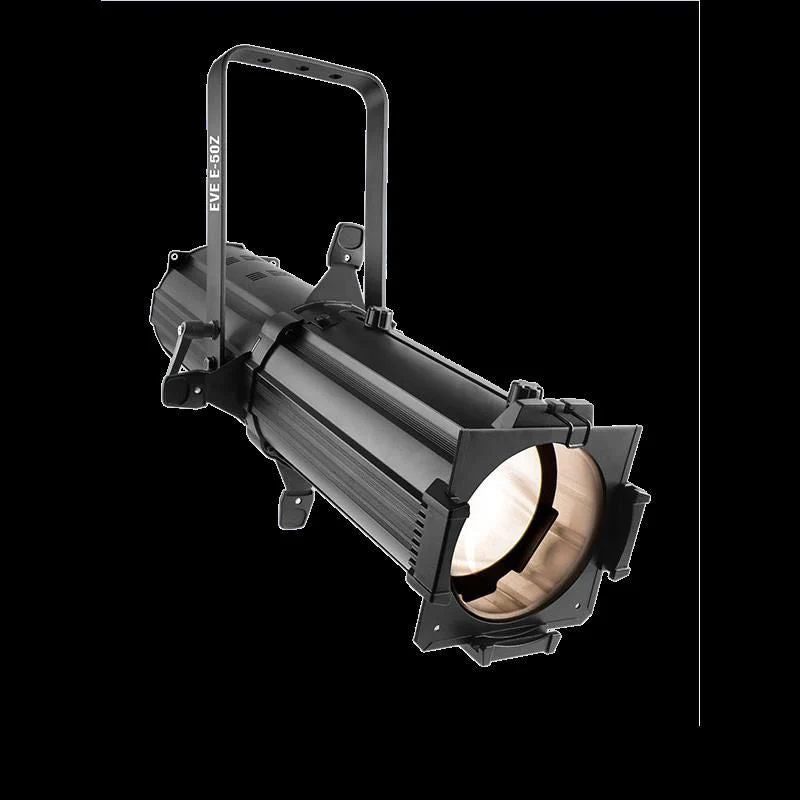

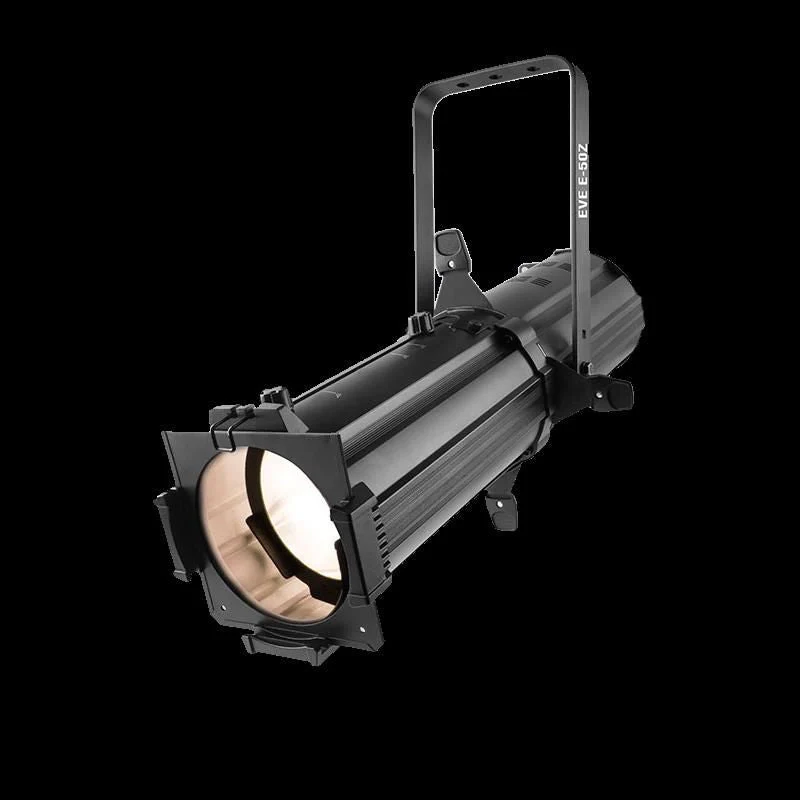

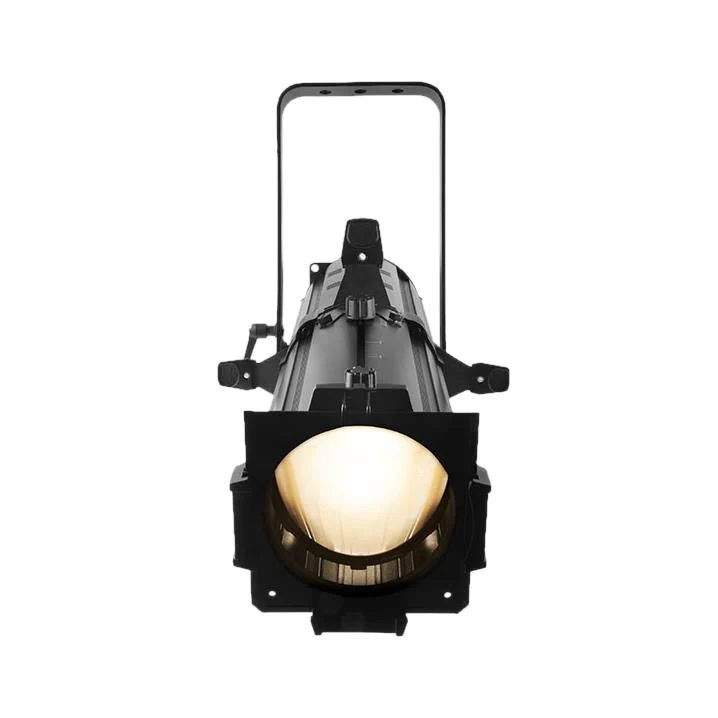

Featuring a robust professional design with ultra low power consumption, and a surprising output thanks to the warm white 50W LED power source. Ideal for stage and theatre applications, as well as larger productions and lighting setups. The EVE E-50Z features ultra smooth electronic dimming, and both 3-pin DMX and wireless DMX control (via the DFi-USB connection, sold separately).

Super easy to set-up and use with manual zoom for flexibility to project from any distance. And its framing shutters let you easily alter and control the projected beam. The EVE E-50Z includes holders for glass and steel gobos as well as a gel frame. You can even operate EVE E-50Z in standalone mode eliminating the need for DMX control and you can save time running extension cords by power linking multiple units.

---

Features

• LED Ellipsoidal shines a hard-edged, warm white spot in any direction
• Easily highlight areas by altering the projected beam with framing shutters
• Flexibility to project from any distance using the manual zoom
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Flicker-free operation suitable for on-camera use
• Includes holders for glass and steel gobos and a gel frame
• Save time running extension cords by power linking multiple units
• Eliminate the need for DMX control with standalone operation

---

Specifications

• DMX Channels: 1 or 3
• DMX Connectors: 3-pin XLR
• Light Source: 1 LED (warm white) 50 W, (1.3 A), 50,000 hours life expectancy
• Colour Temperature: 3500 K
• Strobe Rate: 0 to 29 Hz
• PWM Frequency: 1.2 kHz
• Zoom Angle: (manual): 20° to 39°
• Illuminance: 20°: 7,910 lux @ 2 m; 39°: 2,710 lux @ 2 m
• Gobo Size: D (53.3 mm outside, 43 mm image, 2mm max thickness)
• Gel Frame Size: 5.5 in
• Power Linking: 16 units @ 120 V; 26 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 59 W, 0.5 A @ 120 V, 60 Hz, 63 W, 0.3 A @ 230 V, 50 Hz
• Weight: 9.2 lb (4.2 kg)
• Size: 18.9 x 6.2 x 15 in (480 x 157 x 381 mm)
• Approvals: CE
• Optional Controllers: D-Fi USB
