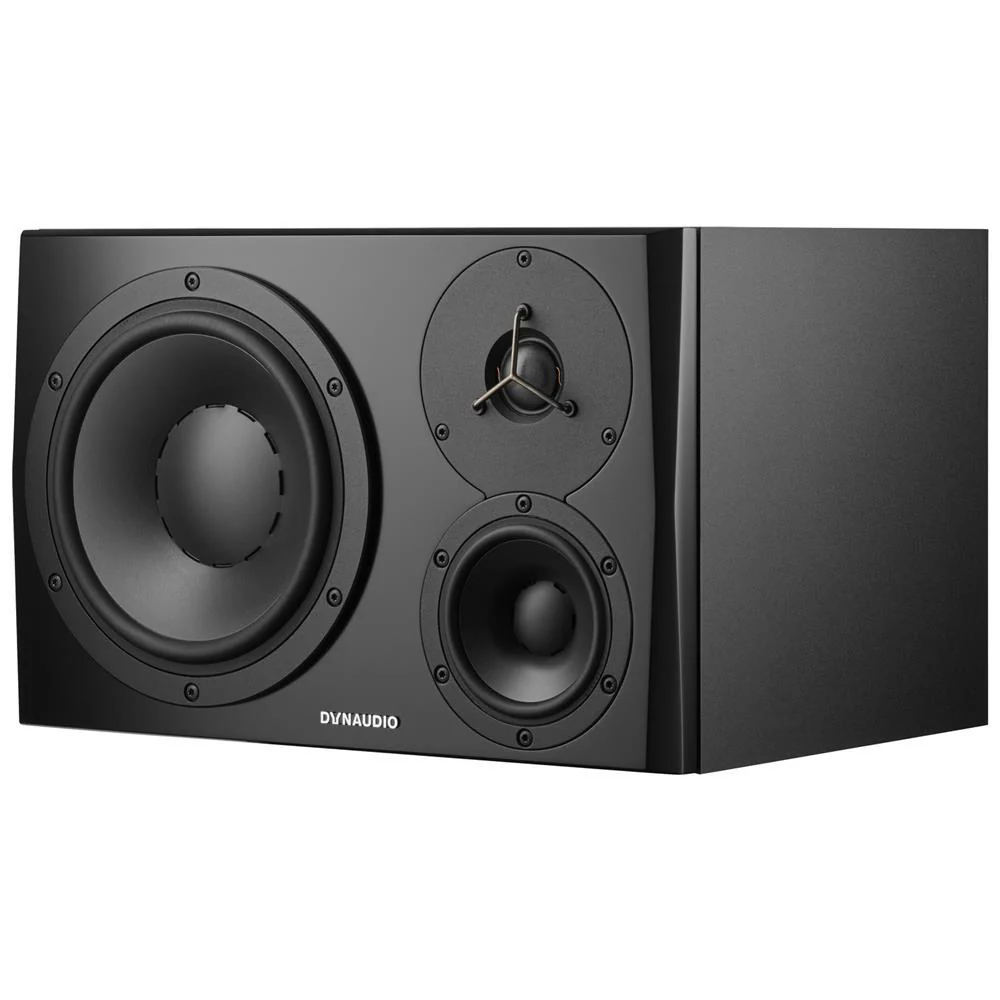

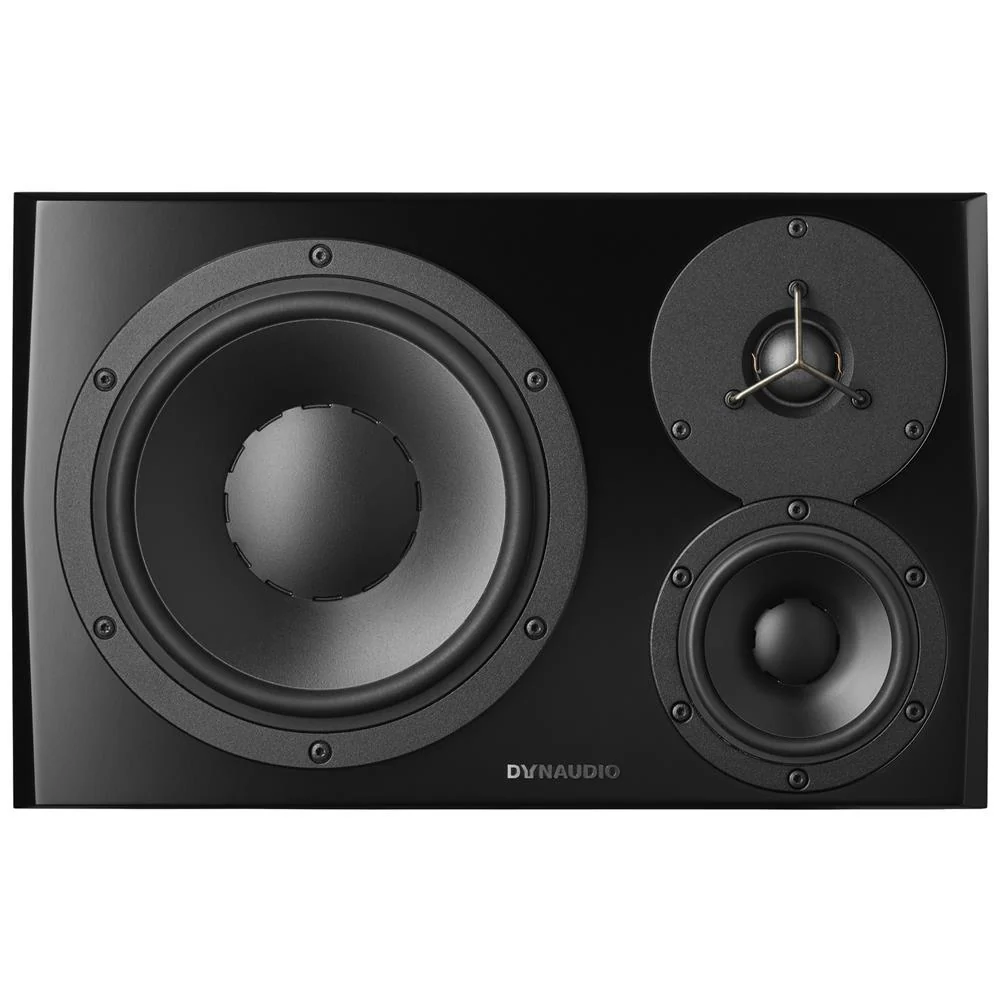

This three-way proximity and mid-range monitor achieves a surprising level of precision thanks to a new soft dome tweeter, midrange speaker and Dynaudio's exclusive MSP woofer . Each speaker is powered by a powerful, state-of-the-art Class D amplifier and a fully 24-bit / 96kHz circuit. And, like the rest of the LYD range, it lets you fine-tune low-frequency response, position, and balance using state-of-the-art DSP.

---

Specifications

• Maximum sound pressure level (1 m, pair): 112 dB
• Principle: Bass reflex
• Crossover frequencies: 460 Hz / 5.5 kHz
• Tweeter: 1 inch soft dome
• Medium: 4 inch
• Woofer: 8 inch
• Dimensions (W x H x D): 369 x 234 x 328 mm
• Weight: 12 kg
• Sensitivity (85 dB at 1 m, free field):
  • + 6 dB: 50 mV
  • 0 dB: 100 mV
  • - 6 dB: 200 mV
• Power (Tweeter / Midrange / Woofer): 50 W / 50 W / 80 W
• Type: Class D
• Power consumption in standby: <0.5 W
• Max power consumption: 100 W
• Input voltage: 90 - 264 V AC, 50 - 60 Hz
• Entries: Balanced XLR / Unbalanced RCA
• Exits: N / A
• Bass extension + 10 Hz: 60 Hz - 21 kHz
• 0 Hz bass extension: 50 Hz - 21 kHz
• Bass extension - 10 Hz: 40 Hz - 21 kHz
• Frequency response in free field: 50 Hz - 19 kHz

---

Watch: The LYD 48 a 3-way Personal Reference Monitor.
