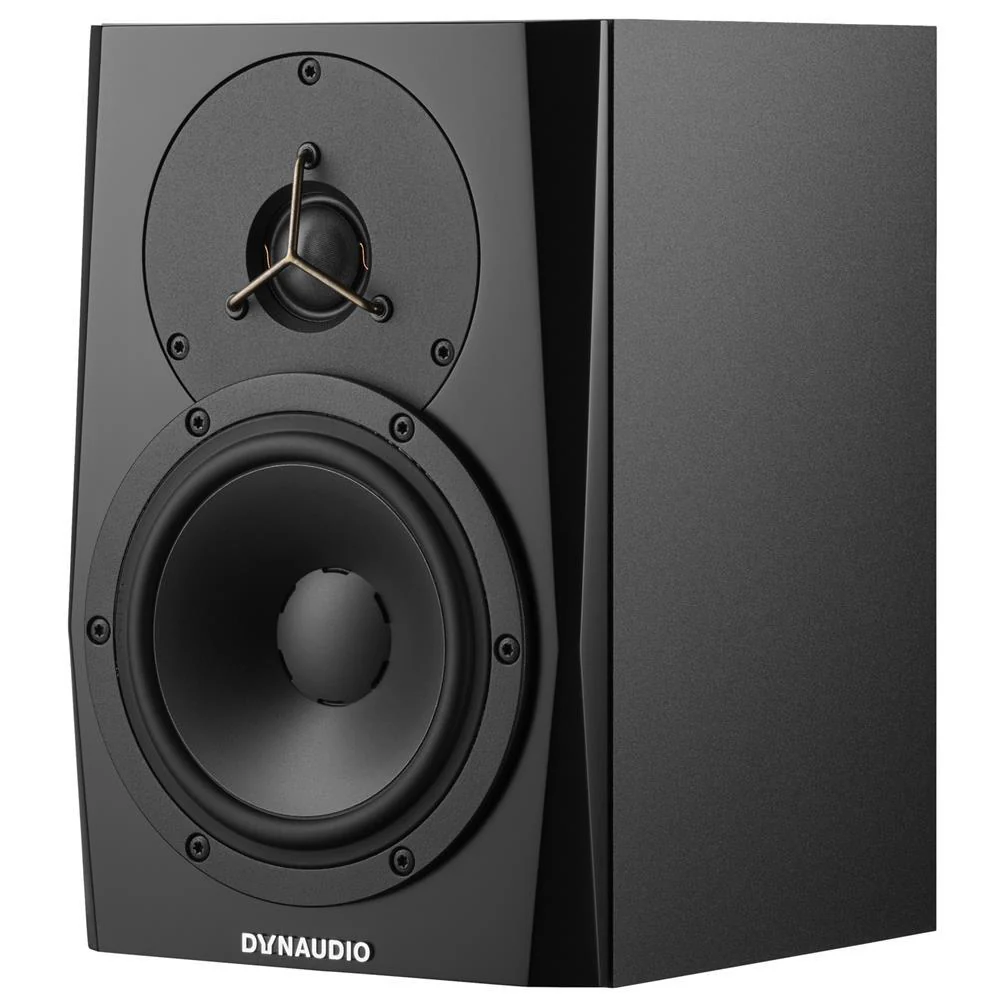

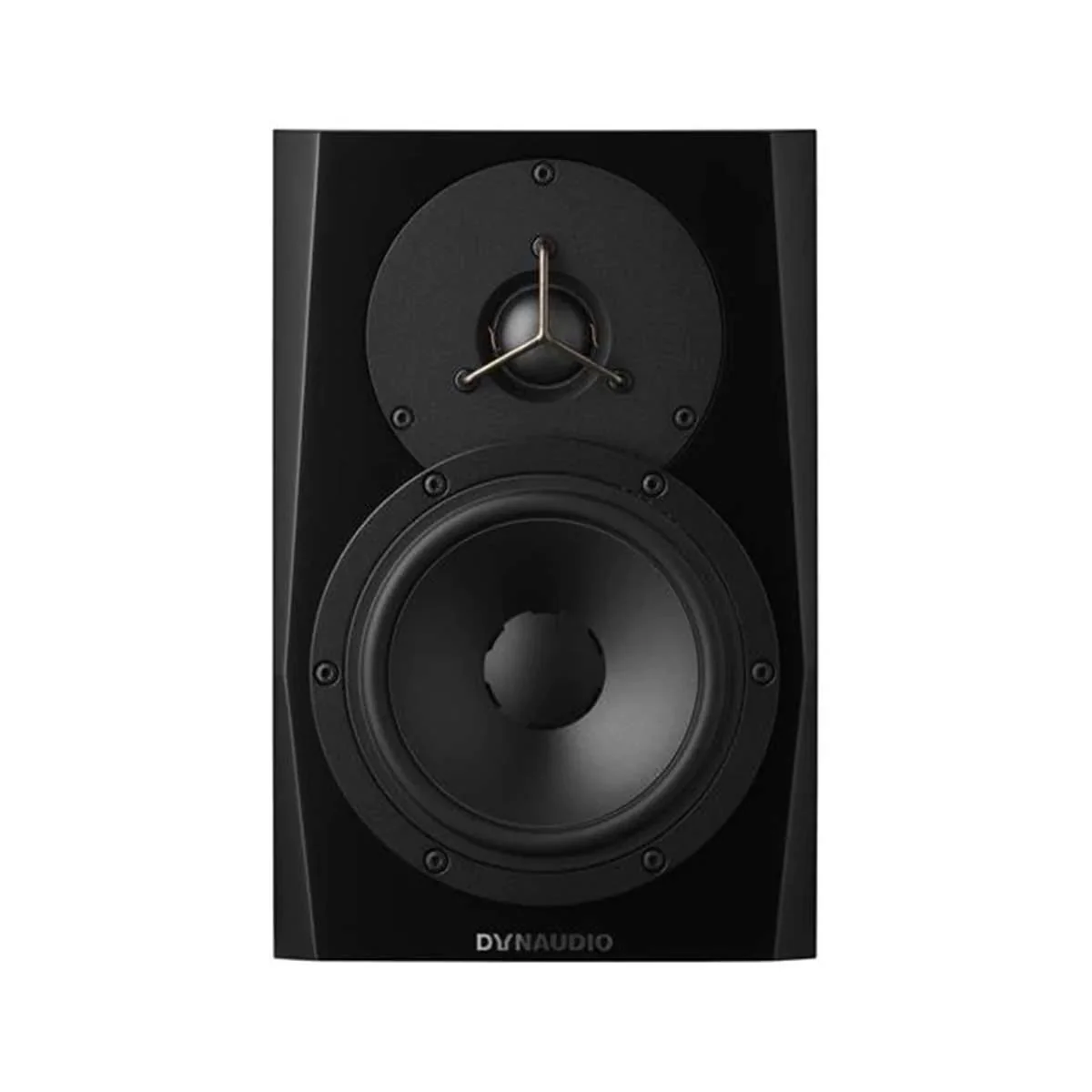

LYD 5

Compact nearfield personal monitors for incredible precision in smaller spaces – and even at low volumes. The truth, the whole truth and nothing but the truth. Get the unvarnished truth and deliver your mixes exactly as the artist intended.

LYD 5, with its low-volume precision, is the ideal complement for any small studio set-up. It uses the same lightweight aluminium voice-coils in its handmade 5in MSP drive-units as our high-end hi-fi speakers, and pairs them with cutting-edge Class-D amplification as well as a 24-bit/96kHz signal path with advanced DSP.

Features

Nearfield Monitor with 5" Woofer

Bi-amped speaker design with 2 x 50W and state-of-the-art Class-D amplification

Bass extension to extend or curtail the low end frequency response

Two different tunings: one for free standing and one designed for speakers within 50 cm of wall

Sound balance to influence the overall response of the speaker

Made in Denmark

LYD 5

Specifications

Status: Current

Segment: Pro

Range: LYD

Type: Near Field Monitor

Analog inputs: XLR, RCA

Maximum SPL (1m, pair): 106

Amplifier Power Woofer (Watt): 50

Amplifier Power Tweeter (Watt): 50

AC Power Input: 100-240V 50/60Hz

Max Stand-by Power Consumption (Watt): 0,5

Max Power Consumption: 100

Lower Cutoff (Hz @85 dB +/- 3 dB): 60

Upper Cutoff k(Hz @ 85dB +/- 3 dB): 21

Box Principle: Rear-loaded bass reflex

Crossover: 2-way DSP-based

Crossover Frequency (Hz): 5200 Hz

Tweeter: 1.1in soft dome

Midrange/Woofer: 5in MSP

Weight kg: 5,7

Weight lbs: 12 5/8

Width mm: 170

Height mm: 260

Depth mm: 211

Width inches: 6 6/8

Height inches: 10 2/8

Depth inches: 8 2/8

Speakers per packaged box: 1

Finishes: Black Satin, White Satin
