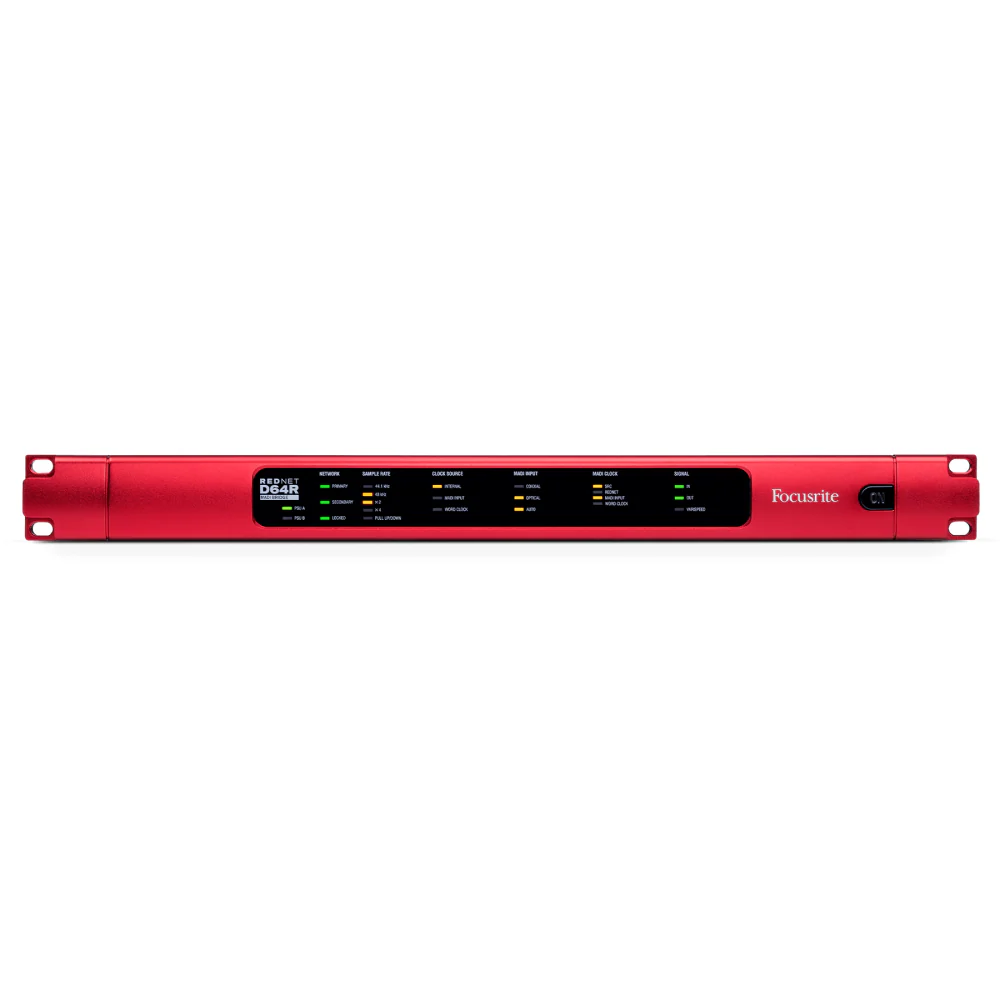

D64R features sample rate converters (SRC) on each input and output, allowing MADI to Dante connections regardless of the sample rate at which each system operates. Connect your Dante network to MADI-based digital consoles, computer cards, converters and more. In addition to coaxial and optical MADI interfaces, the RedNet D64R offers word clock input and output. There are two Ethernet ports with lockable etherCON connectors and multiple operating modes including daisy chaining and redundancy, which are visible via indicators on the front panel. It is supplied with two independent power supplies with fault detection and has an independent power input socket (including a retaining clip) on the rear of the device. Power status is displayed on both the remote control and the front panel. The D64R has a rugged, roadworthy appearance and high internal build quality. Additionally, it offers a compact 1U rackmount form factor that accommodates a full 64 I/O channels. 64x64 MADI I/O with Dual PSUs RedNet D64R is a 1U, 64x64 MADI interface for any Dante™ audio-over-IP network. Featuring network and power supply redundancy, RedNet D64R is the ideal choice for providing MADI I/O in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio. MADI connectivity is provided in the form of coax through two rear-panel BNC connectors, as well as optical through an SC-Duplex connector. Word Clock I/O allows RedNet D64R to provide clock to external equipment, or alternatively to sync the Dante network to an external clock. The word clock input can additionally be used as the sync source for the unit's sample rate converters, allowing asynchronous operation between the network and the MADI domains. Front panel status LEDs provide visual feedback of signal presence, SRC status, PSU status and more. The Focusrite Studio Console Reborn in your DAW The Focusrite Studio Console defined countless hits of the 80s and 90s, thanks in large part to its ISA 110 Equaliser and ISA 130 Dynamics Modules. Brainworx's bx_console Focusrite plug-in brings you stunningly accurate emulations of both in a single plug-in, perfectly capturing the famously warm, open sound of two of the most revered pieces of studio hardware ever made. Enjoy 3 Years of Warranty All Focusrite products are built to the highest standards, and are designed to provide many years of reliable performance.

Features

• Connects a MADI system and a Dante network seamlessly together.
• Connect Dante to digital mixing consoles, interfaces and cards that use MADI; or extend a MADI system with RedNet's versatile, superb-quality audio interfaces and connectivity - or any other Dante compatible devices.
• Built-in redundancy with dual locking power and etherCON network connectors.
• Supports both coax and optical interfaces — connect simply to any MADI equipment.
• Slave either the Dante system or MADI streams to an external clock.
• Supports up to 64 channels of digital audio I/O at standard sample rates (44.1/48kHz) from a MADI system, 32 channels at 96kHz and 16 at 192kHz.
• Sample rate conversion (SRC) on each input and output, allowing MADI and Dante systems to operate simultaneously at different sample rates.
• Simple 1U rack-mount module with the classic red aluminium faceplate.
• RedNet Control and Dante software allow remote routing and control from the audio computer system via a software control panel — no hardware patching required.

Specification

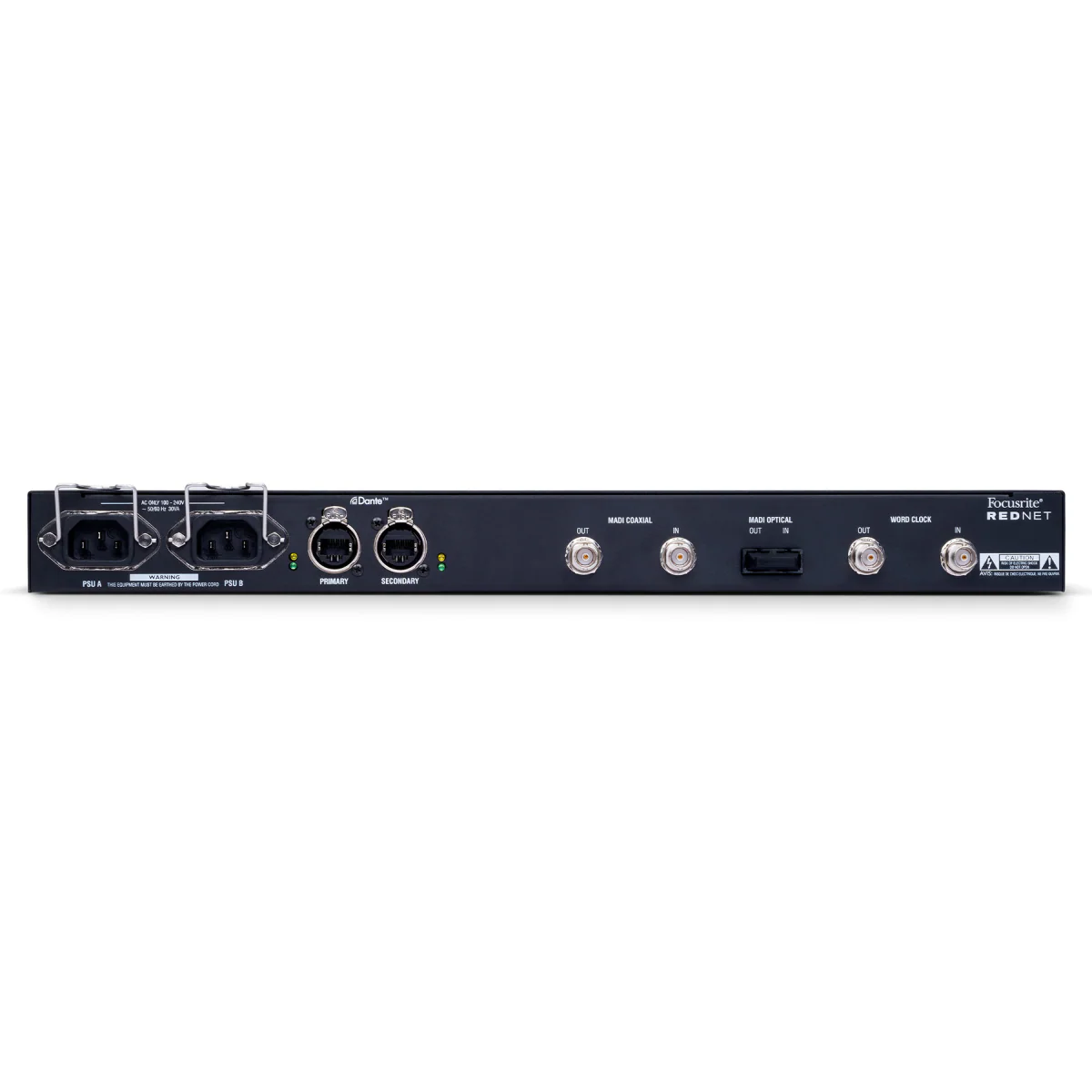

Sample Rate Convertors Sample Rate Range: 41 to 216kHz (MADI) Gain Error: -0.01dB Dynamic Range: > 139dB (-60 dBFS method) THD N: < -130dB (0.00003); 0 dBFS input Latency: 43 to 196 samples (Network and MADI sample rate dependent) MADI Clock Sources: RedNet, MADI Input and Word Clock Digital Performance Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit Clock Sources: Internal, MADI or from Dante Network Master External Word Clock Range: Nominal sample rate ±7.5 Rear Panel Connectivity Electrical Standard: as per AES10:2008 Recommended Cable: OM1 adheres to AES10:2008 RedNet 6/ D64R supports OM2 if 3rd Party Device also supports OM2 Connector: Duplex-SC Optical Standard: as per AES10:2008 (ISO/IEC 9314-3, FDDI, ANSI X3.166) Word Clock Input: 1 x BNC 75O port Word Clock Output: 1 x BNC 75O port PSU: 2 x IEC Inputs with retaining clips Network: 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors Network Modes Redundant: Allows unit to connect two independent networks Switched: Connects both ports to integrated network switch allowing daisy-chaining of device
