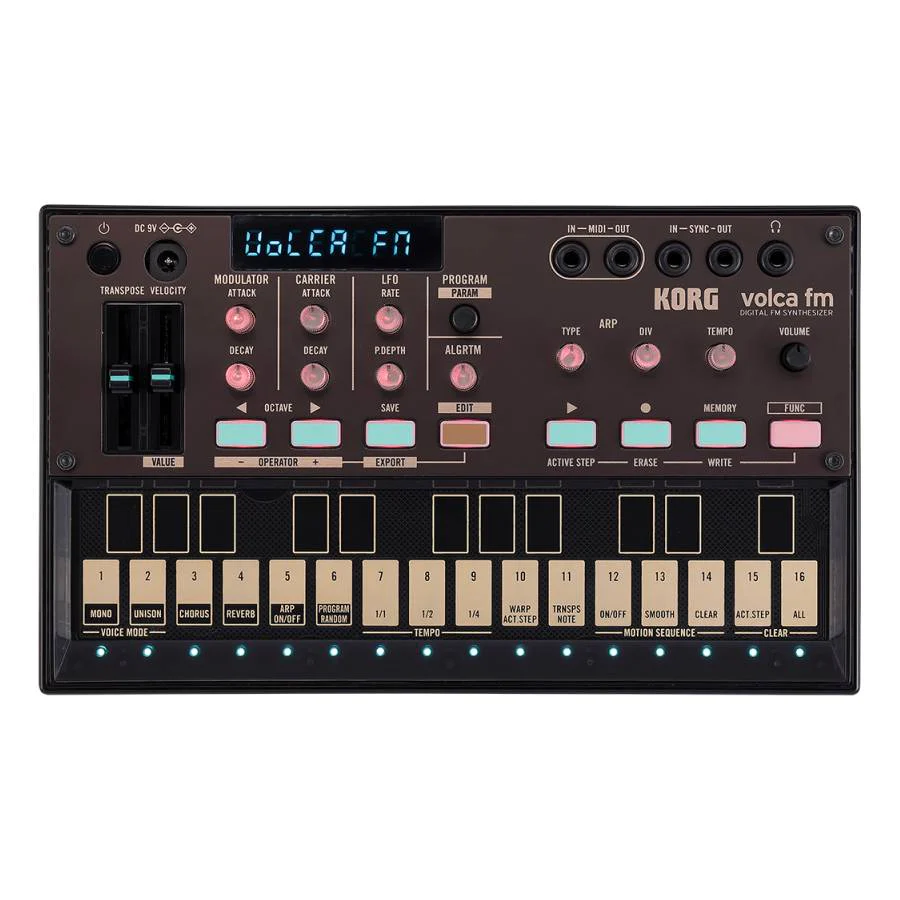

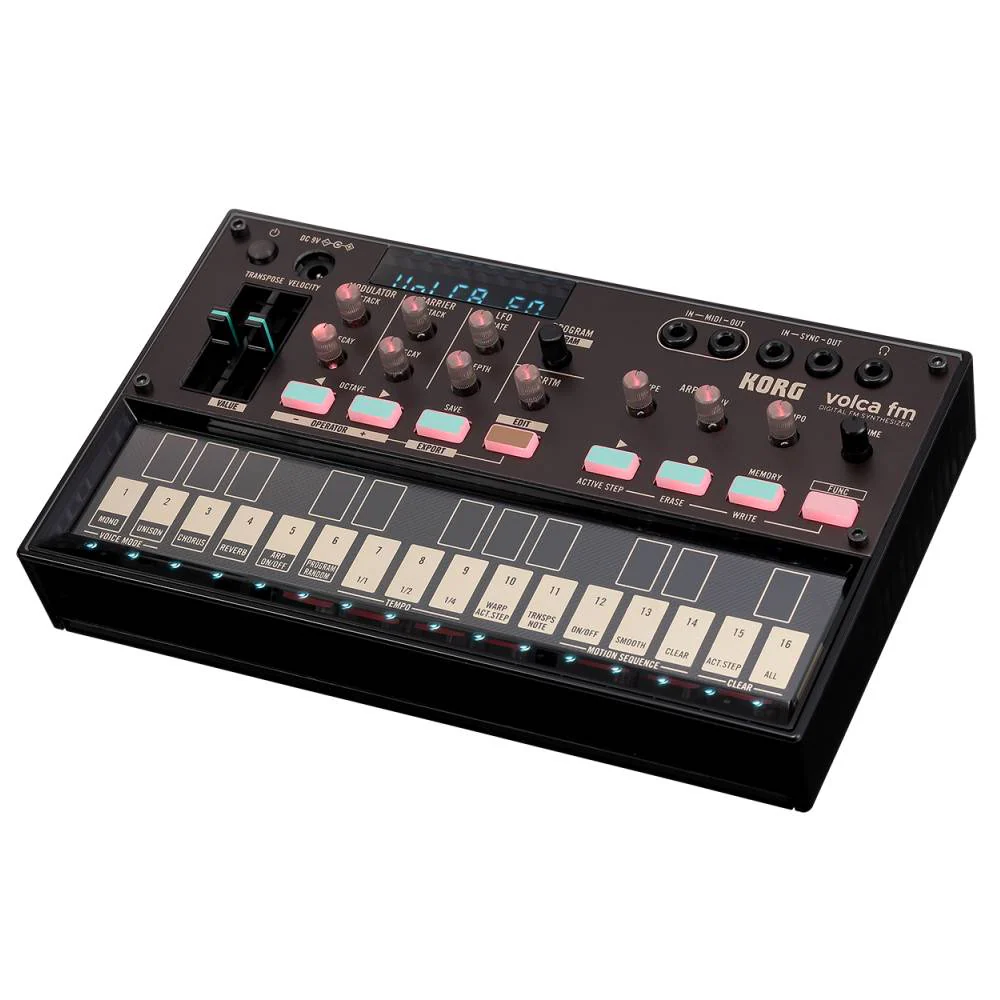

The next-gen volca fm is a powerful 6-voice, 6-Operator FM synthesizer with all 32 classic algorithms, a 16-step loop sequencer, effects and a powerful arpeggiator that perfectly reproduces the sound of the classic Yamaha DX7 and is completely compatible with SYS-EX patches for the DX7 as well. Battery (included) or adapter (optional) operated with built-in speakers and a compact and light chassis, the volca fm is the ultimate portable FM solution for all musicians. This new generation – with double the voices of its predecessor, additional effects, expanded MIDI connectivity, and intuitive interface – is poised to bring unprecedented possibilities to your setup, and revolutionize your studio with new musical ideas.

---

Specifications

• Keyboard: Multi touch 27 key keypad
• Synthesizer
  • Type: FM synthesis
  • Maximum Polyphony: 6 voices
  • Structure: 6 operators, 32 algorithms
  • Number of Programs: 64
  • Edit parameters: Modulator (Attack, Decay), Carrier (Attack, Decay), LFO (Rate, P.Depth), Algrtm, Randomize Available to edit full parameters for each operator in Edit Mode
  • Controls: Transpose, Velocity, Octave, Arp (Type, Div), Chorus Level, Reverb Level
  • Arpeggiator Types: 9 (each 3 patterns of "Rise", "Fall", and "Random")
  • Voice Modes: Poly, Mono, Unison
• Effect: Chorus, Reverb
• Sequencer
  • Number of Parts: 1
  • Number of Steps: 16
  • Number of Recording Patterns: 16
  • Controls: Motion Sequence, Active Step, Warp Active Step, Pattern Chain, Metronome
• Connectors
  • Audio Output: Headphones (3.5mm stereo mini jack)
  • Sync
    • Sync In: (3.5mm monaural mini jack, Maximum input level: 20V)
    • Sync Out: (3.5mm monaural mini jack, Output level: 5V) When two units of volca fm, available to export the sound programs and sequence data from a volca fm to the other one
  • MIDI: IN 、OUT Note: 3.5mm stereo mini jack connector (type-A MIDI adaptor needed)
    • Available to convert and load SYS-EX/SYX files from Yamaha DX7
• Power
  • Power Supply: AA alkaline battery x 6 or AA nickel-metal hydride battery x 6 Or AC adapter (DC 9V) (optional)
  • Battery Life: Approximately 10 hours (using alkaline batteries)
• Dimensions (W x D x H): 193 x 115 x 40 mm / 7.60” x 4.53” x 1.57”
• Weight: 360 g / 12.70 oz. (Excluding batteries)
• Included Items: AA alkaline battery x 6 (for verifying operation), Sync Cable, Edit Parameter List
• Accessories: AC adapter (DC 9V) KA-350

---
