Even today, when digital technology allows electronic musical instruments to simulate any sound imaginable, people seek the warm harmonics and distortion produced by analog vacuum tubes. This distinctive sound has a quality beyond words that sets it apart, and cannot be captured by a response curve; it's the unmistakable sound of tubes.

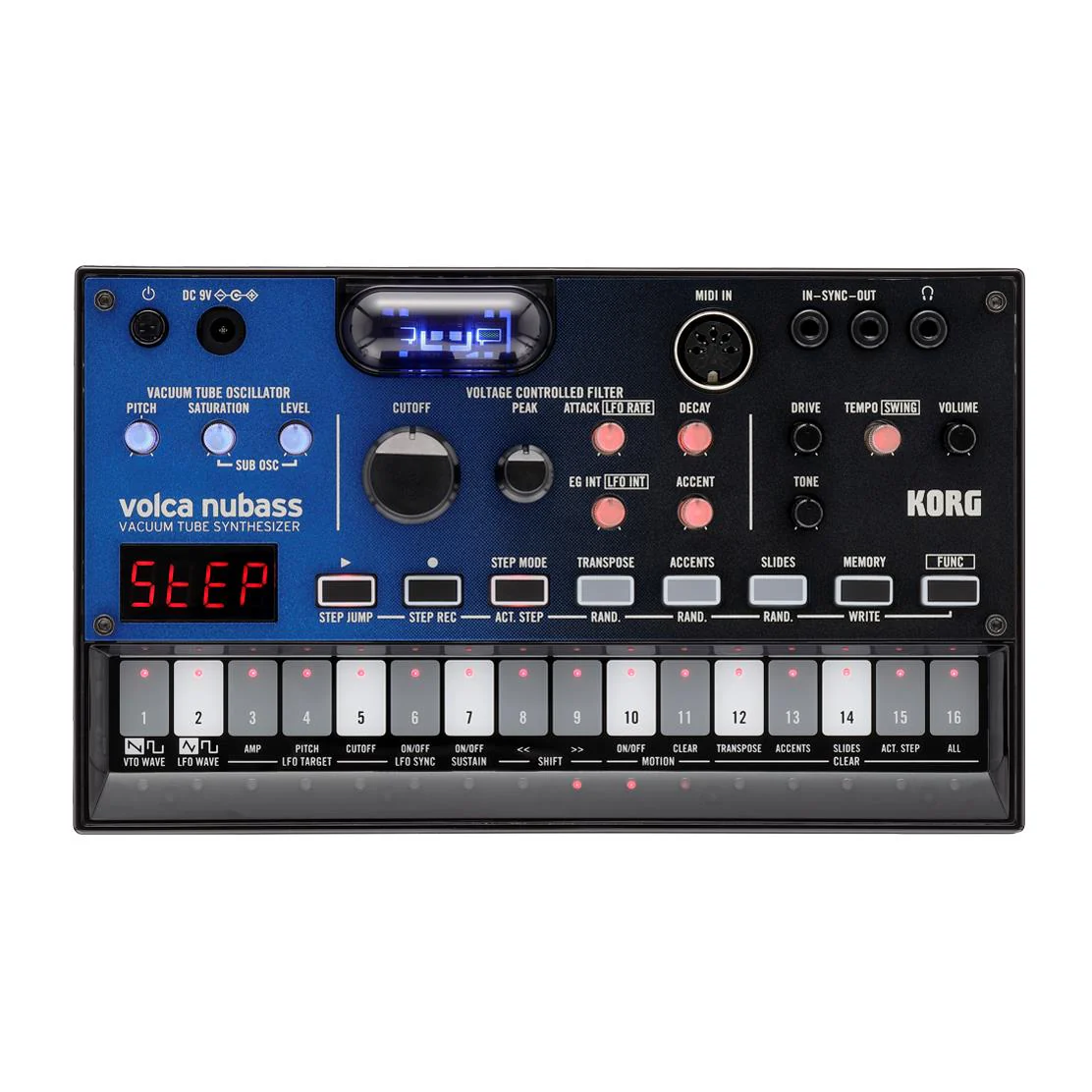

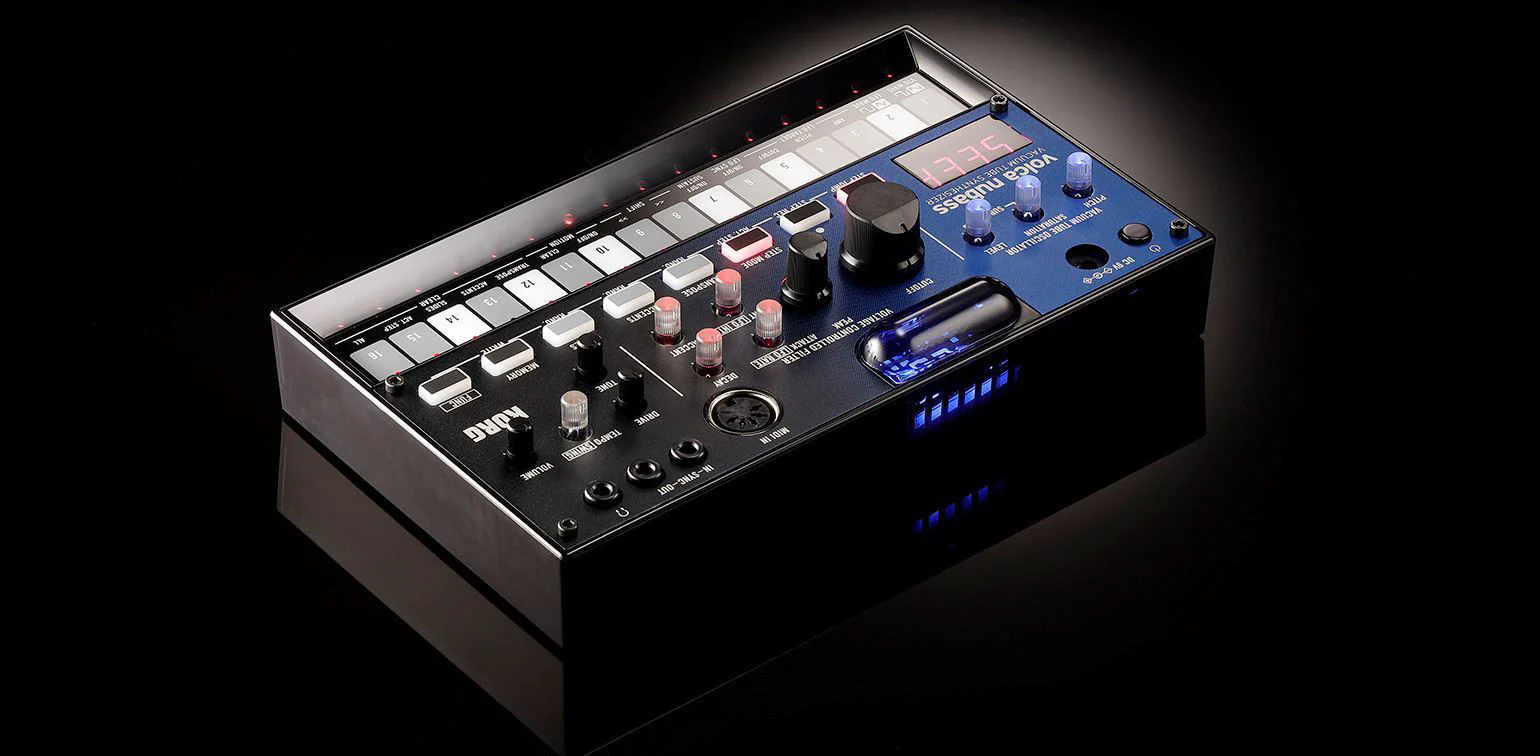

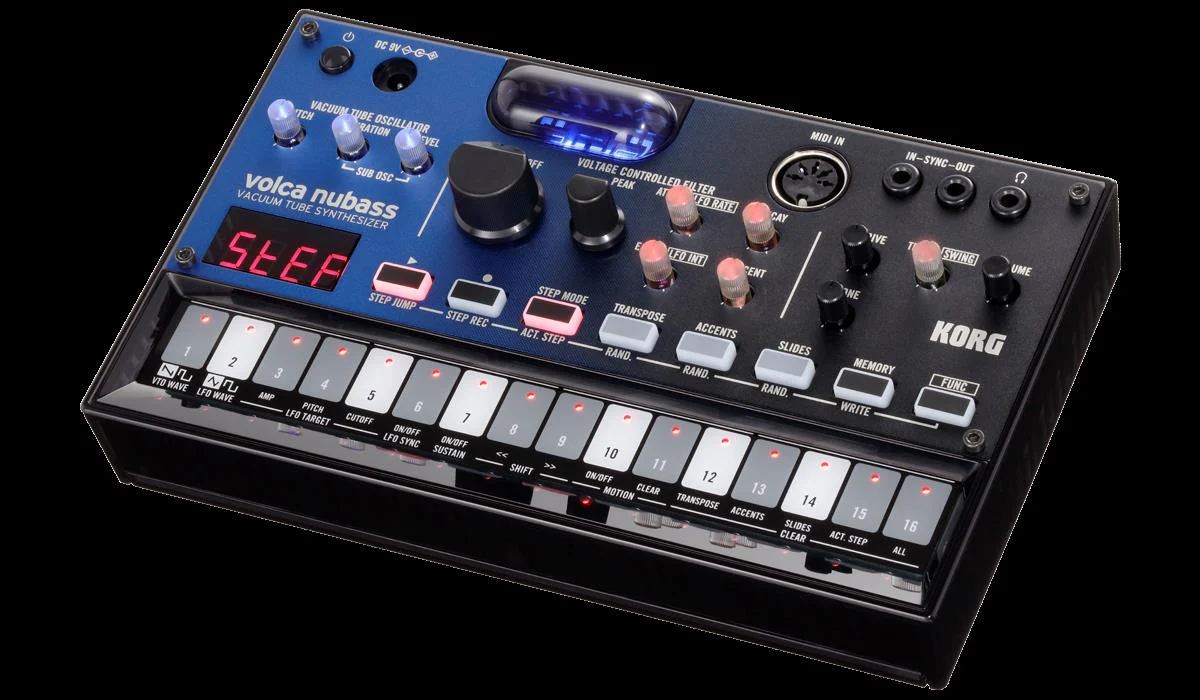

The volca nubass is the first analog synth to be equipped with a Nutube new-generation vacuum tube in its oscillator. Vacuum tube plus analog means that the sound is warm, thick, and rich. The familiar transistor ladder filter gives it the character of a classic bass machine, along with overdrive, and huge-sounding distortion.

An acid bass machine for a new generation combines classic sound with the power of modern synthesizer design. It's the volca nubass.

---

Features

The fusion of a newly developed vacuum tube oscillator with a classic ladder filter

• A vacuum tube oscillator circuit forms the heart of volca nubass, utilizing groundbreaking Nutube technology
• A transistor ladder low-pass filter that produces a distinctive sound
• Analog driver circuit

Volca sequencer makes performing and composing simple and intuitive

• A 16-step sequencer that lets you automate parameters
• Three functions to create grooves on volca nubass

Excellent playability

• Connectors that allow synchronized performance and external control
• Enjoy anywhere

---

Specifications

Keyboard
Multi touch Keyboard / step key

Synthesizer
Type: Analog synthesis
Maximum Polyphony: 1
Structure: VTO (oscillator, sub-oscillator), VCF, VCA, EG, LFO, Overdrive

Sequencer
Number of parts: 1
Number of Steps: 16 (pattern chain is available)
Number of Recording Patterns: 16 (No.1 – 10 are factory preset)

Connectors
Audio Output: Headphones (3.5mm stereo mini jack)
Sync: Sync In (3.5mm monaural mini jack, Maximum input level: 20V), Sync Out (3.5mm monaural mini jack, Maximum Output level: 5V)
MIDI: MIDI In

Power
Battery Life: Approximately 8 hours (using alkaline batteries)
Power Supply: AA alkaline battery ×6, AA nickel-metal hydride battery ×6, or AC adapter “KA-350” (optional)

Others
Included Items: Six AA alkaline batteries for checking operation, Sync cable
Accessories (sold separately): KA-350 AC adapter, SEQUENZ CB-4VOLCA hard shell case, SEQUENZ CC-VOLCA dedicated carrying case, SQ-CABLE-6 sync cable
Dimensions (W x D x H): 193 × 115 × 46 mm / 7.61" x 4.54" x 1.82"
Weight: 370 g / 0.82 lbs. (Excluding batteries)

---

Watch: KORG Volca Nubass - Delivering huge bass via a real vacuum tube
