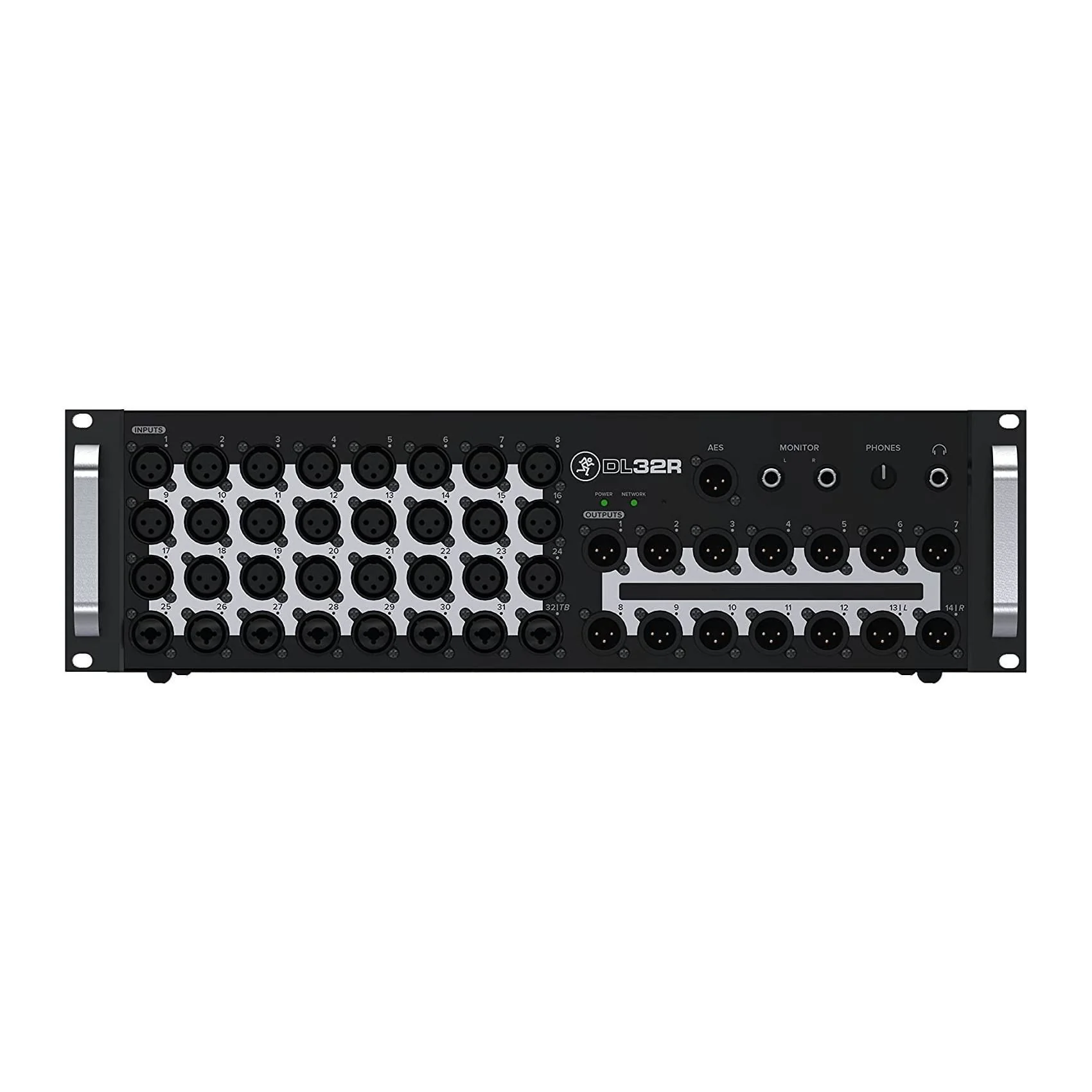

With total wireless control over everything, including fully-loaded DSP and direct-to-disk multi-track recording/playback, DL32R frees you to get in the mix like never before.

The DL32R features flexible, professional I/O in an incredibly compact design. So you can place it anywhere and it''s "Built-Like-A-Tank", so it''ll stand up to life on the road. Recallable Onyx+™ mic pres provide unmatched clarity and control.

DL32R has outputs galore with 14 assignable XLR outputs, stereo AES, phones out, and 1/4” monitor output. The optional DL Dante Expansion Card gives you 32x32 channels of networked audio compatible with hundreds of Dante equipped devices. Want to give Master Fader a spin before you buy? Download any version of the app for free

---

Features

32-Channel Wireless Digital Mixer

• 32 Onyx+™ recallable mic pres with wireless control
• 14 fully-assignable XLR outputs
• Stereo AES digital output
• Total recall of all settings
• 3U rackmount design ready for road or install
• Card slot for Dante expansion card*

WIRELESS MIXING^*

• Complete control from your iOS, Android™, macOS^®, and Windows^® devices
• No set FOH position – mix from anywhere
• Personal monitor mixing via personal device
• Supports up to 20 separate devices at once
• Multiple engineers can work from a single mixer
• Ditch the snake – place the mixer anywhere

MULTI-TRACK RECORDING & PLAYBACK

• 32x32 USB 2.0 audio interface for Mac or PC
• 32x32 recording/playback direct to USB 2.0 hard drive
• Wireless control over all direct-to-disk recording/playback functions
• Record the show for later mixdown
• Play back intermission music and backing tracks
• Perform a virtual soundcheck
• Amazing recording interface for the studio
• Utilize Mac or PC audio plug-ins in a live environment

FULLY-LOADED DSP

• 36 input channels with 4-band PEQ + HPF, gate, compression and RTA/Spectrograph
  • 32 stereo-linkable input channels
  • 4 stereo-linkable return channels*
• 28 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph
  • 14 stereo-linkable aux sends
  • 6 stereo-linkable matrix busses
  • 6 stereo-linkable subgroups*
  • Main L/R busses
• 6 VCAs and 6 mute groups
• 4 stereo FX processors with dedicated sends and returns
• Full I/O routing with A/B sources per channel
• Assignable oscillator including pink/white noise and sine waves
• Modern and Vintage options per processor

MASTER FADER CONTROL APP

• Intuitive and easy to master
• Fast navigation with view groups and overview
• Quick setup with tons of factory and user-definable presets
• Access Limiting allows flexible customization of user interface and prevents unwanted adjustments from other users
• Export presets, shows and complete system backups
• Complete offline operation
• Available on iOS, Android, macOS, and Windows

RECORD AND PRODUCE LIKE A PRO

• Pro Tools^® | First and Waveform™ OEM professional software and plugin packages included
• The Musician Collection for ProTools | First includes 23 plugins like BBD Delay, Eleven Lite, 304E EQ, and 304C Compressor
• The DAW Essentials™ Bundle for Waveform OEM includes 16 powerful plugins like Equaliser, Compressor, Reverber8, and Limiter

---

WATCH: DL32R OVERVIEW
