Features

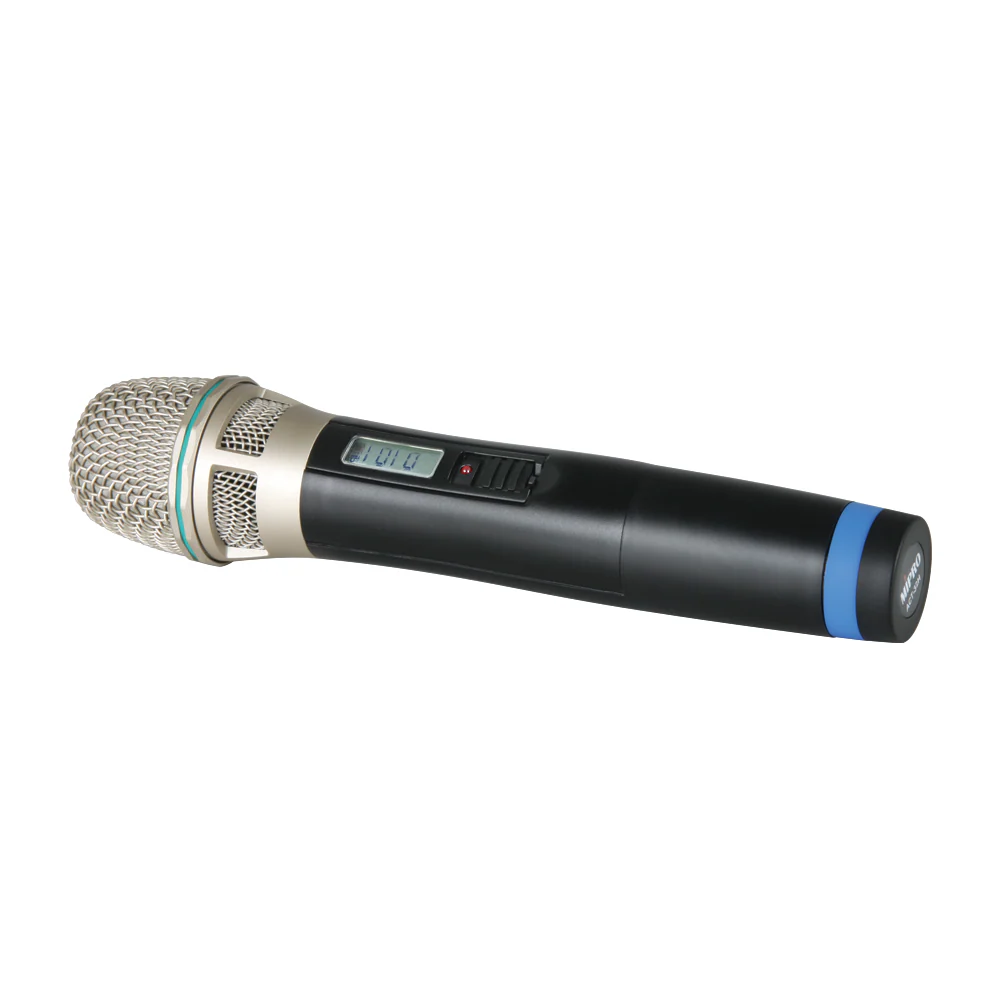

ACT-32H - UHF Analog Handheld Wireless Microphone (5NB)

• Aesthetically designed rugged plastic housing features the most comfortable handheld size and presents MIPRO’s unique style.
• The unique metal grille of the microphone capsule module can be divided into the upper grille and the lower grille. The upper grille can be detached for cleaning; the lower grille is connected with the housing by an internal thread. The robust metal grille protects the capsule against impact, rolling and pop noise, and ensures clarity of sound.
• An LCD on the housing displays the working channel, battery status and operating information.
• Powered by two AA alkaline batteries.
• Pairs with MIPRO’s capsule modules featuring high dynamic range for loud singing without distortion. The patented capsule suspension design virtually eliminates vibration and handling noise
• A color-coded channel identification ring is put on the end of the housing which has a built-in high efficiency antenna.

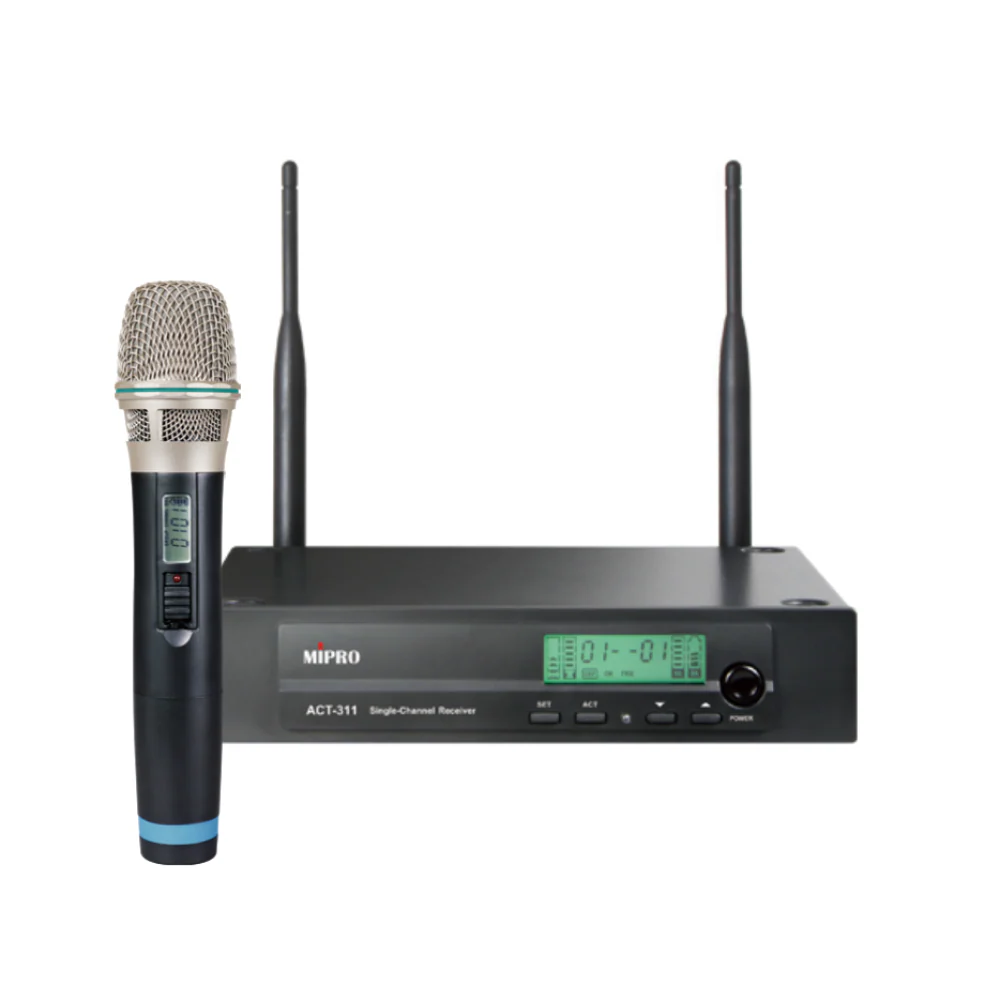

ACT311B-5 - Wireless Mic Receiver (5NB)

• EIA standard 1/2U metal receiver.
• Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.
• Backlit LCD displays group, channel, frequency, RF level, antenna selection, AF level, battery level indicator, interference warning indicator, and panel lock indicator.
• A lit green light indicates a working mode when receiver detects an incoming signal or buttons touched. Light dims automatically when receiver is idle for about 10 seconds.
• Balanced XLR / unbalanced 1/4 " audio output jack, output level switch and DC input are on the rear panel. One mixed-output switch is available for dual-channel receivers.
• High efficiency and low spurious PLL circuitry with Auto Scan functioin. Each receiver is presets with 11 groups, Groups 1~6, 7~10 have 8 &16 compatible channels respectively. Up to 8 channels in group 11 can be saved and recalled within 961 user-defined frequencies. A total of 112 preset channels per band.
• World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
• Advanced diversity technology for optimum reception range and reduces signal dropouts and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
• Adjustable ‘SQ’ for higher sensitivity to increase receiving distance and lower sensitivity to reduce interference.
• Industry’s only RF interference warning indicator for ideal SQ level adjustment.
• DC input socket accepts 12~15V power supply.
• Matching ACT-32H handheld and ACT-32T bodypack transmitters.

Specifications

ACT-32H - UHF Analog Handheld Wireless Microphone (5NB)

• Frequency Range: UHF 520-544MHz
• Bandwidth: 24 MHz
• Display: Backlit LCD
• Mic. Capsule Modules: Interchangeable condenser or dynamic capsule module
• RF Power Output: 30 mW (country dependent)
• Spurious Emission: < 4 nW
• AF Sensitivity: Preset at 0 dB (equal to capsule sensitivity)
• Power Supply: Battery - Two AA alkaline

ACT311B-5 - Wireless Mic Receiver (5NB)

• Channel: Single
• Chassis: EIA Standard 19 " 1/2U metal chassis
• Frequency Range: UHF 520-544MHz
• Bandwidth: 24 MHz
• Receiving Mode: CPU-controlled diversity receiving
• Sensitivity: 10dBµV, at S/N>80dB
• Frequency Response: 50Hz~18kHz, with high-pass filter
• Preset Frequencies: 112 preset channels. Group 1-6: 8 compatible channels in each group. Group 7-10: 16 compatible channels in each group. Group 11: Up to 8 channels can be saved & recalled. 961 user-defined frequencies in group 11.
• Audio Output Adjustment: Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
• Maximum Output Level: 2-level Switch: Line & Mic
• Antenna: Rear Panel, Detachable
• Power Supply: External AC Adapter, 12~15V DC, 1A
• Squelch: "PiloTone & NoiseLock" dual-squelch circuit
