Features

• An LCD on the panel displays the operating information.
• Powered by two AA alkaline batteries.
• In addition to the power switch and the mute button, functions such as input sensitivity, power output, and mute modes are also programmable.
• The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
• 5 switchable gain levels.
• Mute button and remote-control jack allow quick setting of MUTE function.
• Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.

Specifications

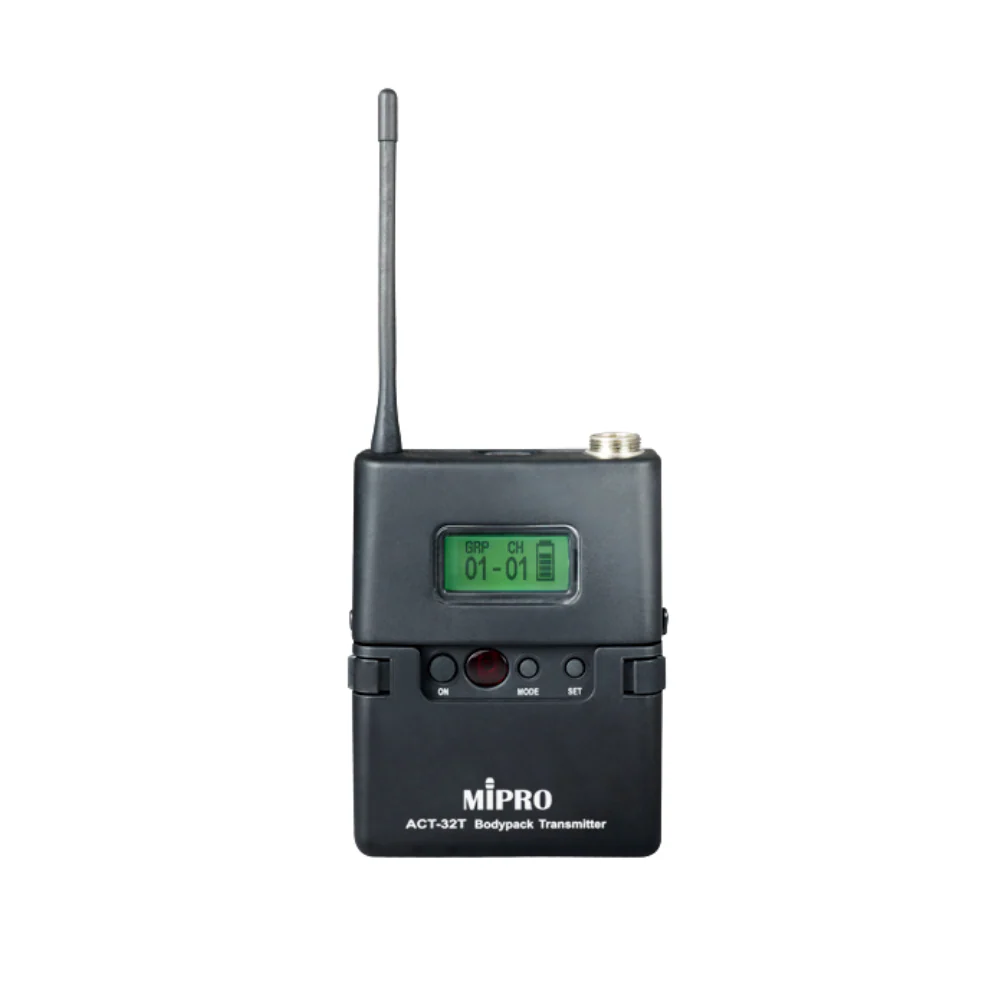

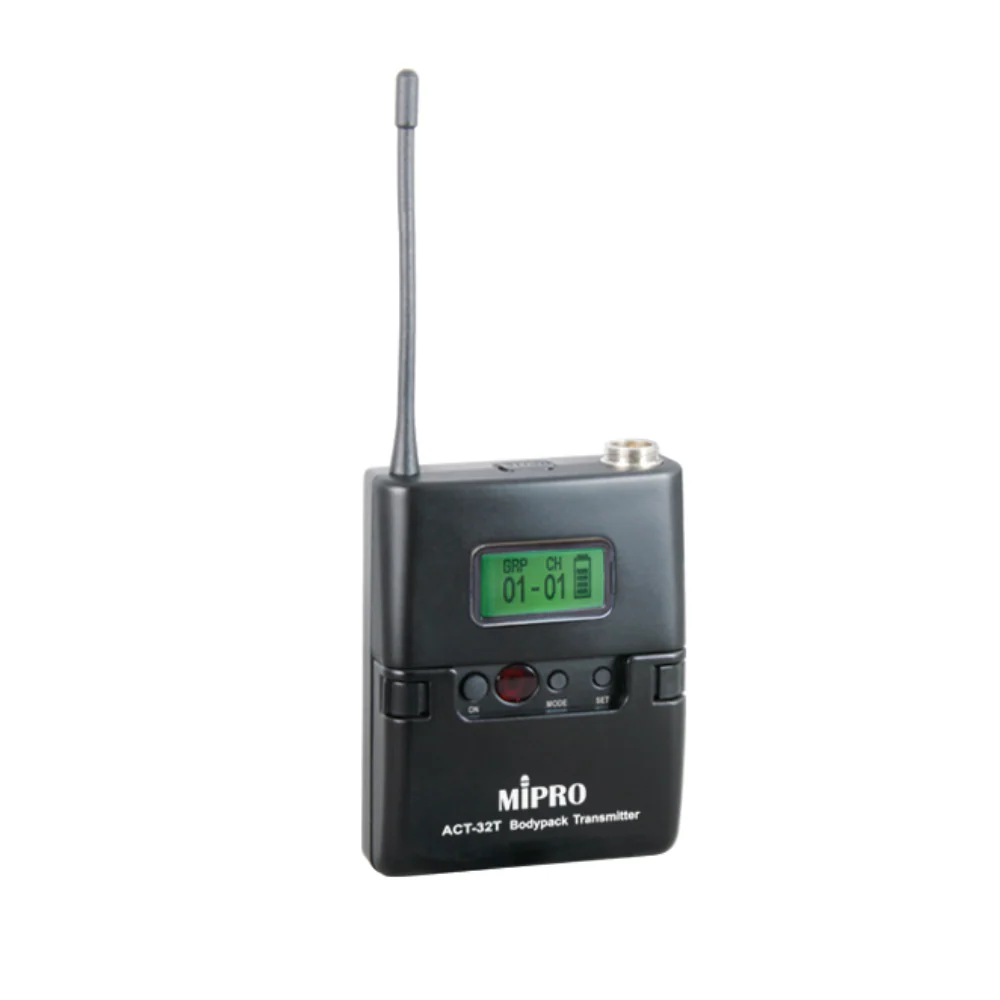

• Name: UHF Analog Bodypack Transmitter
• Frequency Range: 644-668 MHz
• Bandwidth: 24 MHz
• Display: Backlit LCD
• Mic. Capsule Modules: Work with all MIPRO’s lavalier and headworn mics
• Input Connector: MIPRO 4-Pin Mini XLR
• AF sensitivity: Preset at 0 dB (equal to capsule sensitivity) 5 switchable levels: -12 dB to 12 dB
• RF Power Output: 10 mW / 50 mW switchable (country dependent)
• Spurious Emission: < 4 nW
• Battery: Two AA alkaline
