Features

• Newly designed compact and lightweight housing for easy wearing.
• The panel integrates a backlit LCD and setup buttons for easy operation and view of all operating information, and a lockable power switch prevents the power switch from accidental operation.
• In addition to the power switch and the mute button, functions such as input sensitivity, low frequency reduction, volume limit, power output, and button lock modes are also programmable.
• The world’s first ACT™ function provides precise and rapid frequency sync to the receiver
• 5 switchable gain levels.
• Mute button and remote-control jack allow quick setting of MUTE function.
• The patented battery compartment can be inserted with two AA-type batteries or one rechargeable Li-ion battery, charging via USB Type-C with the foolproof and safe charging circuit. An optional slip-in charger (MP-800) is available.
• A belt clip for easy wearing

Specifications

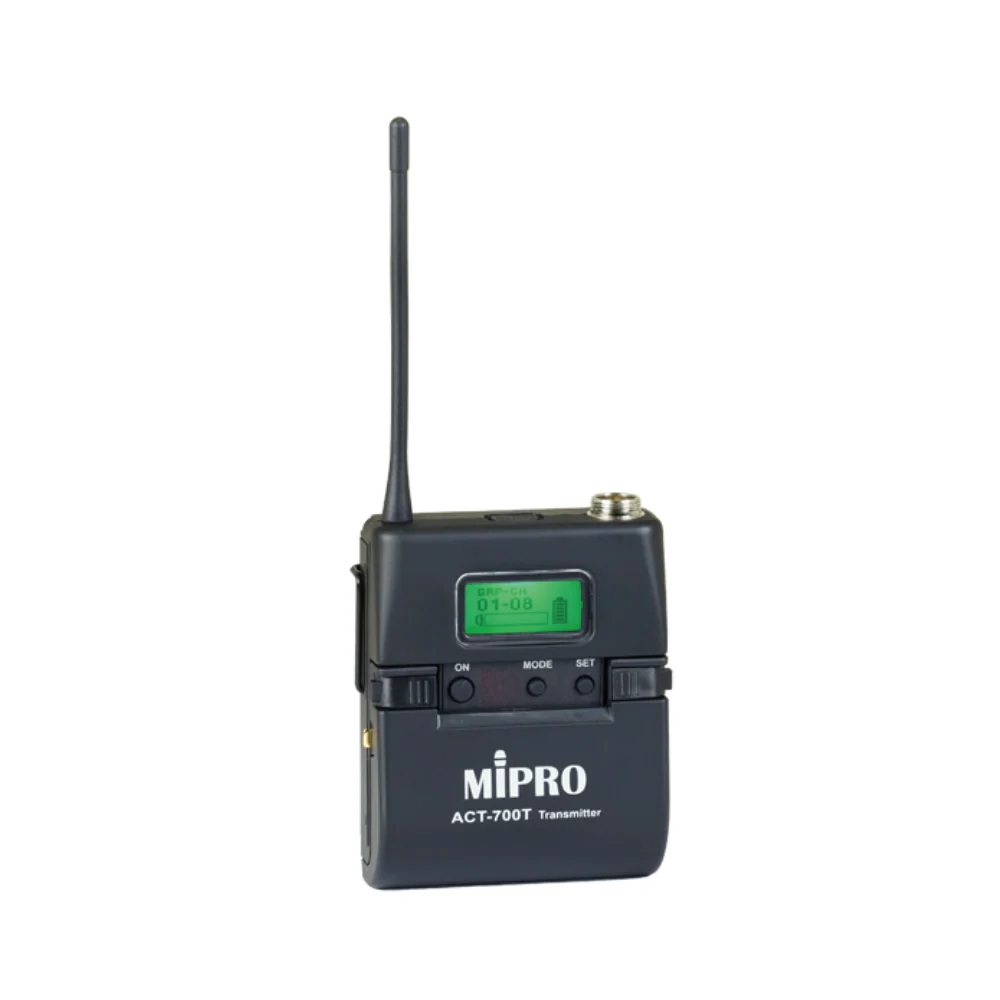

• Name UHF Analog Wideband Bodypack Transmitter
• Frequency Range UHF 480 – 934 MHz (country dependent)
• Bandwidth 72 MHz
• Display Backlit LCD
• Mic. Capsule Modules Work with all MIPRO’s lavalier and headworn mics
• Input Connector MIPRO 4-Pin Mini XLR
• AF Sensitivity Preset at 0 dB (equal to capsule sensitivity)
• 5 switchable levels: -12 dB to 12 Db
• Max. Audio Input 0 dBV
• RF Power Output 10 mW / 50 mW switchable (country dependent)
• Spurious Emission < 4 nW
• Battery One 18500 Li-ion battery or two AA alkaline
• Charging MP-800 slip-in charger or USB Type-C
• Dimensions 63 × 80 × 25 mm (W × H × D)
• Weight Approx. 97 g
