Features

• Optimized in the 470 – 850 MHz frequency range and complies with FCC and EU telecom regulations.
• Allows connecting with up to four receivers, and can be daisy-chained with another divider.
• Designed with high dynamic, low noise components and an ultra-wideband circuit, it features ultra-low intermodulation and insertion loss and can eliminate multi-channel spurious interference.
• Detects the cable loss and automatically adjusts the booster to precisely compensate for the loss.
• Pairs with an MPB-30 gain-controllable antenna booster to eliminate the intermodulation distortion.

Specifications

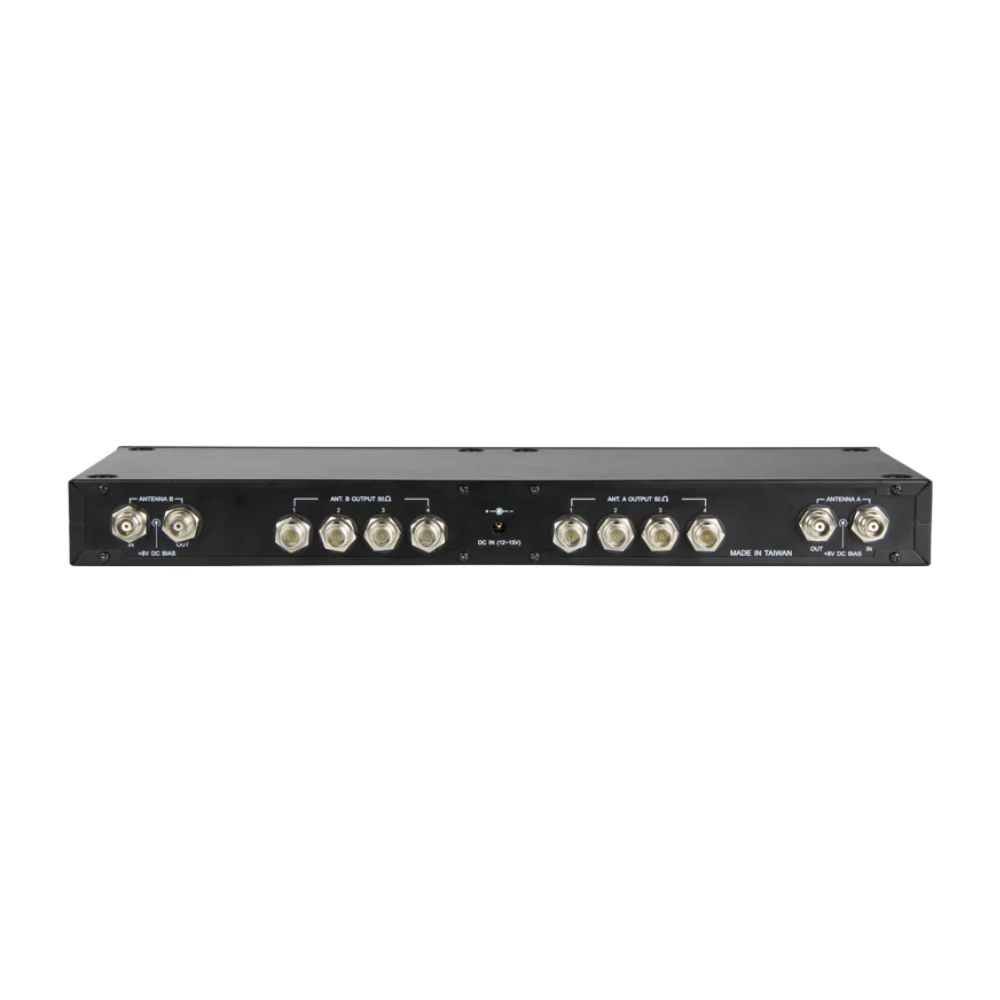

• Name: UHF Wideband 4-channel Antenna Divider with Auto Gain Controller
• Frequency Band: UHF 470 – 850 MHz
• Signal Loss Detection: Detects the cable loss for automatic gain adjustment of antenna booster
• Input / Output Gain: 1 dB ± 1 dB
• Input Connectors: 2 × TNC
• Output Connectors: 4 pairs of TNC. 1 pair of TNC for daisy-chain multiple dividers
• System Impedance: 50 Ω
• Antenna Input Bias: DC 8.3 V, 230 mA
• Power Supply: DC 12 – 15 V, AC 100 – 240 V
