Features

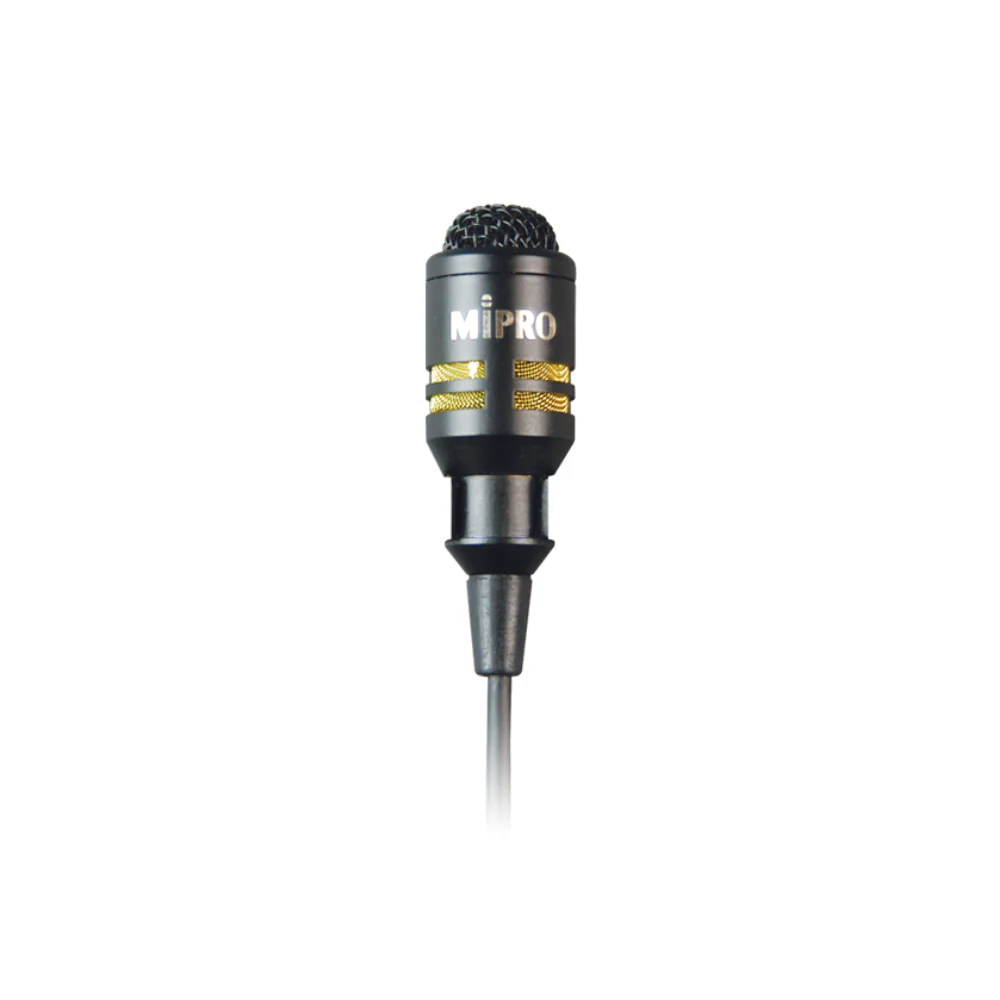

MU-53L Unidirectional Lavalier Microphone

• The unidirectional capsule unit reduces environmental noise, increases the S/N ratio and improves sound clarity.
• Clear and brilliant sound. High fidelity, wide range, high dynamic range, and rapid transient response for true natural sound reproduction.

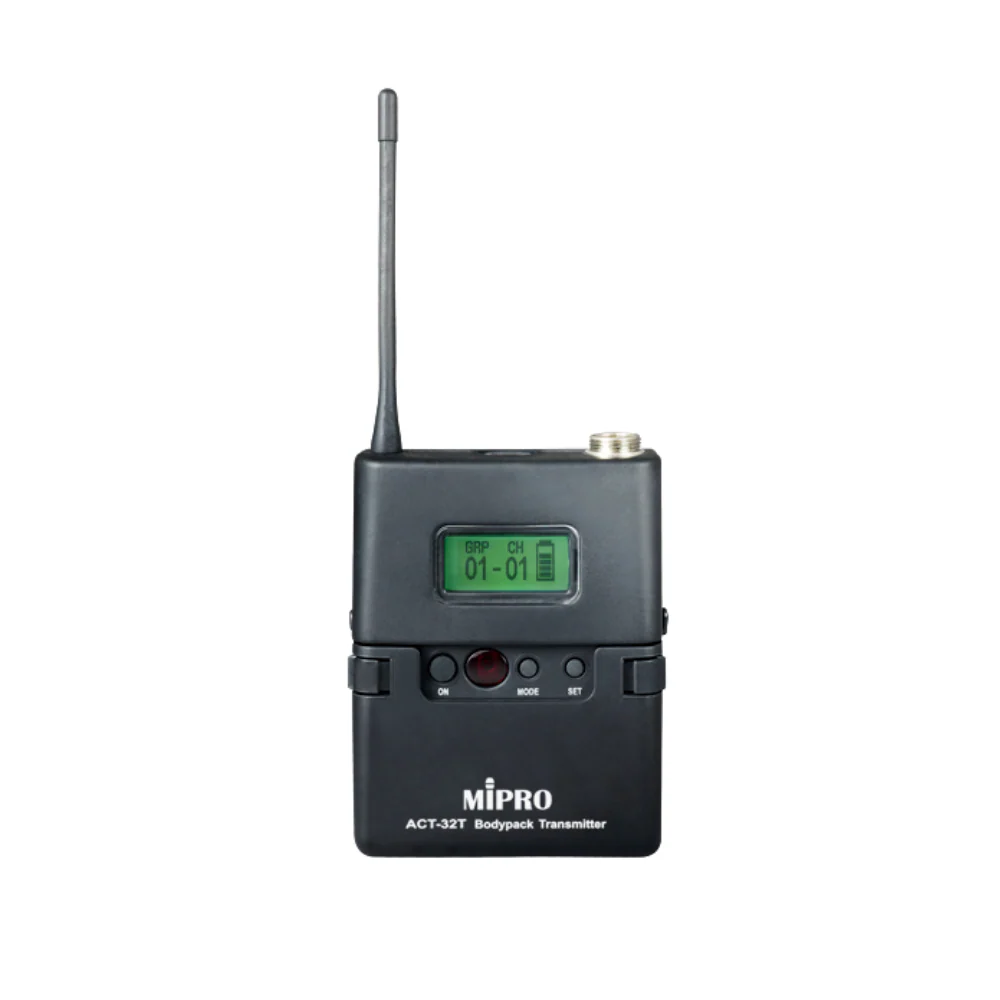

ACT32T-5 Bodypack Transmitter (5NB)

• An LCD on the panel displays the operating information.
• Powered by two AA alkaline batteries.
• In addition to the power switch and the mute button, functions such as input sensitivity, power output, and mute modes are also programmable.
• The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
• 5 switchable gain levels.
• Mute button and remote-control jack allow quick setting of MUTE function.
• Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.

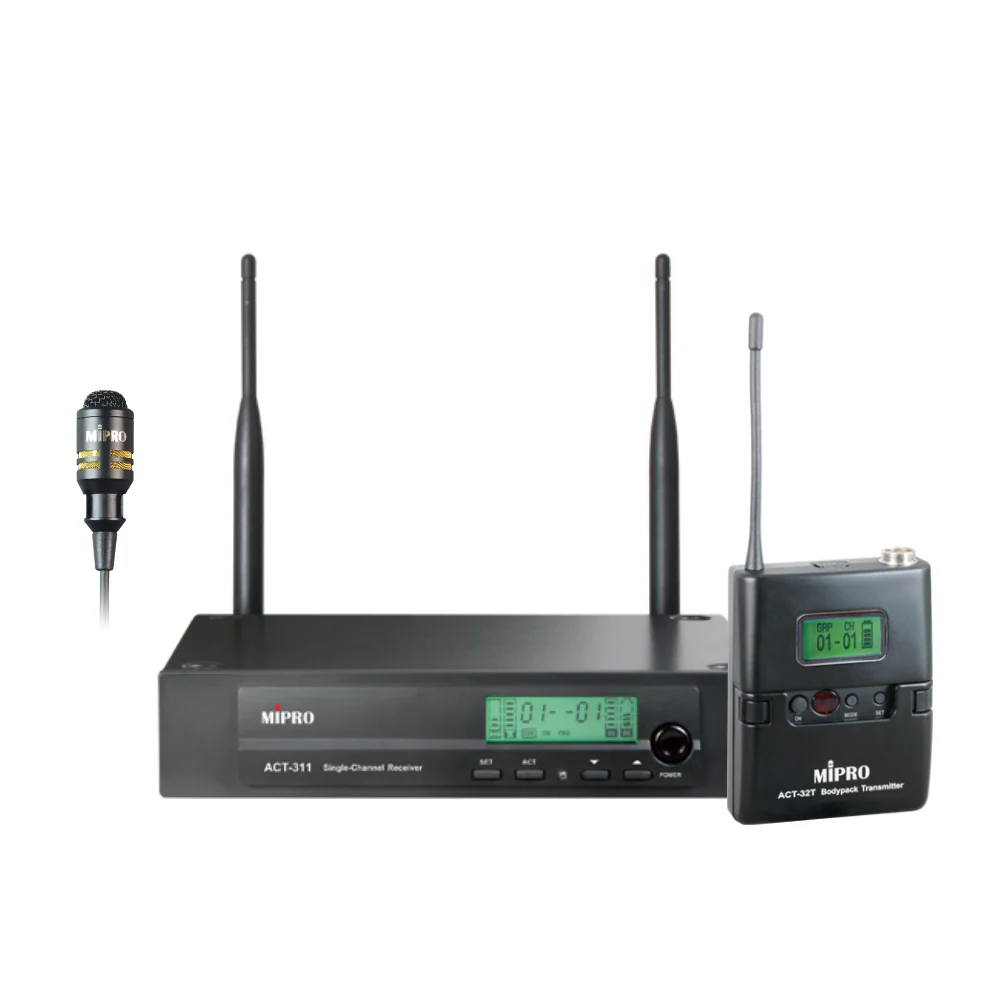

ACT311B-5 - Wireless Mic Receiver (5NB)

• EIA standard 1/2U metal receiver.
• Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.
• Backlit LCD displays group, channel, frequency, RF level, antenna selection, AF level, battery level indicator, interference warning indicator, and panel lock indicator.
• A lit green light indicates a working mode when receiver detects an incoming signal or buttons touched. Light dims automatically when receiver is idle for about 10 seconds.
• Balanced XLR / unbalanced 1/4 " audio output jack, output level switch and DC input are on the rear panel. One mixed-output switch is available for dual-channel receivers.
• High efficiency and low spurious PLL circuitry with Auto Scan functioin. Each receiver is presets with 11 groups, Groups 1~6, 7~10 have 8 &16 compatible channels respectively. Up to 8 channels in group 11 can be saved and recalled within 961 user-defined frequencies. A total of 112 preset channels per band.
• World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
• Advanced diversity technology for optimum reception range and reduces signal dropouts and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
• Adjustable ‘SQ’ for higher sensitivity to increase receiving distance and lower sensitivity to reduce interference.
• Industry’s only RF interference warning indicator for ideal SQ level adjustment.
• DC input socket accepts 12~15V power supply.
• Matching ACT-32H handheld and ACT-32T bodypack transmitters.

Specifications

MU-53L Unidirectional Lavalier Microphone

• Connector Type: Fixed
• Capsule: 10 Ø unidirectional
• Sensitivity -46 dBV / Pa
• Frequency Response: 50 Hz – 18 kHz
• Max. SPL: 142 dB
• Connector: MIPRO 4-Pin Mini XLR
• Cable Length: 150 cm

ACT32T-5 Bodypack Transmitter (5NB)

• Name: UHF Analog Bodypack Transmitter
• Frequency Range: 520-544MHz
• Bandwidth: 24 MHz
• Display: Backlit LCD
• Mic. Capsule Modules: Work with all MIPRO’s lavalier and headworn mics
• Input Connector: MIPRO 4-Pin Mini XLR
• AF sensitivity: Preset at 0 dB (equal to capsule sensitivity) 5 switchable levels: -12 dB to 12 dB
• RF Power Output: 10 mW / 50 mW switchable (country dependent)
• Spurious Emission: < 4 nW
• Battery: Two AA alkaline

ACT311B-5 - Wireless Mic Receiver (5NB)

• Channel: Single
• Chassis: EIA Standard 19 " 1/2U metal chassis
• Frequency Range: UHF 520-544MHz
• Bandwidth: 24 MHz
• Receiving Mode: CPU-controlled diversity receiving
• Sensitivity: 10dBµV, at S/N>80dB
• Frequency Response: 50Hz~18kHz, with high-pass filter
• Preset Frequencies: 112 preset channels. Group 1-6: 8 compatible channels in each group. Group 7-10: 16 compatible channels in each group. Group 11: Up to 8 channels can be saved & recalled. 961 user-defined frequencies in group 11.
• Audio Output Adjustment: Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
• Maximum Output Level: 2-level Switch: Line & Mic
• Antenna: Rear Panel, Detachable
• Power Supply: External AC Adapter, 12~15V DC, 1A
• Squelch: "PiloTone & NoiseLock" dual-squelch circuit
