Features

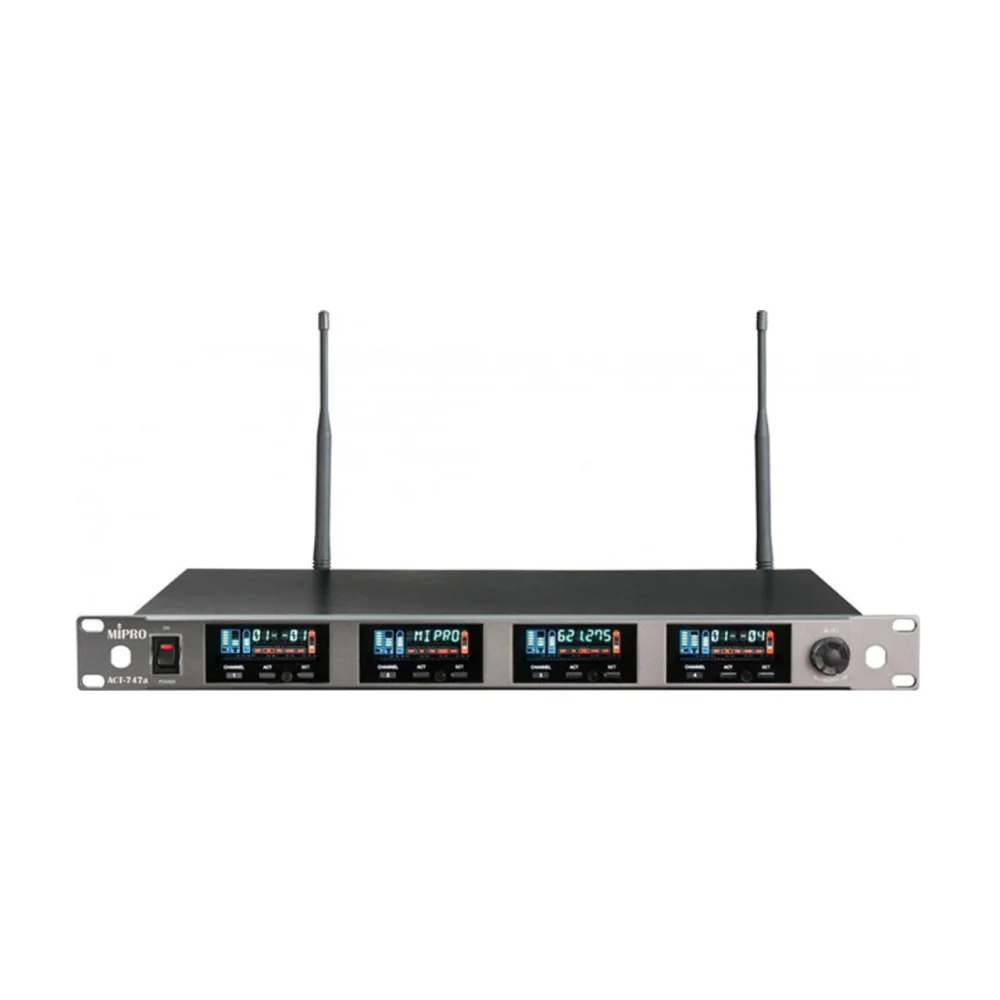

• EIA standard 1U rack-mountable metal receiver. • Advanced true diversity technology for best reception quality. • 104 selectable frequencies and 16 preset compatible channels per band. More with multiple bands. • Industry’s only full-color VFD screen delivers a bright, clear viewing in day/night environments. • Displays Group, Channel, Frequency, Performer’s Name, transmitter battery level, RF, Audio, SQ level meters, diversity operation, RF interference warning indicator and Lock status. • One-touch Autoscan for a clear, interference-free frequency. • One-touch ACT™ syncs the transmitter and receiver frequency automatically. • Dual "PiloTone & NoiseLock" circuits minimize interference. • MIPRO RCS.Net software allows real-time computer set up, control and monitoring. • Industry’s only RF interference warning indicator and control for management. • Displays all pertinent parameters on the same screen for easy control and monitoring. • All controls are intuitive and easily setup via a single rotary knob. • RF, audio and transmitter battery status meters. • Superb RF reliability and transparent audio performance. • Receiver provides bias voltage for MIPRO antenna systems. • 100m(330ft.) operating range. • 100% made in Taiwan ensures high product quality and value.

Specifications

• Receiver Bandwidth: Narrow
• Channel: Quad
• Chassis: EIA standard 19" 1U
• Display: Color VFD displays Frequency, Frequency Code, RF & Audio Meters, Transmitter Battery Meter, Diversity Signals, Interference Warning
• Indicator. Programmable User Name, Group, Channel, Squelch Meter, PC Address and Lock Status.
• Frequency Range UHF 480~934MHz
• Bandwidth 24MHz
• Preset Frequencies 104 selectable channels
• Group 1~6 > 8 compatible channels
• Group 7~8 > 12 compatible channels
• Group 9~10 > 16 compatible channels
• Receiving Mode True diversity
• Oscillation Mode PLL synthesized
• Stability ±0.005% (-10~+60℃)
• Sensitivity 6dBμV, at S/N>80dB
• S/N Ratio >105dB(A)
• T.H.D. <0.5% @ 1kHz
• Frequency Response 50Hz~18kHz, with high-pass filter
• Squelch "PiloTone & NoiseLock" dual-squelch circuit
• Audio Output Adjustment Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
• Maximum Output Level Balanced: +16dBV / 0dBV / -6dB; Unbalanced: +10dBV / 0dBV / -6dB
• Output Connectors Balanced XLR
• Output Switch Single channel output or mixed output
• Operation Manual or PC remote control via optional software
• Squelch Adjustment Rotary Controller
• Squelch Display VFD Screen
• Power Supply Built-in 100~240V AC Switching Power Supply
