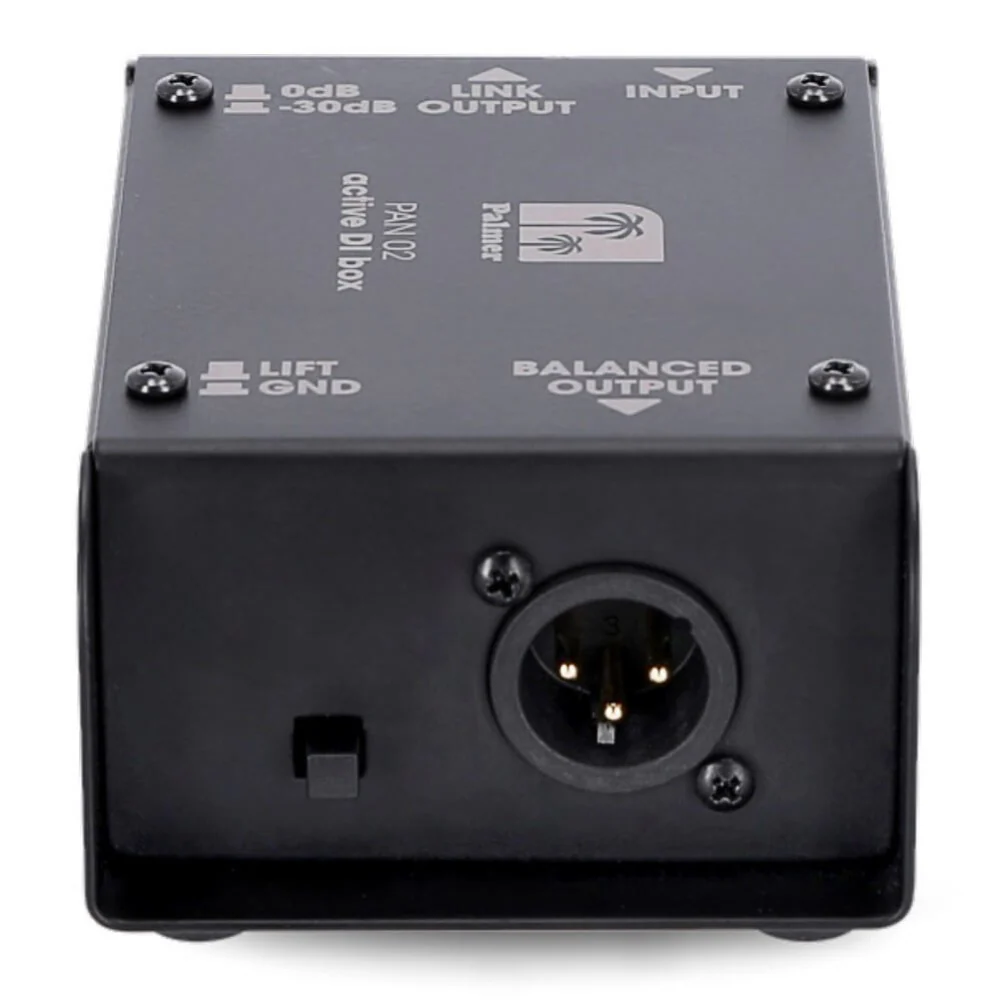

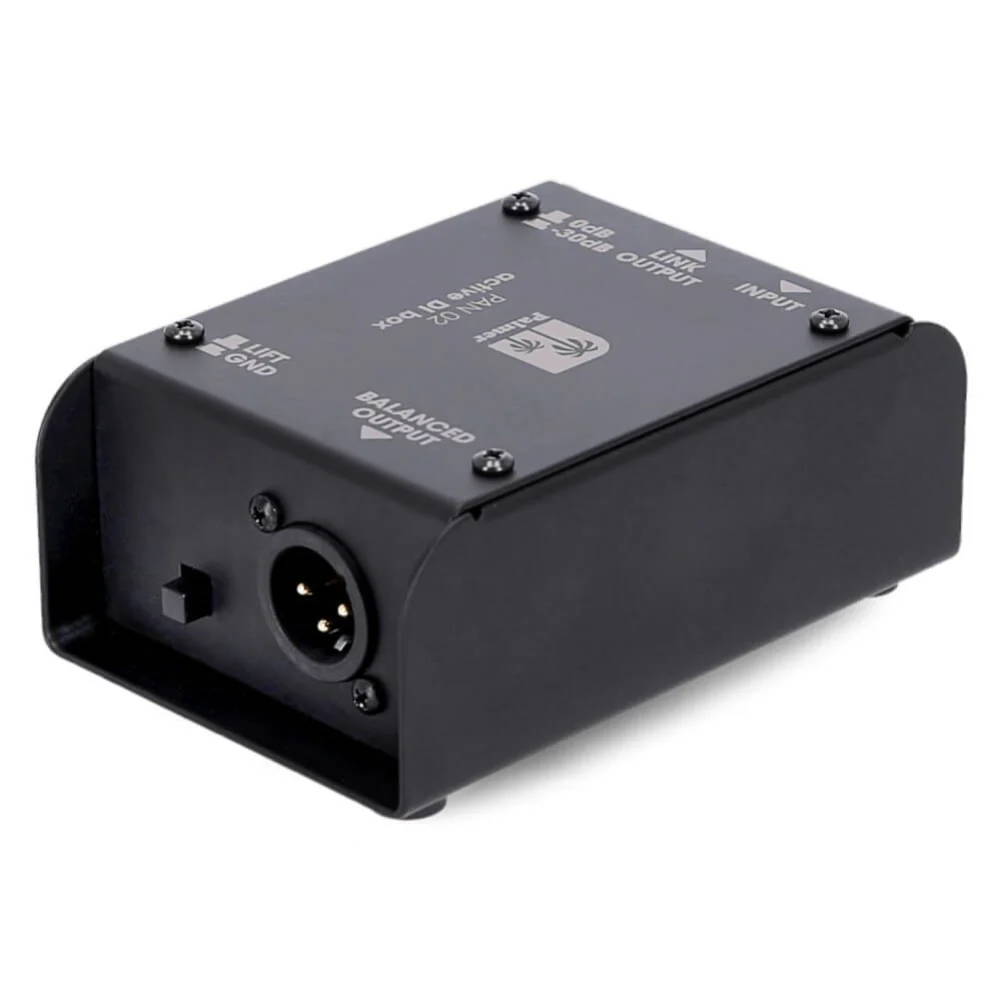

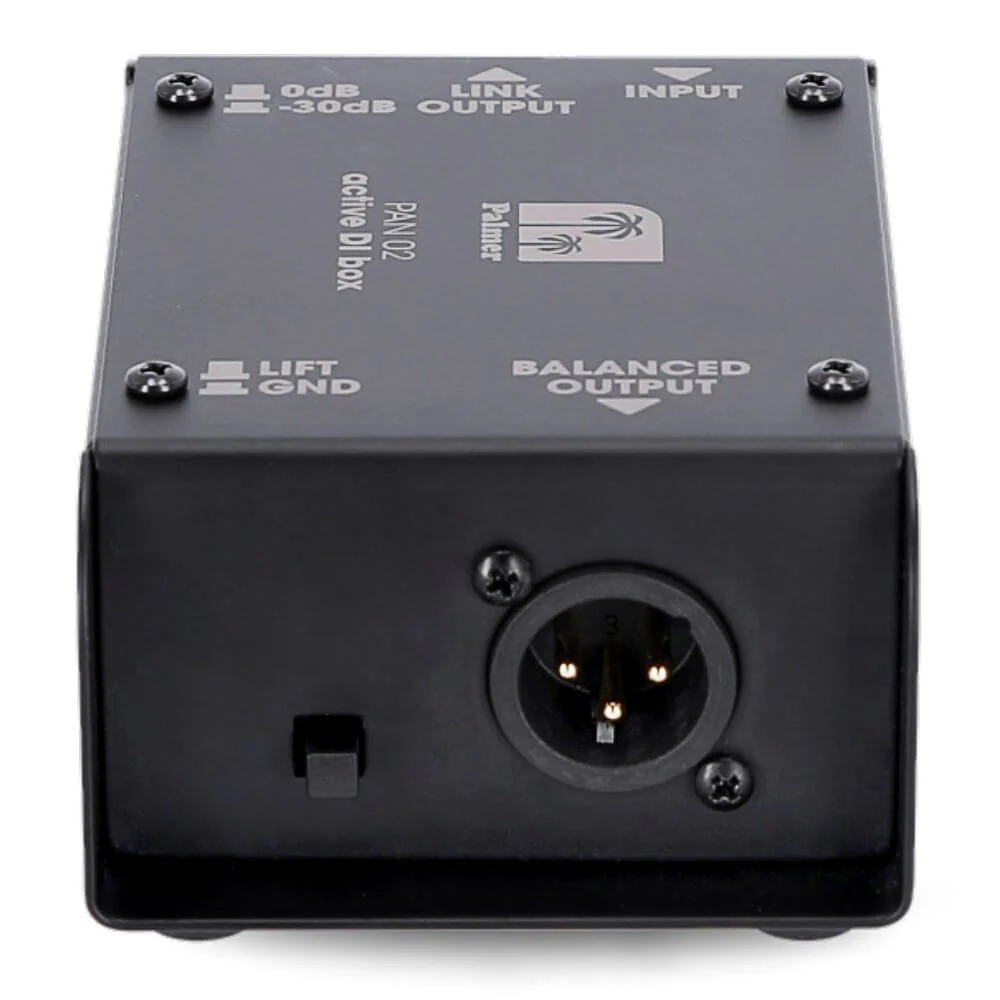

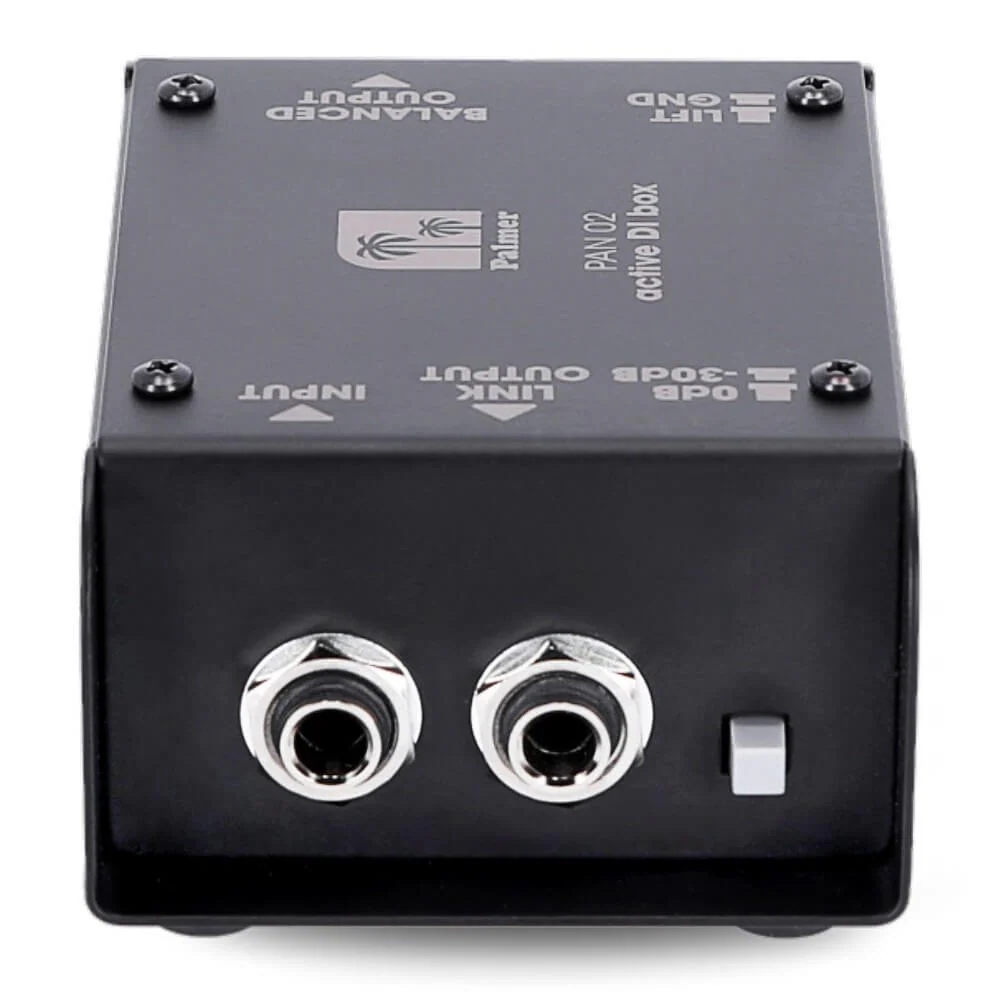

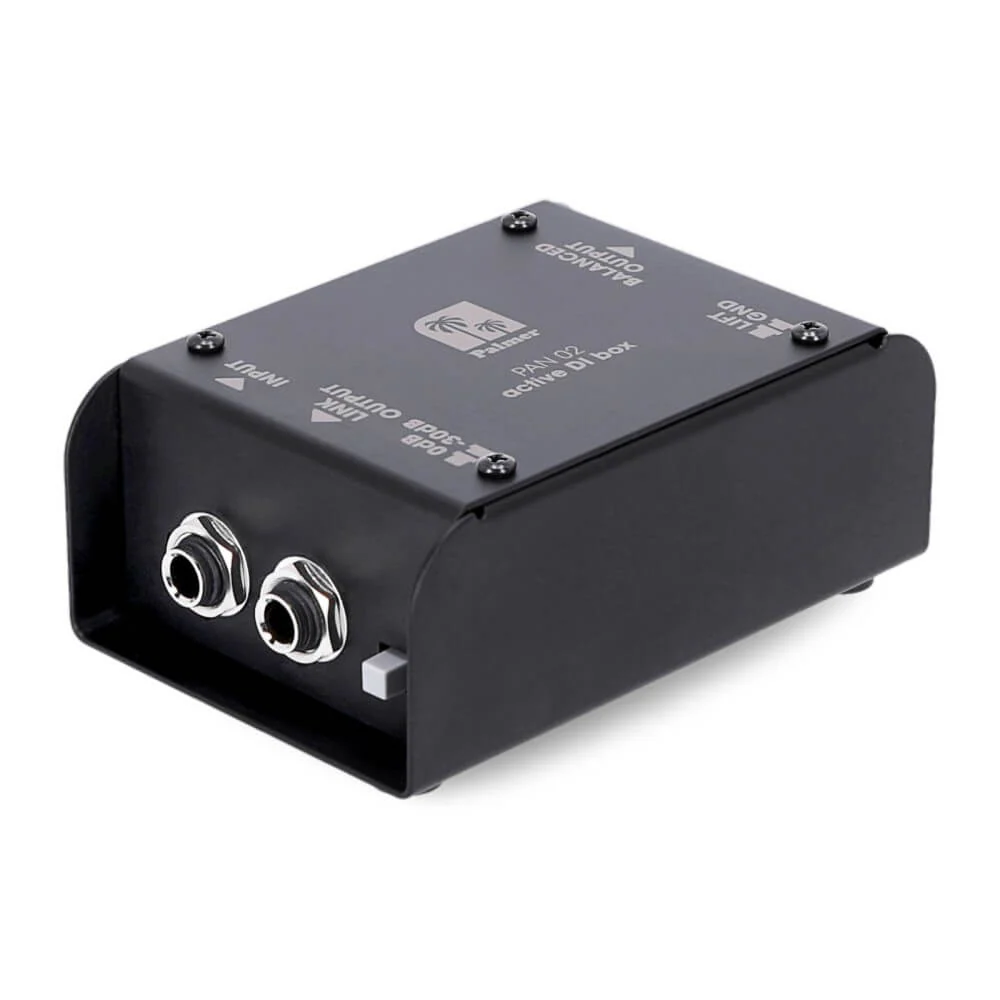

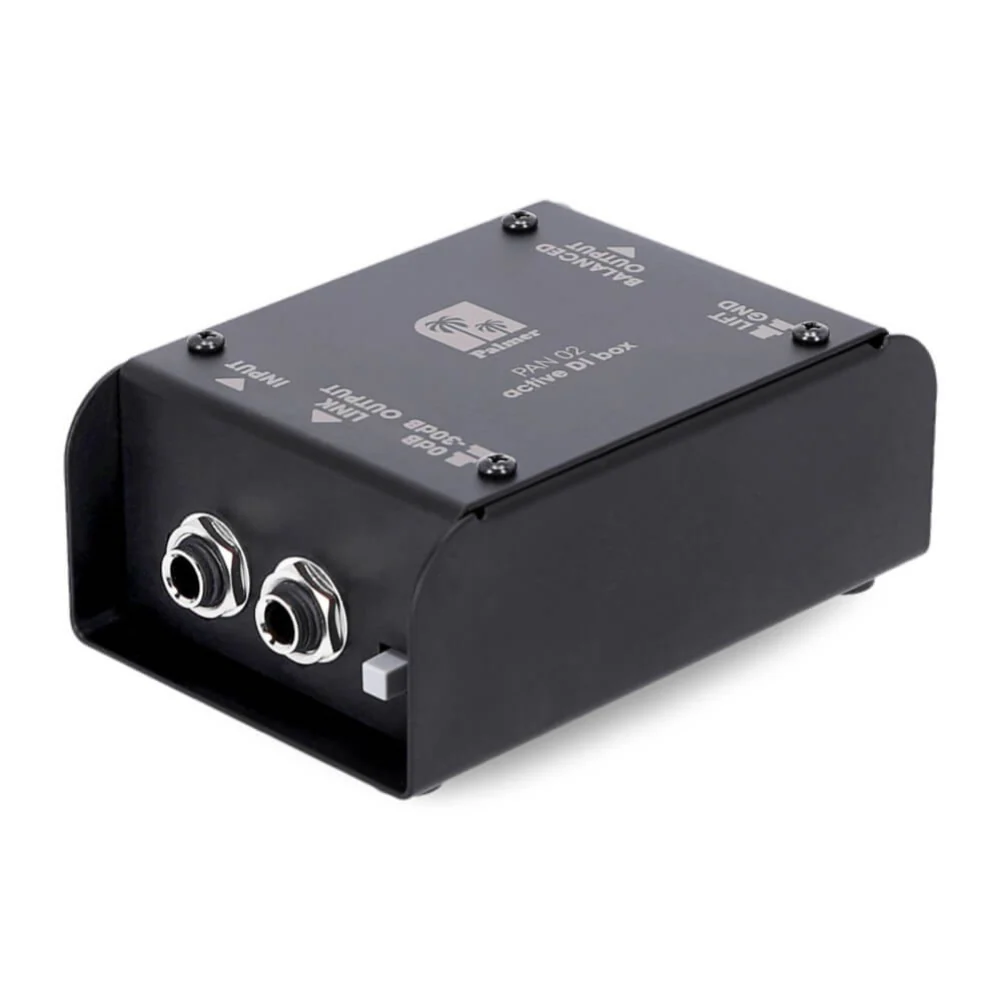

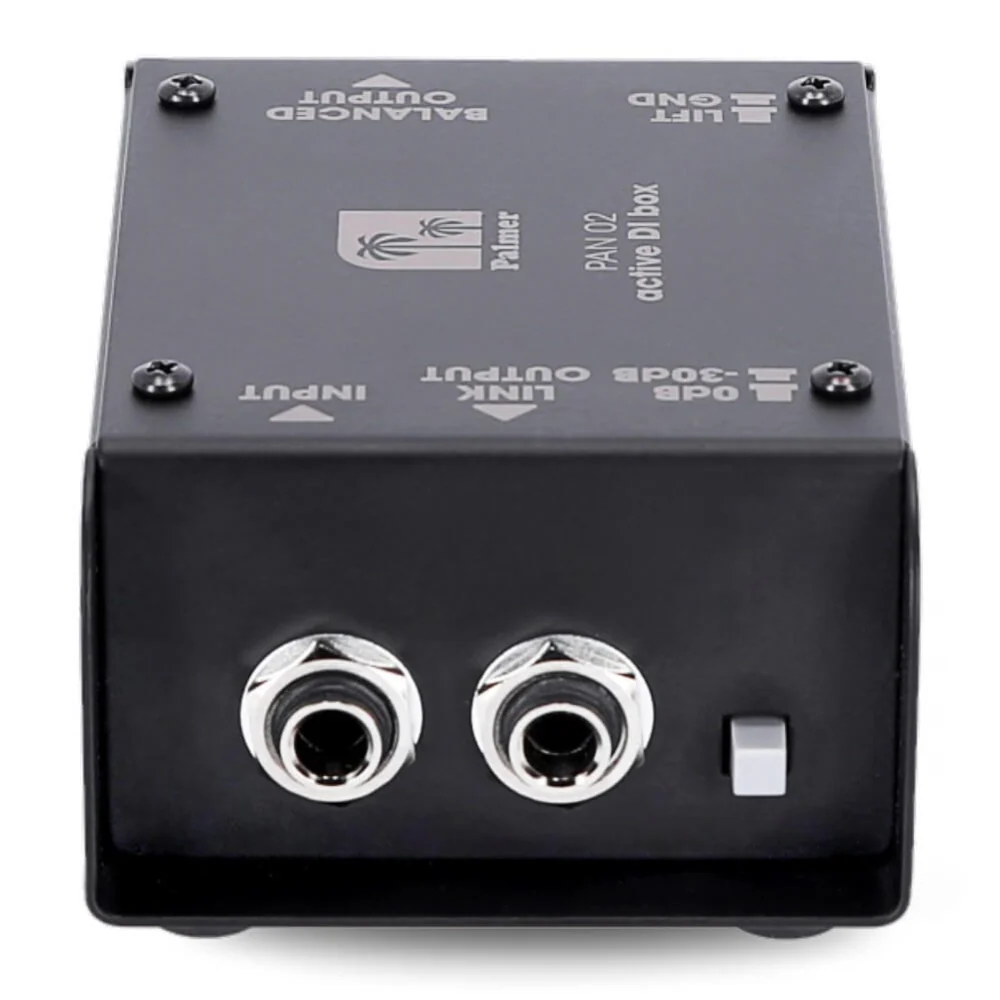

Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Key Features

• Active 1-channel DI box with premium balancing transformers
• 10Hz –40 kHz frequency response, high dynamic response
• -30 dB input attenuation, switchable
• Ground lift switch for each output
• Balanced mono summed output
• Can be powered with 9 to 24 V DC mains adapters or phantom power

Technical Data

• Product type: DI Boxes
• Type: Active
• Inputs: 1
• Input/Output Connectors: 1/4"
• Max. Input Level: +45dBu
• Input Impedance: (@ 60 Hz) 1 M Ohm(s)
• Input Pad: 0 / -30 dB
• Outputs: 1
• Max. Output Level: +10dBu
• Output Impedance: 600 Ohm(s)
• Frequency Response: 10 - 20000
• Transformer Balanced: Yes
• Operating Voltage: +48 V phantom power, 9 V block
• Power Consumption: 3.8 mA (9V), 4 mA (48V)
• Dimensions:
  • 110mm x 73mm x 42mm
  • 0.4kg
