An AVB network relies on an intelligent AVB switch to analyze network traffic and ensure that critical audio data is prioritised when connecting more than two devices.

This guarantees the low-latency, high-quality audio performance for which AVB is known. The PreSonus® SW5E AVB switch fully complies to the AVB standard while providing Power over Ethernet (PoE) to devices that can take advantage of it, like the PreSonus EarMix 16M.

---

Features

Ports and Indicators

• 5 Locking XLR Ethernet AVB jacks
• 4 ports with PoE
• PoE power indicators
• Network Link/Activity indicators

Switches and Power

• PoE power on/off
• Internal power supply with IEC connector

​Physical

• Rugged metal chassis
• Rack mountable (screws to a rack tray)

---

Specifications

• AVB Ports: 5 Locking XLR Ethernet
• PoE Ports: 4
• PoE Supported: IEEE 802.3at-2009 (Type 1)
• Operational Bandwidth: 10 / 100 / 1 Gigabit

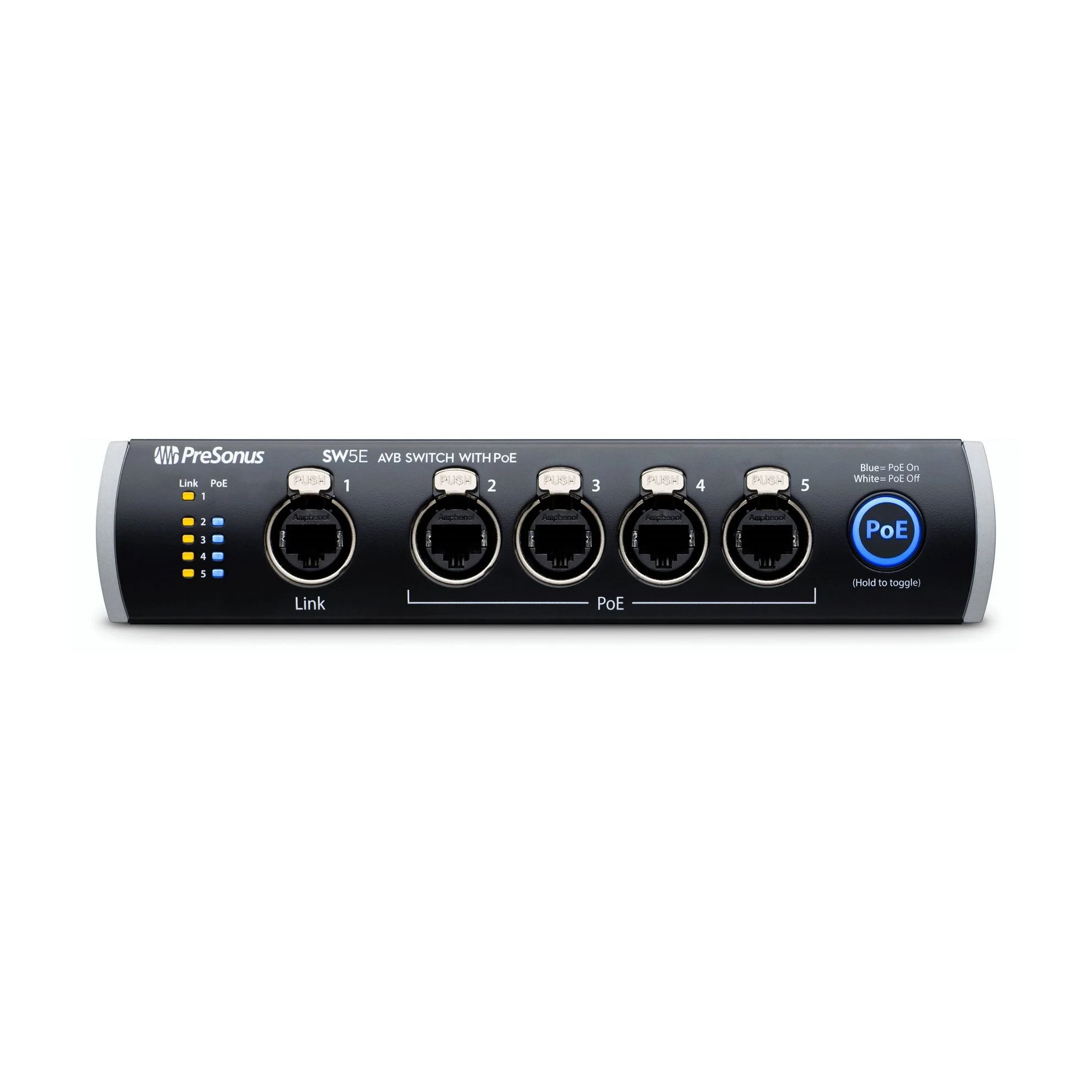

• Front Panel: 5 Activity LEDs, 4 PoE active LEDs

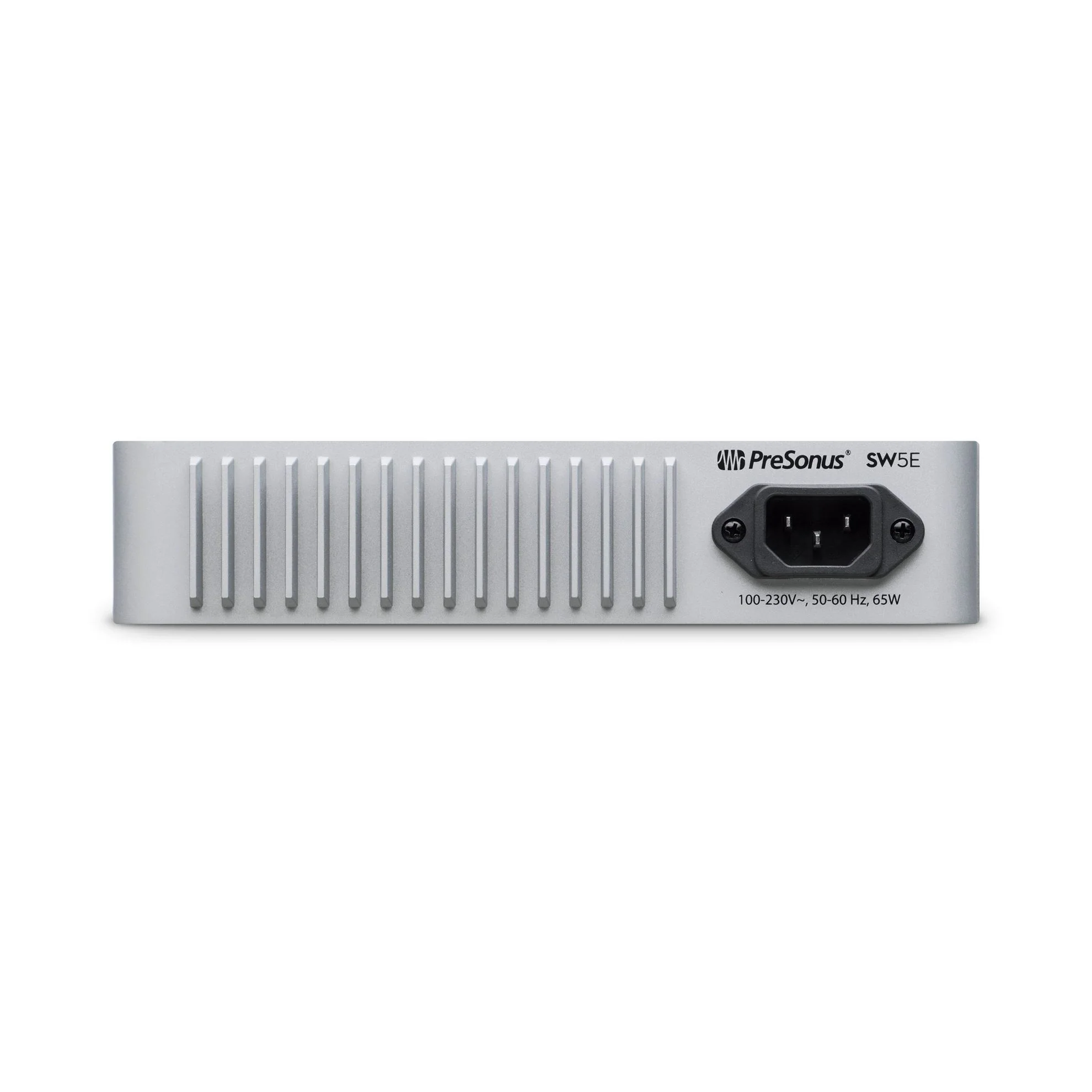

• Power: 100-230V, 50-60 Hz, 65W
• Dimensions: 1.7" x 8.5" x 7" (44 x 217 x 178 mm)

---
