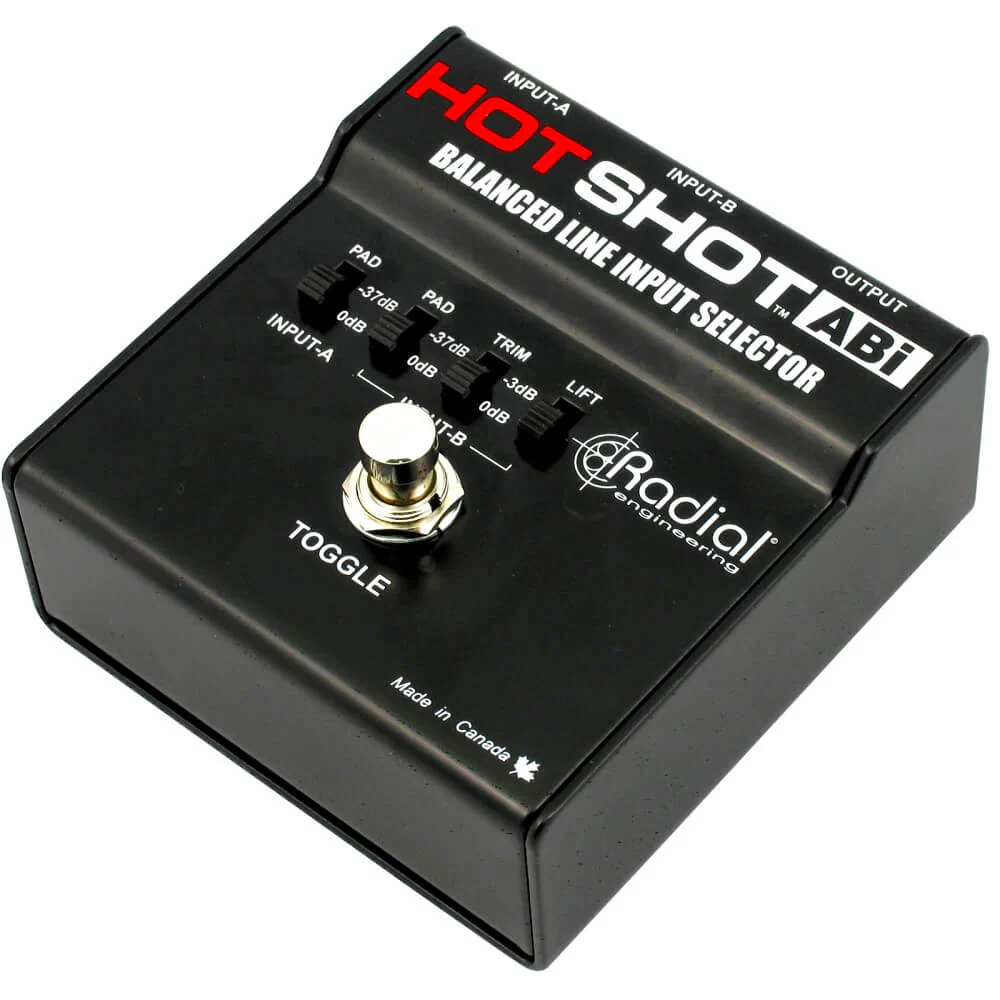

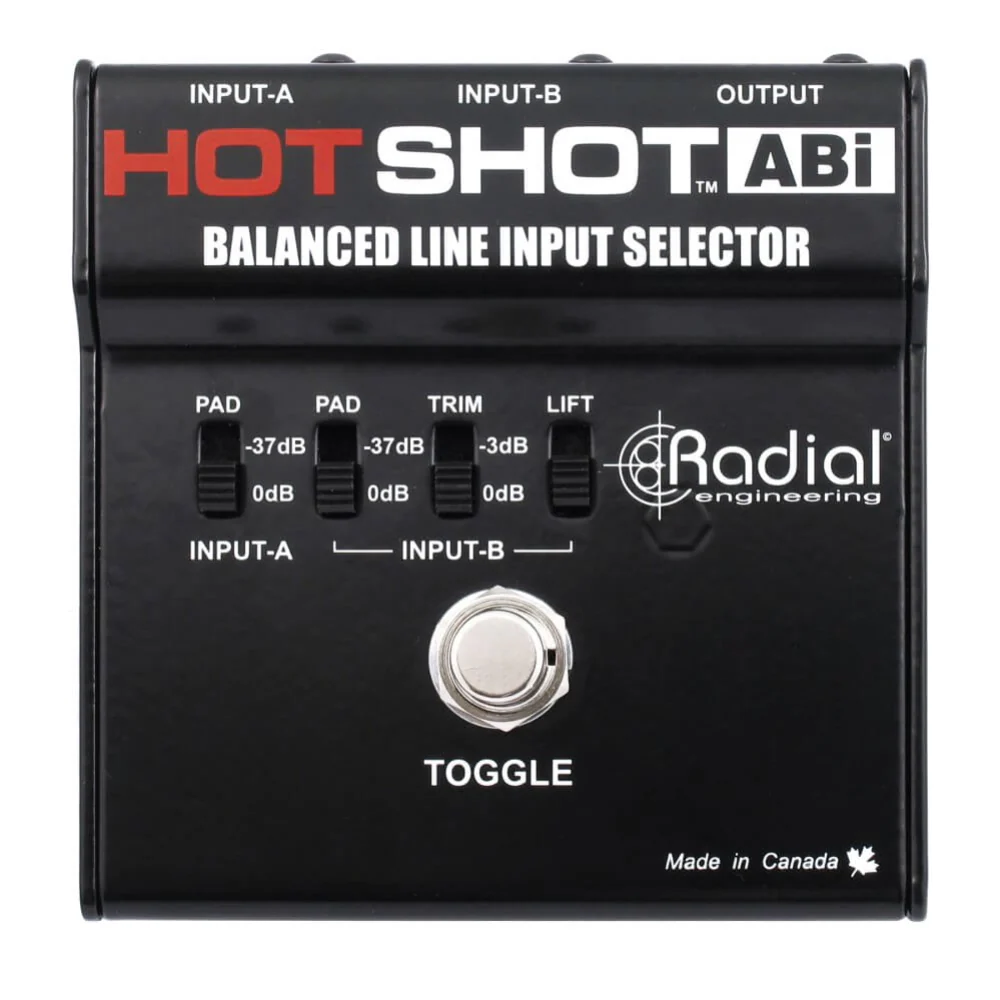

Easily select between two balanced inputs on stage using the HotShot ABi's single latching footswitch to select between sources, allowing you to switch between two dynamic microphones during a performance, alleviating the need for using additional unnecessary channels on the mixer. The latching footswitch can also be used for a myriad of other useful applications, such as using the HotShot ABi as a switch to mute a microphone, alternate between wireless receivers, or switch between two mono playback devices.

HotShot ABi Applications

• Using ABi to Select Between Two Microphones - In some scenarios, the performer may wish to switch between two microphones that are located in different places on stage - the ABi makes it simple to switch between them with a single foot stomp.
• Using the ABi to Select Between Two Sources - The ABi is perfect for quickly selecting between two mono audio sources - simply connect the first device to input-A, and the second to input-B. Just stomp the switch to select!
• Using the ABi to Mute a Signal - By connecting a source to input A, and nothing to input B, you can use the HotShot ABi as a mute switch. By switching inputs, the non-connected input acts as the mute circuit.

Specifications

• Circuitry: Passive, True Bypass
• Frequency Response: 20Hz - 20kHz
• Dynamic Range: Unlimited
• Features
  • Input Pad
  • Ground Lift
• Connectors

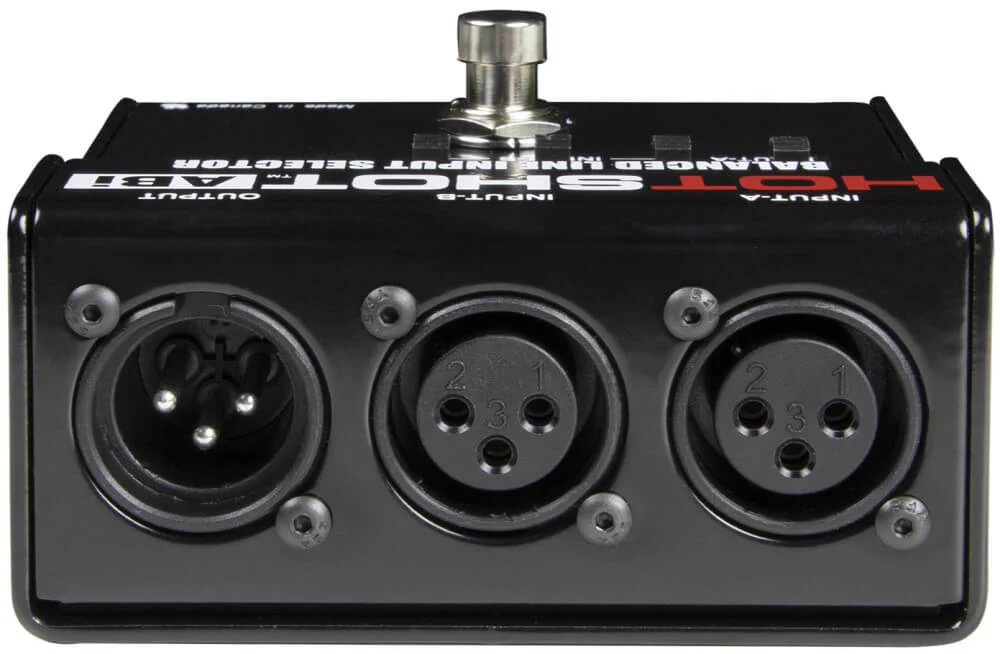

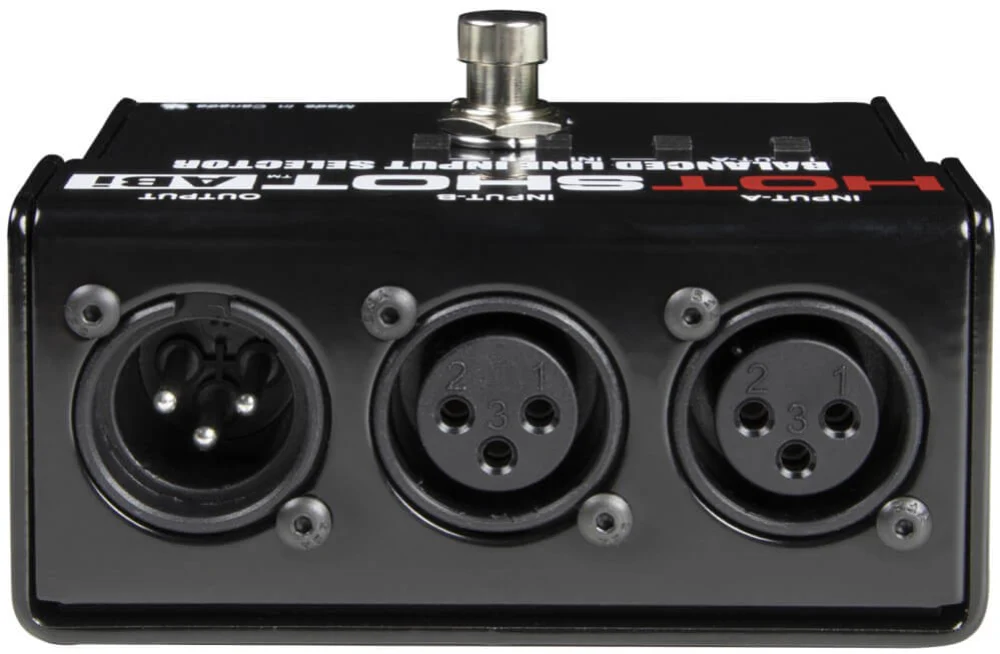

  • Input: 2x XLR
  • Output: 1x XLR
• Construction: 14-Guage Steel
• Dimensions
  • 99mm (L) x 92mm (W) x 51mm (D)
  • 0.56kg
