Features

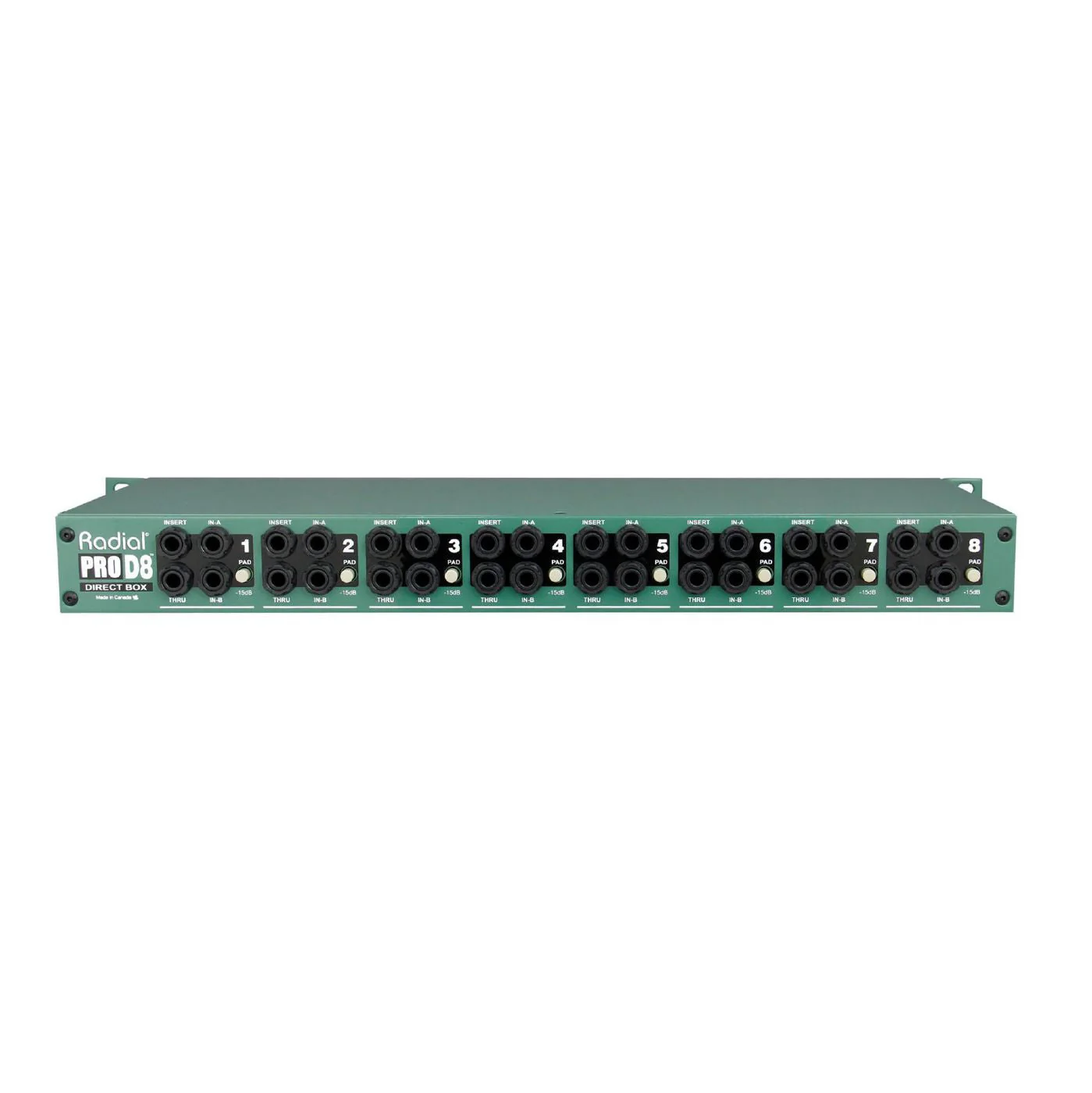

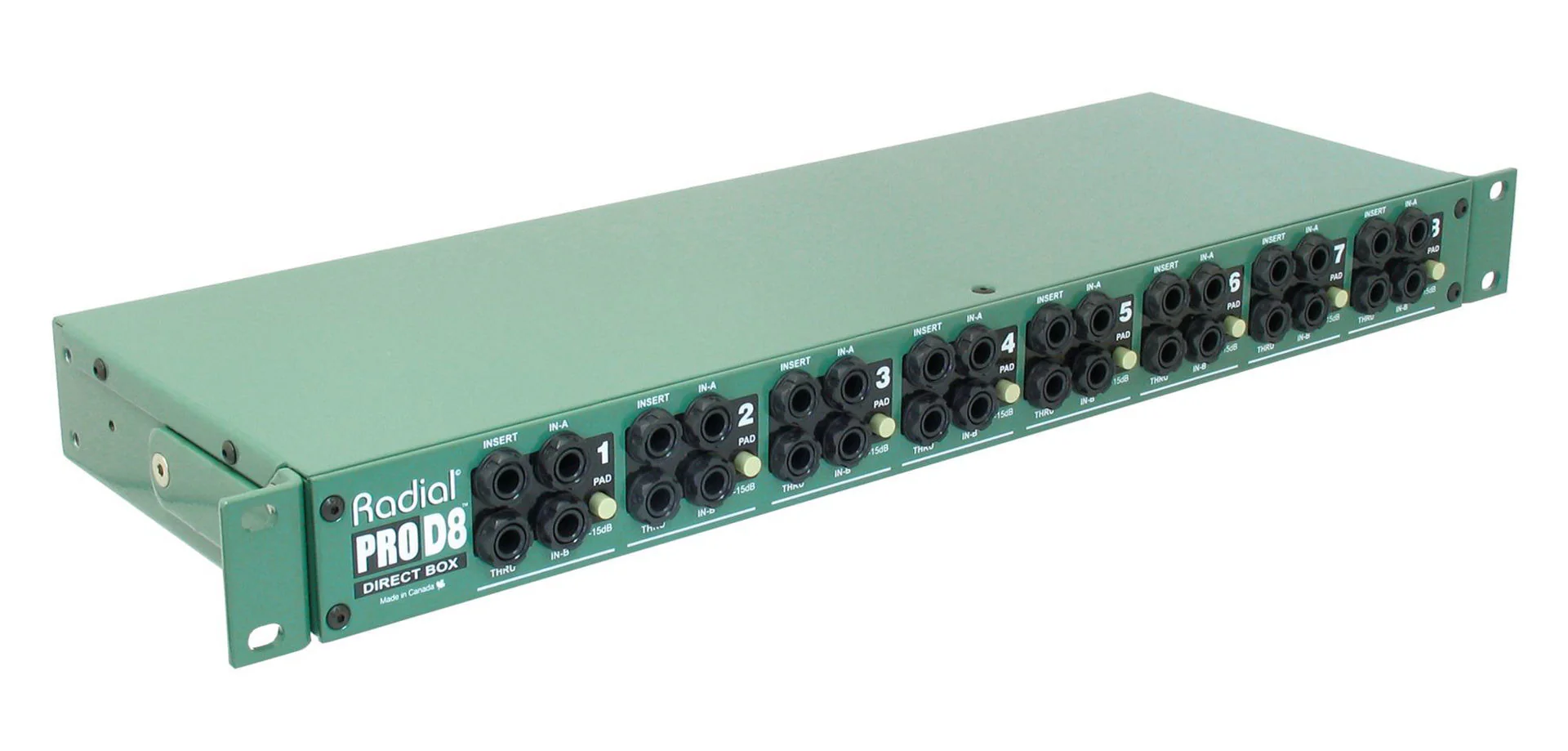

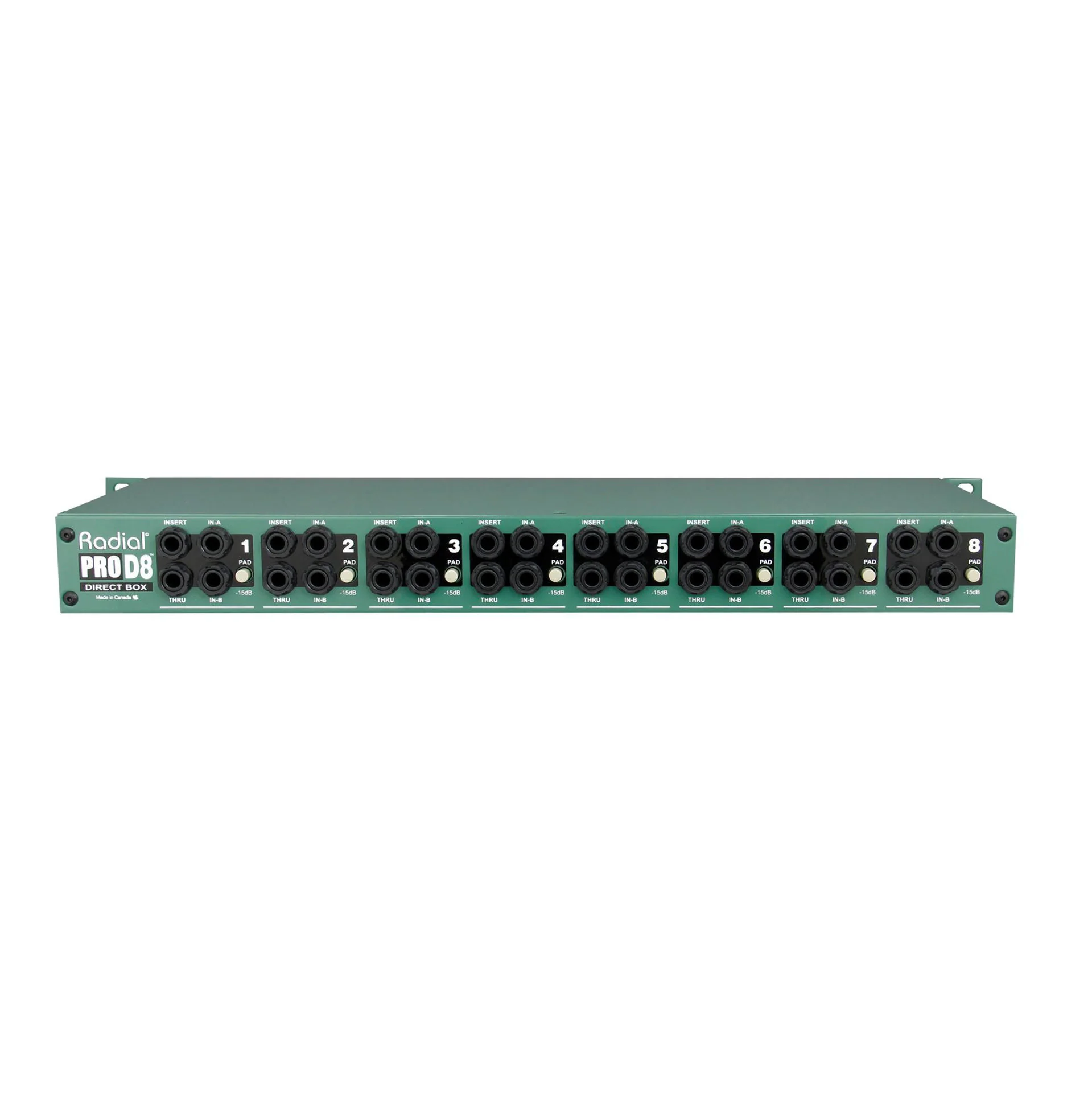

• High density 8-channel rackmount DI for keyboards
• Reversible rack ears to optimize patching setup
• Withstands extreme dynamics from high-output sources
• Redundant inputs let you incorporate a backup system

---

Specifications

• Audio circuit type: Passive, transformer based
• Transformer: Eclipse ET-DB2, 12:1 ratio
• Number of channels: 8
• Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
• Dynamic range: 128dB
• Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
• Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
• Input Impedance: 140k Ohms, unbalanced
• Output Impedance: 150 Ohms, balanced
• Maximum Input: +18dB @ 20Hz
• Input Connectors: 1/4"
• Output Connectors: XLR
• Construction: 14 gauge steel chassis & outer shell
• Size (L x W x D): 19" x 6.25" x 1.75" (48.3cm x 15.875cm x 4.45cm)
• Weight: 7.2lb (3.26 kg)
• Shipping size (L x W x D): 22" x 10.375" x 4.5" (55.9cm x 26.4cm x 11.4cm)
• Shipping weight: 8.30lb (3.76 kg)
• Power: Passive, no power required
• Conditions: For use in dry locations only between 5°C and 40°C
