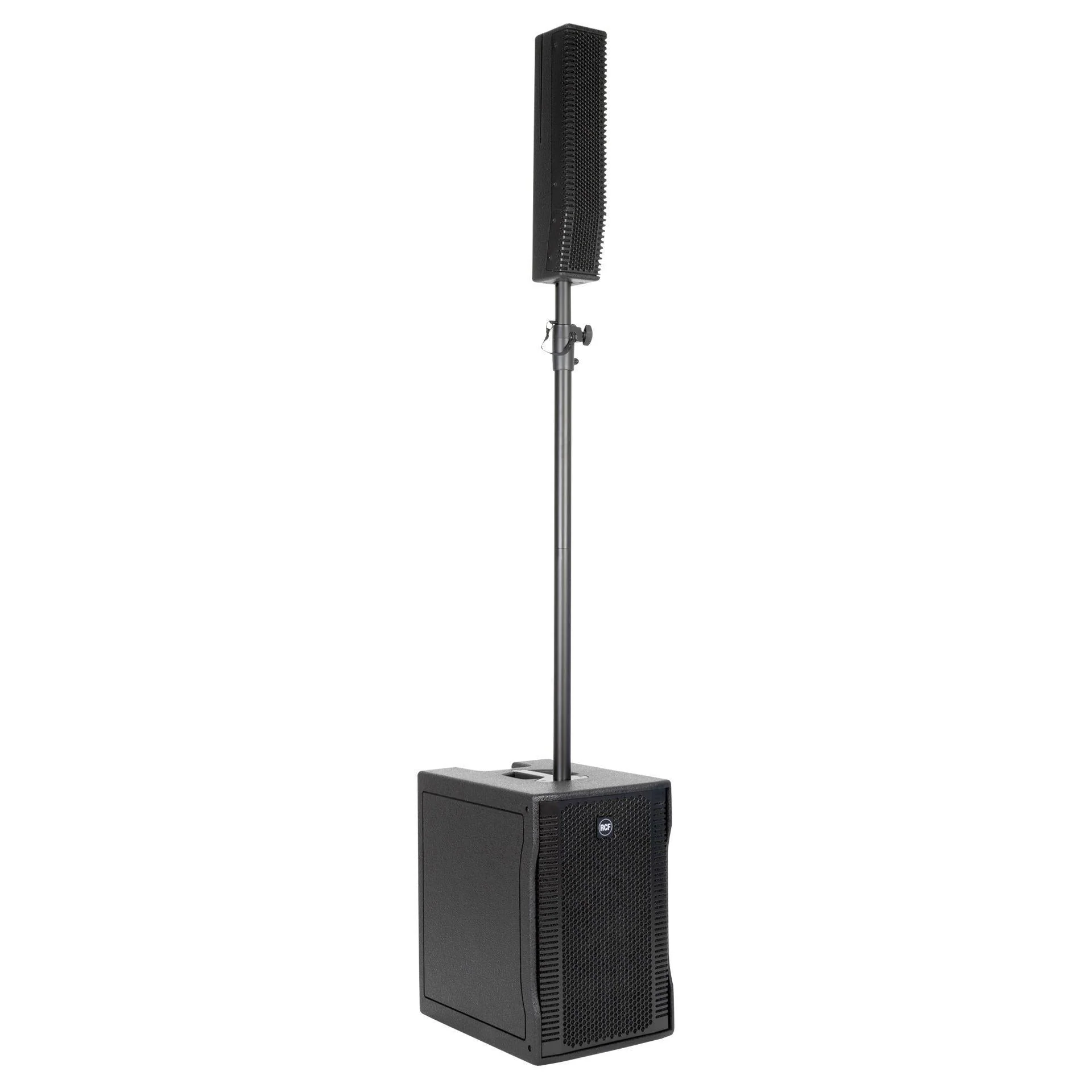

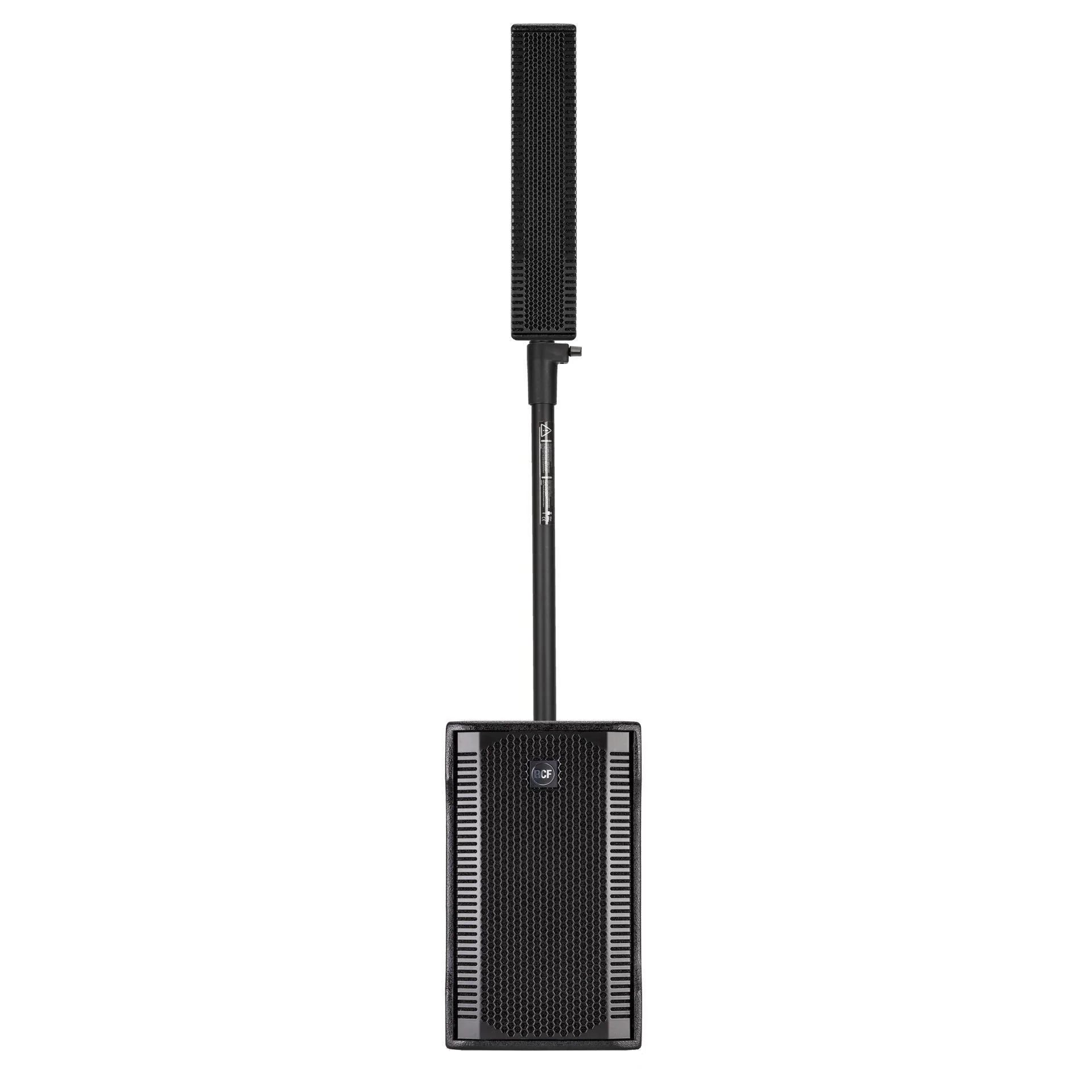

The system features eight 2.0” full range transducers in the line source satellite and a deep sounding 12” woofer in a bass reflex enclosure. The system is designed to be the perfect high output solution for live music and DJs. The unique vocal attitude and SPL make Evox 8 the perfect tool for larger presentations, corporate events and congresses.

---

Features

• 1400 Watt
• 128 dB max SPL
• 40 Hz 20 kHz frequency response
• 12" Woofer, 2.5" v.c.
• 8 x 2" Ultra compact fullrange, 1.0 v.c.
• 120° x 30° slightly tilted pattern control
• Innovative DSP processing
• Pole mountable, easy set-up and transportation

---

Specifications

• FREQUENCY RESPONSE: 40 Hz ÷ 20000 Hz
• MAX SPL @ 1M: 128 dB
• HORIZONTAL COVERAGE ANGLE: 120°
• VERTICAL COVERAGE ANGLE: 30°
• FULLRANGE: 8 x 2.0'''', 1.0'''' v.c
• WOOFER: 12'''', 2.5'''' v.c
• INPUT SIGNAL: bal/unbal
• INPUT CONNECTORS: XLR, Jack
• OUTPUT CONNECTORS: XLR
• INPUT SENSITIVITY: -2 dBu/+4 dBu
• CROSSOVER FREQUENCIES: 220 Hz
• PROTECTIONS: Thermal, RMS
• LIMITER: Soft Limiter
• CONTROLS: Volume, EQ, phase, Xover
• TOTAL POWER: 1400 W Peak, 700 W RMS
• HIGH FREQUENCIES: 400 W Peak, 200 W RMS
• LOW FREQUENCIES: 1000 W Peak, 500 W RMS
• COOLING: Convection
• CONNECTIONS: VDE
• CE MARKING: Yes
• CABINET/CASE MATERIAL: Baltic birch plywood
• HANDLE: 1 Top
• HARDWARE: 2 x M6
• POLE MOUNT CAP: Yes
• COLOR: Black
• HEIGHT: 530 mm / 20.87 inches
• WIDTH: 346 mm / 13.62 inches
• DEPTH: 459 mm / 18.07 inches
• WEIGHT: 23.8 kg / 52.47 lbs

---

WATCH: EVOX The Easy Way
