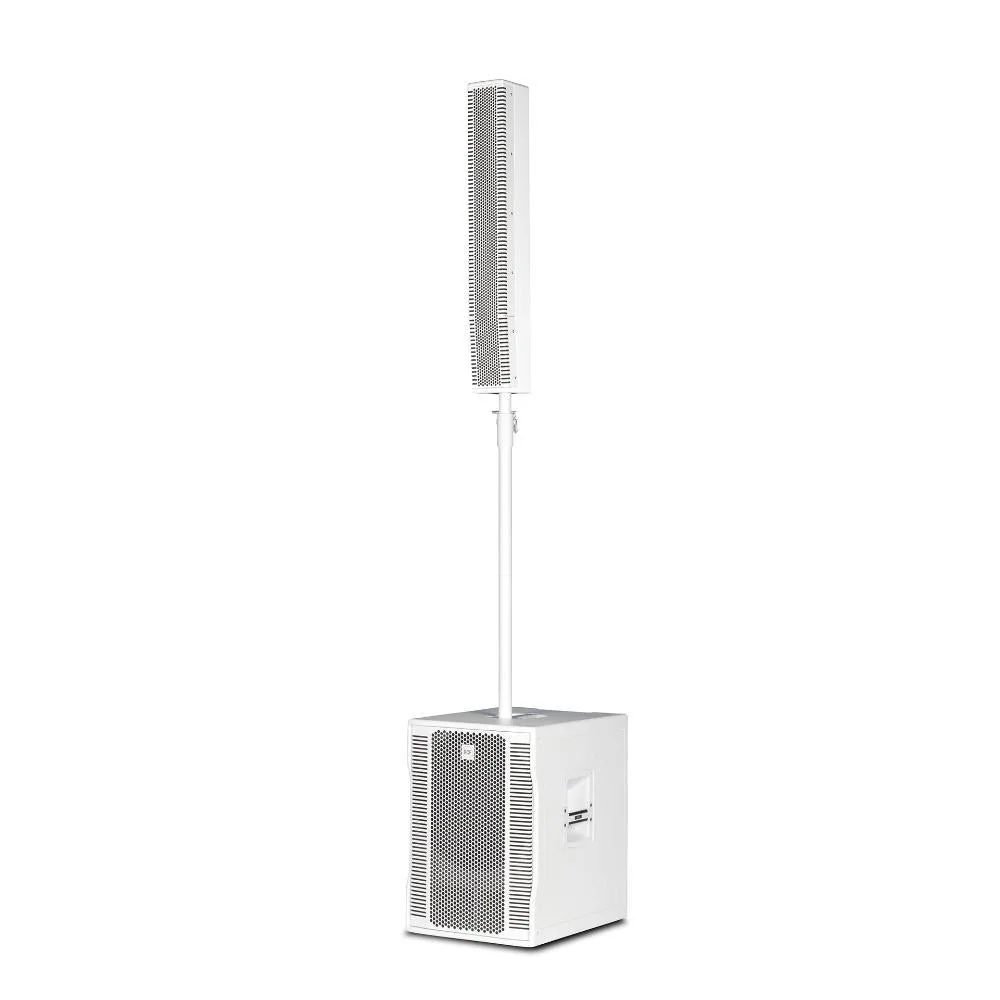

The top section has eight high performance neodymium 4 “full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs.

The 15” subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.

---

Features

• 1400 Watt
• 130 dB max SPL
• 40 Hz 20 kHz frequency response
• 15" Woofer
• 8 x 4" neodymium full-range woofer
• 90° x 30° slightly tilted pattern control
• Innovative DSP processing
• Pole mountable, easy set-up and transportation

---

Specifications

• FREQUENCY RESPONSE: 40 Hz ÷ 20000 Hz
• MAX SPL @ 1M: 130 dB
• HORIZONTAL COVERAGE ANGLE: 90°
• VERTICAL COVERAGE ANGLE: 30°
• FULLRANGE: 8 x 4.0'''', 1.0'''' v.c
• WOOFER: 15'''', 3.0'''' v.c
• INPUT SIGNAL: bal/unbal
• INPUT CONNECTORS: XLR, Jack
• OUTPUT CONNECTORS: XLR
• INPUT SENSITIVITY: -2 dBu/+4 dBu
• CROSSOVER FREQUENCIES: 180 Hz
• PROTECTIONS: Thermal, RMS
• LIMITER: Soft Limiter
• CONTROLS: Volume, EQ
• TOTAL POWER: 1400 W Peak, 700 W RMS
• HIGH FREQUENCIES: 400 W Peak, 200 W RMS
• LOW FREQUENCIES: 1000 W Peak, 500 W RMS
• COOLING: Convection
• CONNECTIONS: VDE
• CE MARKING: Yes
• CABINET/CASE MATERIAL: Baltic birch plywood
• COLOR: Black
• HEIGHT: 2200 mm / 86.61 inches
• WIDTH: 410 mm / 16.14 inches
• DEPTH: 560 mm / 22.05 inches
• WEIGHT: 36.4 kg / 80.25 lbs
• PACKAGE WEIGHT: 43.89 kg / 96.76 lbs

---
