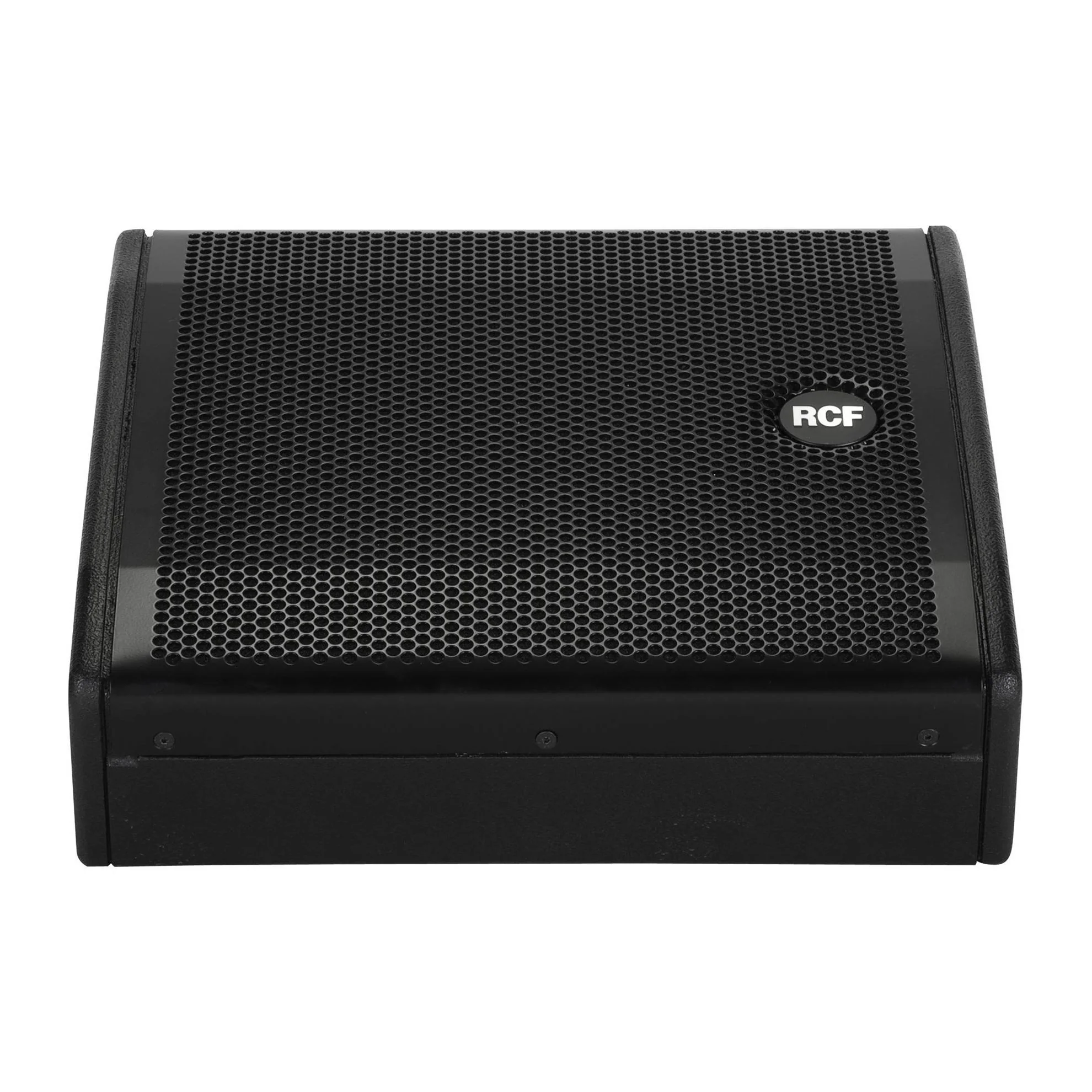

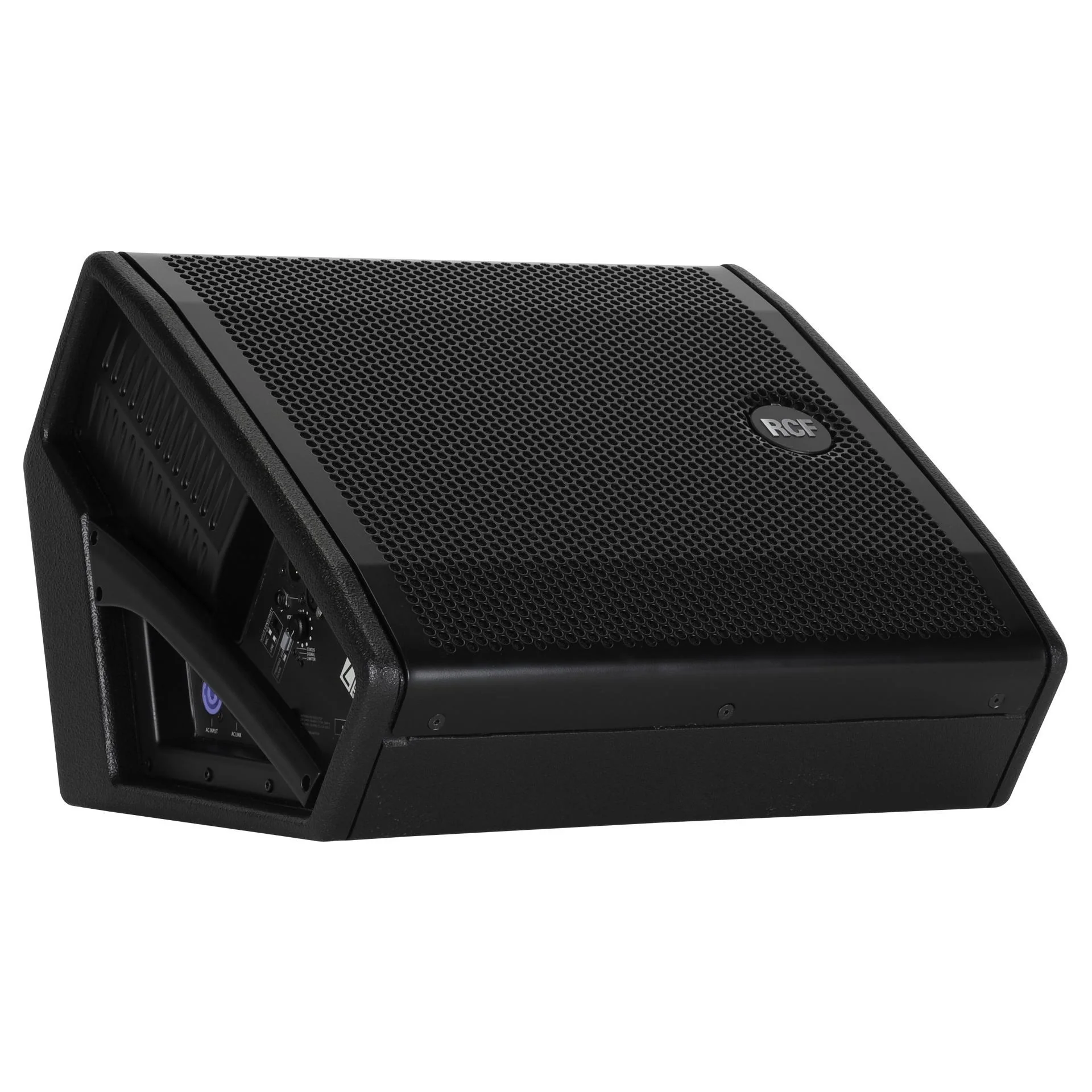

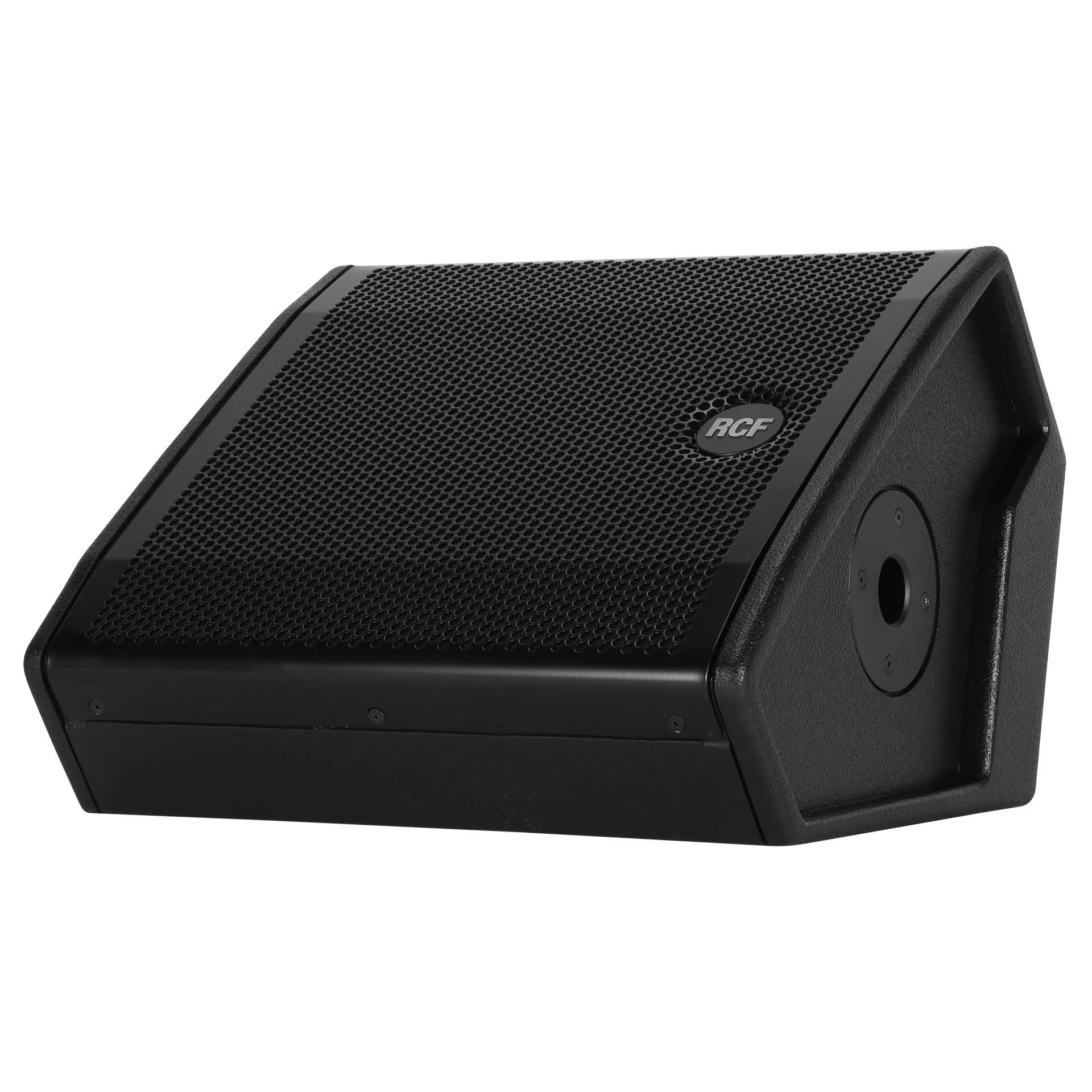

The NX 10-SMA also It can be used as a portable PA thanks to the robust steel tripod cup on its side panel.

In order to control the response of the cabinet in different applications, RCF has incorporated two special EQ modes:
- Floor, for stage monitoring;
- Free field, for when the boxes are used as the main PA system

The box is made of multi-layer Baltic birch wood, finished in an extremely resistant paint for intensive live use.

An ergonomic handle, integrated into the entry panel, allows the box to be easily transported.

---

Features

• 800 W Peak, 400 W RMS digital bi-amplification
• 127 dB SPL max.
• 60 x 60 wide dispersion constant directivity rotatable horn
• 10 "High Power Neodymium Woofer with 2.5" Voice Coil
• 1 "Mylar dome tweeter, Neodymium
• DSP processing, free field or floor equalization, "soft" limiting and protection
• XLR / Jack input, XLR output

---

Specifications

• FREQUENCY RESPONSE: 60 Hz ÷ 20000 Hz
• MAX SPL @ 1M: 127 dB
• HORIZONTAL COVERAGE ANGLE: 60°
• VERTICAL COVERAGE ANGLE: 60°
• COMPRESSION DRIVER: Coaxial 1.0 '''' neo, 1.75 '''' vc
• BASS SPEAKER: 10 '''' neo, 2.5 '''' vc
• INPUT SIGNAL: bal/unbal
• INPUT CONNECTORS: XLR, jack
• OUTPUT CONNECTORS: XLR
• INPUT SENSITIVITY: +4 dBu
• CROSSOVER FREQUENCIES: 900 Hz
• PROTECTIONS: RMS, HF
• LIMITER: Soft Limiter
• CONTROLS: Freefield, Floor
• TOTAL POWER: 800 W Peak, 400 W RMS
• TREBLE: 200 W Peak, 100 W RMS
• LOW FREQUENCIES: 600 W Peak, 300 W RMS
• COOLING: Convection
• CONNECTIONS: Powercon IN / OUT
• CE MARKING: And it it
• CABINET/CASE MATERIAL: Baltic birch plywood
• HANDLES: 1 on side
• RACK: Steel
• COLOR: Black
• HEIGHT: 324 mm / 12.76 inches
• OVERALL WIDTH: 450 mm / 17.72 inches
• DEPTH OF PACKAGE: 417 mm / 16.42 inches
• PACKAGE WEIGHT: 14.3 kg / 31.53 lbs
