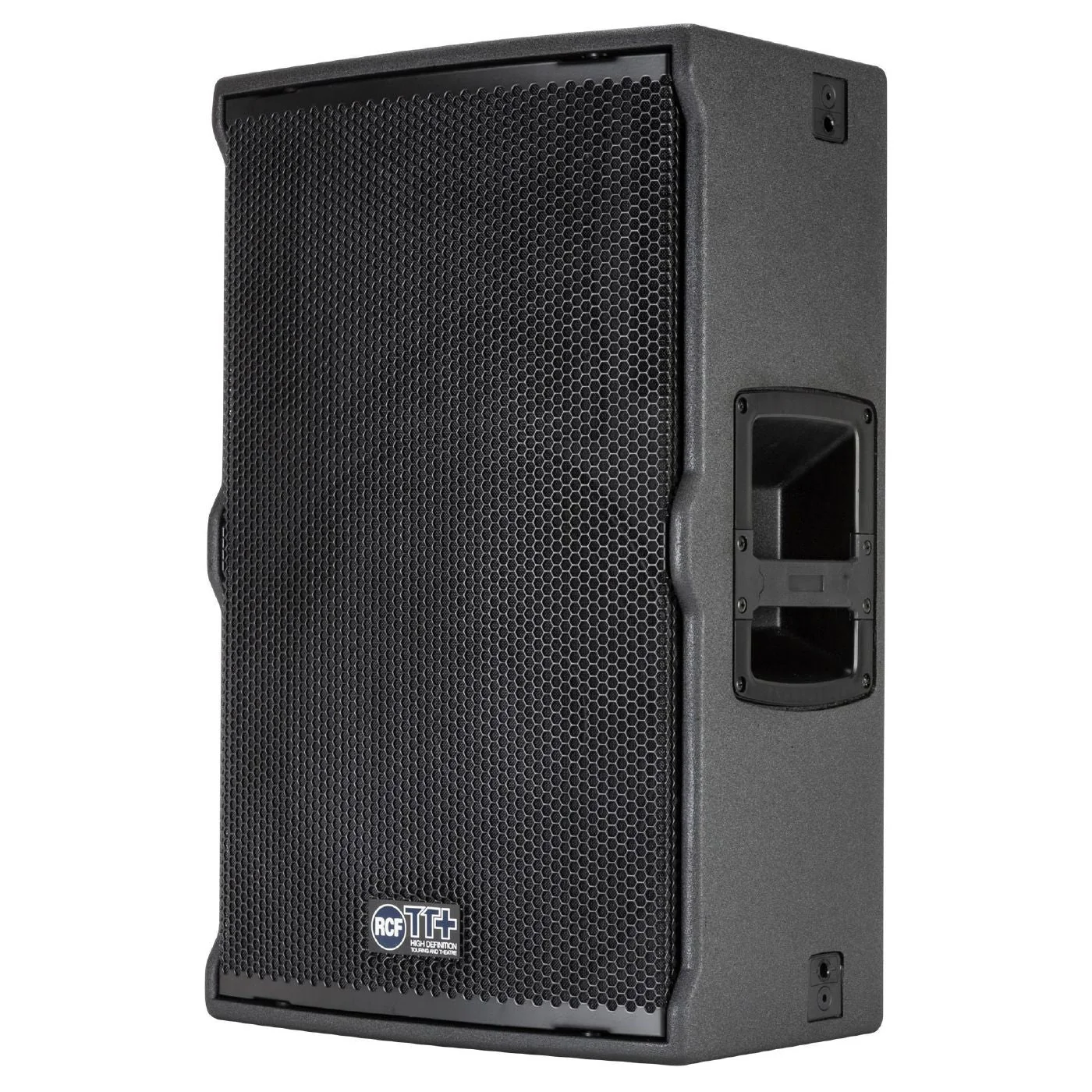

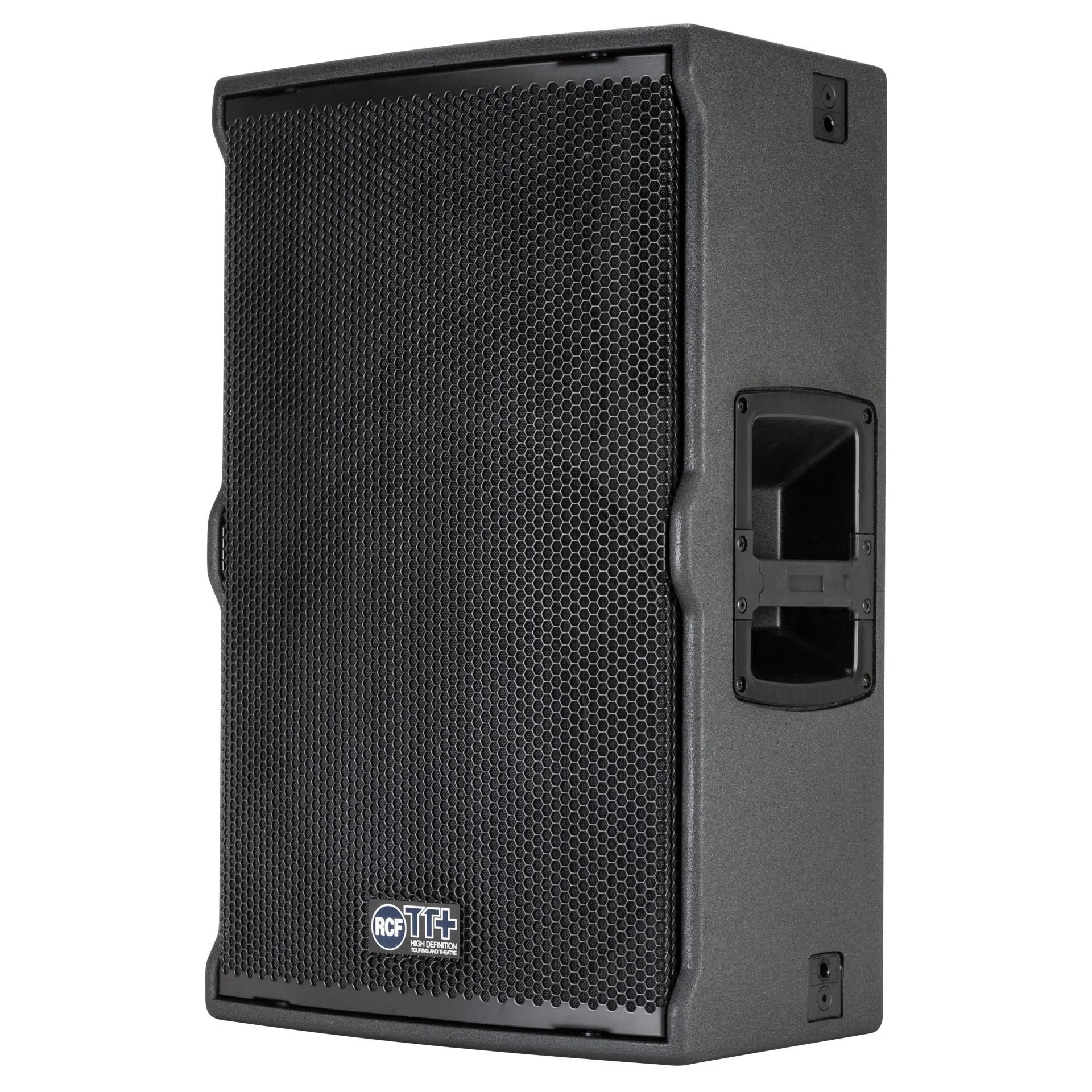

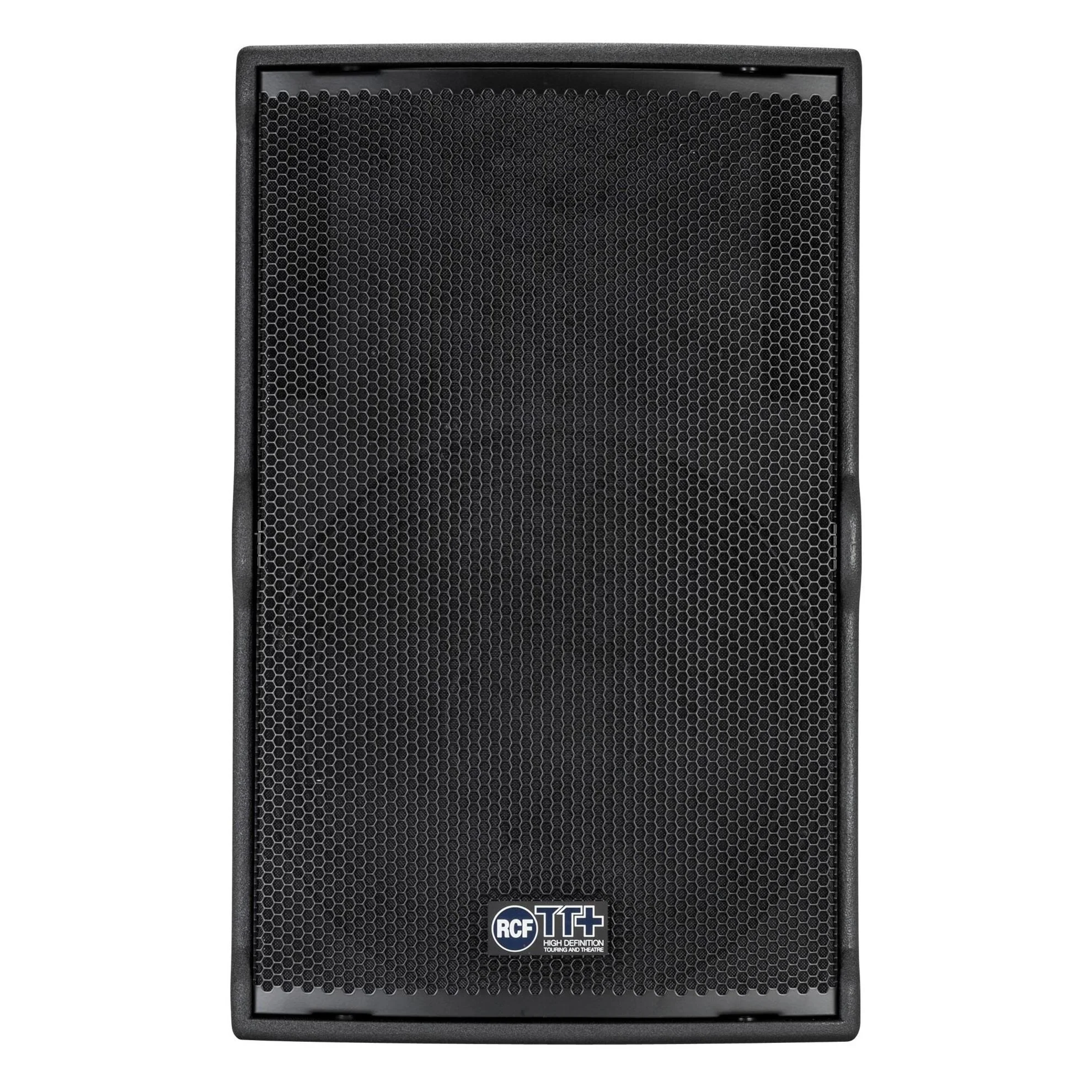

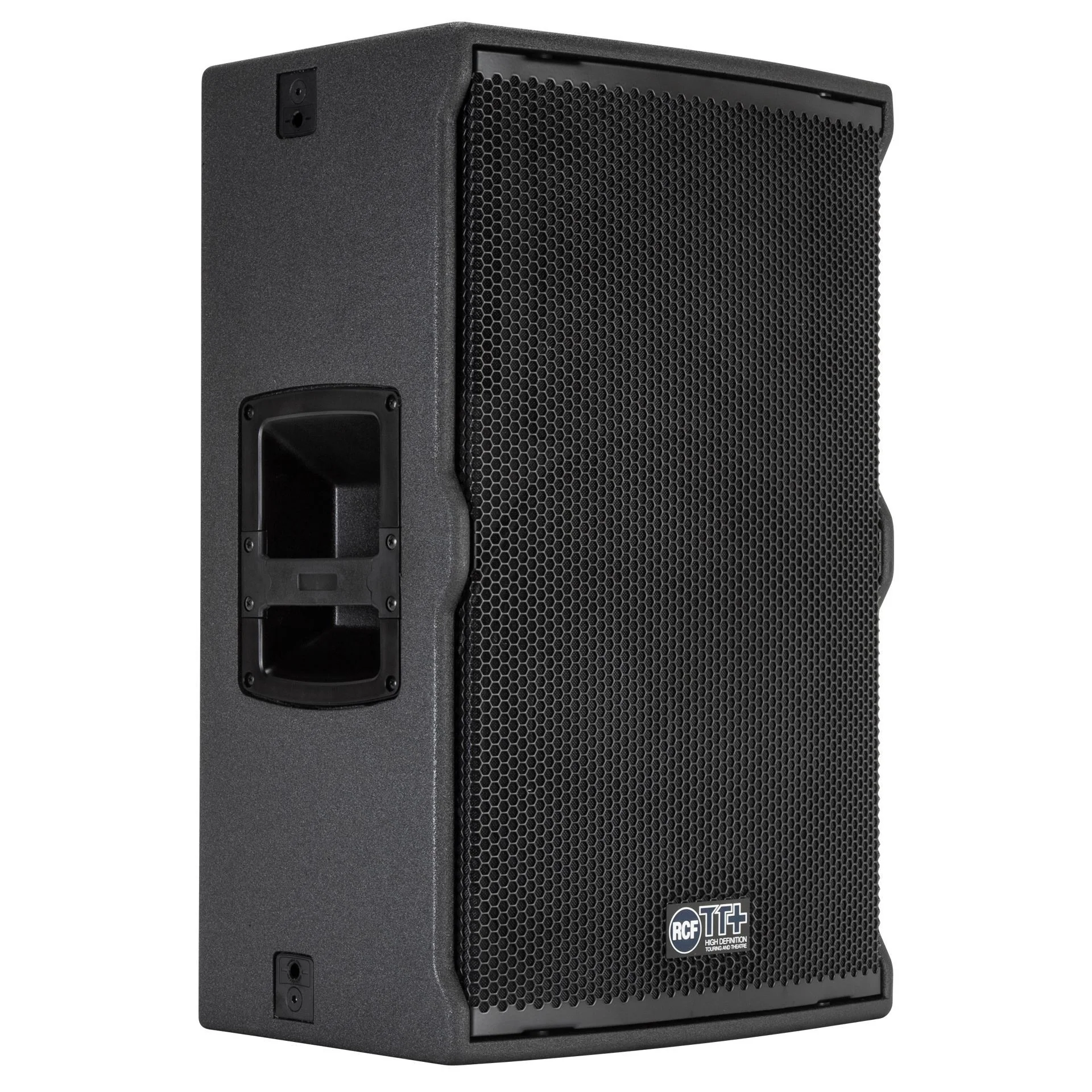

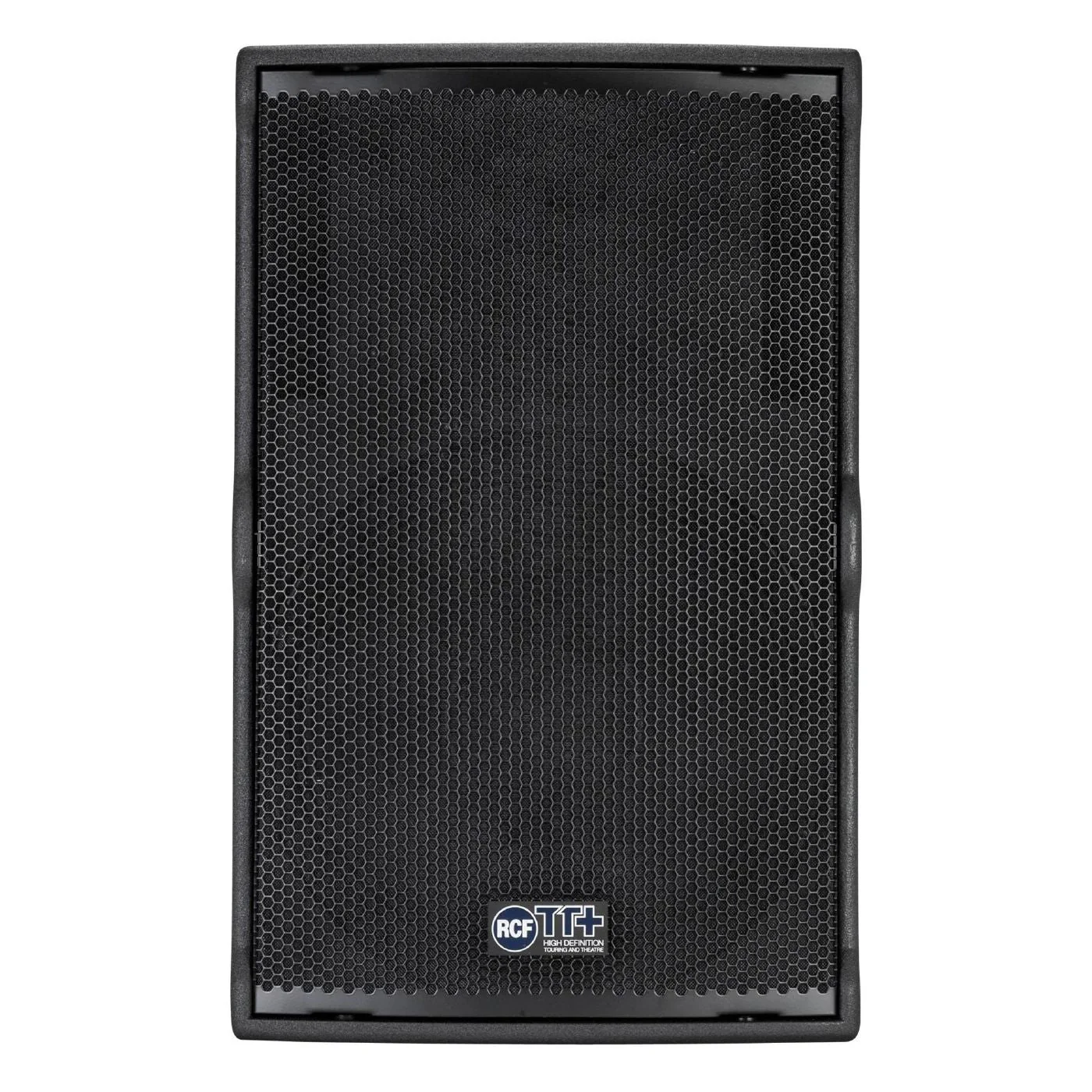

The TT25AMK2 offers a very high output level and dynamics, along with extreme linearity and precision and a compact size.

The TT25AMK2 is an active two-way system that includes a 15 ”neodymium woofer, with an 86mm voice coil in a bass reflex configuration; 1.5 ”throat, with 100mm spool and neodymium compression driver; 90 ° x 60 ° constant directivity horn, adjustable 90 °.

The TT25AMK2 is the ideal professional loudspeaker for sound reinforcement, live performances and events.

---

Features

• 1100 W Class D Amplifier
• 90 x 60 constant directivity coverage angle
• 15 "neo woofer, 3.5" voice coil
• 1.5 "neo c. Driver, 4.0" voice coil
• DSP Processing
• Onboard RDNet Control
• Multifunctional cabinet
• Very high output

---

Specifications

• FREQUENCY RESPONSE: 50 Hz ÷ 20000 Hz
• MAX SPL @ 1M: 134 dB
• HORIZONTAL COVERAGE ANGLE: 90°
• VERTICAL COVERAGE ANGLE: 60°
• COMPRESSION DRIVER: 1 x 1.5 '''' neo, 4.0 '''' vc
• BASS SPEAKER: 15 '''' neo, 3.5 '''' vc
• INPUT SIGNAL: bal/unbal
• INPUT CONNECTORS: XLR, RDNet Ethercon
• OUTPUT CONNECTORS: XLR, RDNet Ethercon
• INPUT SENSITIVITY: -2 dBu / + 4 dBu
• CROSSOVER FREQUENCIES: 750 Hz
• PROTECTIONS: Thermal, HF
• LIMITER: Fast Limiter
• CONTROLS: process., 8 sel. presets
• RDNET: And it is
• TOTAL POWER: 2200 W Peak, 1100 W RMS
• TREBLE: 600 W Peak, 300 W RMS
• LOW FREQUENCIES: 1600 W Peak, 800 W RMS
• COOLING: Convection
• CONNECTIONS: Powercon IN / OUT
• CE MARKING: And it it
• CABINET/CASE MATERIAL: Baltic birch plywood
• PHYSICAL EQUIPMENT: 6 x fly tracks, quick lock, pole mount
• HANDLES: 2 Side
• RACK: Steel
• COLOR: Black
• HEIGHT: 670 mm / 26.38 inches
• OVERALL WIDTH: 425 mm / 16.73 inches
• DEPTH OF PACKAGE: 425 mm / 16.73 inches
• PACKAGE WEIGHT: 26 kg / 57.32 lbs
