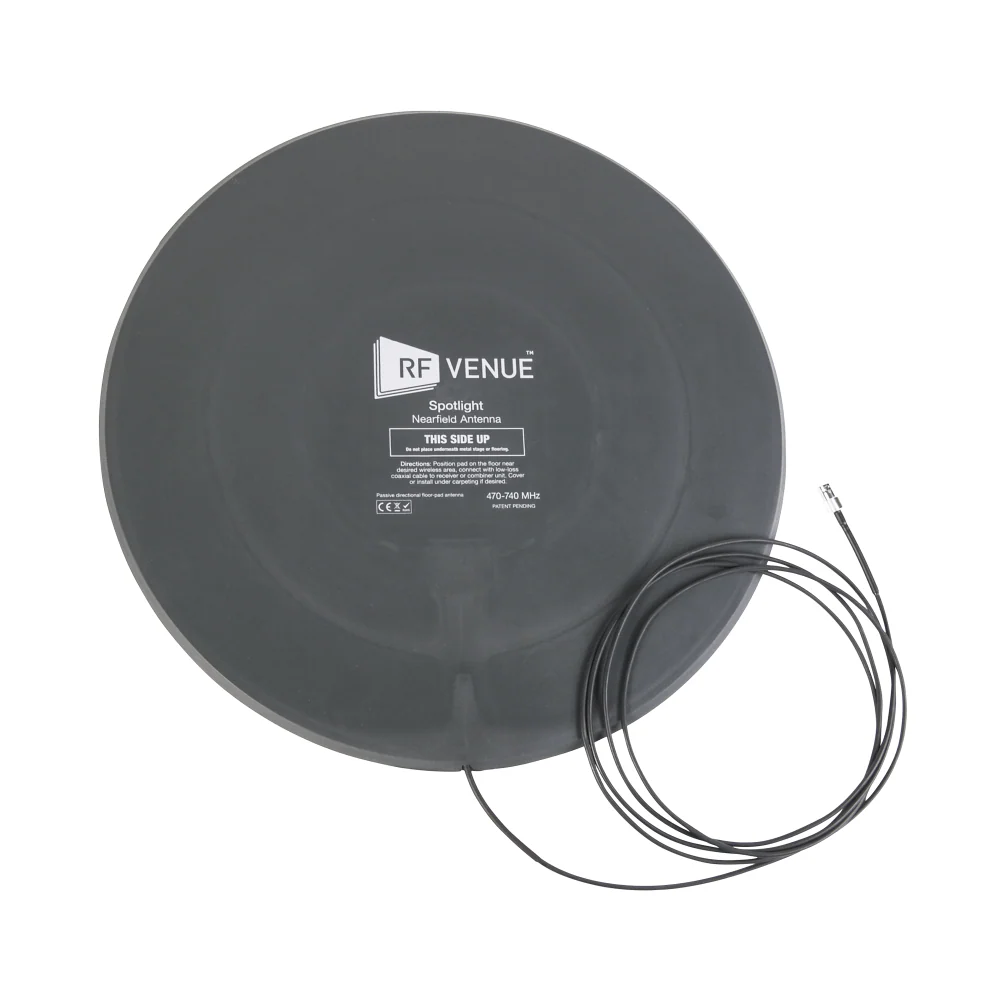

Features

• Limits pickup of undesired RF signals in crowded RF environments
• Elliptically polarized element provides a floor-omni pickup pattern
• Polarized element is molded into a durable 7 mm (0.28") PVC disc
• Designed to be placed on the floor, under a stage or carpet, offstage, or in other inconspicuous places
• Typical range at 10 mW is a diameter of 30 m (100') -1 dB gain
• Includes a permanently attached 3 m (10') cable with a BNC connector

Specifications

• Operating frequency: 470 to 698 MHz
• Bandwidth: 228 MHz
• Average return loss: -7.04 dB
• Impedance: 50 ohms
• Pattern type: Floor omni
• Polarization: Elliptical
• Gain: -1 dB
• Dimensions: 483 mm (19.0") diameter, 7 mm (0.3") H
• Weight: 1.4 kg (3.1 lbs)
• Operating temperature range: -10°C to +40°C (14°F to +104°F)
• Connector: BNC female
