Versatile and feature-rich digital wireless system for those who sing, speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.

Benefit from our EW-D SKM-S handheld transmitter with the dynamic MMD 835 microphone module in addition to a robust bodypack transmitter with metal housing and unobstrusive clip-on microphone ME 2 (omni-directional) with high speech intelligibility.

---

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• Auto scan creates reliable connections with minimal time and effort
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
• 2,240 selectable frequencies allow for fine tuning
• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

---

Specifications

General

• Frequency range: 520 - 576 MHz
• THD, total harmonic distortion: -60 dB for 1 kHz @ -3 dBfs input level
• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Operating relative humidity: 5 - 95 % (non-condensing)
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

EW-D EM

• Dimensions: 212 x 44 x 189 mm
• Weight: approx. 1000 g (without antennas and power supply)
• Current consumption: 300 mA
• Input voltage range: 11 - 13 V ⎓
• Transmission power: BLE: max. 10 mW EIRP; Audio output level; 18 dBu max.

MMD 835

• Dimensions: 405 x 350 x 73 mm
• Sound pressure level (SPL): 154 dB
• Transducer principle: dynamic
• Weight: 3.1 kg
• Pick-up pattern: cardioid
• Sensitivity: 2.1 mV/Pa

ME 2

• Connector: 3.5 mm jack
• Frequency response: 50 to 18,000 Hz
• Max. sound pressure level: 130 dB
• Cable length: approx. 1.60 m
• Transducer principle: pre-polarized condensor microphone
• Pick-up pattern: omni-directional
• Sensitivity in free field, no load (1kHz): 17 mV/Pa
• Equivalent noise level: 32 dB
• Power supply: 7.5 V

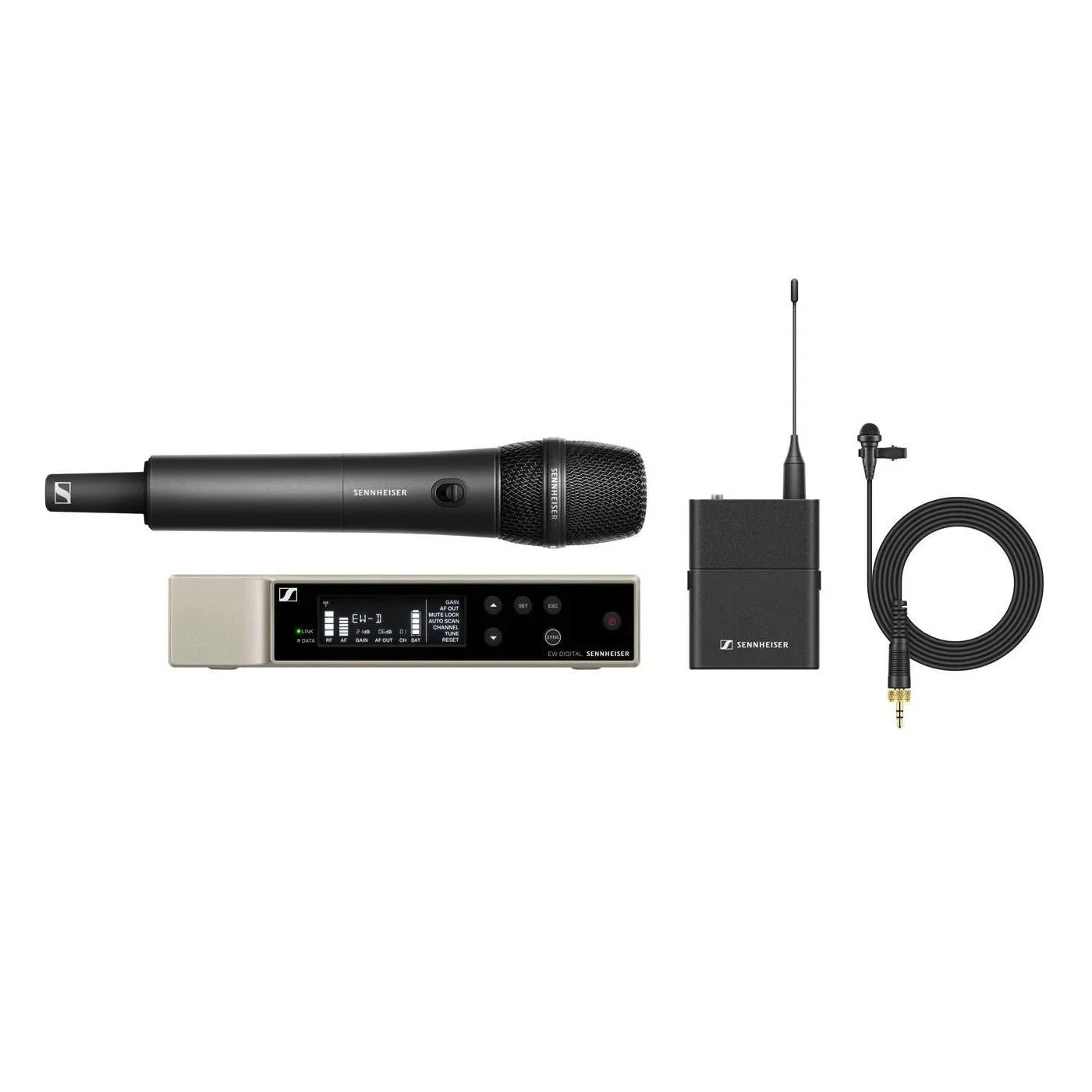

What's in the Box

• EW-D EM rack receiver
• EW-D SK bodypack transmitter
• EW-D SKM-S handheld transmitter
• ME 2 lavalier microphone
• MMD 835 microphone module
• MZQ 1 microphone clamp
• 2 rod antennas
• power supply with country adapters
• rackmount set
• 4 rubber feet
• quick guide
• safety guide
• manufacturer declaration sheet
