Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.

---

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• Auto scan creates reliable connections with minimal time and effort
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
• 2,240 selectable frequencies allow for fine tuning

---

Specifications

• Frequency range: 606.2 - 662 MHz
• Dimensions: 212 x 44 x 189 mm
• THD, total harmonic distortion: -60 dB for 1 kHz @ -3 dBfs input level
• Weight: approx. 1000 g (without antennas and power supply)
• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Current consumption: 300 mA
• Input voltage range: 11 - 13 V ⎓
• Transmission power: BLE: max. 10 mW EIRP
• Operating relative humidity: 5 - 95 % (non-condensing)
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
• Audio output level: 18 dBu max.

What's in the Box

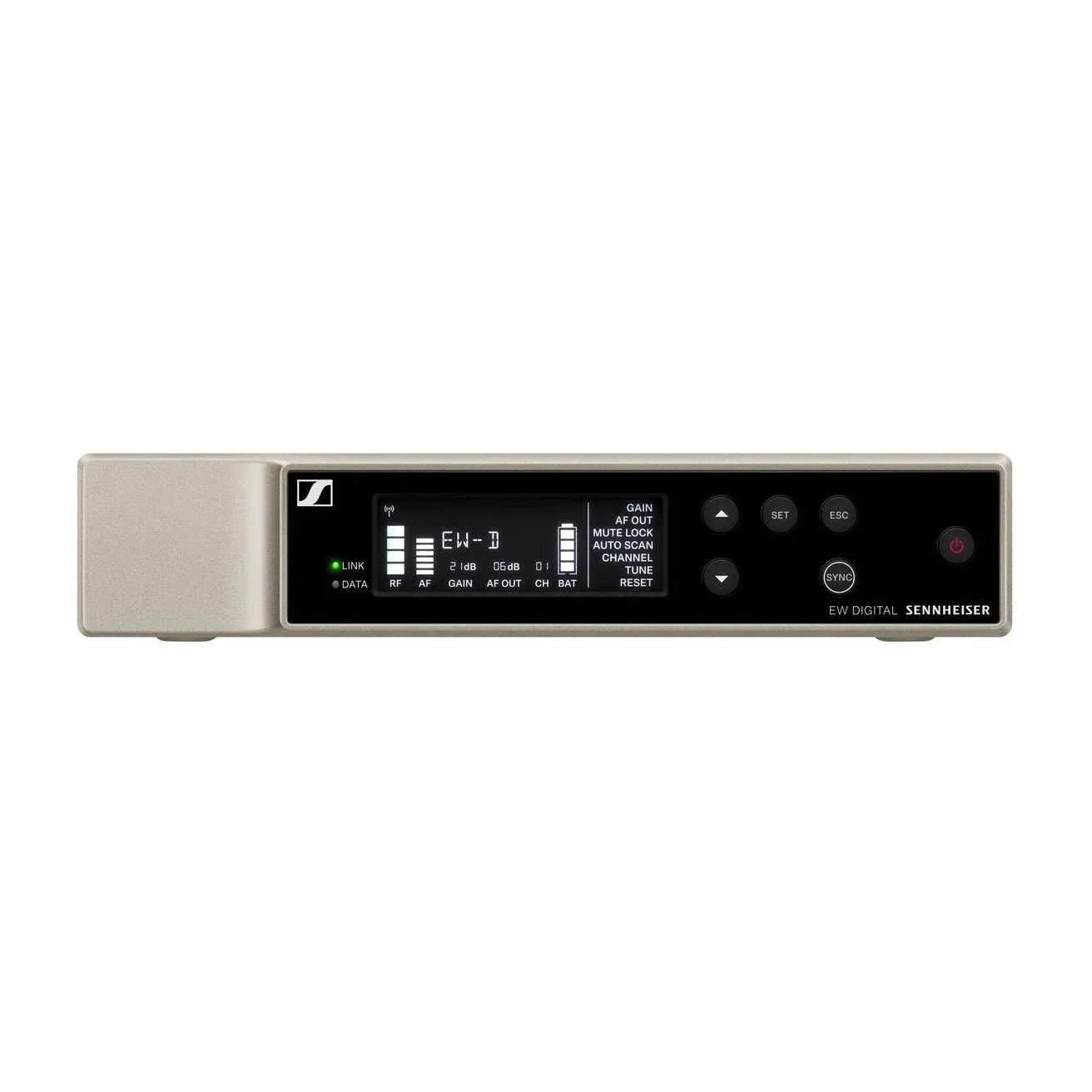

• EW-D EM rack receiver
• 2 rod antennas
• power supply with country adapters
• rackmount set
• 4 rubber feet
• quick guide
• safety guide
• manufacturer declaration sheet
