Features

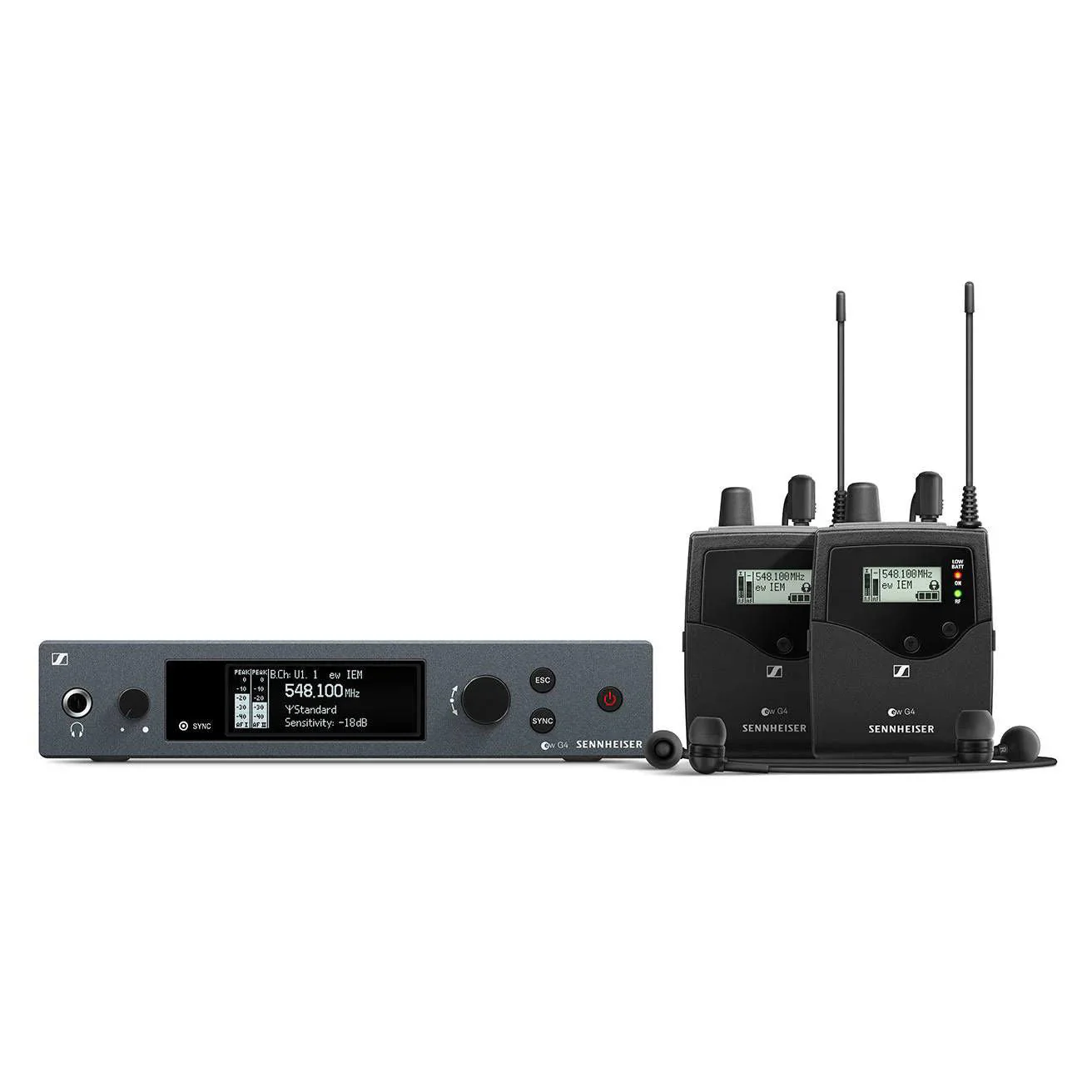

• Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.

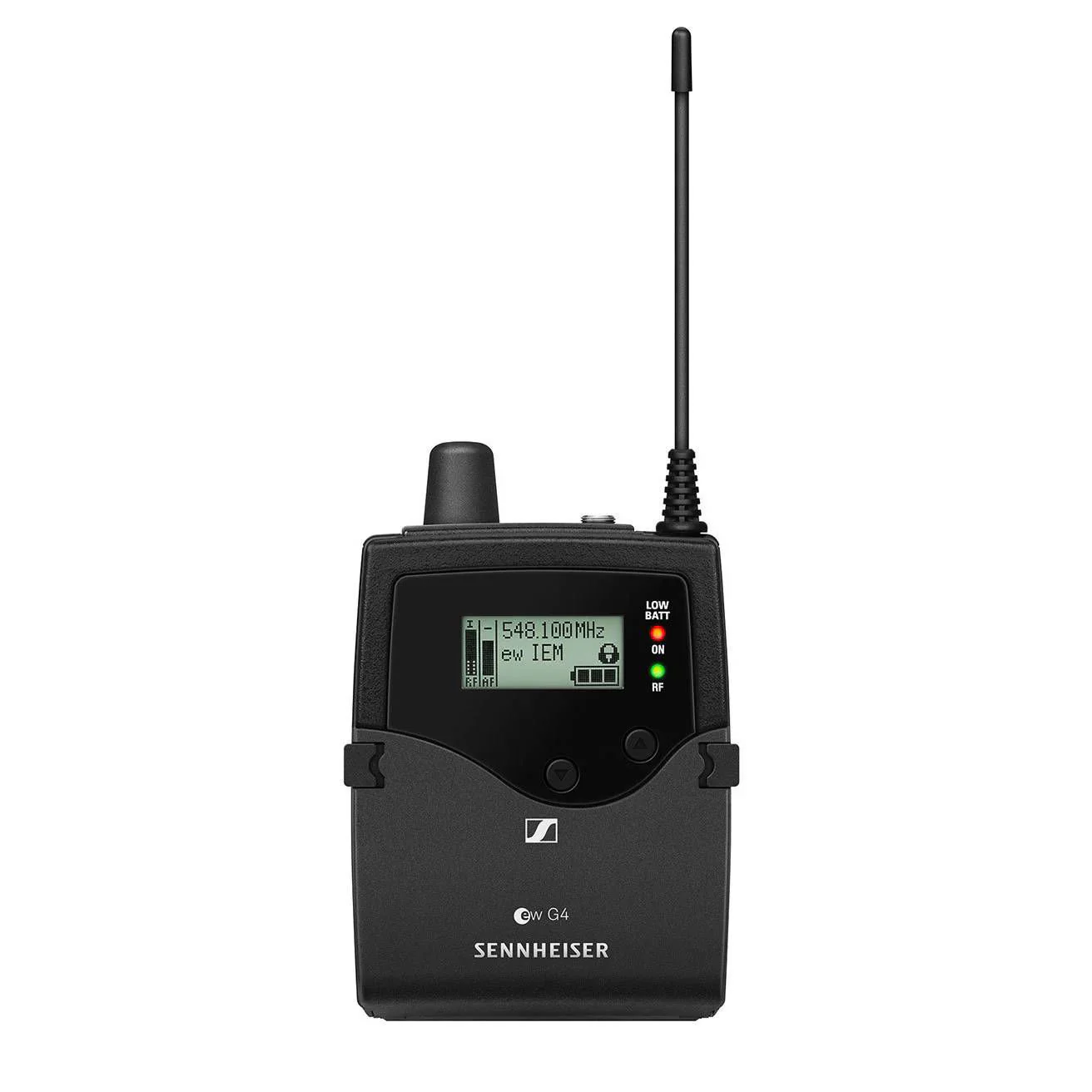

• Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage

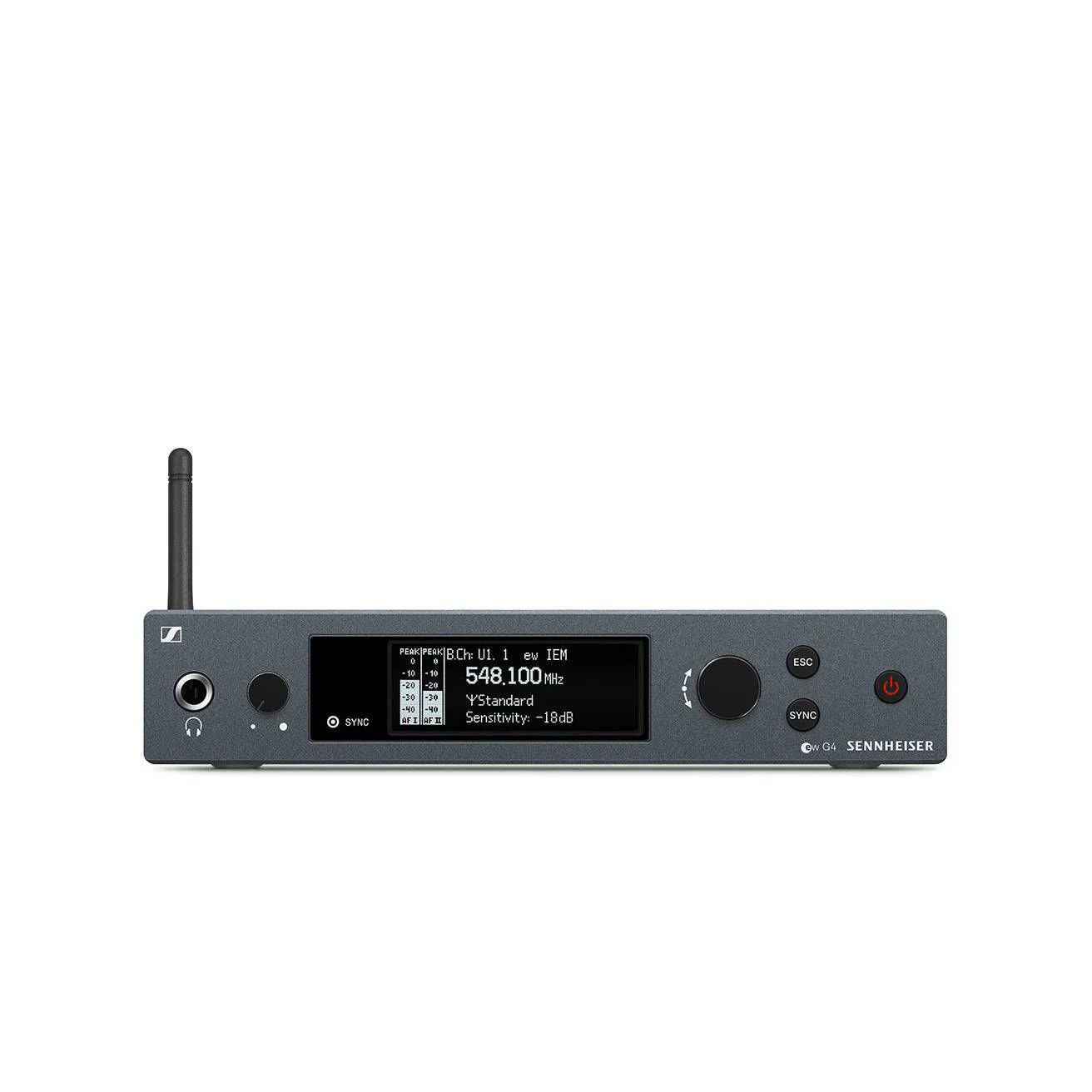

• Half-rack stereo transmitter in a full-metal housing with OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Compatible with Sennheiser WSM control software for flexible frequency allocation
• Up to 16 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 50 mW) depending on country regulations

Specifications

General

• Receiver Principle: Adaptive Diversity
• RF Sensitivity: <4 uV, typ. typ. 1.6 uV for 52 dBA rms S/N
• Total Harmonic Distortion: <0.9%
• AF Frequency Response: 25 Hz to 15 kHz
• Battery Operating Time: around 4 to 6 hours (depending on volume level)

Acoustic Properties

• Signal_to_Noise_Ratio: <90 dB
• Squelch: 5 to 25 dBuV, adjustable in steps of ddB

Inputs/Outputs

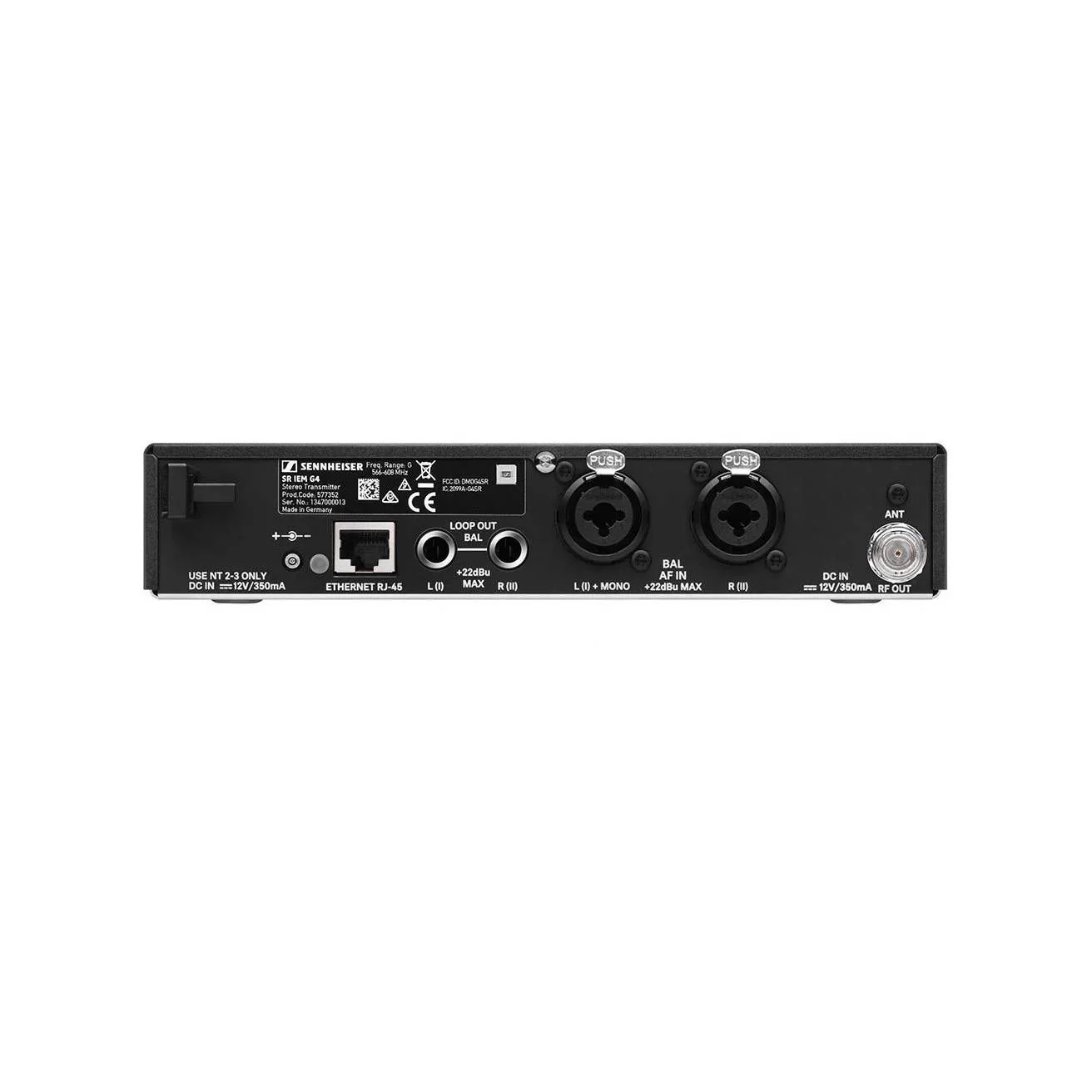

• Audio Input: 2x XLR-3 // 1/4'' (6.3mm) Jack Combo Socket, Electronically balanced
• Audio Output: 1/4'' (6.3mm) stereo jack socket, balanced
• Antenna Output: BNC socket, 50 Ω
