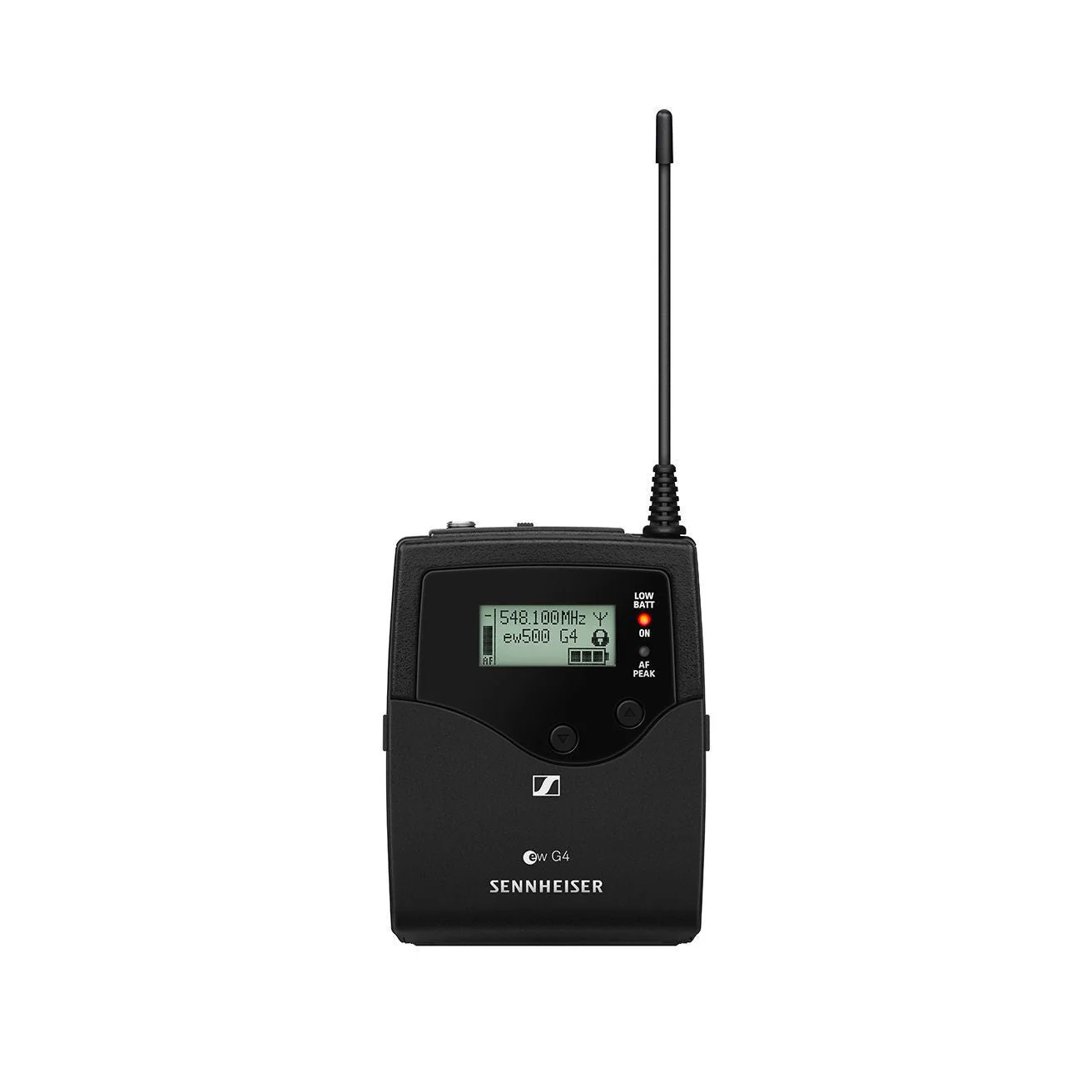

Powerful bodypack transmitter with increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems.

---

Features

• Powerful bodypack transmitter with increased bandwidth and transmission power
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

---

Specifications

• Frequency range: GBw: 606 - 678 MHz
• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: 0.9 %
• Weight: (incl. batteries) approx. 160 g
• Signal-to-noise ratio: 115 dBA
• RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth: up to 88 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption:
  at nominal voltage: typ. 180 mA
  with transmitter switched off: 25 μA
• Input impedance: 40 kΩ, unbalanced / 1 MΩ
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ±15 ppm

What's in the box

• SK 500 G4 bodypack transmitter
• 2 AA batteries
• pouch
• quick guide
• safety guide
• manufacturer declaration sheet
