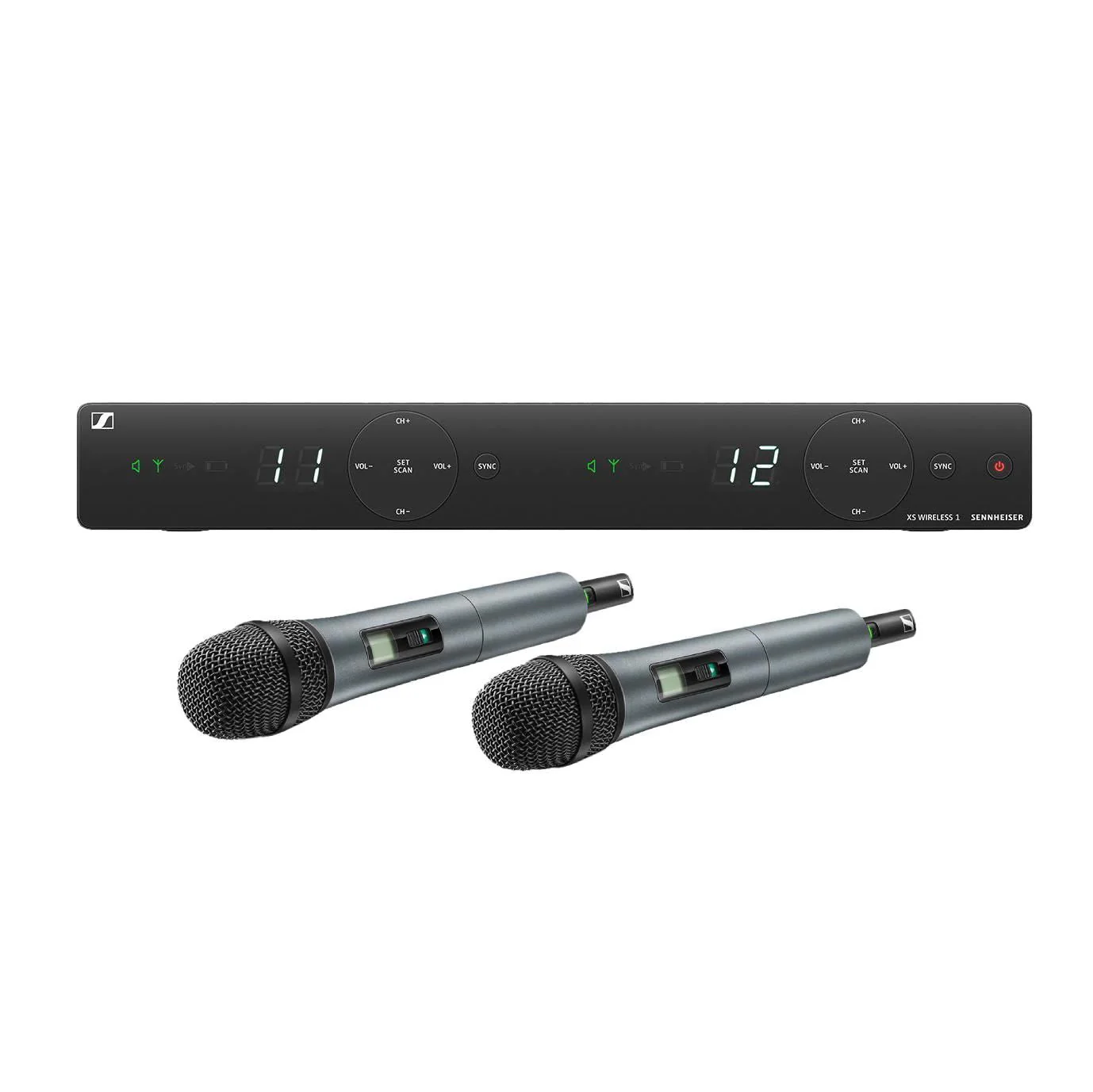

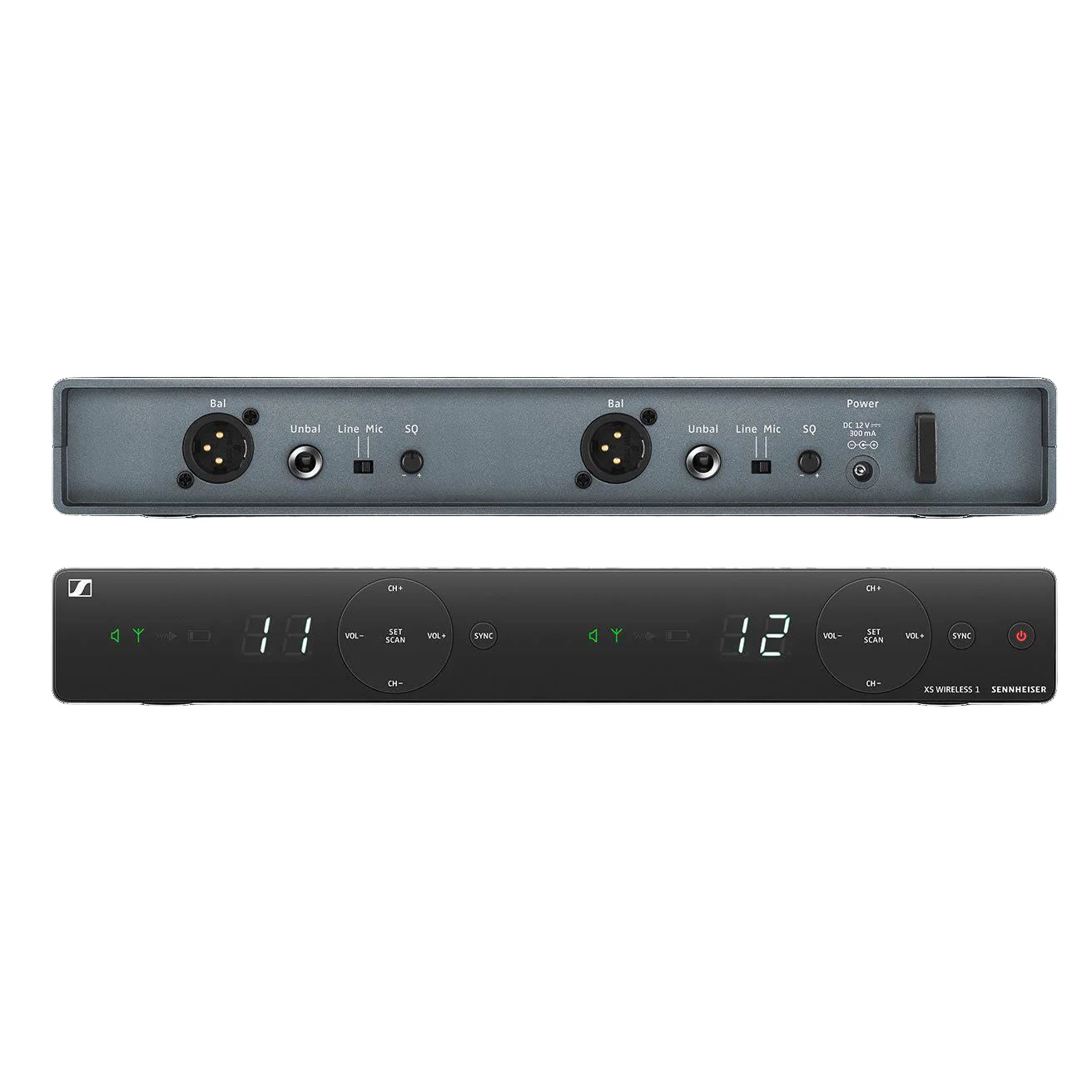

XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser''s popular XS Wireless 1 series.

---

Features

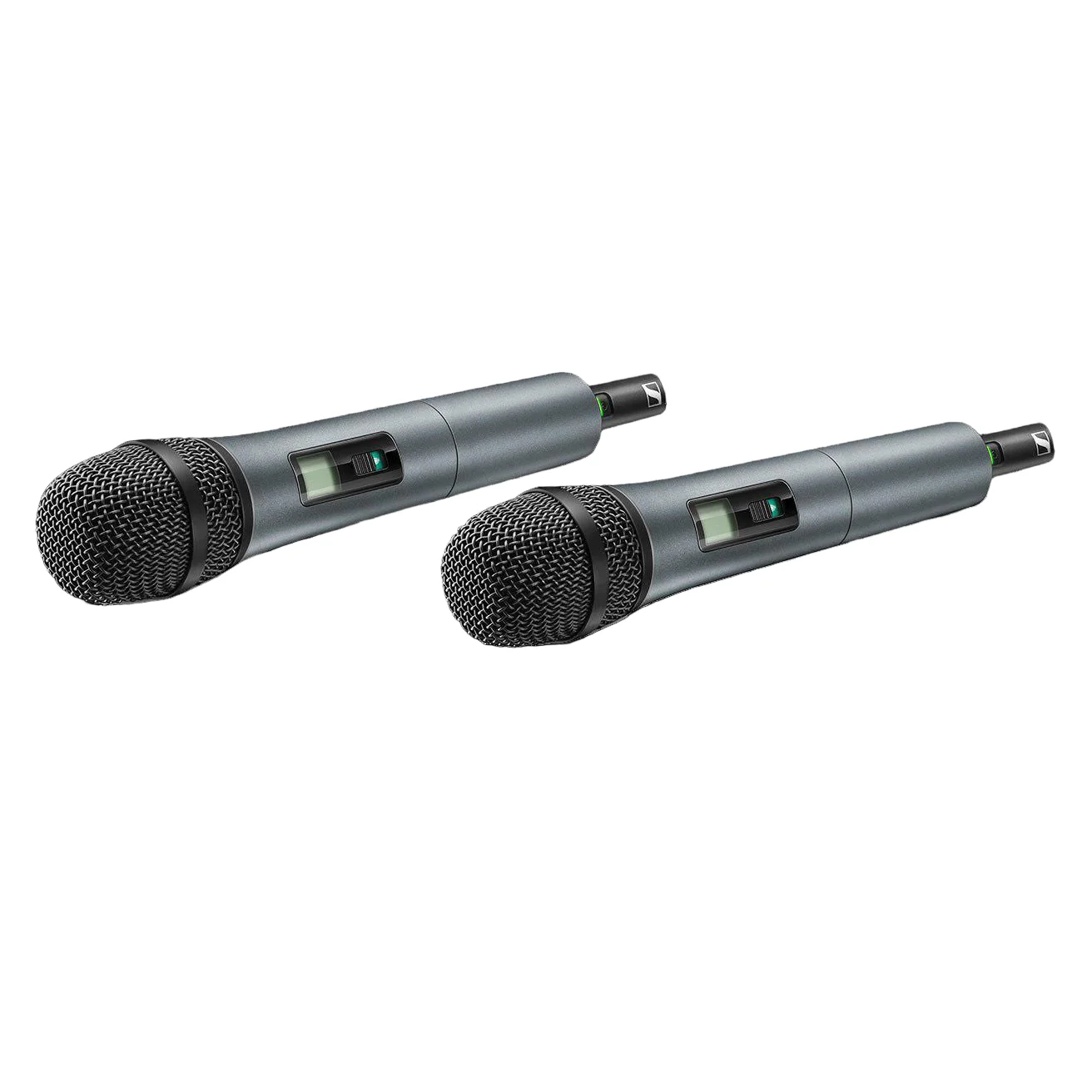

• Excellent live sound featuring Sennheiser''s renowned evolution microphone capsules

• Antenna-switching 2-channel diversity reception

• Integrated antennas

• Automatic frequency management and synchronization via remote channel for easy setup

• Selectable UHF frequencies within a large bandwidth

• Up to 10 compatible channels

---

Specifications

• Dimensions: approx. 320 x 126.5 x 42 mm
• Weight: approx. 620 g
• Power supply: 12 V DC nom. / 300 mA
• Output voltage: (at peak deviation, 1 kHz AF) 1/4“ (6.3 mm) socket (unbalanced): +6 dBu
• Housing: Rugged ABS housing
• Sensitivity: < 3 μV at 52 dB(A) rms S/N (at peak deviation)
• Squelch: Adjustable from 3 dBμV to 28 dBμV
• AF frequency response: 50 to 16,000 Hz (–3 dB)
• Audio adjustment range: 45 dB, adjustable in 5 dB steps
• Line / Mic level: 20 dB, switchable
• Receiver Principle: Double superheterodyne
• Diversity principle: Antenna switching diversity via internal antennas

---
